When it comes to setting up a car audio system, wiring a dual voice coil subwoofer correctly is crucial for optimal performance. Dual voice coil subwoofers offer more flexibility in terms of wiring options, allowing you to customize the impedance and power handling of your subwoofer to suit your specific needs.
Understanding how to wire a dual voice coil subwoofer can seem daunting at first, but with the right information and a good wiring diagram, you can easily set up your subwoofer for maximum output and sound quality.

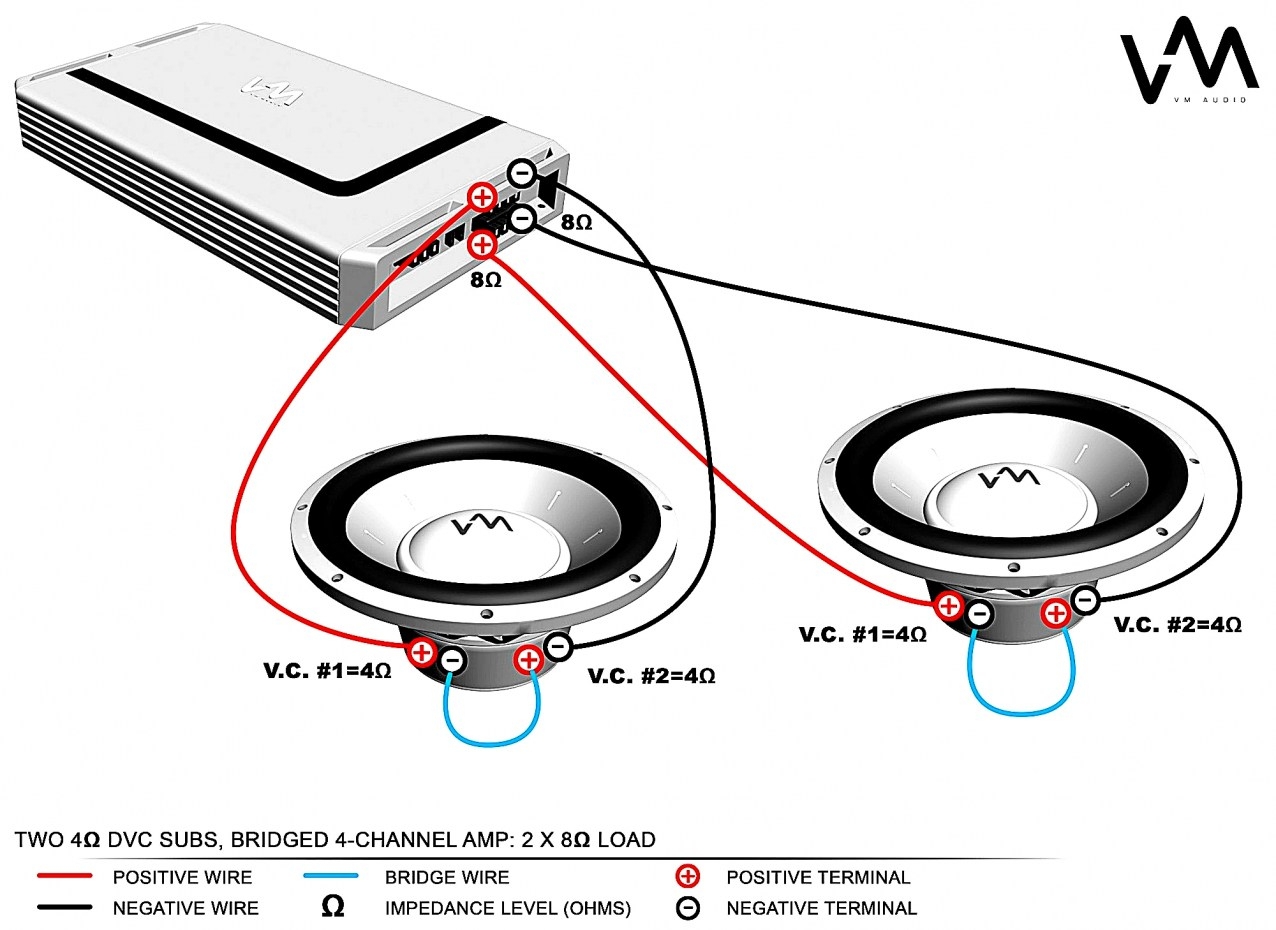

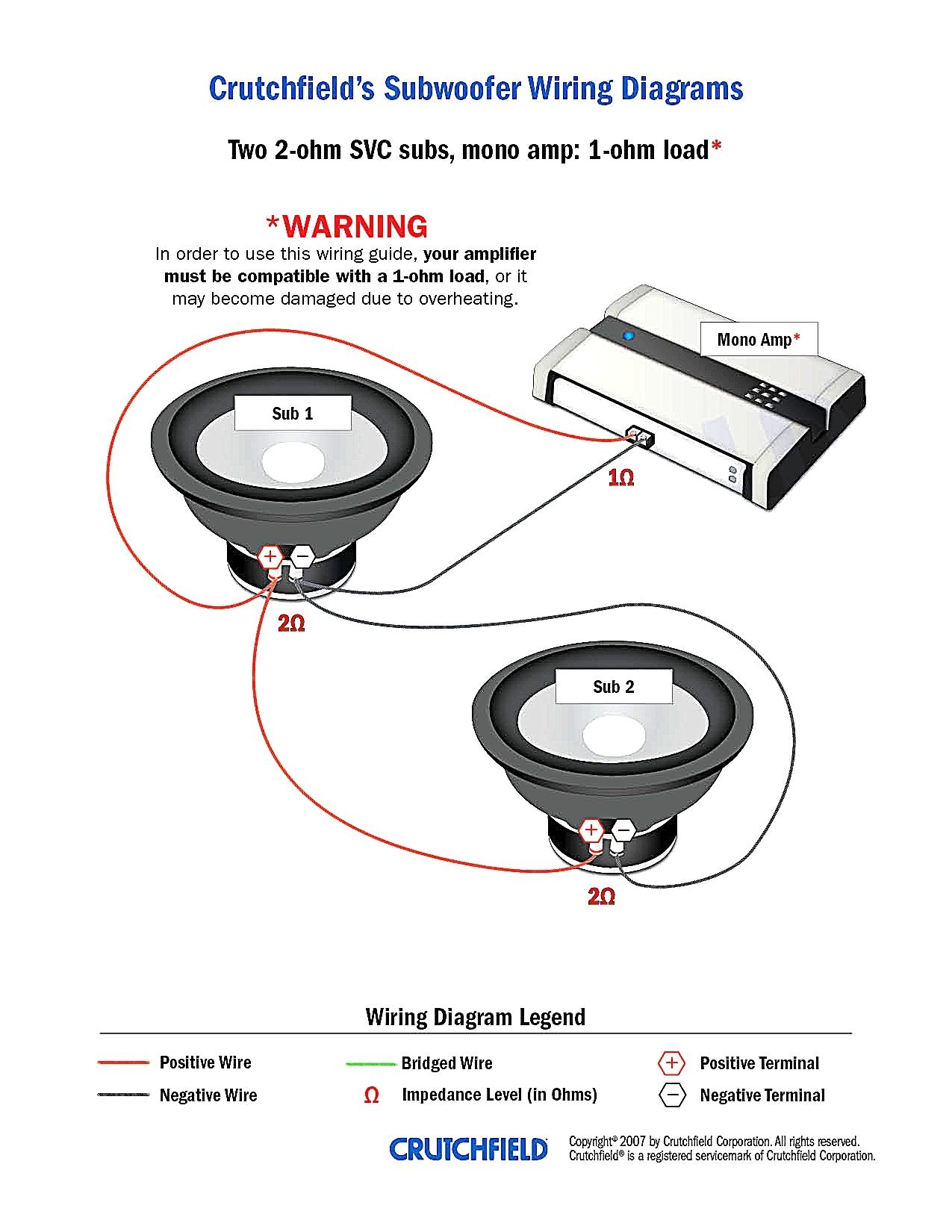

Dual Voice Coil Subwoofer Wiring Diagram
Dual Voice Coil Subwoofer Wiring Diagram
When wiring a dual voice coil subwoofer, it is important to consider whether you want to wire the subwoofer in series or parallel. Wiring the subwoofer in series will increase the impedance and reduce the power output, while wiring in parallel will decrease the impedance and increase the power output.

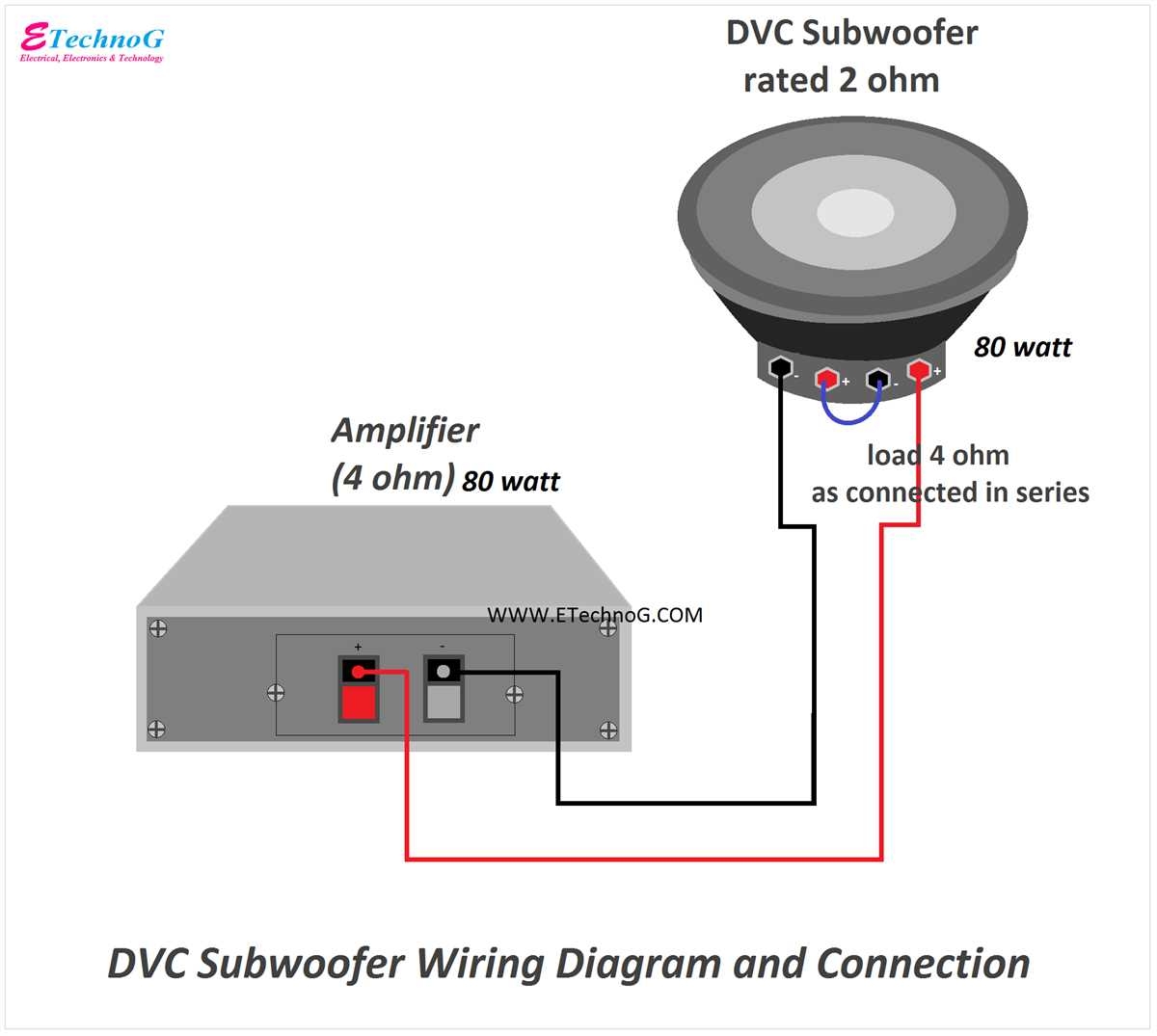

To wire a dual voice coil subwoofer in series, connect the positive terminal of one voice coil to the positive terminal of the amplifier, and then connect the negative terminal of that voice coil to the positive terminal of the other voice coil. Finally, connect the negative terminal of the second voice coil to the negative terminal of the amplifier.
Alternatively, to wire a dual voice coil subwoofer in parallel, connect both positive terminals of the voice coils together and then connect both negative terminals together. Finally, connect the positive terminals to the positive terminal of the amplifier and the negative terminals to the negative terminal of the amplifier.
By following a wiring diagram and understanding the basic principles of wiring dual voice coil subwoofers, you can ensure that your subwoofer is set up correctly and will deliver the best possible sound quality in your car audio system.
Remember to always consult the user manual of your subwoofer and amplifier to ensure that you are wiring your system correctly and safely. With the right knowledge and attention to detail, you can enjoy powerful bass and impressive sound quality from your dual voice coil subwoofer.
