When it comes to installing a doorbell transformer, it is important to understand the wiring diagram to ensure proper installation. A doorbell transformer is a small device that steps down the voltage from your home’s electrical system to power your doorbell chime. It is essential for the operation of your doorbell system and must be wired correctly to avoid any issues.
Before beginning the installation process, it is crucial to turn off the power to the area where you will be working. This will help prevent any accidents or electrical shocks while handling the wiring. It is also recommended to consult a professional electrician if you are unsure about any steps in the process.

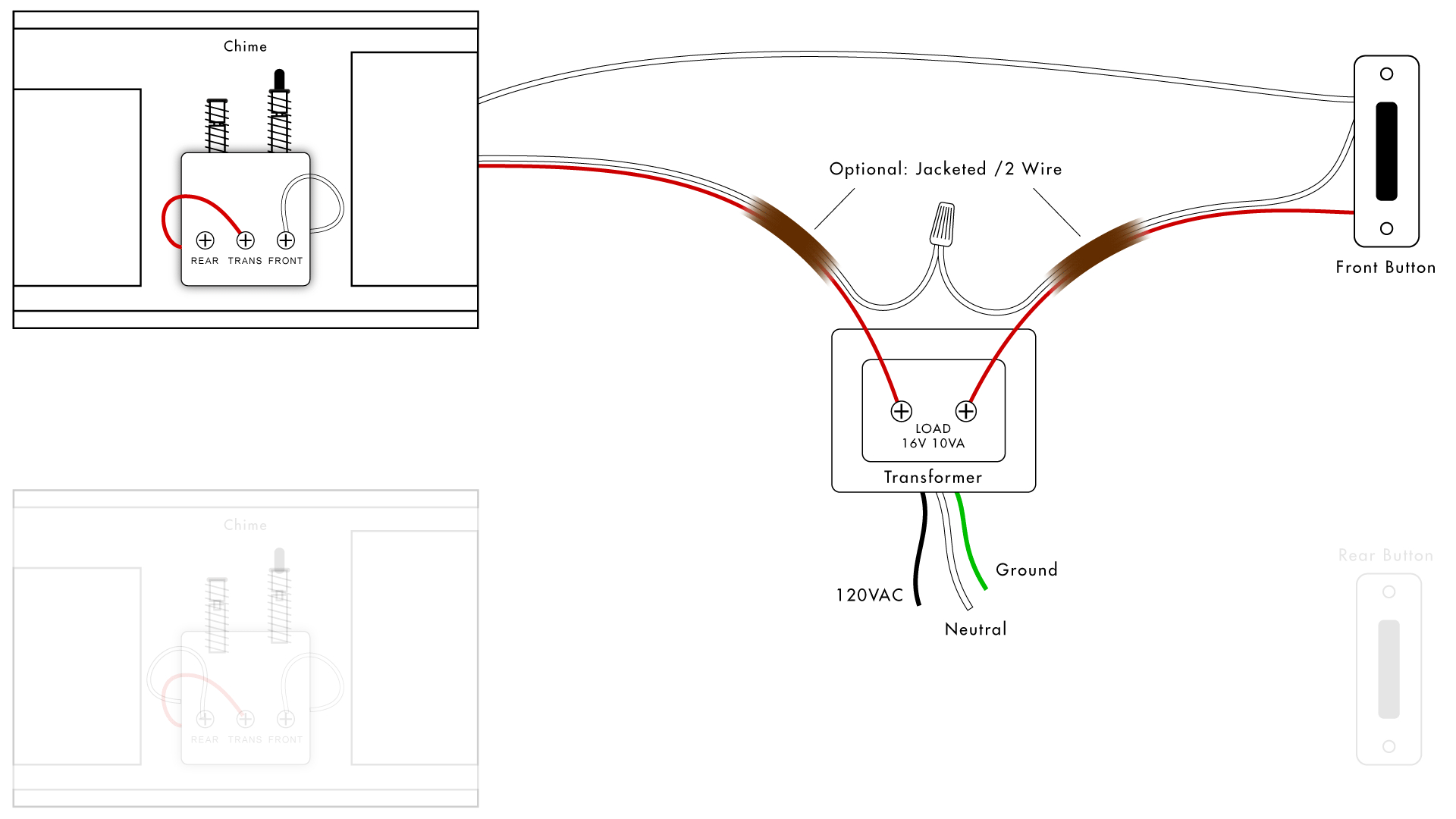

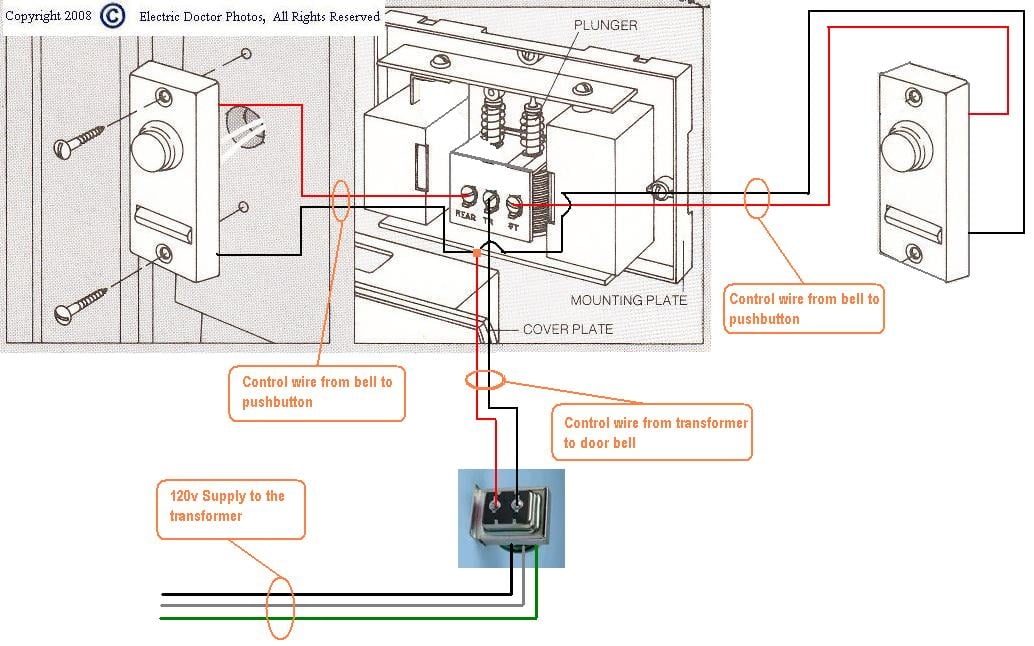

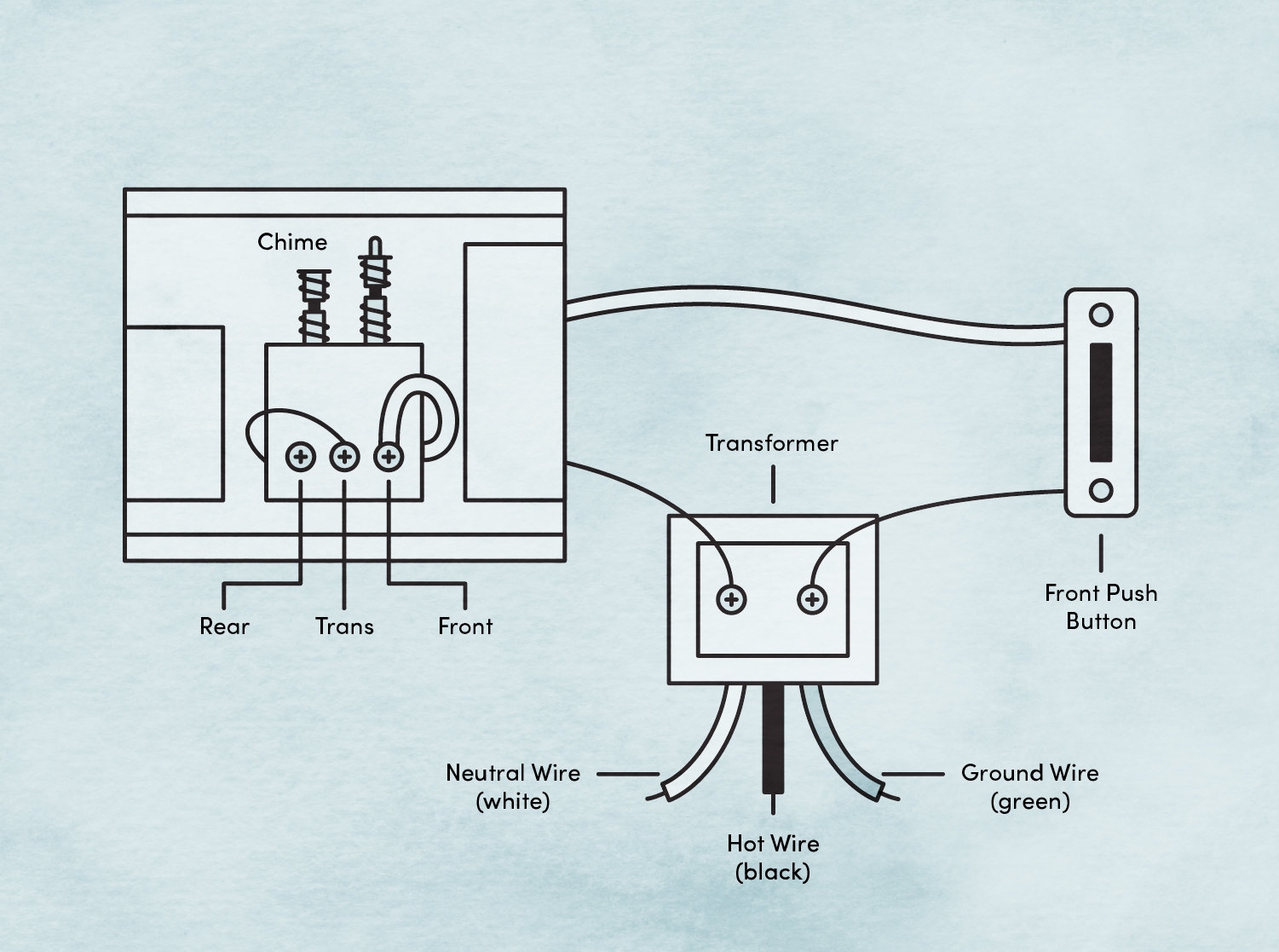

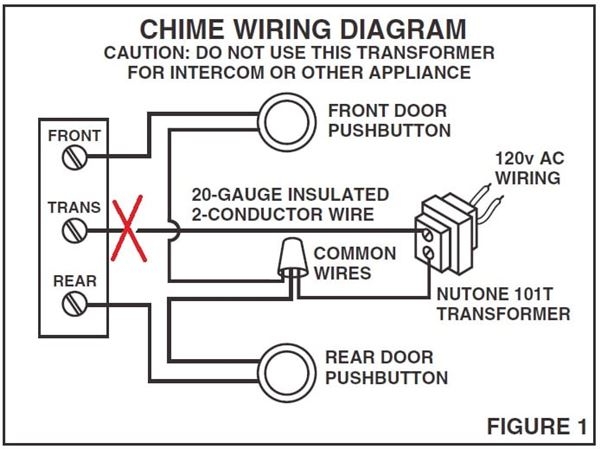

Doorbell Transformer Wiring Diagram
First, locate the doorbell transformer in your home. It is usually mounted near the main electrical panel or in the attic. Once you have found the transformer, you will need to identify the two wires that are connected to it. These wires are typically labeled as “front” and “trans” on the transformer.
Next, you will need to connect the wires from the transformer to the doorbell chime. The “front” wire should be connected to the front terminal on the chime, while the “trans” wire should be connected to the transformer terminal on the chime. Make sure to secure the connections with wire nuts to ensure a strong and reliable connection.
Finally, you will need to connect the transformer to the power source. The transformer will have two additional wires that need to be connected to the main electrical panel. These wires should be connected to the 120-volt input terminals on the panel. Once all the connections are secure, you can turn the power back on and test your doorbell system to ensure it is working properly.
Overall, understanding the doorbell transformer wiring diagram is essential for a successful installation. By following the correct steps and ensuring all connections are secure, you can enjoy a fully functional doorbell system in your home.
