Dimmer switches are a great way to control the lighting in a room and create the perfect ambiance. However, installing a dimmer switch can be a bit tricky if you don’t know the proper wiring diagram. In this article, we will discuss the steps to wire a dimmer switch correctly.
Before you start, make sure to turn off the power to the circuit you will be working on to avoid any accidents. It’s also important to follow the manufacturer’s instructions that come with your dimmer switch to ensure proper installation.
Dimmer Switch Wiring Diagram
1. Identify the wires: The first step is to identify the wires in your electrical box. Typically, you will have a black wire (hot), a white wire (neutral), and a green or copper wire (ground). If you have a red wire, this is usually the wire that connects to the dimmer switch.

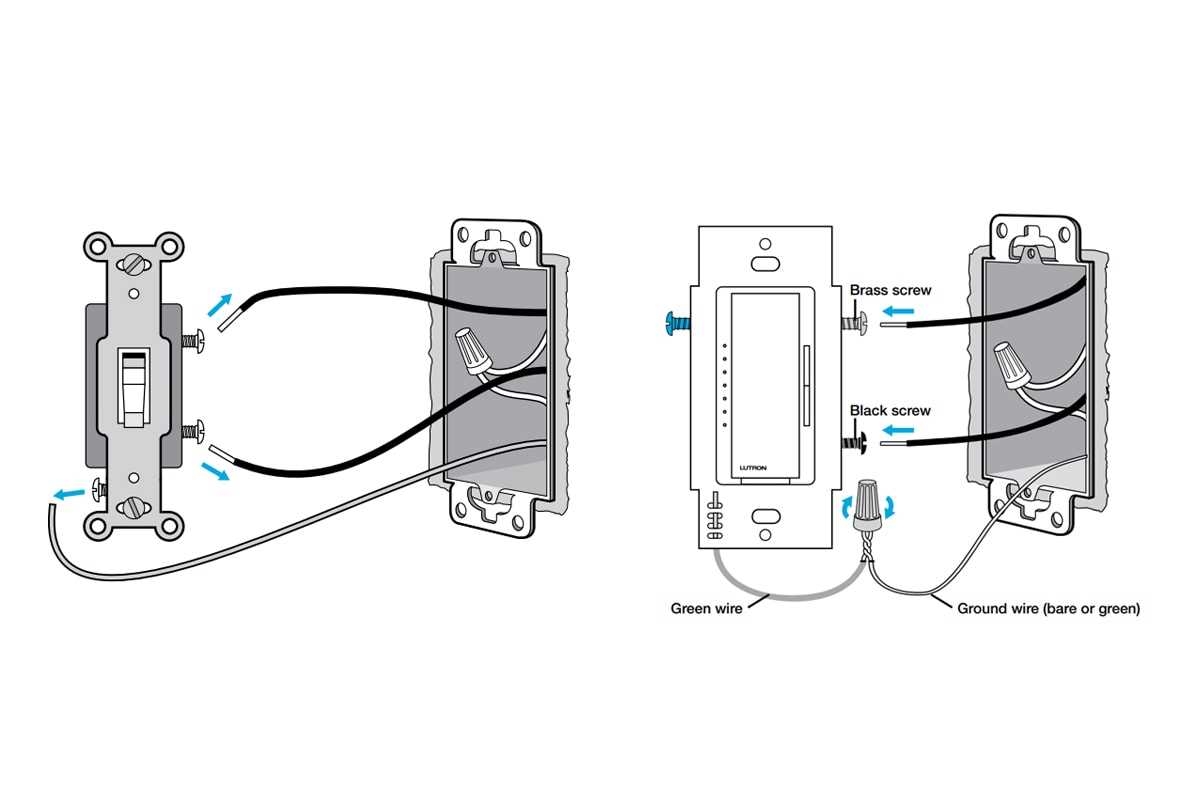

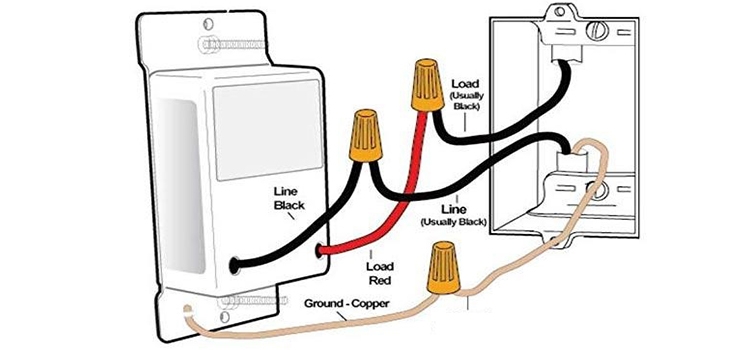

2. Connect the wires: Start by connecting the black wire from the electrical box to the black wire on the dimmer switch. Next, connect the white wire to the white wire on the dimmer switch. If you have a red wire, connect it to the red wire on the dimmer switch. Finally, connect the green or copper wire to the green screw on the dimmer switch.
3. Install the dimmer switch: Once all the wires are connected, carefully tuck them back into the electrical box and secure the dimmer switch with the screws provided. Make sure the switch is flush against the wall and then turn the power back on to test the dimmer.
4. Test the dimmer switch: After turning the power back on, test the dimmer switch by sliding the switch up and down to adjust the brightness of the lights. If the dimmer switch is working properly, you have successfully wired it correctly.
5. Troubleshooting: If the dimmer switch is not working as expected, double-check the wiring to ensure all connections are secure. If everything looks correct and the switch is still not working, it may be a faulty switch that needs to be replaced.
Overall, wiring a dimmer switch is a simple process as long as you follow the proper steps and take the necessary precautions. By following the wiring diagram provided by the manufacturer and our guide, you can easily install a dimmer switch in your home and enjoy customizable lighting in any room.
