When it comes to setting up a network, understanding how to wire Cat 5 cables is essential. Cat 5 cables are commonly used for Ethernet connections and can support speeds up to 1000 Mbps. By following a proper wiring diagram, you can ensure that your network connection is stable and reliable.
Whether you are setting up a home network or a large office network, having a clear understanding of Cat 5 wiring can make the installation process much smoother. With the right tools and knowledge, you can easily create custom-length cables to fit your specific needs.
Diagram Cat 5 Wiring

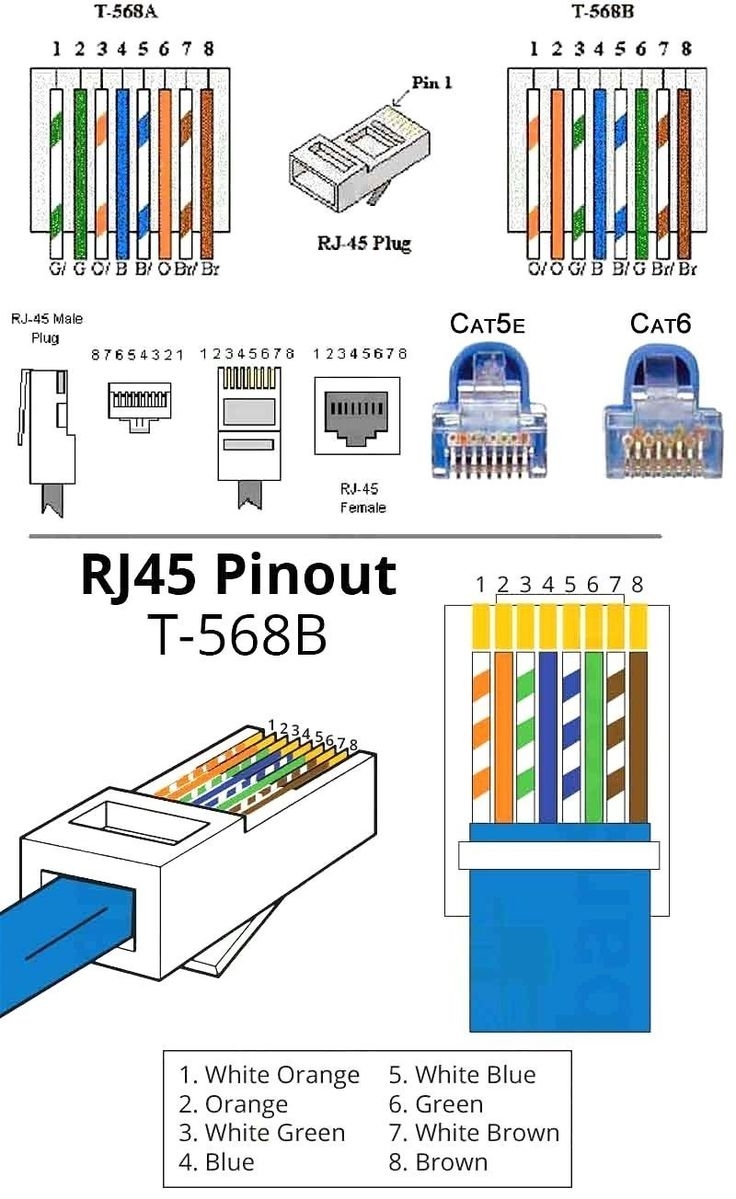

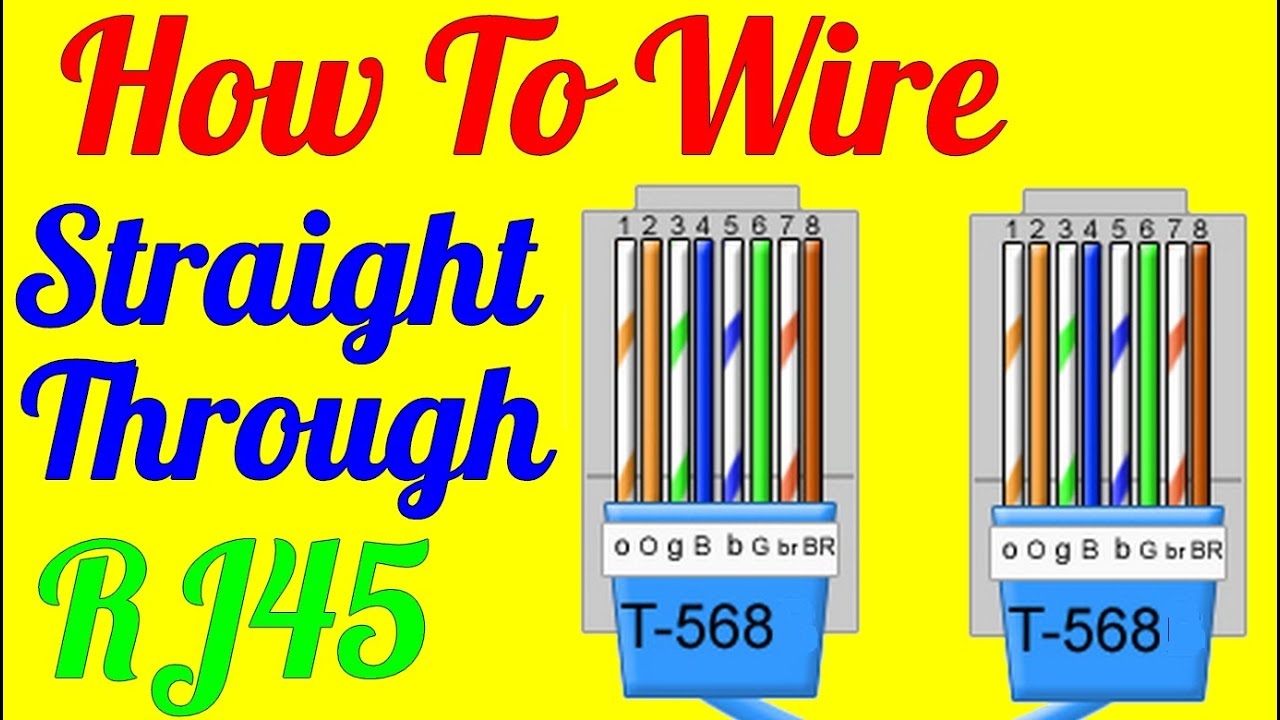

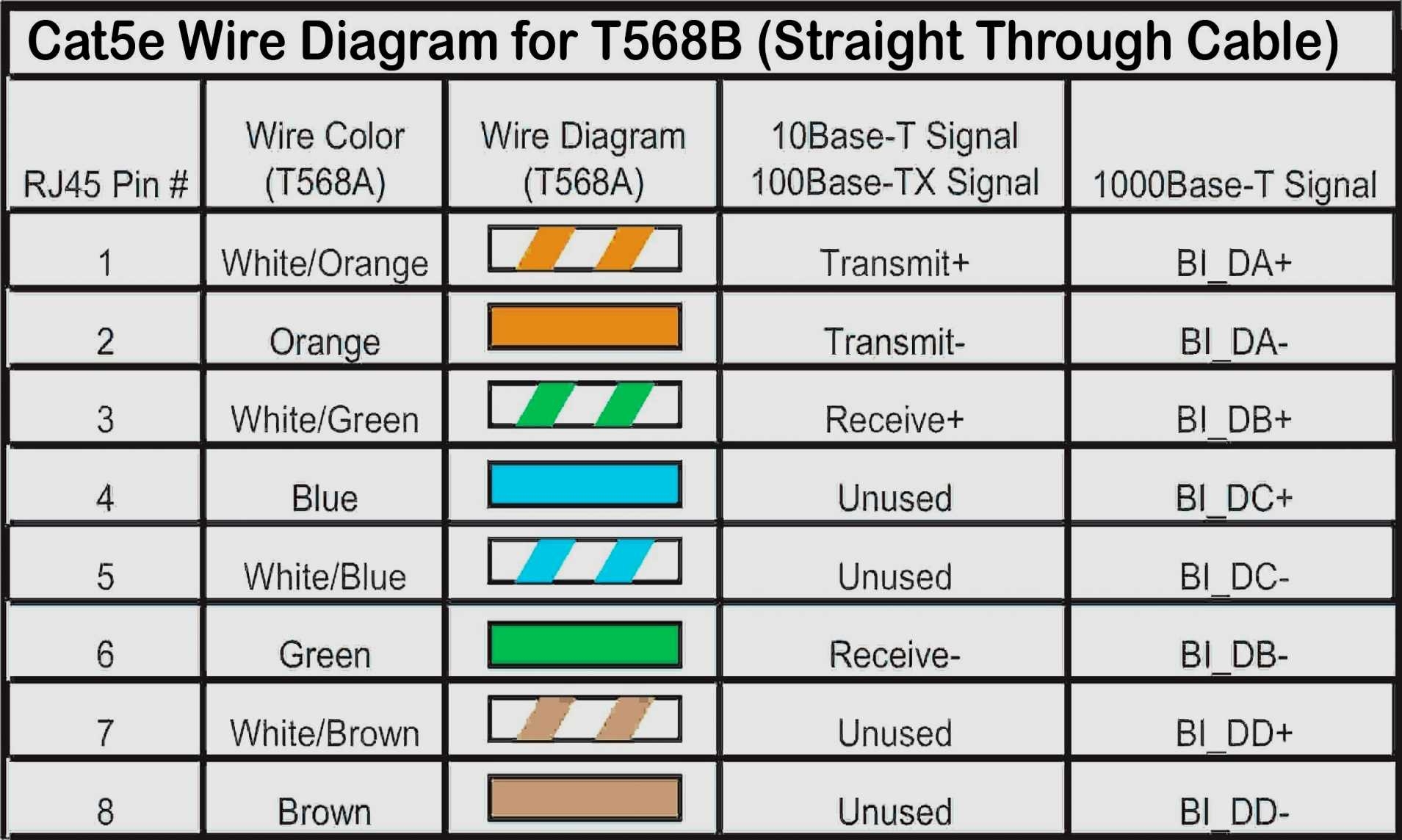

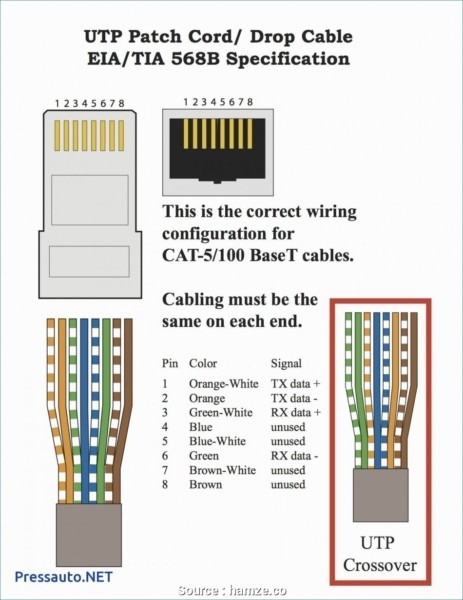

One of the most common ways to wire Cat 5 cables is using the T568A or T568B wiring standard. These standards define the order in which the individual wires should be connected to the RJ45 connector. By following a consistent wiring pattern, you can avoid connectivity issues and ensure that your network operates efficiently.
To begin wiring a Cat 5 cable, you will need to strip the outer jacket of the cable and separate the individual twisted pairs of wires. The wires are typically color-coded, with each pair consisting of a solid color wire and a striped wire. Following the T568A or T568B standard, you will then arrange the wires in the correct order before crimping them into the RJ45 connector.
Once the wires are properly arranged and crimped, you can use a cable tester to verify the connectivity of the cable. This will ensure that each wire is making the correct connection and that there are no faults or shorts in the wiring. By testing each cable before installation, you can prevent issues that may arise later on.
In conclusion, understanding how to wire Cat 5 cables is essential for creating a reliable network connection. By following a proper wiring diagram and using the appropriate tools, you can easily set up custom-length cables that meet your specific needs. With a stable network connection, you can enjoy fast and reliable internet access for all your devices.
