When it comes to setting up a detached garage sub panel, proper wiring is essential to ensure safety and functionality. A sub panel allows you to expand your electrical system without overloading your main panel, making it a convenient option for powering additional outlets, lights, and appliances in your garage.
Before starting the wiring process, it’s important to have a clear understanding of the electrical codes and regulations in your area. Hiring a licensed electrician is recommended to ensure that the installation is done correctly and meets all safety standards.
Detached Garage Sub Panel Wiring Diagram

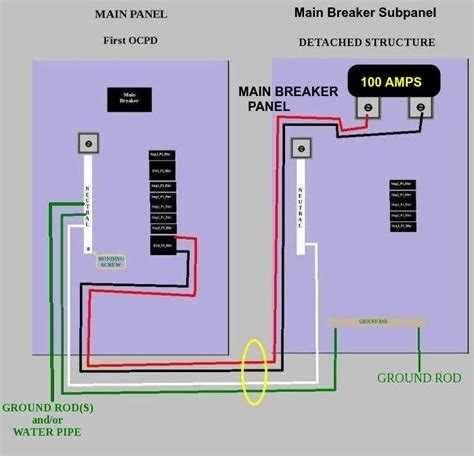

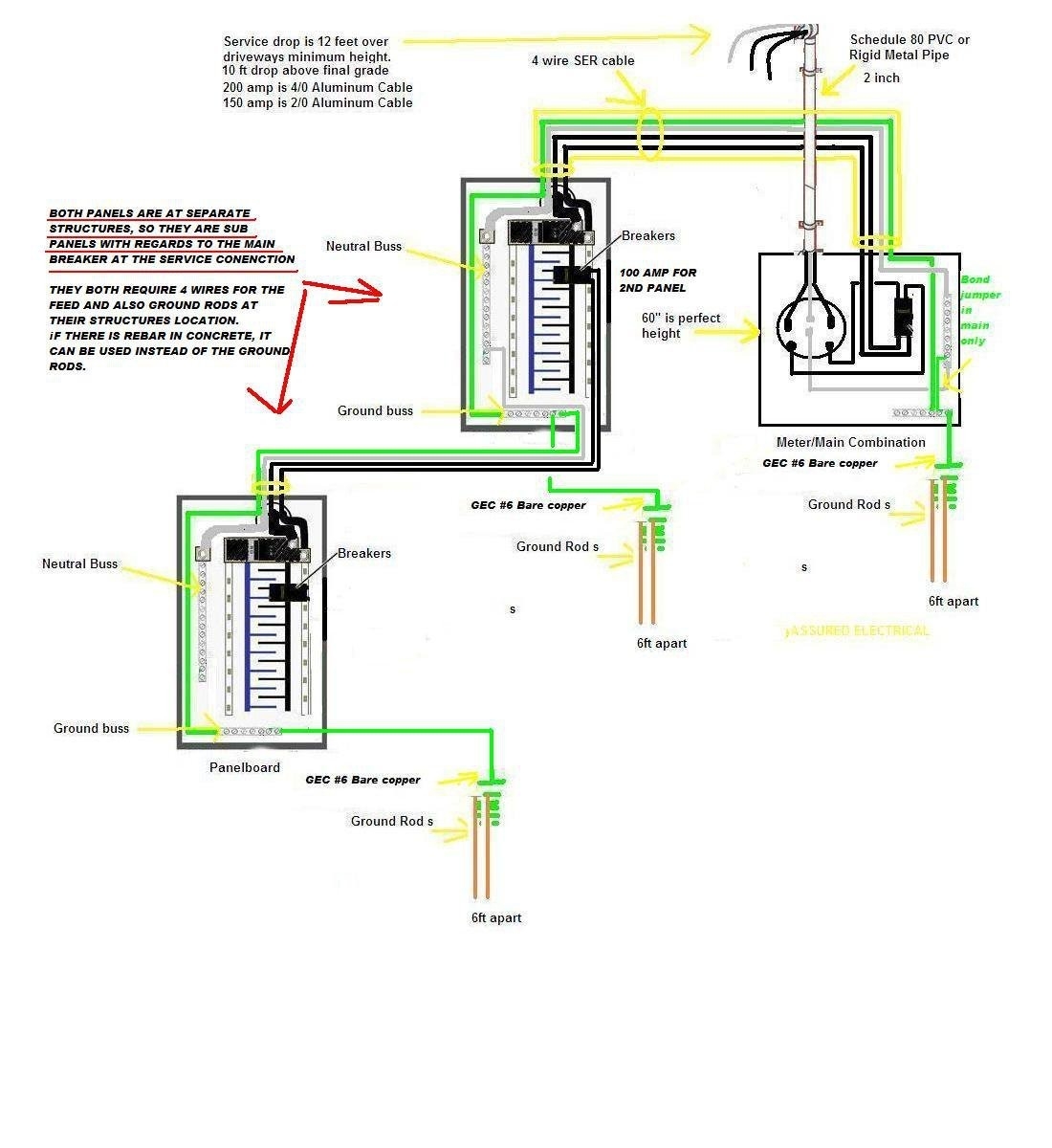

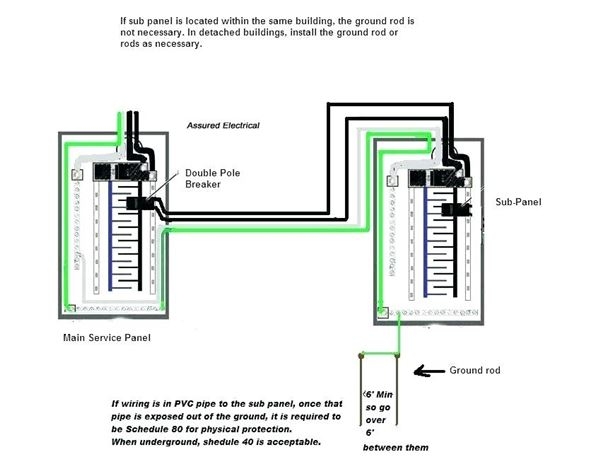

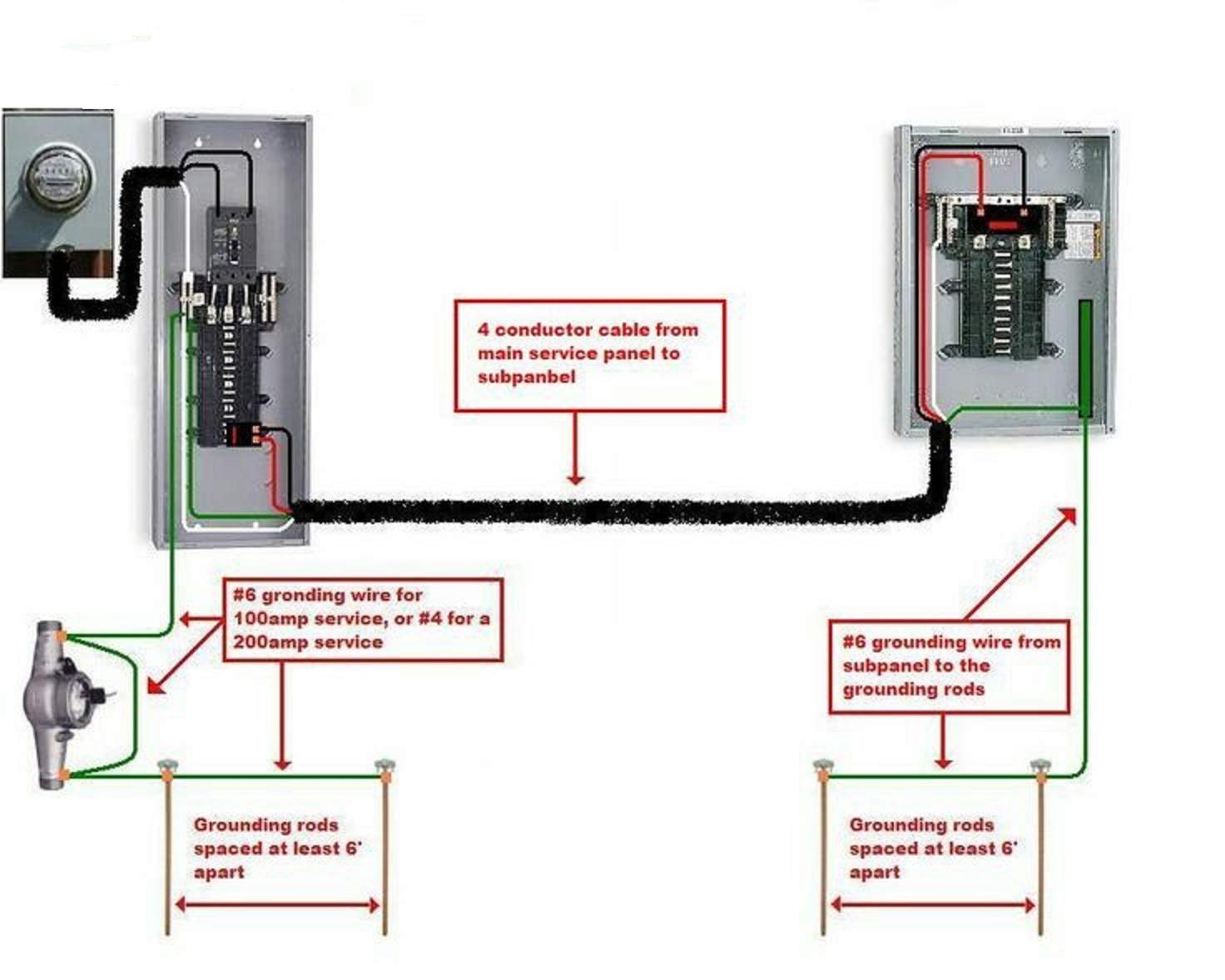

Here is a basic wiring diagram for a detached garage sub panel:
1. Start by installing a 60-amp sub panel in your garage. This panel should be mounted on a sturdy surface and connected to the main panel in your home with a 4-wire feeder cable.
2. The feeder cable should consist of two hot wires (black and red), a neutral wire (white), and a ground wire (green or bare copper). Make sure to follow the manufacturer’s instructions for proper installation.

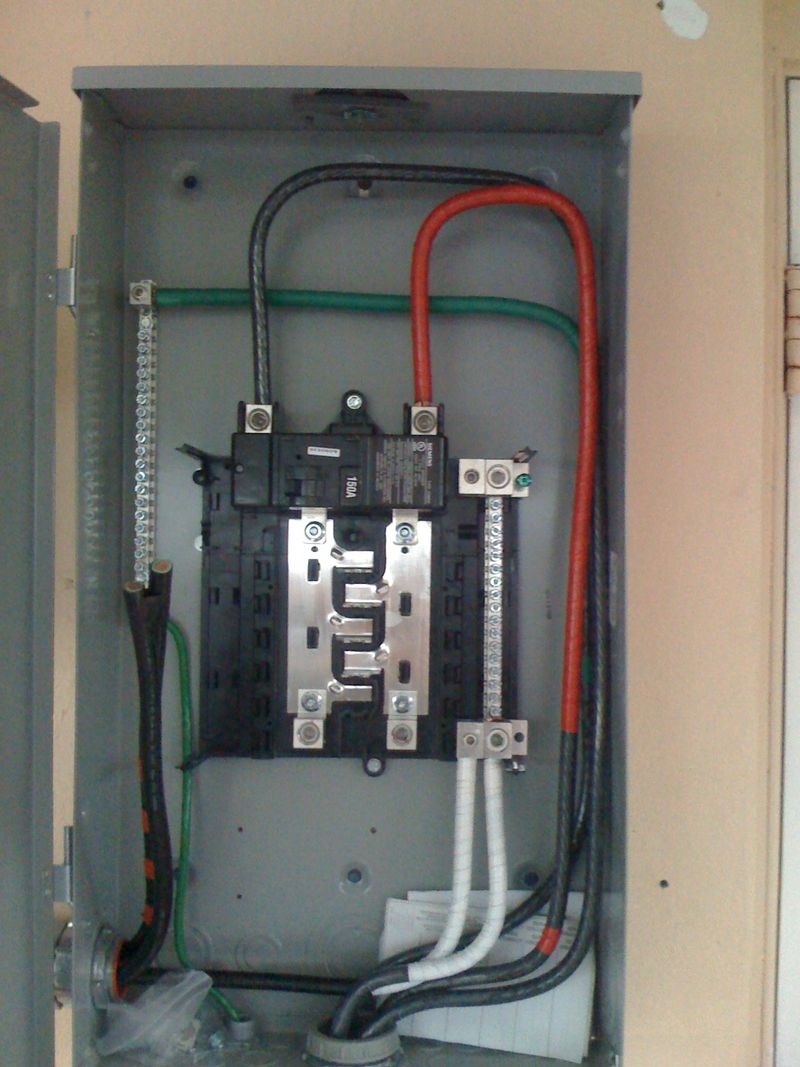

3. Connect the hot wires to the main breaker in the sub panel, the neutral wire to the neutral bus bar, and the ground wire to the ground bus bar. Make sure to tighten all connections securely to prevent any loose wires.
4. Install individual circuit breakers in the sub panel for each circuit you plan to power in your garage. Label each breaker accordingly to easily identify which circuit it controls.
5. Run separate wiring from each circuit breaker to the outlets, lights, or appliances you are powering in your garage. Use the appropriate wire gauge for the load and distance to ensure proper voltage and safety.
By following this wiring diagram and consulting with a professional electrician, you can safely and effectively set up a detached garage sub panel to meet your electrical needs. Remember to always prioritize safety and compliance with local codes when working with electricity.
