When it comes to installing a new car stereo, one of the most important things to consider is the wiring diagram. Understanding the color codes for the wiring will make the installation process much easier and ensure that your new stereo functions properly.
Each car manufacturer uses their own color-coding system for car stereo wiring. It is crucial to know what each color represents in order to connect the right wires together. This will prevent any potential damage to your stereo or car’s electrical system.
Color Code Car Stereo Wiring Diagram

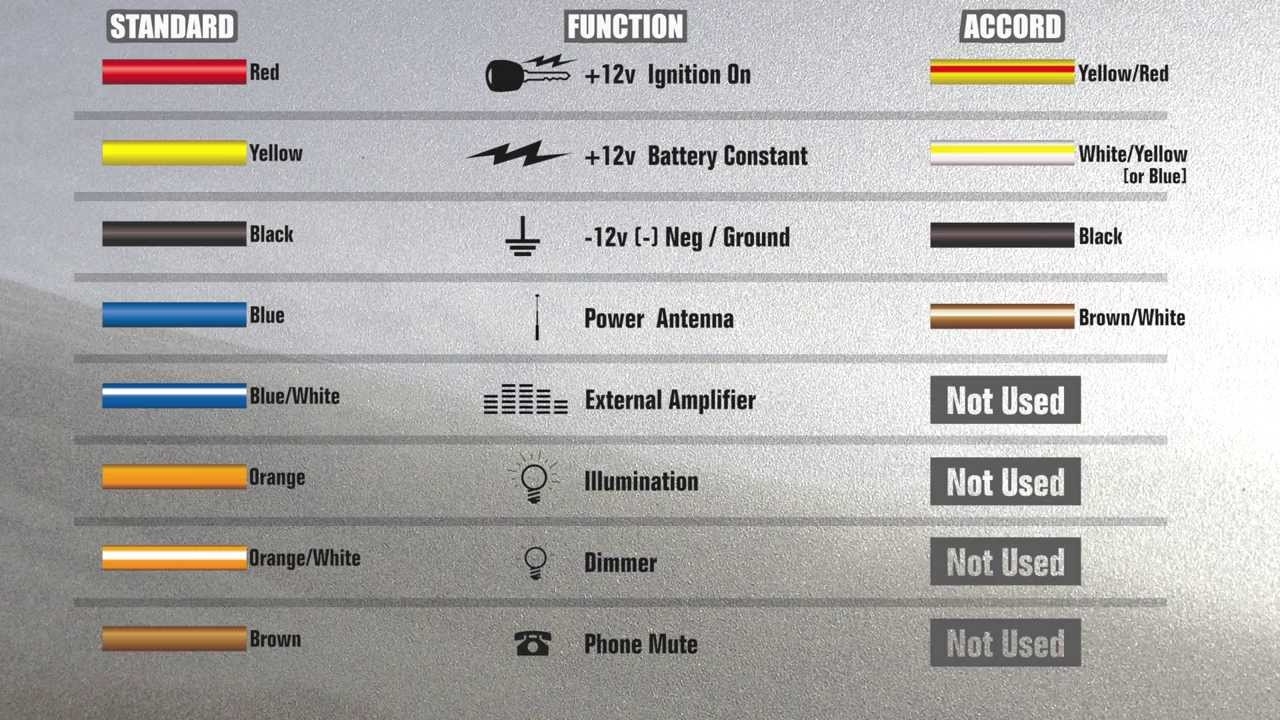

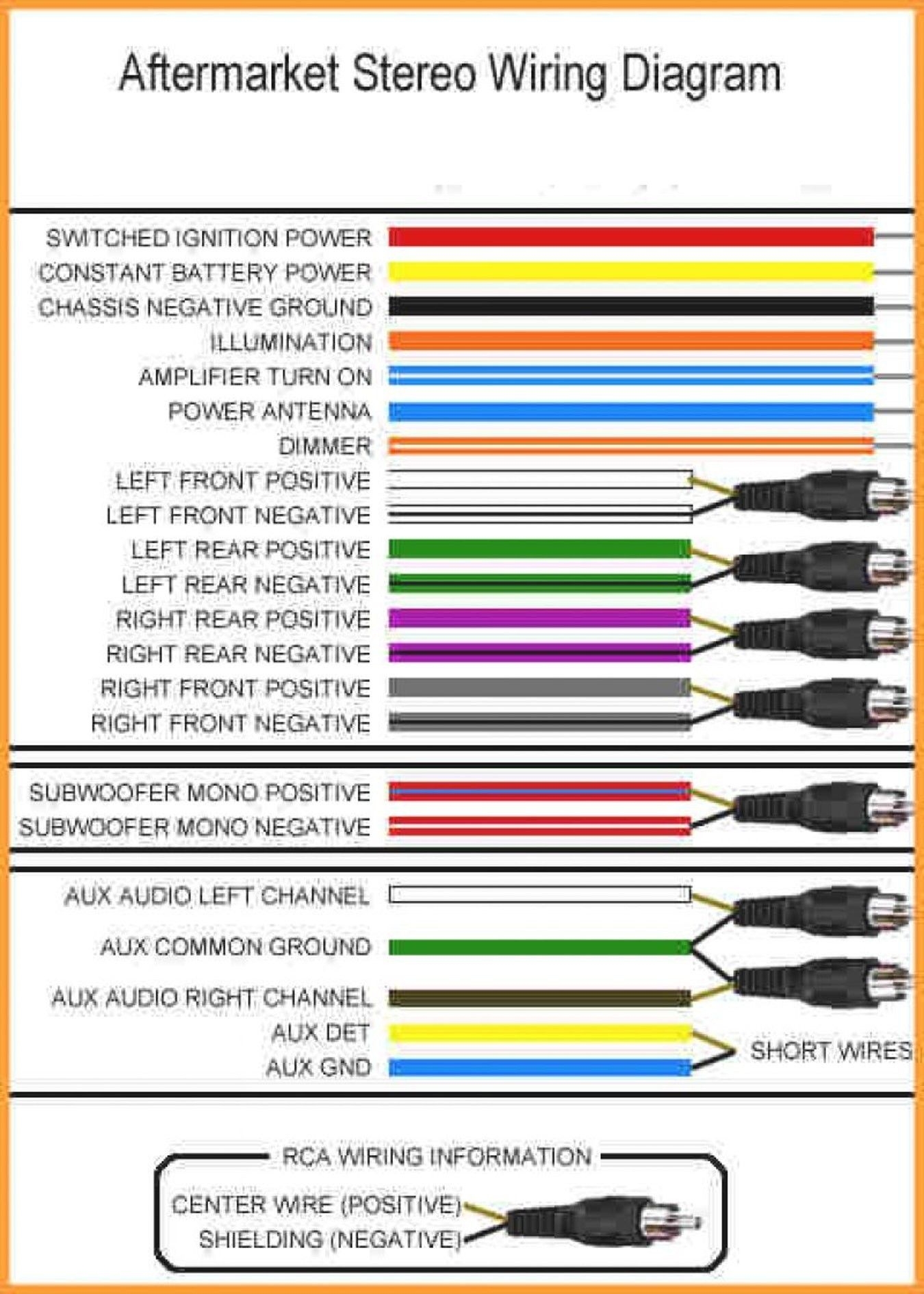

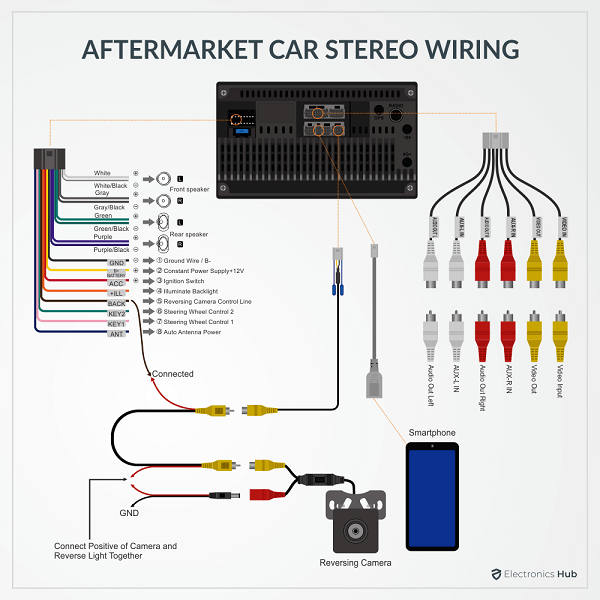

Typically, car stereo wiring diagrams will include colors such as red, yellow, black, blue, green, and white. Each color corresponds to a specific function, such as power, ground, speaker wires, and so on. By following the diagram carefully, you can easily match the wires and make the correct connections.

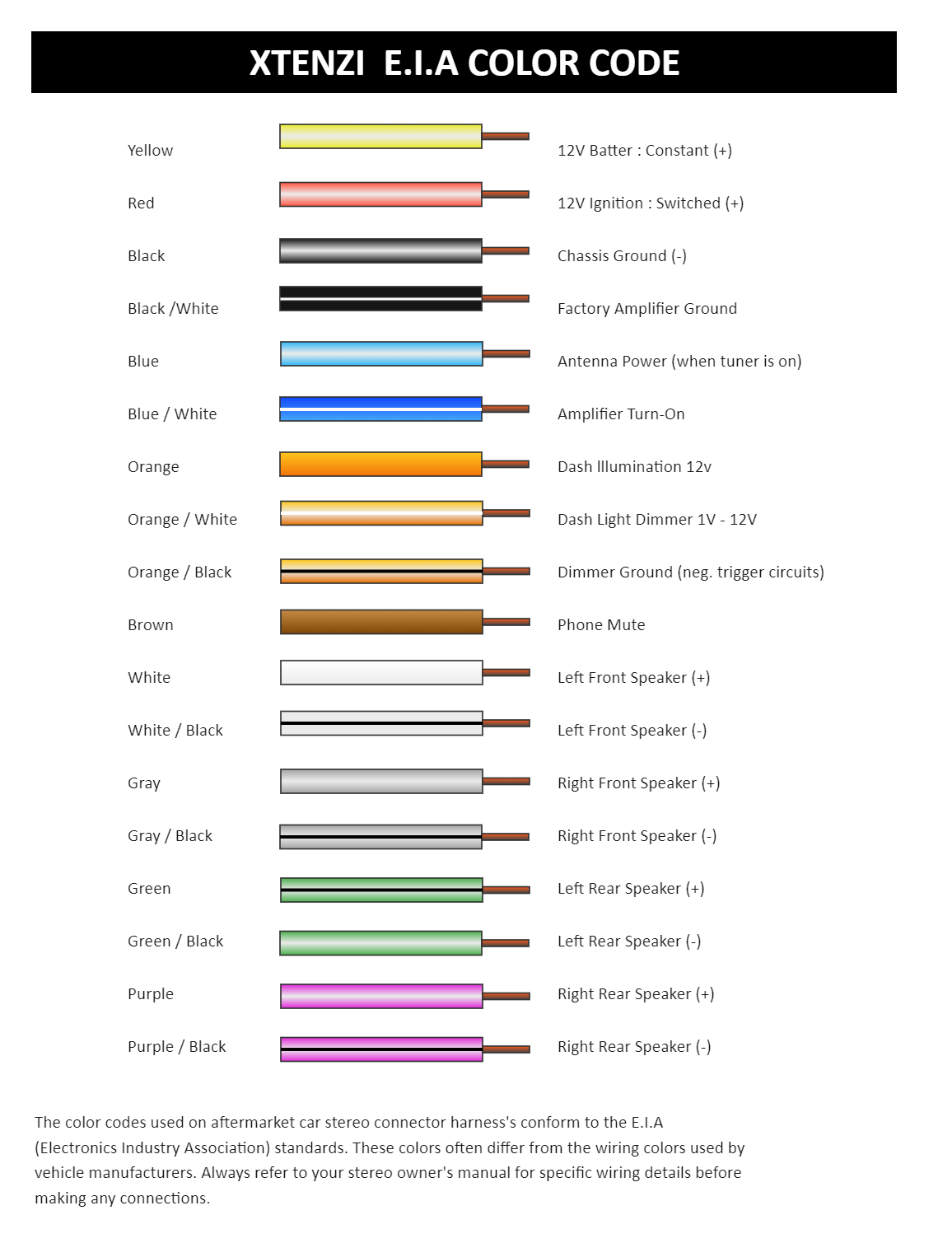

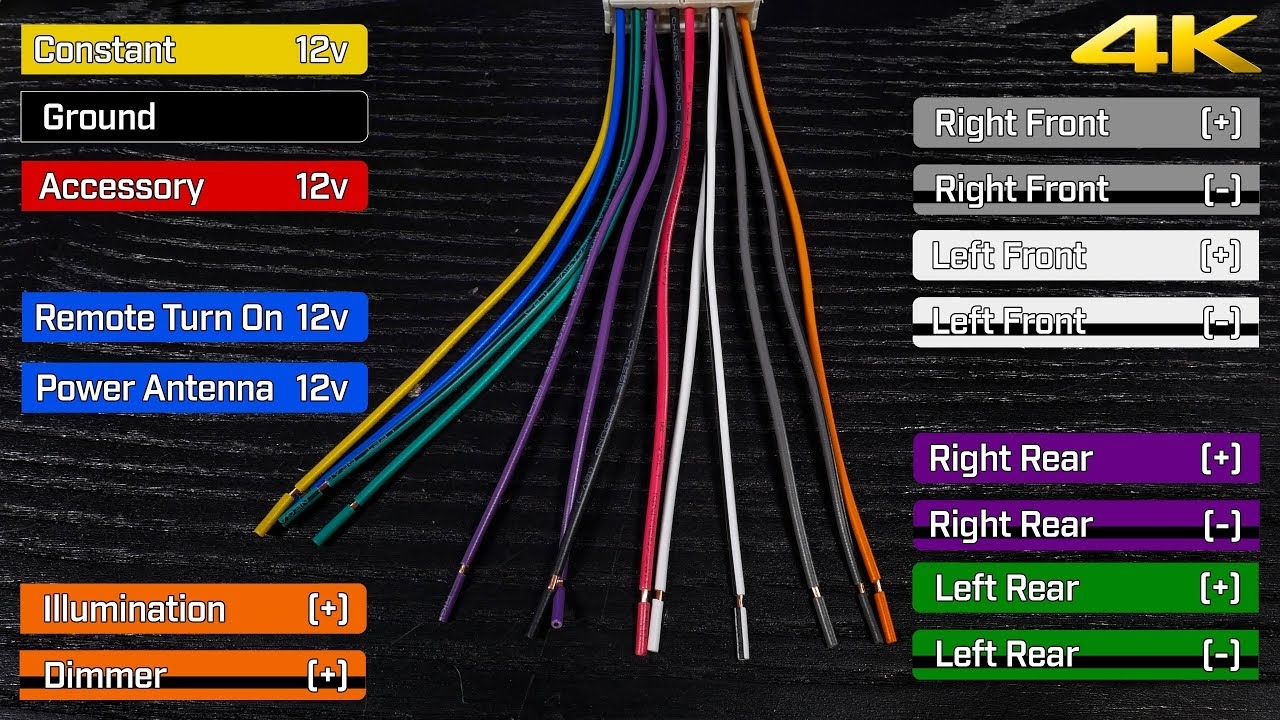

For example, red wires are usually for power, yellow wires are for constant power, black wires are for ground, blue wires are for remote turn-on, and green and white wires are for speakers. By understanding these color codes, you can confidently install your new car stereo without any confusion.

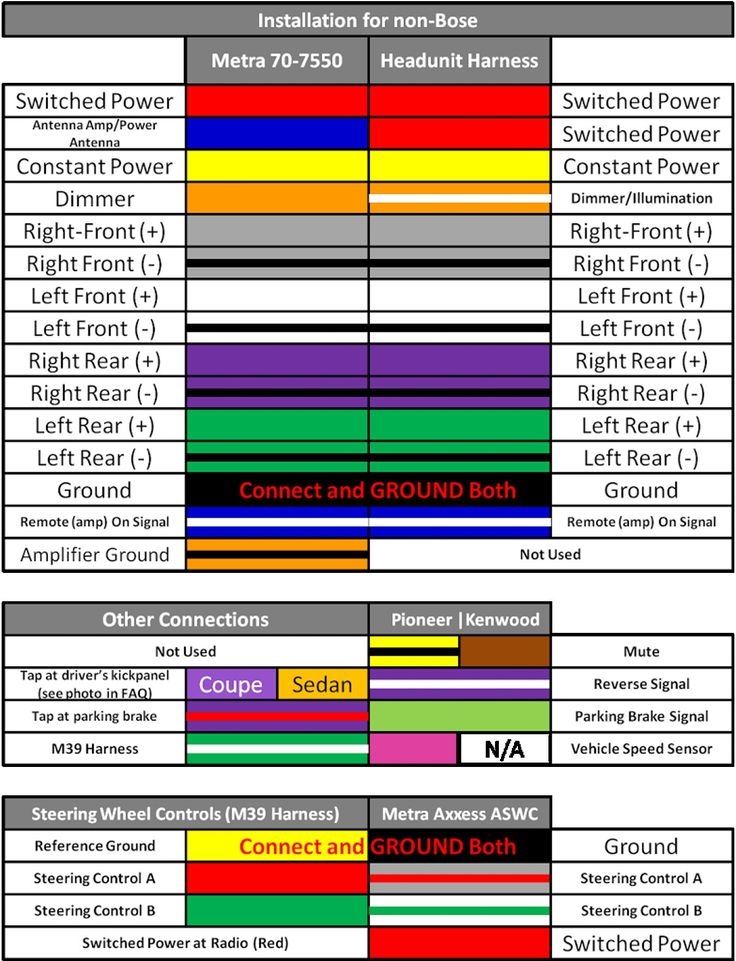

It is important to note that some car stereo manufacturers may have variations in their wiring color codes. In this case, it is best to refer to the specific wiring diagram provided by the manufacturer to ensure that you make the correct connections. Additionally, using a wiring harness adapter can simplify the installation process by matching the colors of the aftermarket stereo to those of the car’s wiring harness.
In conclusion, understanding the color code car stereo wiring diagram is essential for a successful installation of a new stereo in your vehicle. By familiarizing yourself with the color codes and following the wiring diagram carefully, you can ensure that your stereo functions properly and avoid any potential issues. Remember to double-check your connections before powering on the stereo to avoid damaging any components. Happy installing!
