When it comes to installing a ceiling fan with lights, understanding the wiring diagram is crucial. Proper wiring ensures the fan and lights function correctly and safely. Whether you’re replacing an old fan or installing a new one, following the wiring diagram is essential for a successful installation.
Before starting the installation process, make sure to turn off the power to the circuit at the breaker box. This will prevent any accidents while working with the wiring. Additionally, gather all the necessary tools and materials, including wire cutters, wire nuts, and a voltage tester.

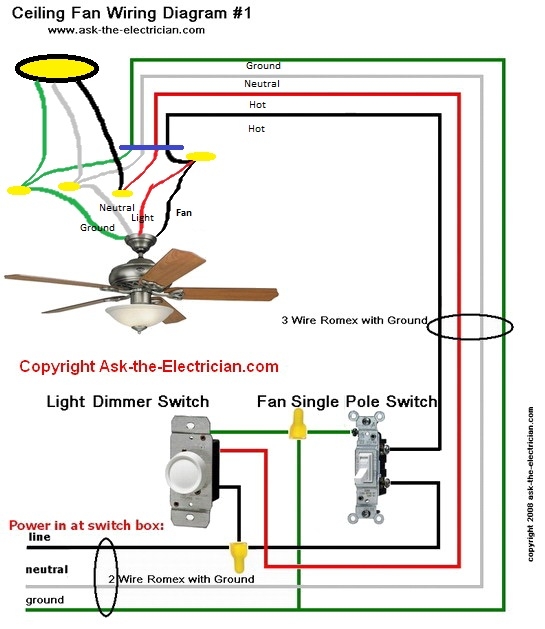

Ceiling Fans With Lights Wiring Diagram
First, identify the wires coming from the ceiling. Typically, there will be a black wire (hot), a white wire (neutral), and a green or bare copper wire (ground). The black wire is for the fan motor, the blue wire is for the lights, and the white wire is for both fan and lights. Connect the corresponding wires from the fan to the ceiling wires using wire nuts.
Next, if your ceiling fan has a light kit, connect the light kit wires to the blue wire from the fan and the white wire from the ceiling. Make sure to secure the connections with wire nuts and electrical tape for added safety. Once all the wires are connected, tuck them neatly into the electrical box.
After securing the fan to the ceiling, turn the power back on and test the fan and lights to ensure they are working properly. If everything is functioning as it should, you have successfully installed a ceiling fan with lights. Remember to follow the manufacturer’s instructions and the wiring diagram for your specific fan model.
In conclusion, understanding the wiring diagram is essential for installing a ceiling fan with lights. By following the proper wiring procedures and safety precautions, you can enjoy a cool breeze and bright light in your space. Always consult a professional electrician if you are unsure about any part of the installation process.
