When it comes to installing a ceiling fan with a light, it’s important to understand the wiring diagram to ensure everything is properly connected. This diagram will show you how to wire the fan and light separately so you can control them with separate switches.
Before starting the installation process, make sure to turn off the power to the circuit you’ll be working on. It’s also a good idea to consult the manufacturer’s instructions that come with your ceiling fan to ensure you’re following the correct wiring diagram for your specific model.

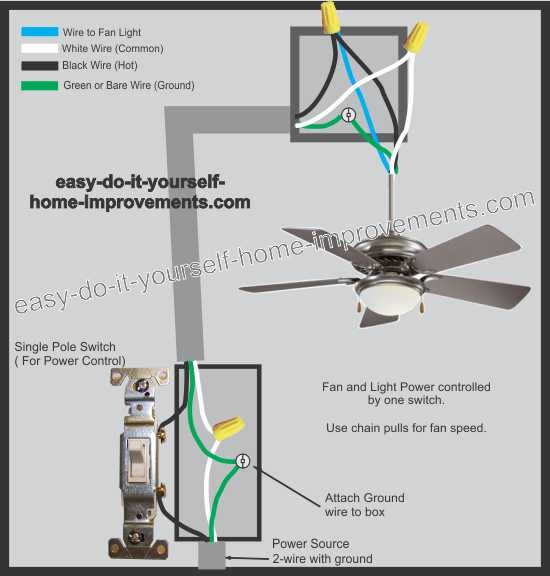

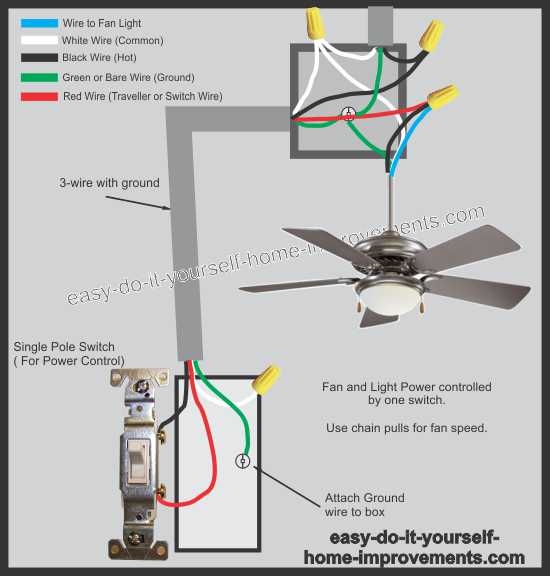

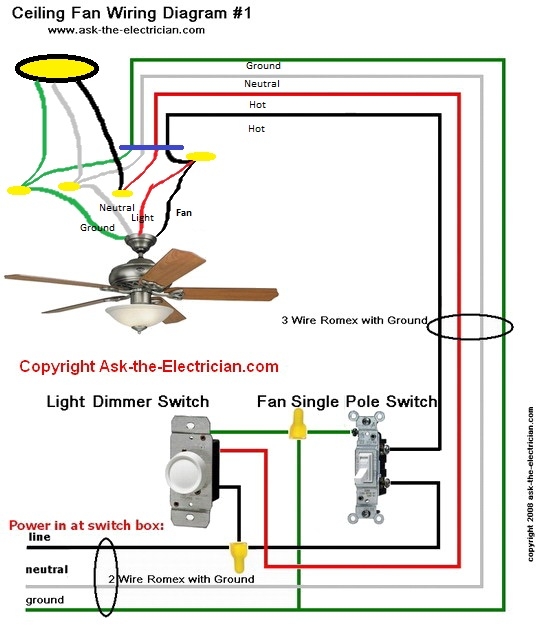

Ceiling Fan With Light Wiring Diagram

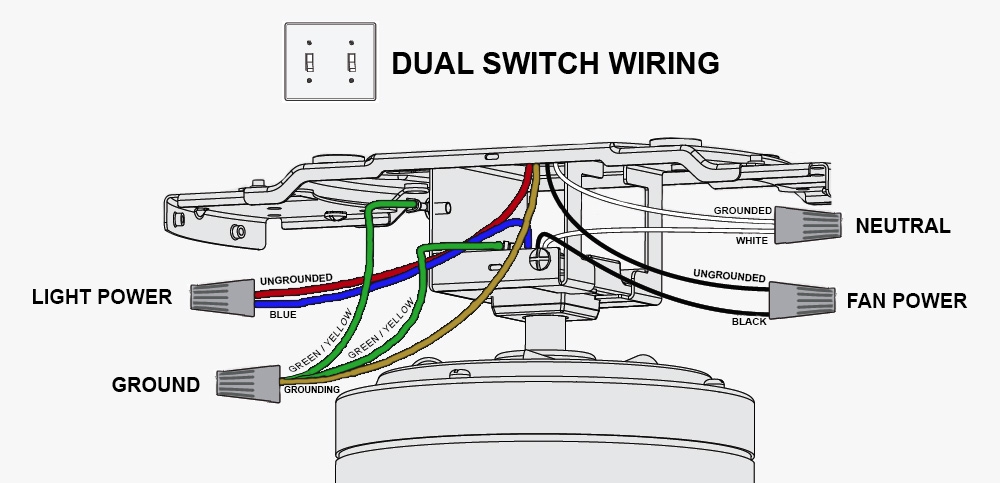

First, you’ll need to install the ceiling fan bracket and mount the fan according to the manufacturer’s instructions. Then, you can start connecting the wires. The black wire from the ceiling fan is typically for the fan motor, while the blue wire is for the light kit. The white wire is the neutral wire, and the green or bare copper wire is the ground wire.
Next, you’ll need to connect the corresponding wires from the ceiling to the wires from the fan. This usually involves connecting the black wire from the fan to the black wire from the ceiling, the white wire from the fan to the white wire from the ceiling, and the green or bare copper wire from the fan to the ground wire from the ceiling.
If your ceiling fan has a light kit, you’ll also need to connect the blue wire from the fan to the black wire from the light kit. This will allow you to control the fan and light separately with their own switches. Once all the wires are connected, you can secure the connections with wire nuts and install the fan blades and light kit.
After everything is properly connected, you can turn the power back on and test the fan and light to make sure they’re working correctly. If you’re unsure about any part of the installation process, it’s always best to consult a professional electrician to ensure the job is done safely and correctly.
In conclusion, understanding the wiring diagram for a ceiling fan with a light is crucial for a successful installation. By following the correct wiring instructions and taking the necessary safety precautions, you can enjoy a cool breeze and bright light in your space with ease.
