When it comes to installing a ceiling fan, it is important to have a clear understanding of the wiring diagram. Proper wiring ensures that the fan functions correctly and safely. Whether you are replacing an old fan or installing a new one, having the right wiring diagram is crucial.
Before you begin the installation process, make sure to turn off the power to the circuit where the fan will be installed. This will prevent any accidents or injuries during the installation. It is also recommended to have a voltage tester on hand to confirm that the power is indeed turned off.
Ceiling Fan Wiring Diagram

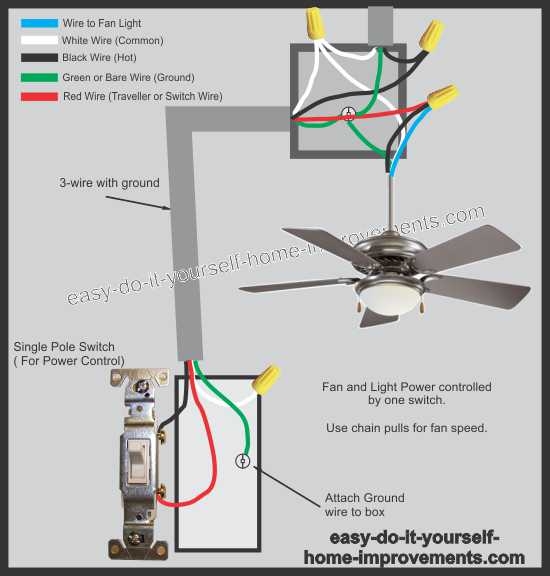

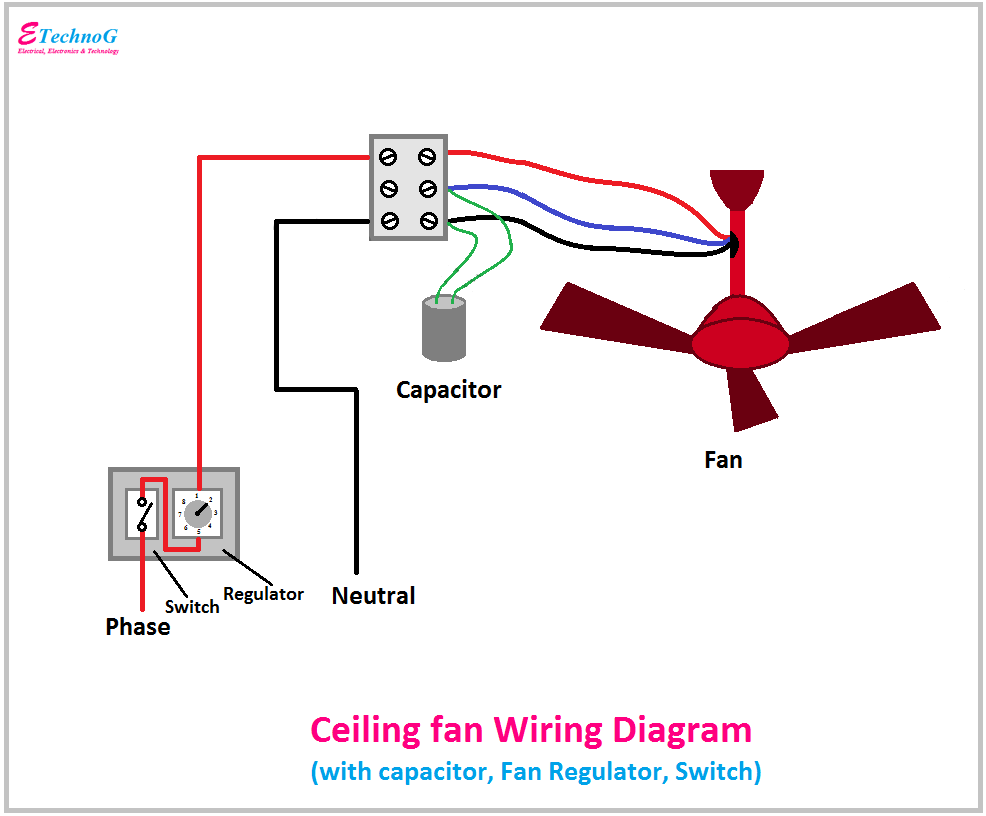

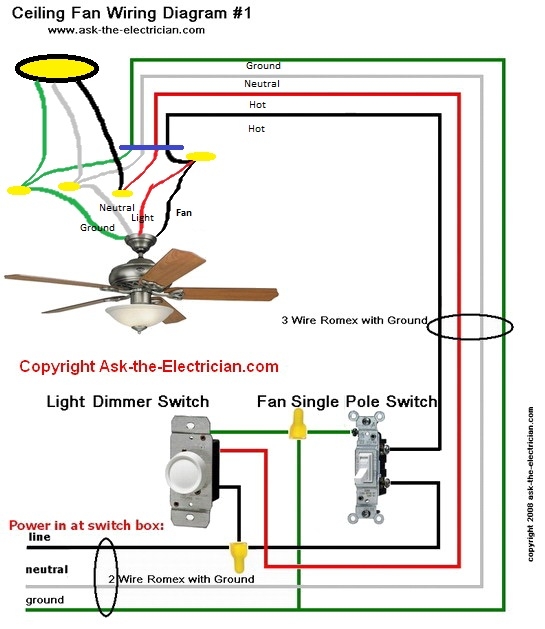

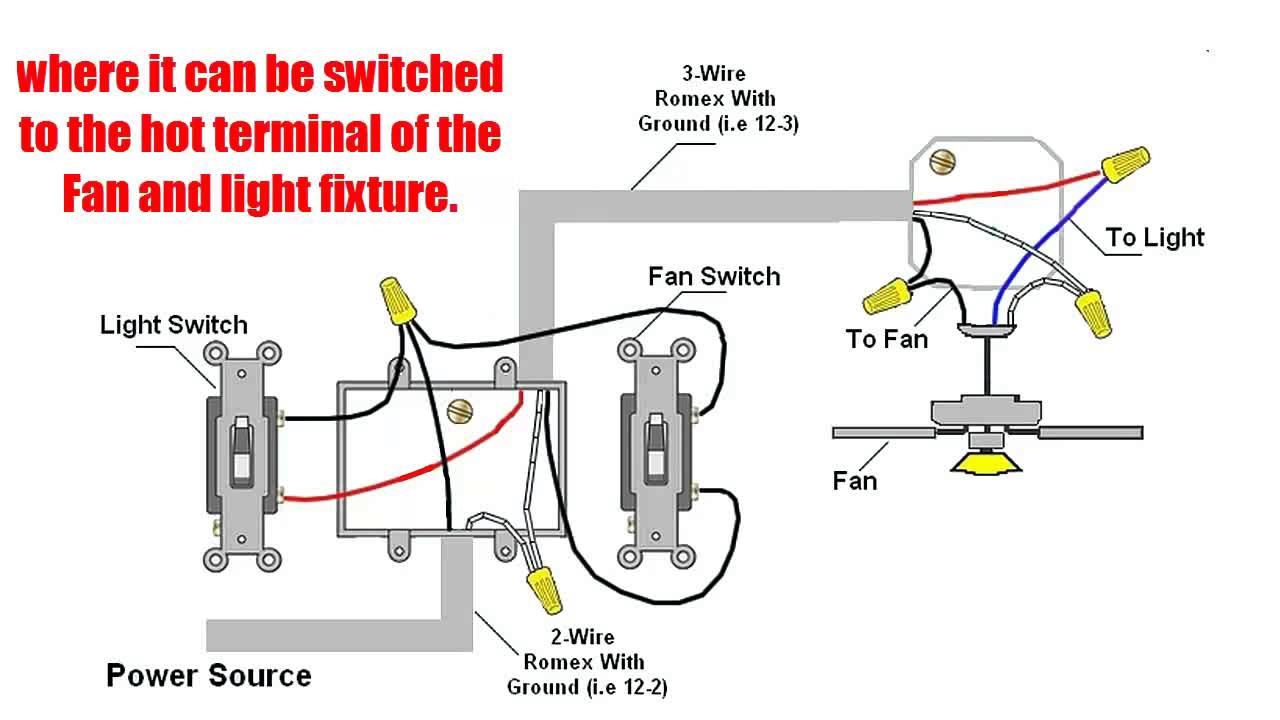

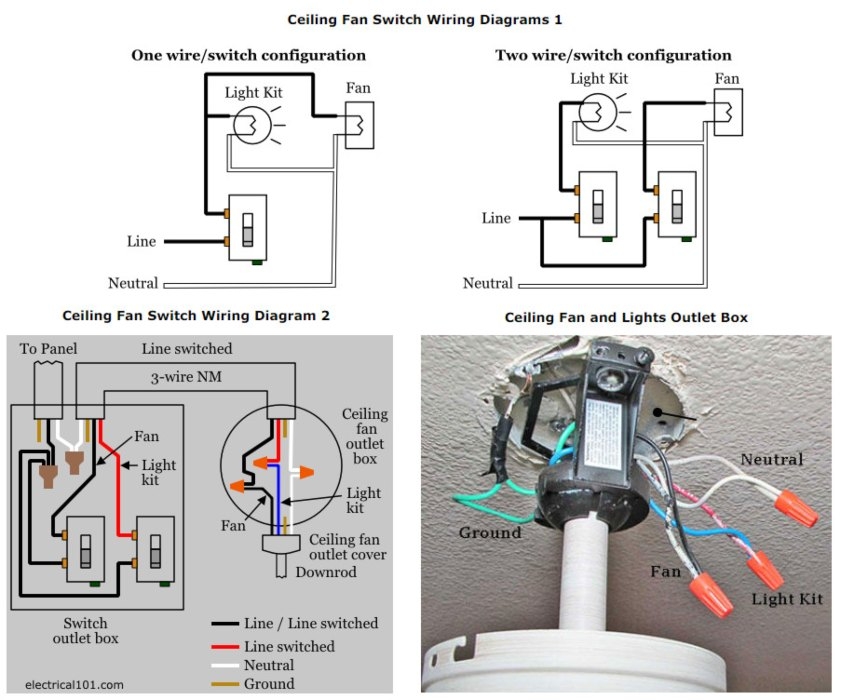

Once you have confirmed that the power is off, you can begin the wiring process. The most common wiring diagram for a ceiling fan includes a black wire for the fan motor, a blue wire for the light kit, a white wire for the neutral connection, and a green wire for the ground connection. It is important to follow the manufacturer’s instructions to ensure proper installation.
Start by connecting the green wire to the ground wire in the ceiling box. Next, connect the white wire from the fan to the white wire in the ceiling box, and the black wire from the fan to the black wire in the ceiling box. If your fan has a light kit, connect the blue wire from the fan to the black wire in the ceiling box.
Once all the wires are connected, secure them with wire nuts and tuck them neatly into the ceiling box. Double-check all connections to ensure they are secure and tight. Once everything is in place, you can install the fan blades and light kit according to the manufacturer’s instructions.
After everything is installed, turn the power back on and test the fan to make sure it is working properly. If the fan does not turn on, double-check the wiring connections to ensure they are correct. If you are unsure about any step in the process, it is best to consult a professional electrician for assistance.
In conclusion, understanding the wiring diagram for a ceiling fan is crucial for a successful installation. By following the manufacturer’s instructions and taking the necessary precautions, you can enjoy a cool breeze and bright light in your home. Remember to always prioritize safety when working with electricity.
