Installing a ceiling fan with a light fixture can be a great way to improve the lighting and airflow in a room. However, it’s important to make sure you wire it correctly to avoid any electrical issues. A wiring diagram can help guide you through the process and ensure everything is connected properly.
Before you begin, make sure to turn off the power to the ceiling fan at the breaker box to prevent any accidents. It’s also a good idea to use a voltage tester to double-check that the power is off before you start working on the wiring.
Ceiling Fan Light Wiring Diagram

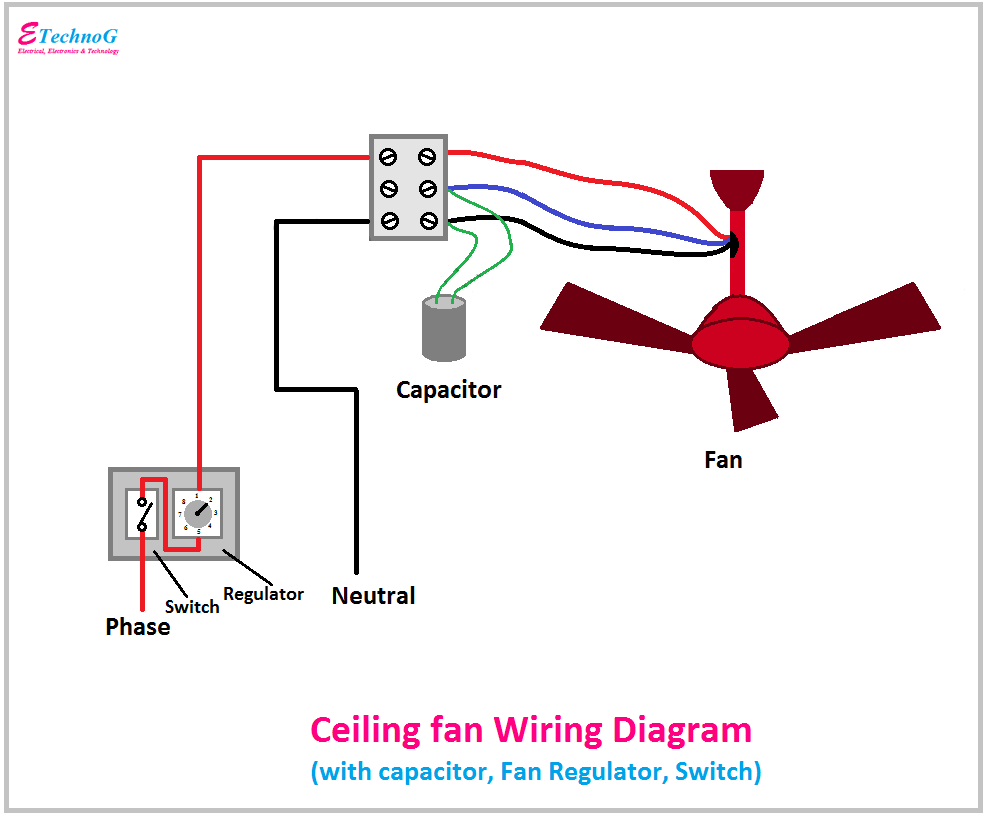

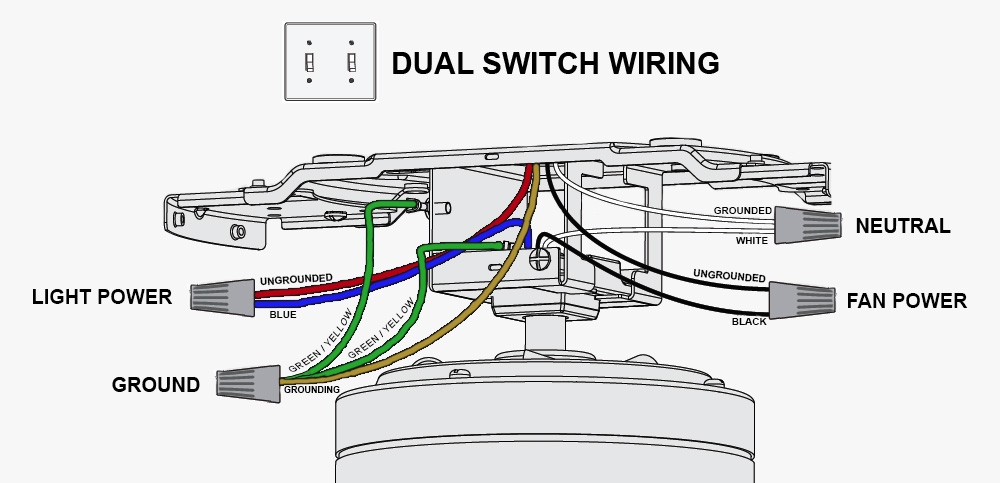

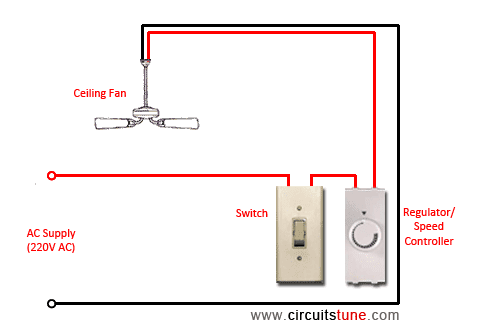

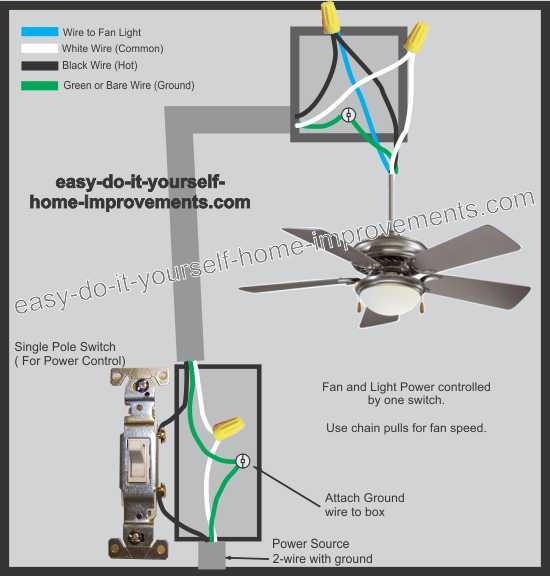

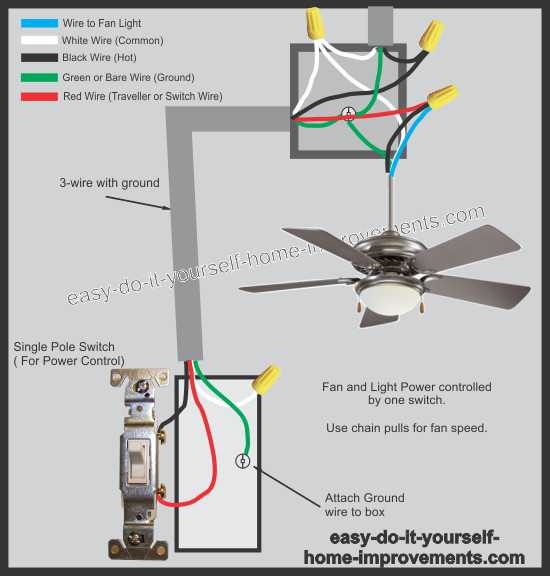

When it comes to wiring a ceiling fan with a light, there are typically four wires that need to be connected: the black wire for the fan, the blue wire for the light, the white neutral wire, and the green or bare copper ground wire. Following the wiring diagram that comes with the fan can help you identify which wires need to be connected to each other.

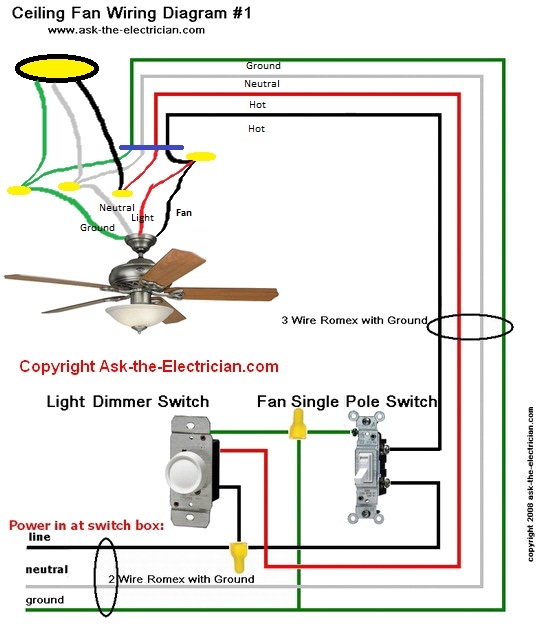

Start by connecting the green or bare copper ground wire from the ceiling fan to the grounding wire in the ceiling junction box. Next, connect the white neutral wire from the fan to the white neutral wire in the ceiling. Then, connect the black wire from the fan to the black wire in the ceiling for the fan function, and the blue wire from the fan to the black wire in the ceiling for the light function.
Once all the wires are connected, secure them with wire nuts and carefully tuck them into the ceiling junction box. Make sure everything is properly insulated and secure before turning the power back on and testing the fan and light to ensure they are working correctly.
Following a ceiling fan light wiring diagram is essential to ensure a safe and successful installation. If you’re unsure about any part of the process, it’s always best to consult a professional electrician to avoid any potential hazards. With the right guidance and precautions, you can enjoy a beautifully lit and well-ventilated room with your new ceiling fan.
