When it comes to setting up a network in your home or office, understanding Cat5e diagram wiring is essential. Cat5e, short for Category 5e, is a type of Ethernet cable that is commonly used for networking purposes. By knowing how to properly wire Cat5e cables, you can ensure that your network operates efficiently and effectively.
Before delving into the specifics of Cat5e diagram wiring, it’s important to have a basic understanding of the components involved. Cat5e cables consist of four twisted pairs of wires, each color-coded for easy identification. These cables are typically used to connect devices to a network, such as computers, printers, and routers.
Cat5e Diagram Wiring

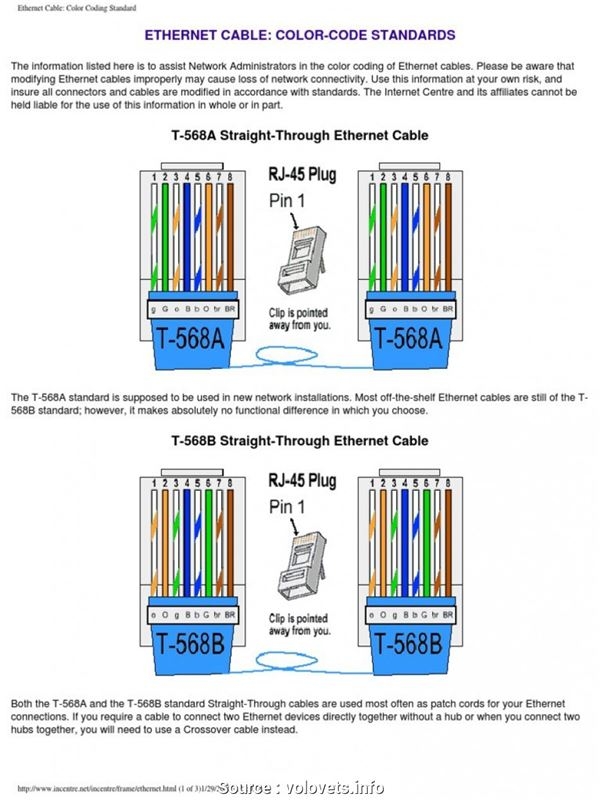

When wiring Cat5e cables, it’s crucial to follow a standardized color-coding scheme to ensure proper connectivity. The T568A and T568B wiring standards are commonly used for Cat5e cables, with each standard specifying the arrangement of the wires within the cable. By following these standards, you can avoid connectivity issues and ensure that your network operates smoothly.

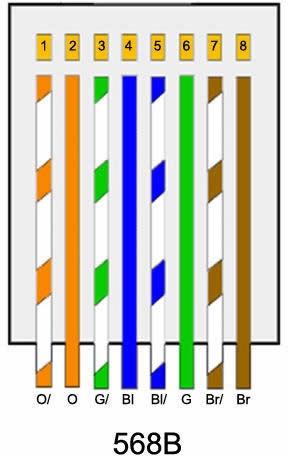

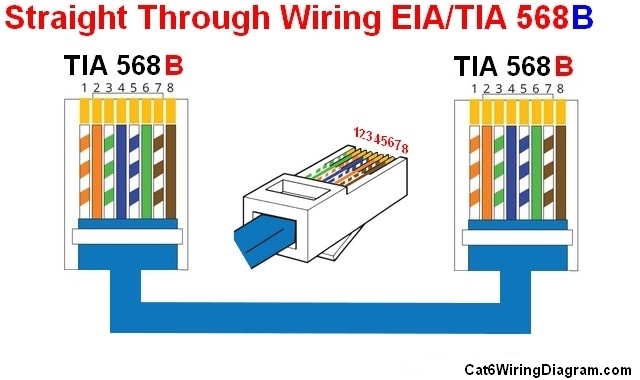

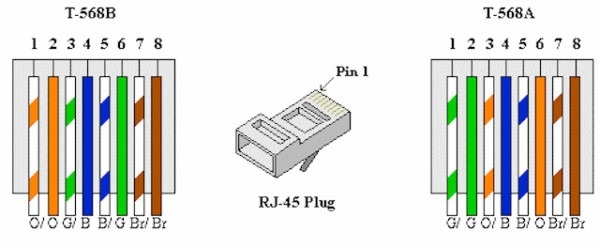

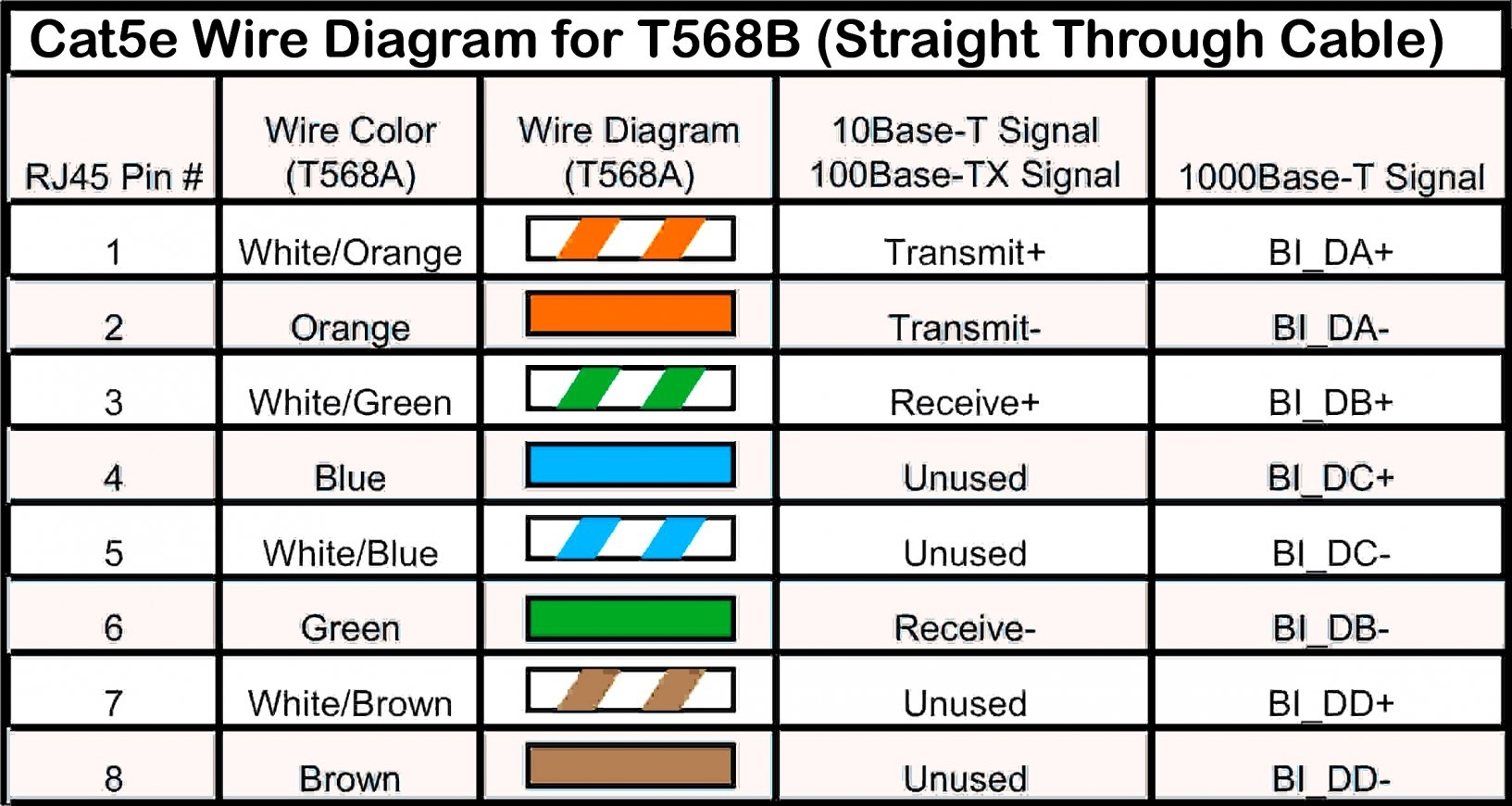

To wire a Cat5e cable using the T568A standard, the wires are arranged as follows: white-green, green, white-orange, blue, white-blue, orange, white-brown, and brown. Conversely, the T568B standard arranges the wires in the following order: white-orange, orange, white-green, blue, white-blue, green, white-brown, and brown. By following these standards and using a wiring diagram as a reference, you can easily wire Cat5e cables for your network.
Once you have wired your Cat5e cables according to the T568A or T568B standard, it’s essential to properly terminate the cables with RJ45 connectors. These connectors are used to connect the cables to networking devices, such as switches or routers. By crimping the connectors onto the cables using a specialized tool, you can create secure and reliable connections for your network.
In conclusion, understanding Cat5e diagram wiring is crucial for setting up a reliable and efficient network. By following the T568A or T568B wiring standards and properly terminating the cables with RJ45 connectors, you can ensure that your network operates smoothly and effectively. With the right tools and knowledge, wiring Cat5e cables can be a straightforward process that will benefit your network in the long run.
