When it comes to setting up a network in your home or office, it is important to use the right wiring to ensure a fast and reliable connection. Cat 6 wiring is the standard for high-speed Ethernet connections, and understanding the wiring diagram is crucial for a successful installation.
With Cat 6 wiring, you can achieve speeds of up to 10 Gigabits per second, making it ideal for streaming high-definition video, online gaming, and other bandwidth-intensive activities. By following the wiring diagram correctly, you can ensure that your network operates at peak performance.
Cat 6 Wiring Diagram
When looking at a Cat 6 wiring diagram, you will notice that there are four pairs of twisted wires within the cable. Each pair is color-coded for easy identification: orange, green, blue, and brown. It is important to follow the correct sequence when connecting these wires to the RJ45 connectors to ensure proper functionality.

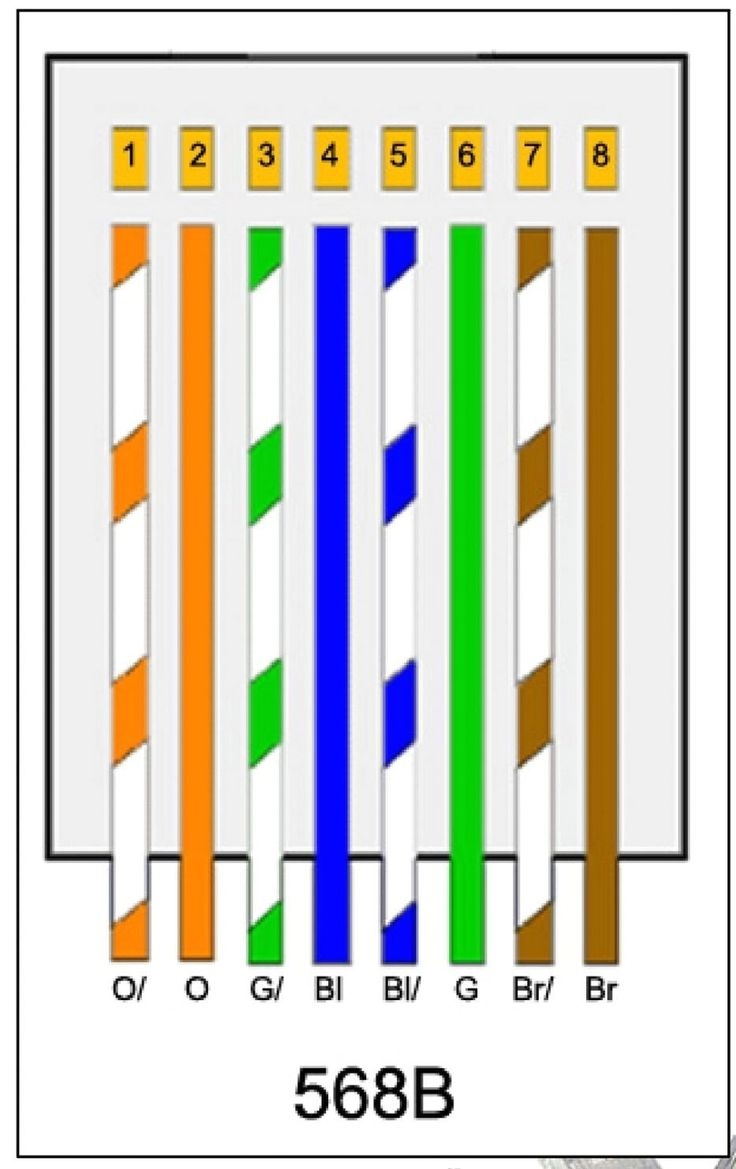

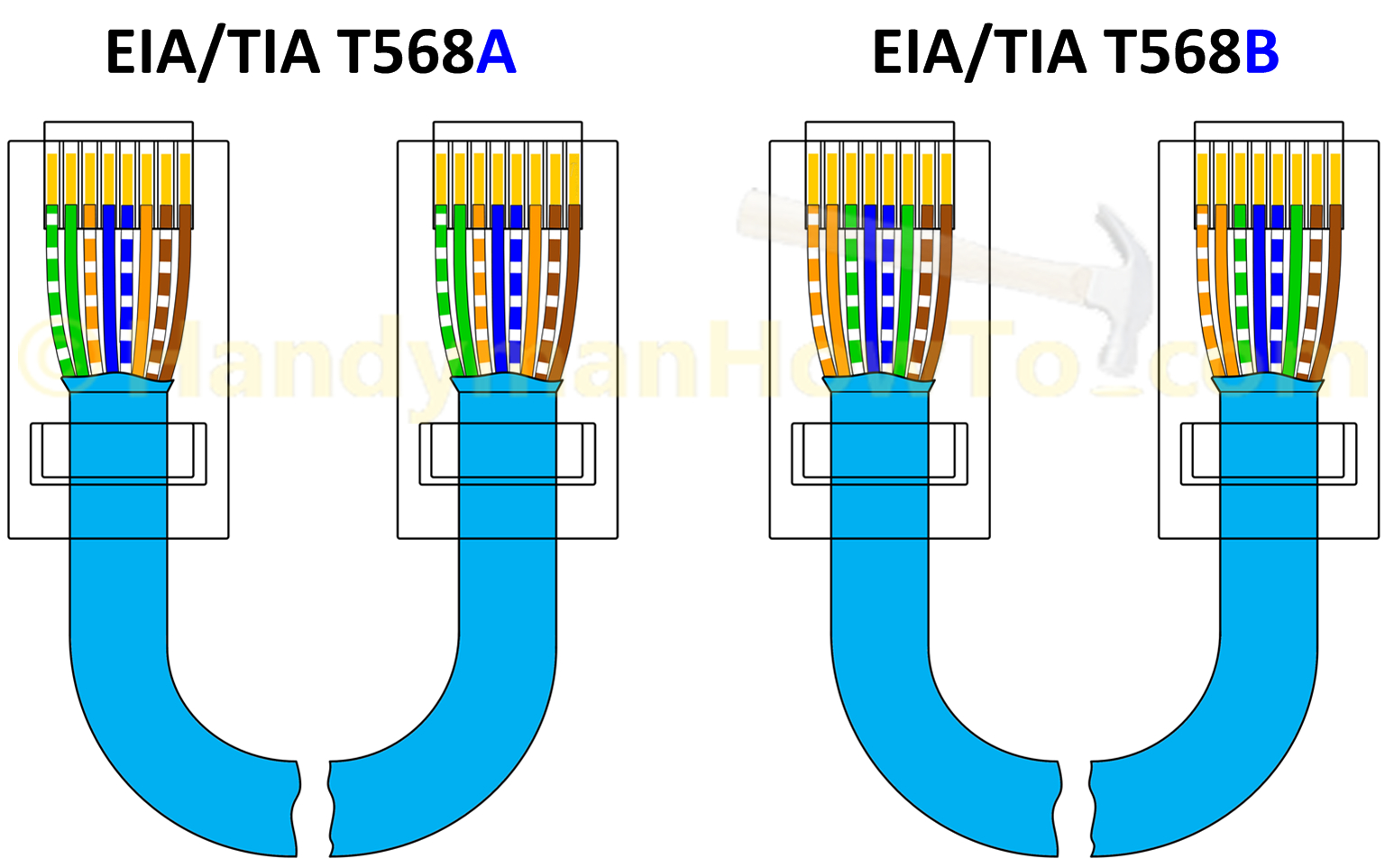

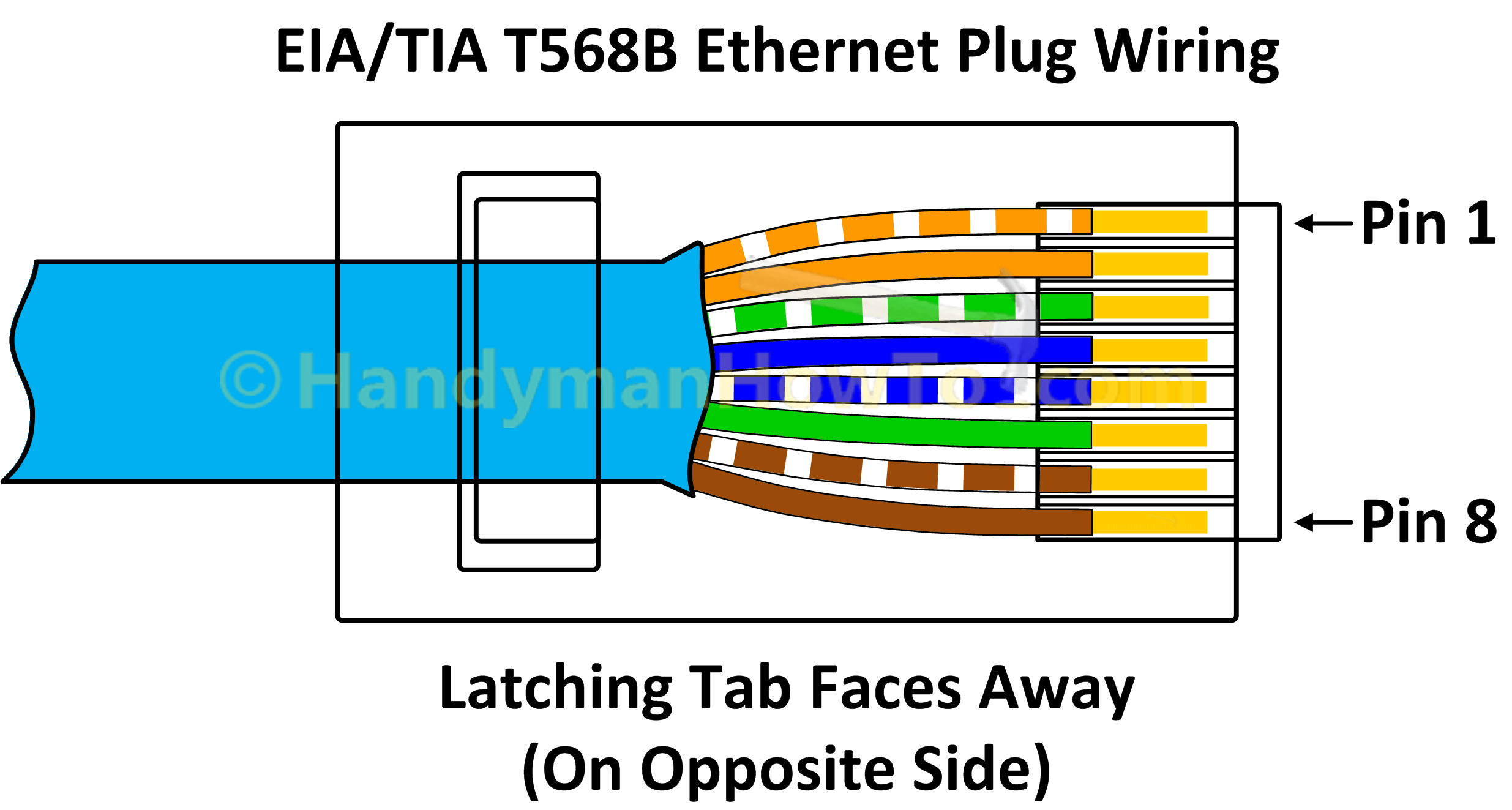

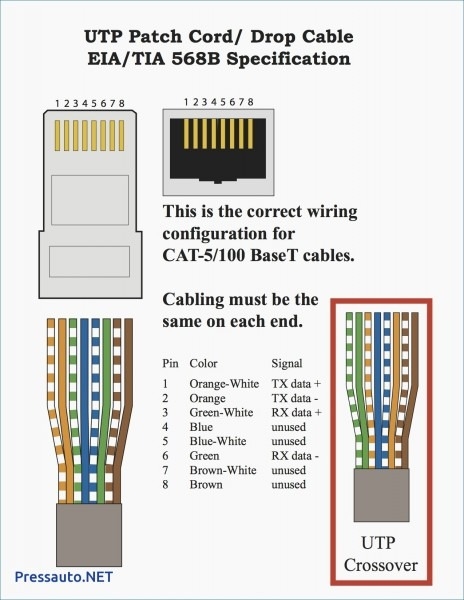

Typically, Cat 6 wiring diagrams will show the T568A or T568B wiring standards. These standards dictate the order in which the wires should be connected to the RJ45 connectors. By following these standards, you can ensure that your network will be compatible with other devices and systems.

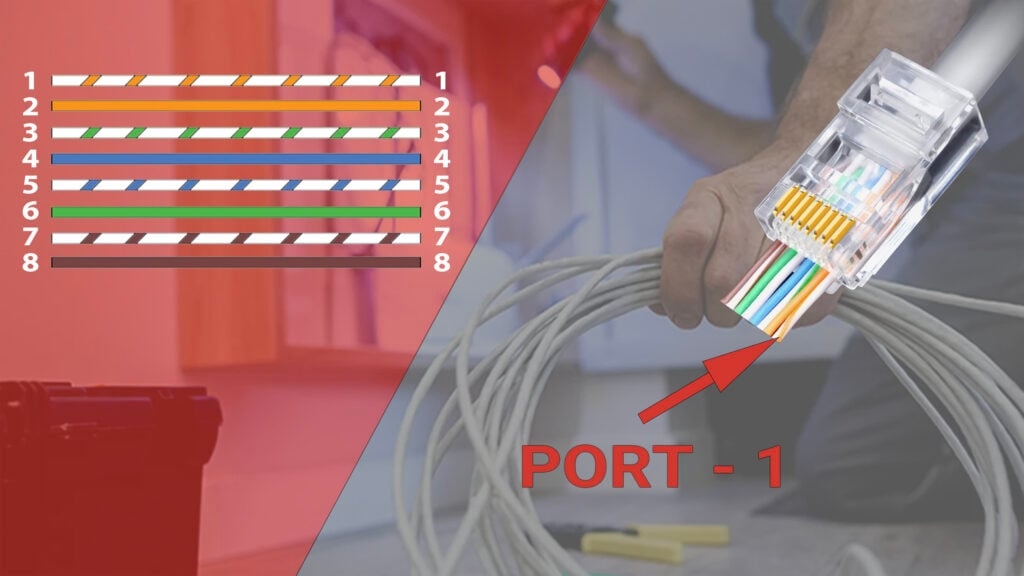

One common mistake when wiring Cat 6 cables is failing to properly strip and crimp the cables. It is important to strip just enough of the outer sheath to expose the twisted pairs, and then carefully arrange and crimp the wires into the RJ45 connector. Failing to do so can result in a poor connection and slow speeds.
In conclusion, understanding the Cat 6 wiring diagram is essential for setting up a high-speed Ethernet network. By following the correct wiring standards and properly crimping the cables, you can ensure that your network operates at peak performance. With Cat 6 wiring, you can enjoy fast and reliable internet connections for all of your devices.
