When it comes to setting up a network in your home or office, having a proper wiring diagram is crucial. Cat 5 cables are commonly used for Ethernet connections, and having a clear understanding of how to wire them can make the installation process much smoother.
With a Cat 5 cable wiring diagram, you can easily identify which wires need to be connected to each pin on the RJ45 connector. This ensures that your network will function properly and that you won’t run into any issues with connectivity down the line.
Cat 5 Cable Wiring Diagram
Cat 5 Cable Wiring Diagram

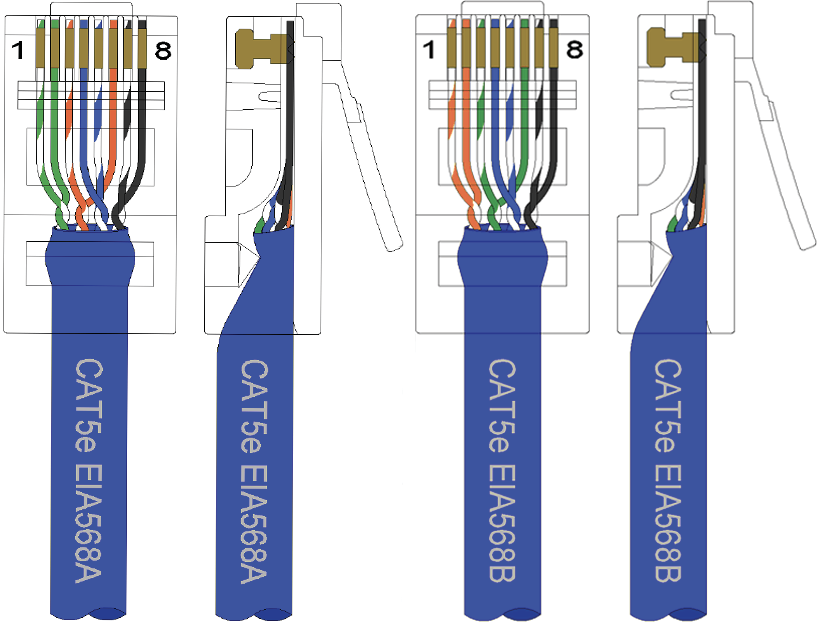

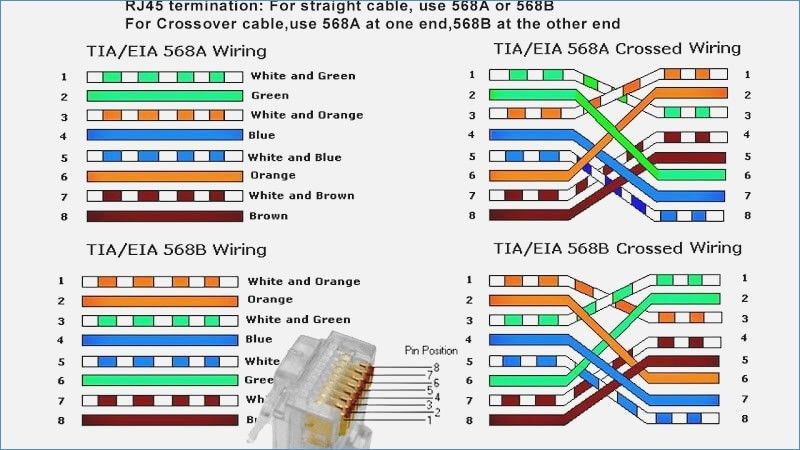

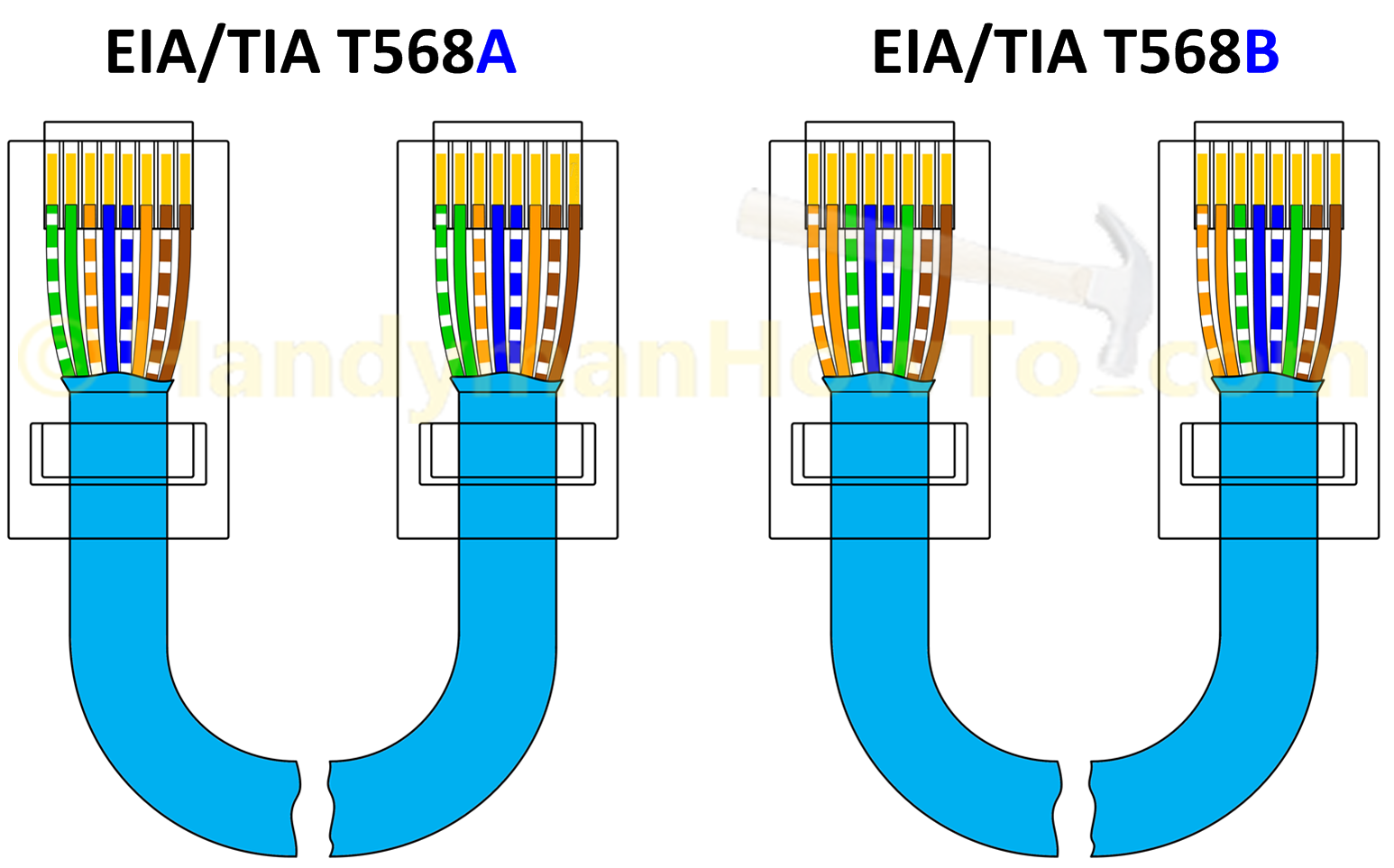

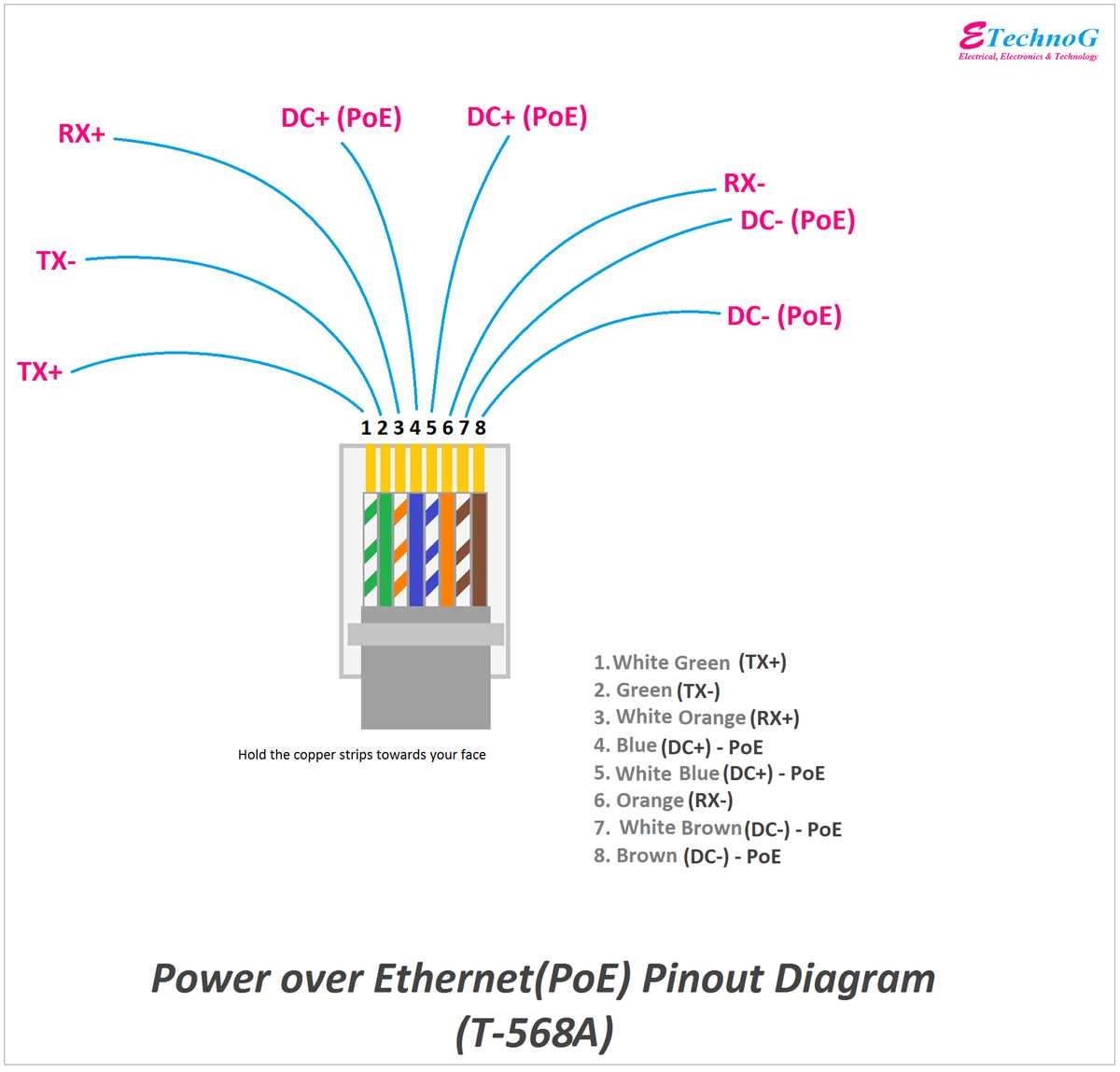

There are two standard wiring configurations for Cat 5 cables – T568A and T568B. Both configurations use the same eight wires, but they are arranged in a slightly different order. It’s important to choose one configuration and stick with it throughout your network to avoid any confusion.

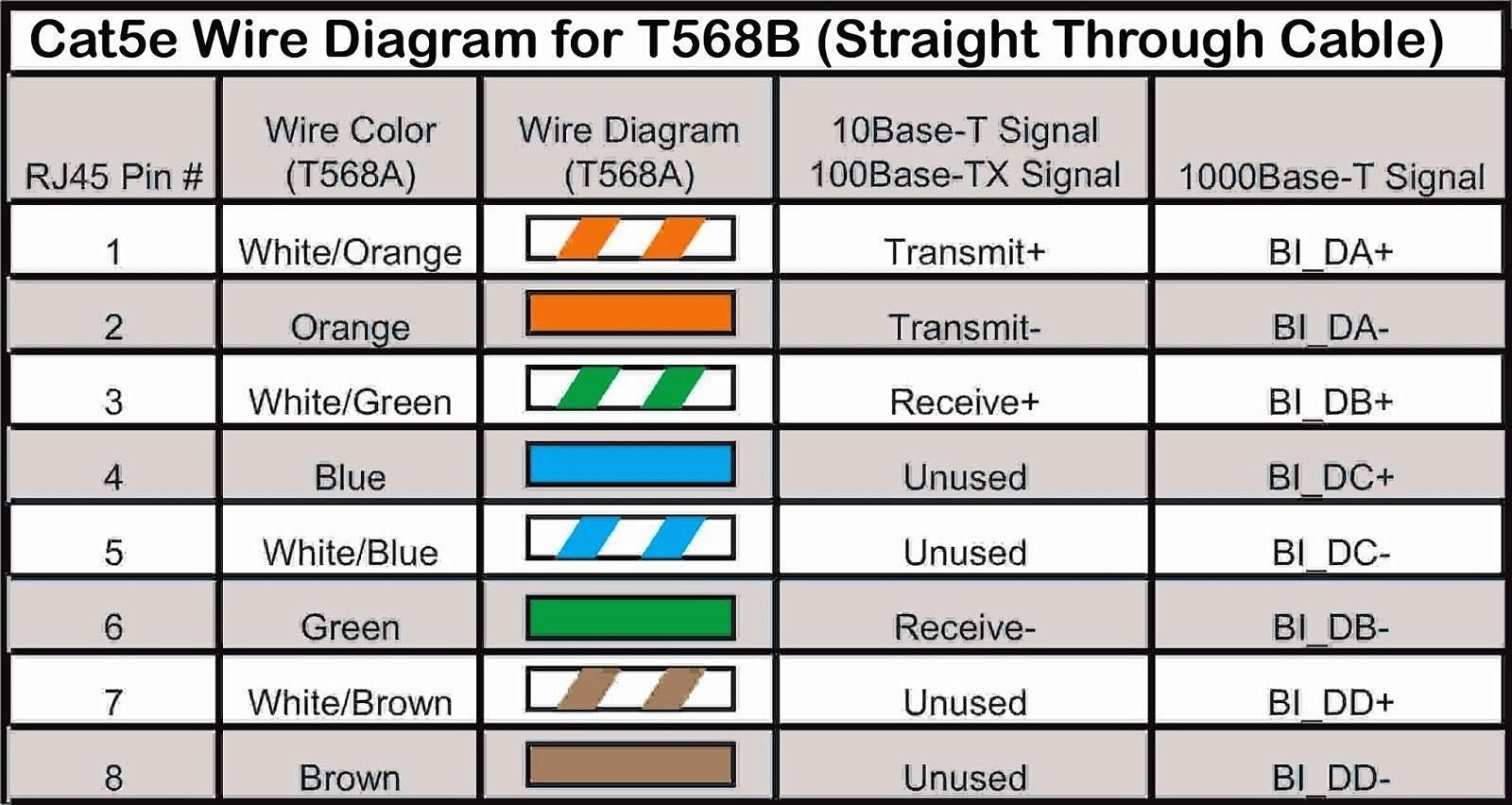

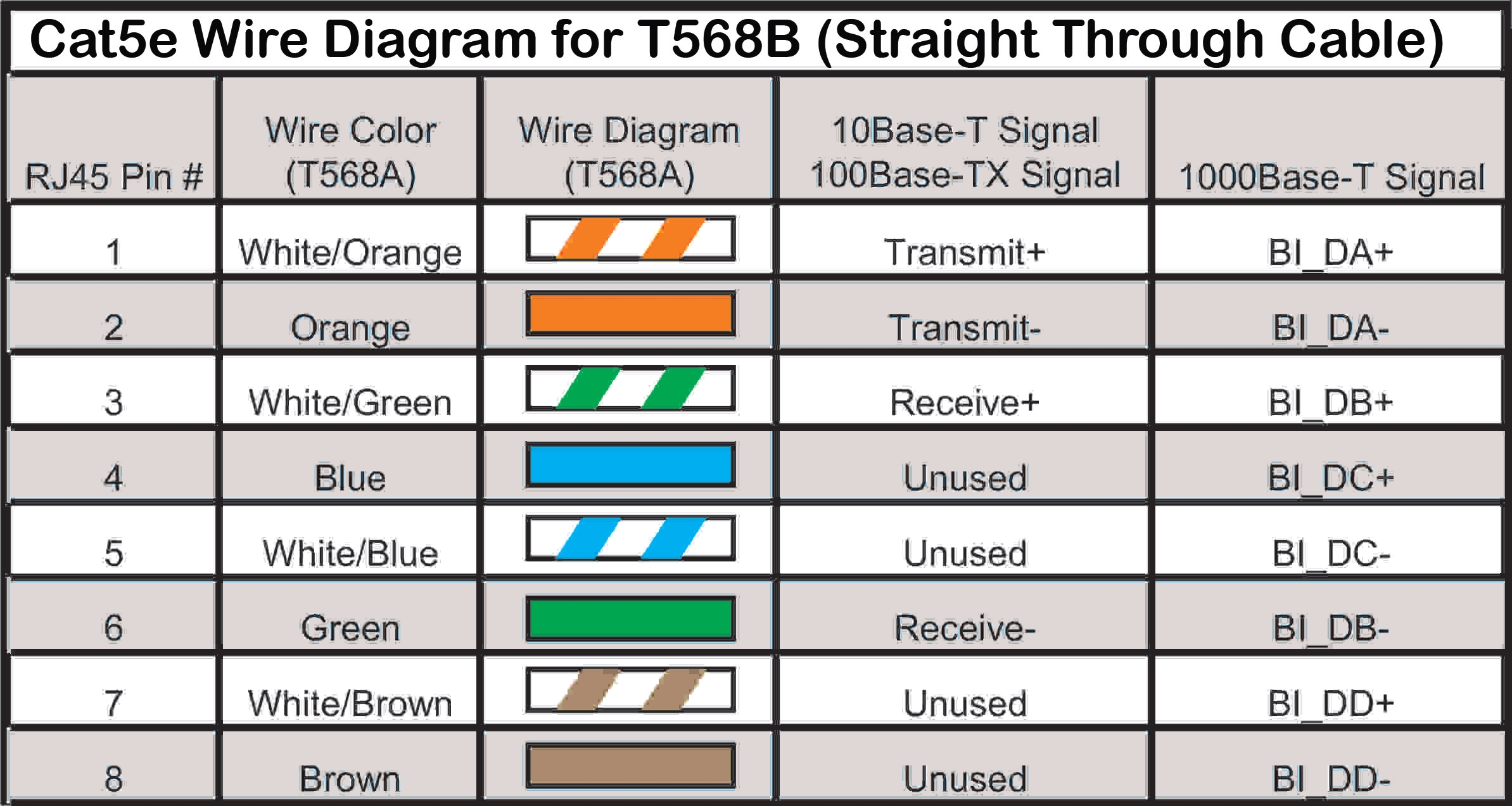

In a Cat 5 cable wiring diagram, you will see the color-coding of the wires and how they correspond to the pins on the RJ45 connector. Typically, the wires are arranged in a specific order – white-orange, orange, white-green, blue, white-blue, green, white-brown, and brown. Following this order ensures that your network operates efficiently.
When wiring a Cat 5 cable, it’s essential to use a crimping tool to secure the wires to the RJ45 connector properly. Making sure that each wire is connected to the correct pin and that there are no loose connections will help prevent any issues with signal loss or interference.
Having a Cat 5 cable wiring diagram on hand can also be helpful when troubleshooting any network issues. By referencing the diagram, you can quickly identify any potential wiring problems and make the necessary adjustments to get your network back up and running smoothly.
In conclusion, a Cat 5 cable wiring diagram is an essential tool for anyone looking to set up a network using Ethernet connections. By following the proper wiring configuration and securing the connections correctly, you can ensure that your network operates efficiently and without any issues. So, make sure to have a wiring diagram on hand before starting your network installation.
