When it comes to setting up a car audio system, one of the key components is the amplifier. A 4 channel amp is a popular choice for many car owners as it allows for a versatile setup. By bridging a 4 channel amp, you can combine the power from two channels to drive a single speaker or subwoofer, effectively doubling the output power.
Before you start the wiring process, it’s important to have a clear understanding of how a bridged 4 channel amp works. This diagram will guide you through the steps to ensure a successful installation and optimal performance of your car audio system.

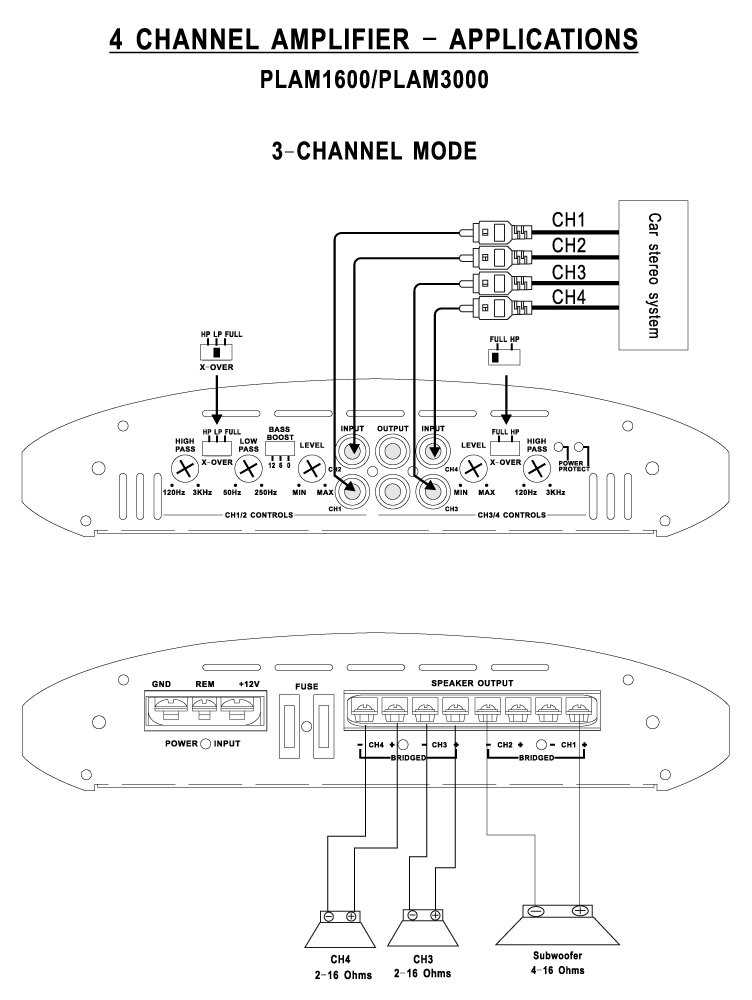

Bridged 4 Channel Amp Wiring Diagram
1. Begin by disconnecting the negative terminal of your car battery to prevent any electrical mishaps during the installation process. Then, locate the 4 channel amp and gather all the necessary tools and wiring components.
2. Identify the two channels on the amp that you want to bridge. Typically, these are labeled as “L” and “R” for left and right channels. Consult the user manual of your amp for specific instructions on bridging capabilities.
3. Next, connect the positive terminal of the speaker or subwoofer to the positive terminal of one channel and the negative terminal to the negative terminal of the other bridged channel. Make sure to use high-quality speaker wire for a reliable connection.
4. To bridge the channels, use a jumper wire to connect the positive terminal of one channel to the negative terminal of the other channel. This will effectively combine the power output of both channels to drive the speaker or subwoofer at a higher wattage.
5. Once the wiring is complete, double-check all connections to ensure they are secure and properly insulated. Reconnect the negative terminal of your car battery and power on the amplifier to test the bridged setup. Adjust the settings on the amp to optimize the sound output and enjoy the enhanced audio experience in your car.
In conclusion, bridging a 4 channel amp can significantly boost the power output of your car audio system, providing a richer and more immersive listening experience. By following this wiring diagram and carefully connecting the channels, you can maximize the performance of your amplifier and enjoy superior sound quality on the road.
