Having a dual battery setup on your boat can provide added safety and peace of mind while out on the water. With two batteries, you can ensure that you always have a backup power source available in case one battery fails. Proper wiring is essential to ensure that both batteries are charged efficiently and that power is distributed correctly throughout your boat.
Before you begin wiring your boat for dual batteries, it’s important to have a clear understanding of how the system works. A dual battery setup typically consists of a primary battery that powers your boat’s electrical systems, and a secondary battery that serves as a backup. The two batteries are connected in parallel, meaning that they are linked together to provide a combined power source.

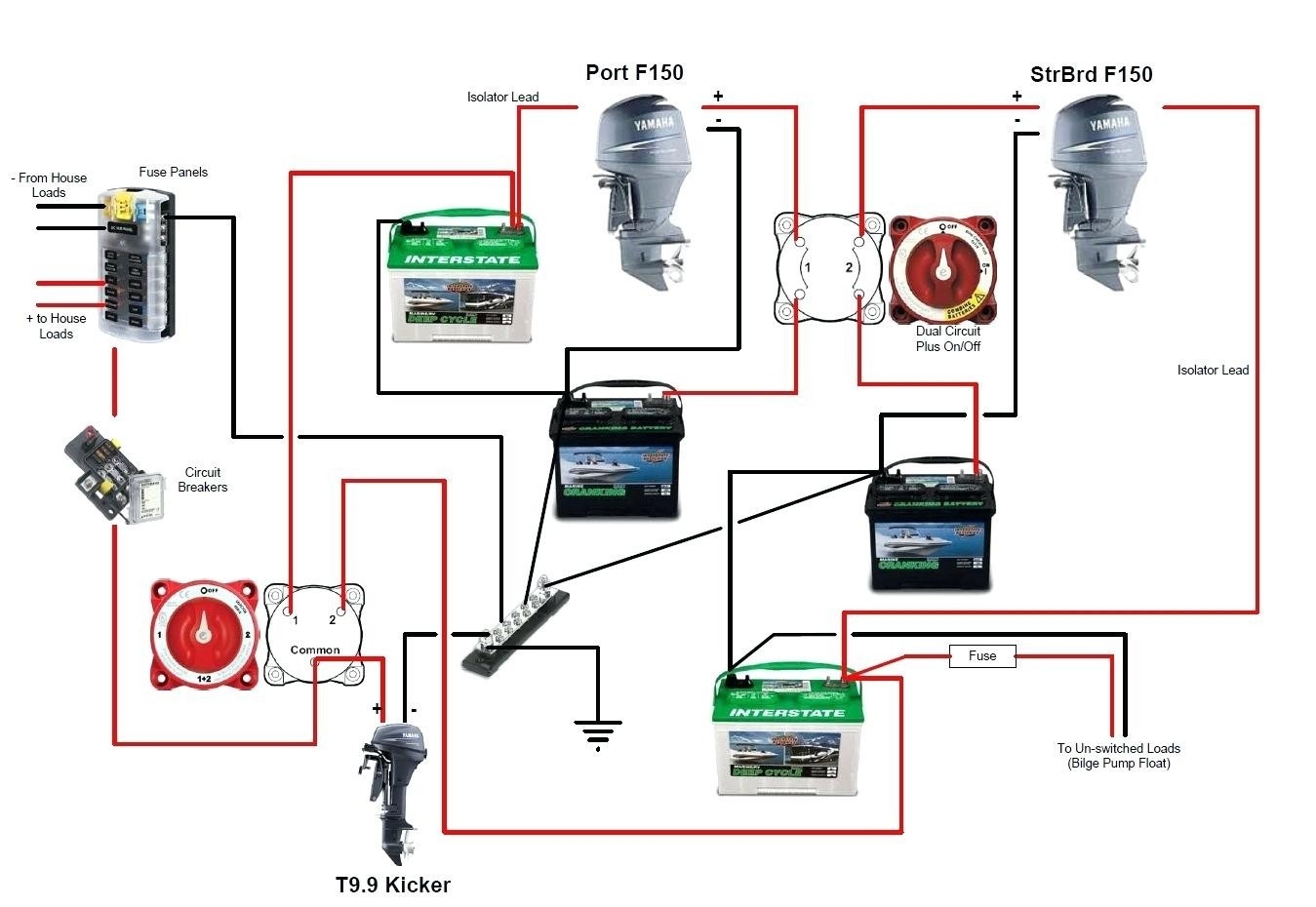

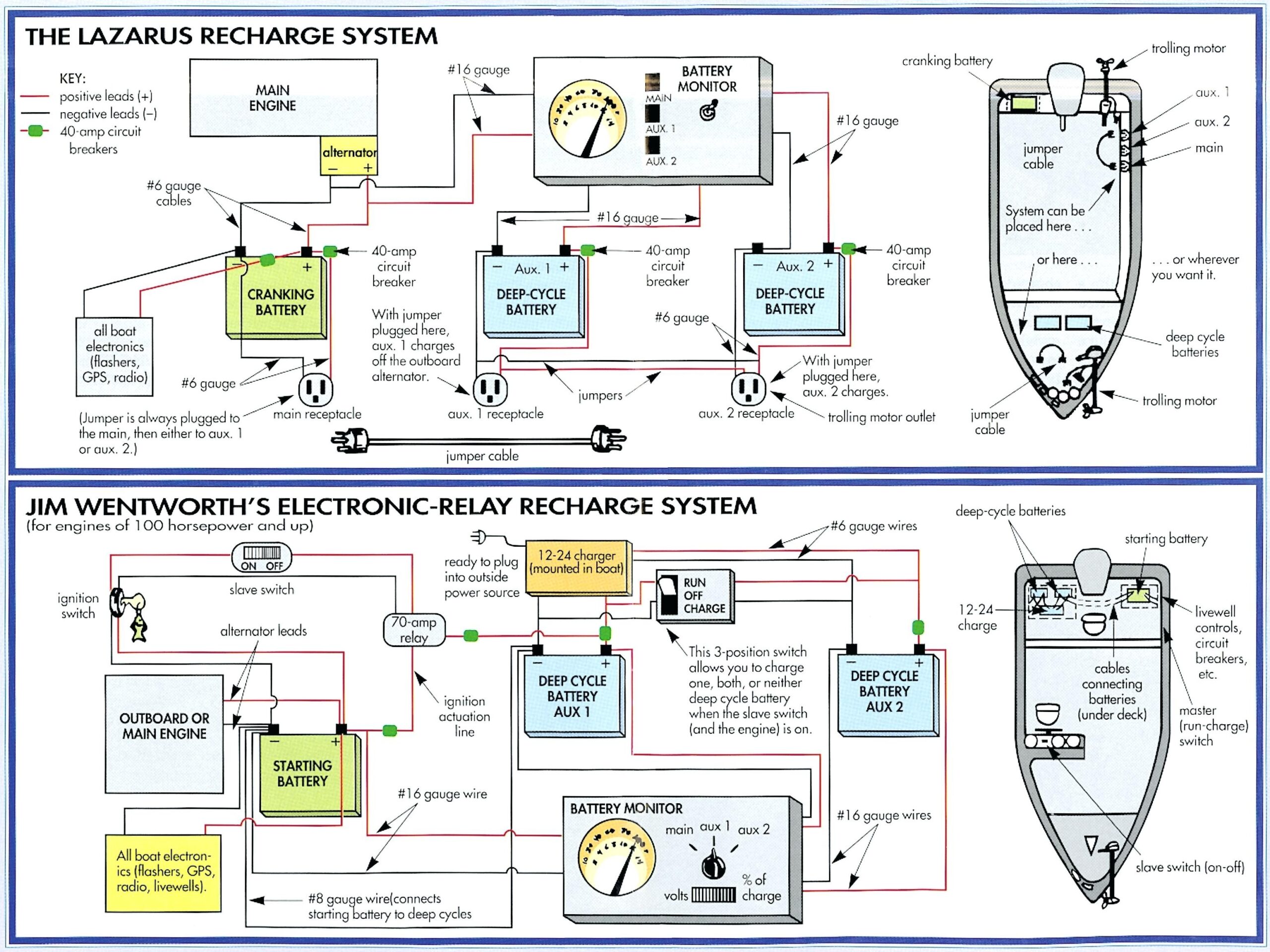

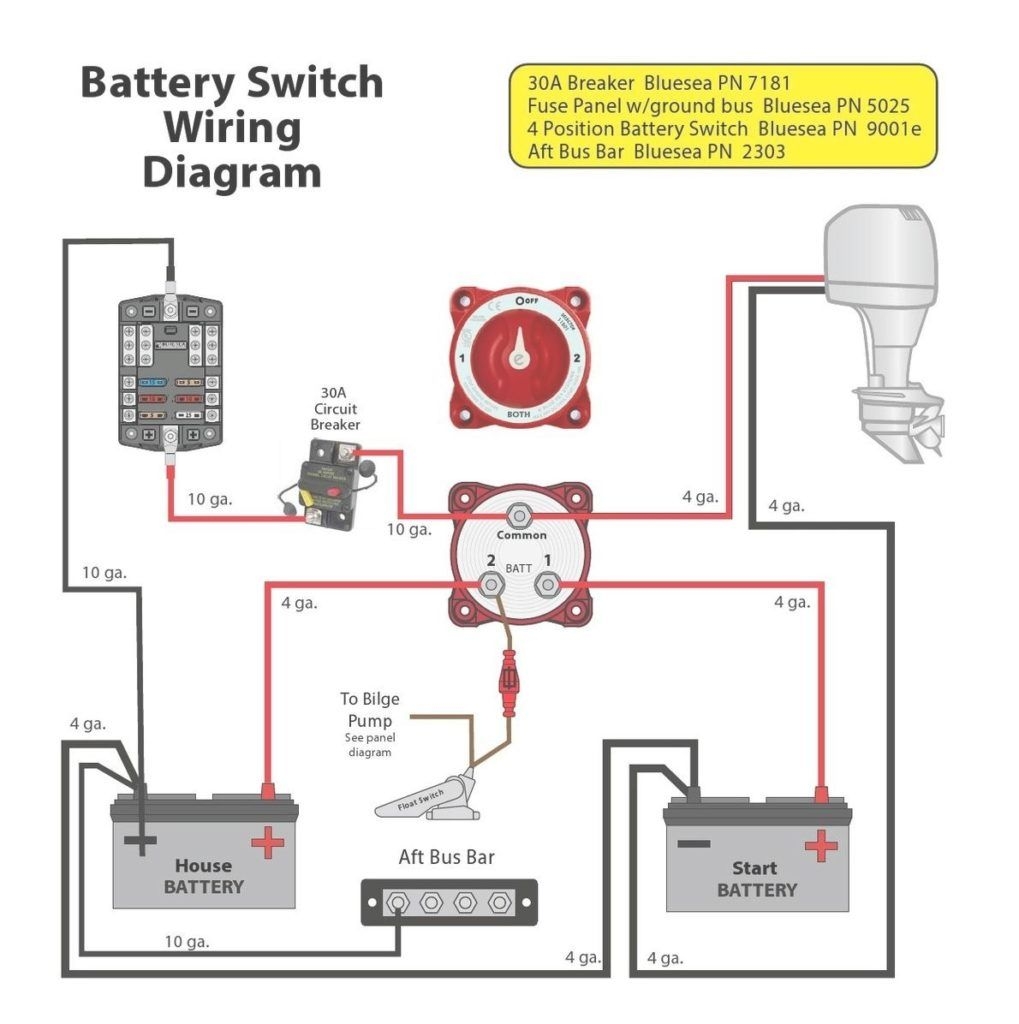

Boat Dual Battery Wiring Diagram
When wiring your boat for dual batteries, it’s important to use the correct gauge of wire to ensure that power is distributed evenly between the two batteries. You will need to install a battery switch to control which battery is being used, as well as a charging system to ensure that both batteries are kept fully charged. It’s also a good idea to install a battery isolator to prevent one battery from draining the other.

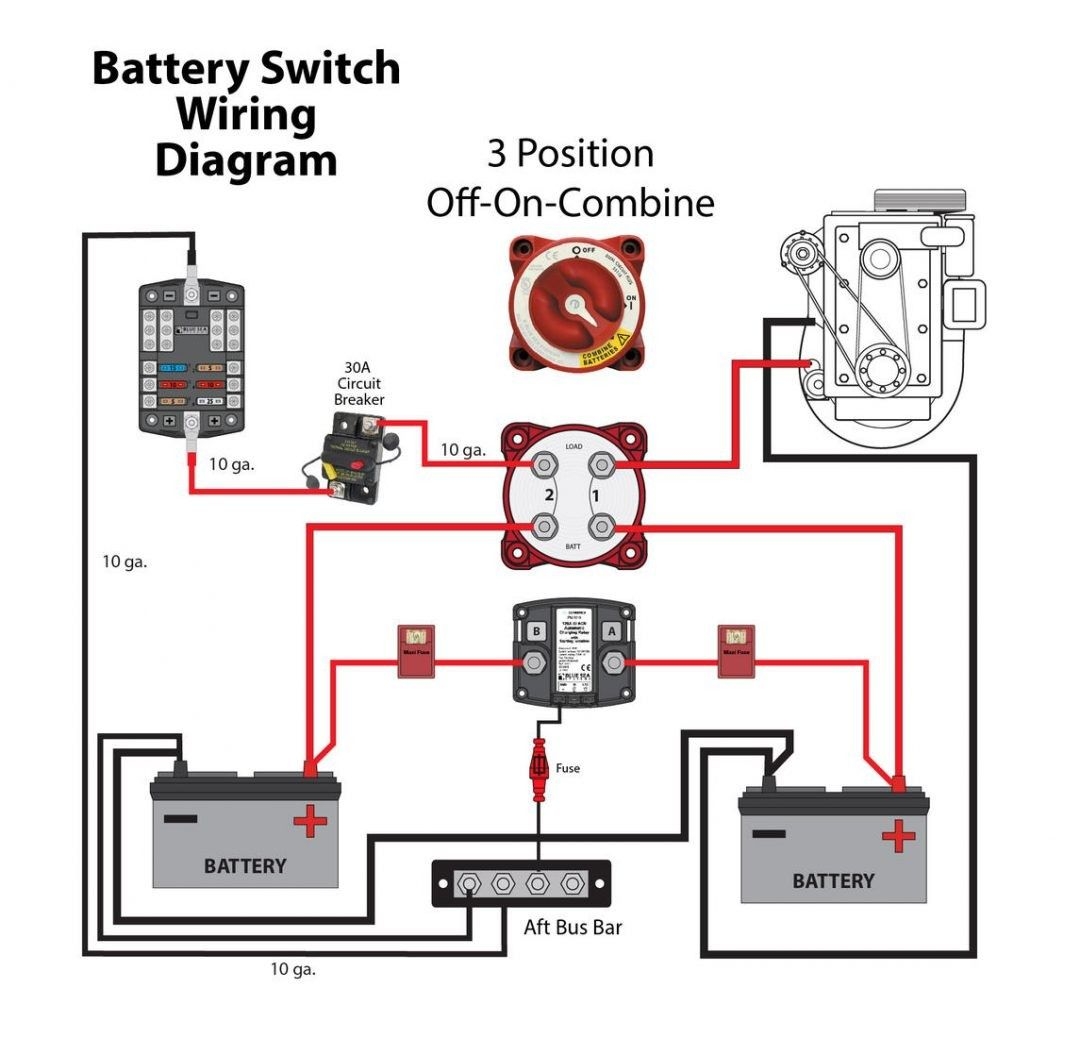

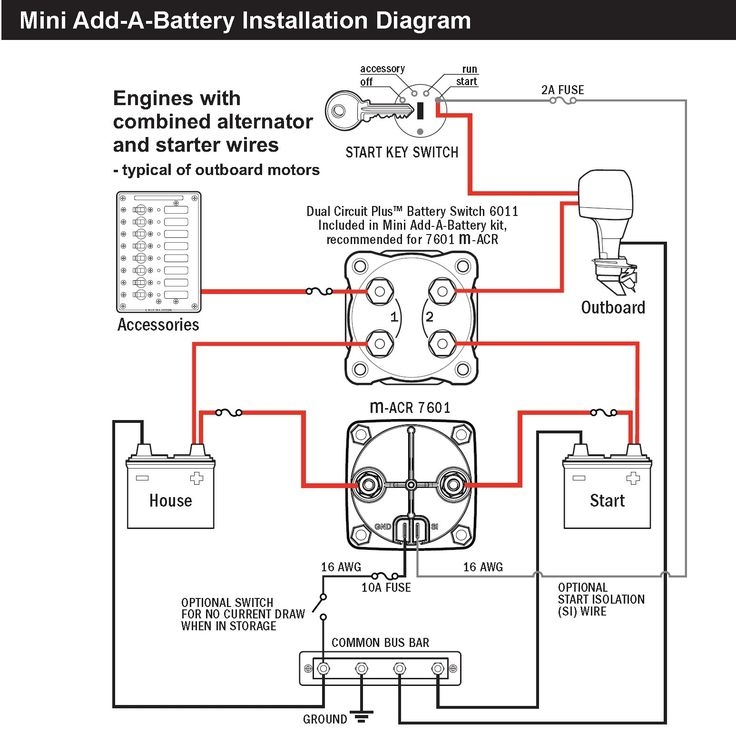

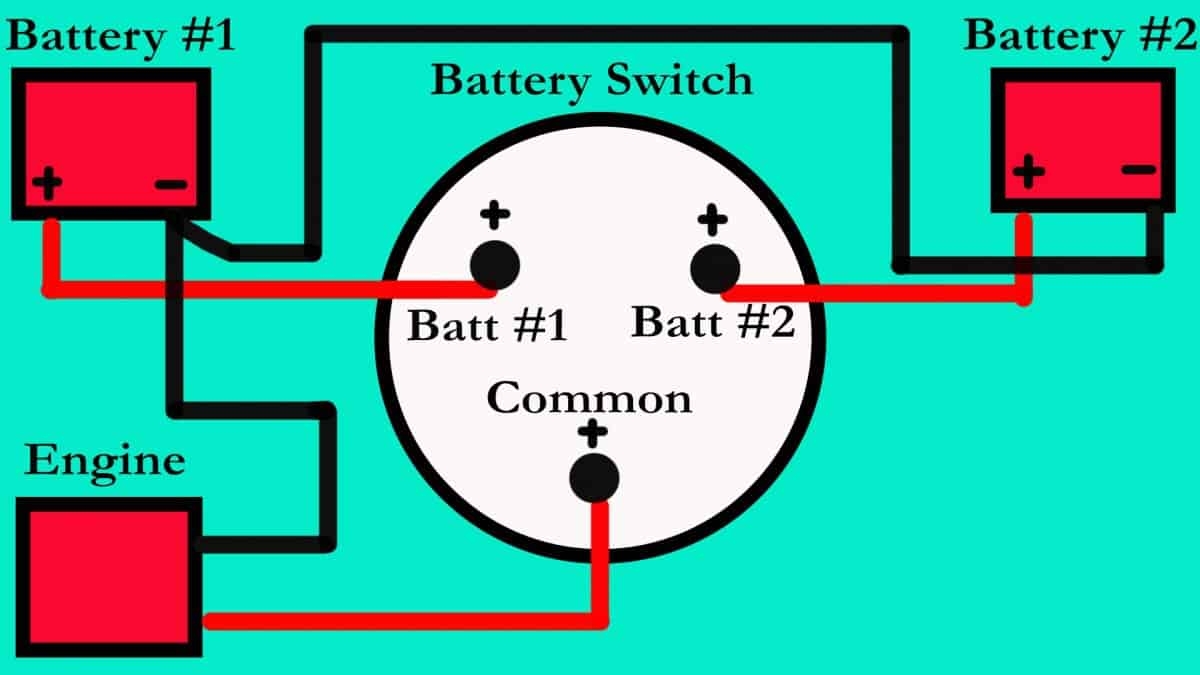

One common wiring diagram for a boat dual battery setup involves connecting the positive terminal of the primary battery to the positive terminal of the secondary battery, and the negative terminal of the primary battery to the negative terminal of the secondary battery. The positive terminals should be connected to the boat’s electrical system, while the negative terminals should be grounded to the boat’s hull.
By following a proper wiring diagram and using the right components, you can ensure that your boat’s dual battery setup functions correctly and provides you with a reliable power source. Always consult the manufacturer’s instructions and seek professional help if you are unsure about any aspect of the wiring process. With a well-designed dual battery system, you can enjoy worry-free boating knowing that you have a backup power source on board.
