When it comes to basic light switch wiring, it’s important to understand the components and their functions. A light switch is a simple device that allows you to control the flow of electricity to a light fixture. Understanding how to wire a basic light switch can help you make simple electrical repairs or installations around your home.
Before working on any electrical wiring, always make sure to turn off the power at the breaker box to avoid any accidents. It’s also a good idea to use a voltage tester to double-check that the power is off before beginning any work.

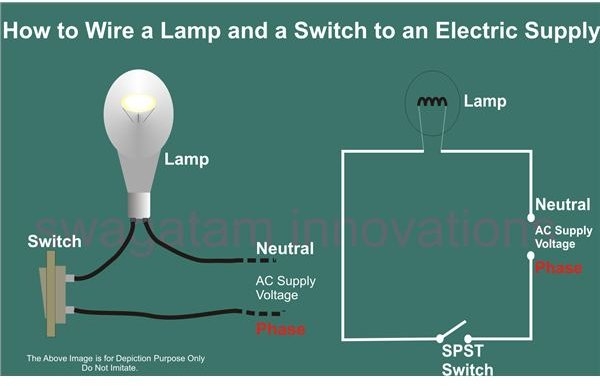

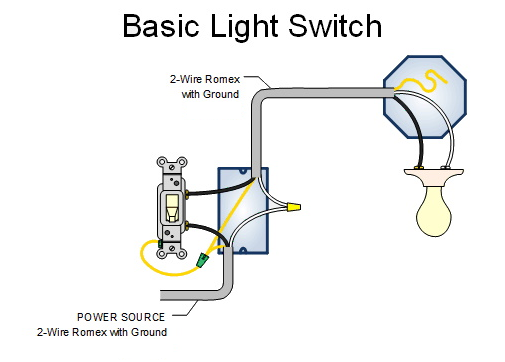

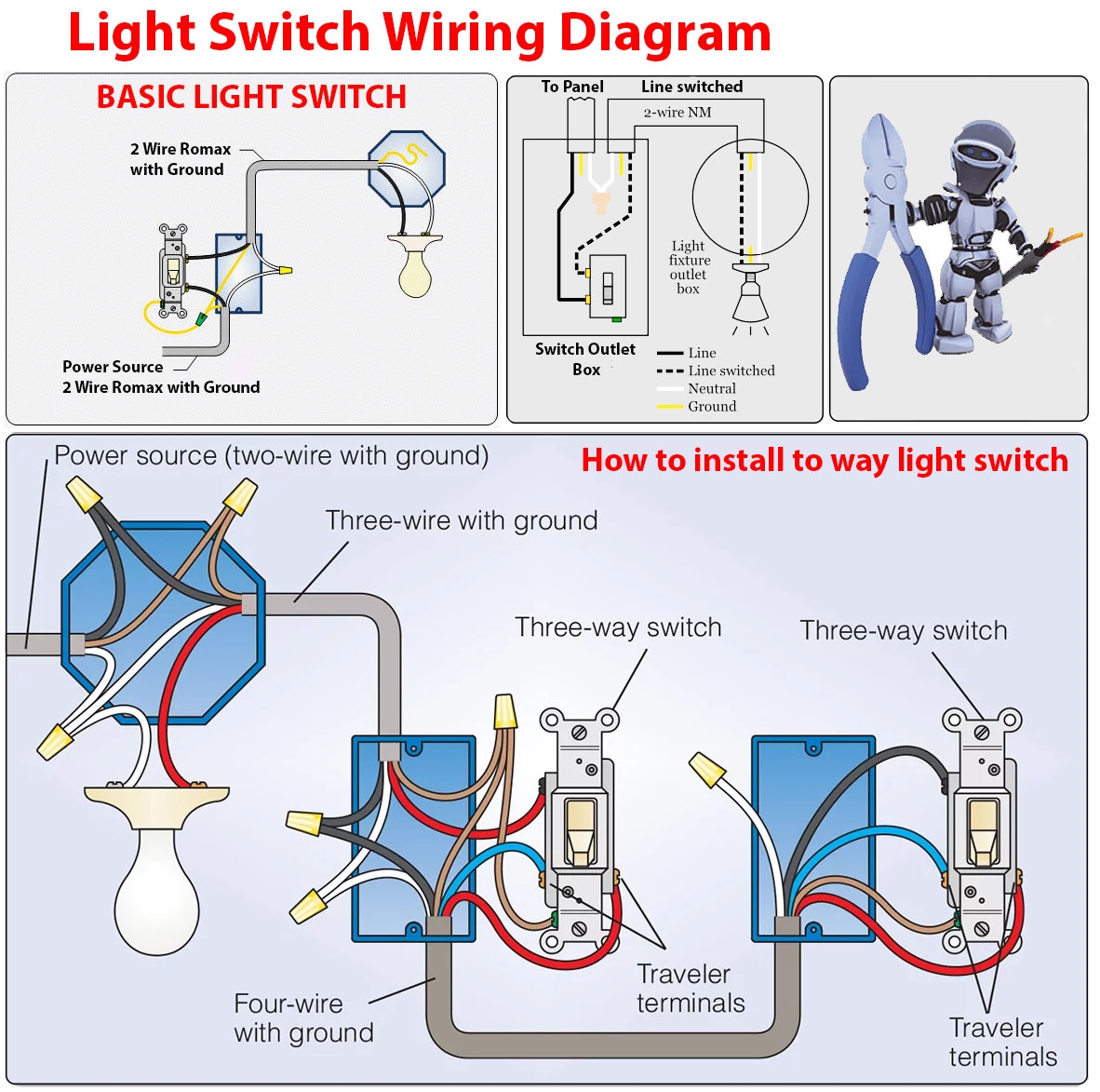

Basic Light Switch Wiring Diagram
Here is a basic light switch wiring diagram to help you understand how to wire a simple on/off switch for a light fixture:
Step 1: Turn off the power at the breaker box to the circuit you will be working on. Remove the cover plate from the existing light switch to expose the wiring.
Step 2: Identify the wires connected to the light switch. Typically, there will be a black hot wire, a white neutral wire, and a bare copper ground wire. The hot wire is the one that carries the electricity to the light fixture.
Step 3: Disconnect the wires from the existing light switch by loosening the screws that secure them in place. Connect the black hot wire to the brass screw on the new light switch, the white neutral wire to the silver screw, and the ground wire to the green screw.
Step 4: Secure the wires in place by tightening the screws on the light switch. Double-check that all connections are secure and that there are no loose wires that could cause a short circuit.
With the basic light switch wiring diagram in mind, you should now be able to confidently wire a simple on/off switch for a light fixture. Remember to always follow safety precautions when working with electricity and consult a professional electrician if you are unsure about any aspect of the wiring process.
