When it comes to towing a trailer, having the correct wiring is crucial for safety and functionality. Whether you are hauling a boat, camper, or utility trailer, having the right wiring setup can make all the difference. There are various wiring diagrams available for trailers, depending on the type of trailer and the features you want to have.
Before you hit the road with your trailer, it’s important to familiarize yourself with the different wiring diagrams available. This will ensure that your trailer lights, brakes, and signals are all working properly, keeping you and other drivers safe on the road.
7 Wiring Diagram For Trailer
7 Wiring Diagram For Trailer

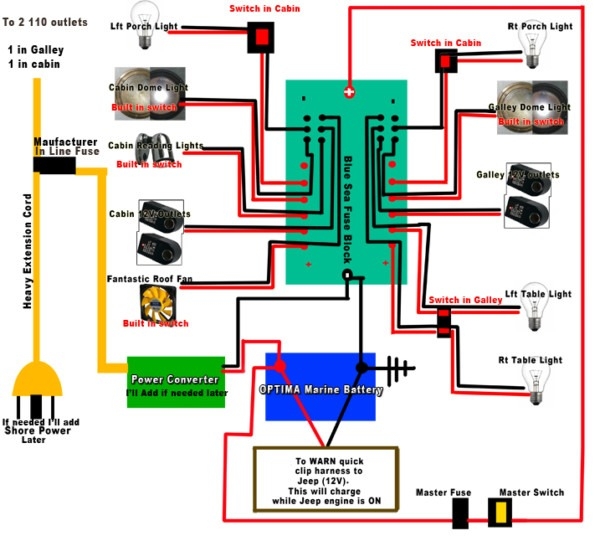

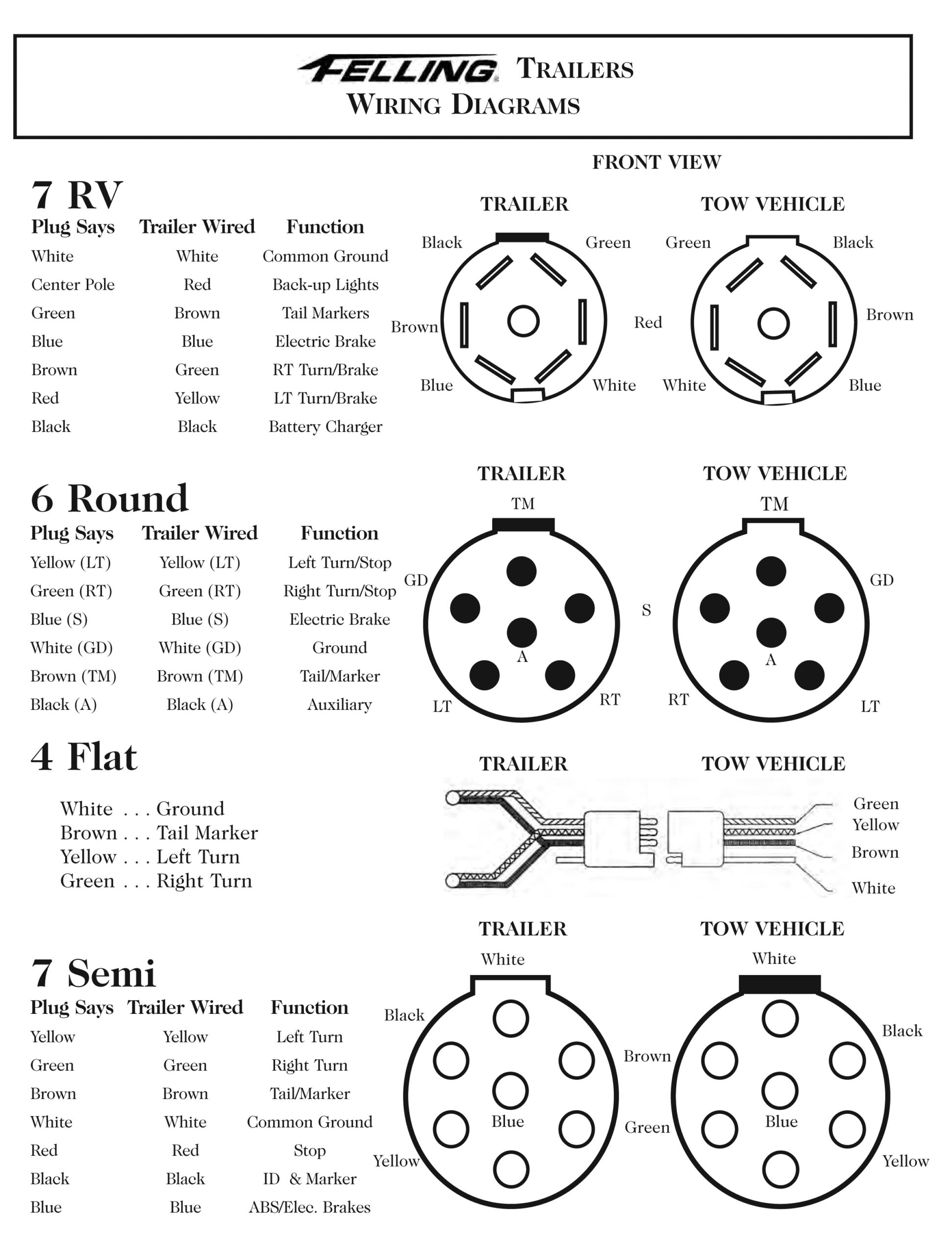

1. 4-Way Trailer Wiring Diagram: This is the most common wiring setup for trailers with basic lighting features. It includes connections for the running lights, brake lights, and turn signals.
2. 5-Way Trailer Wiring Diagram: This diagram adds an extra wire for the reverse lights on the trailer, in addition to the standard running lights, brake lights, and turn signals.

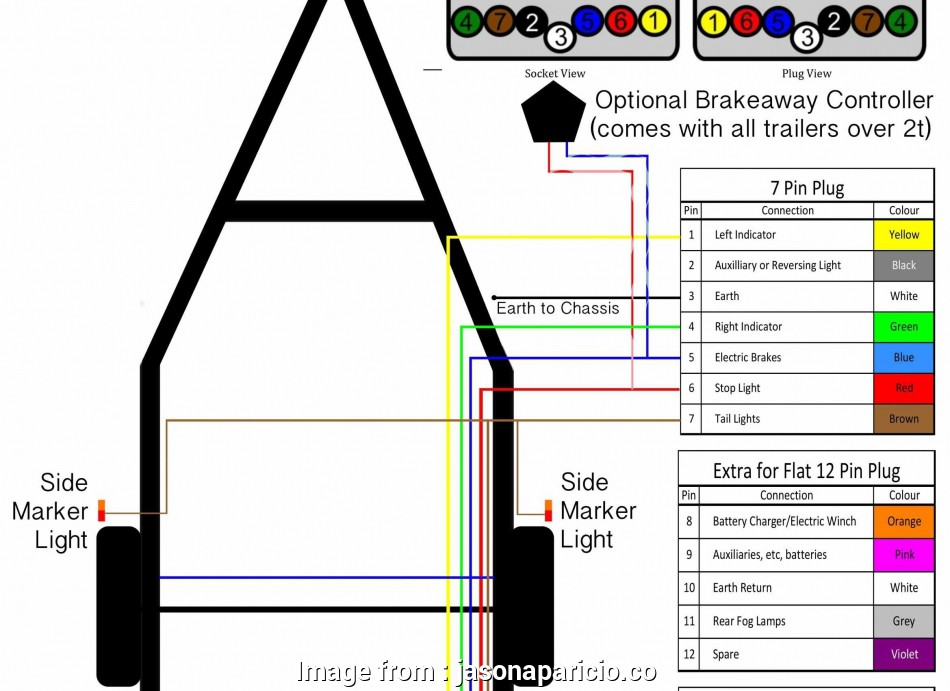

3. 6-Way Trailer Wiring Diagram: This diagram is typically used for trailers with additional features, such as electric brakes or auxiliary power. It includes connections for the running lights, brake lights, turn signals, electric brakes, and a 12V power supply.

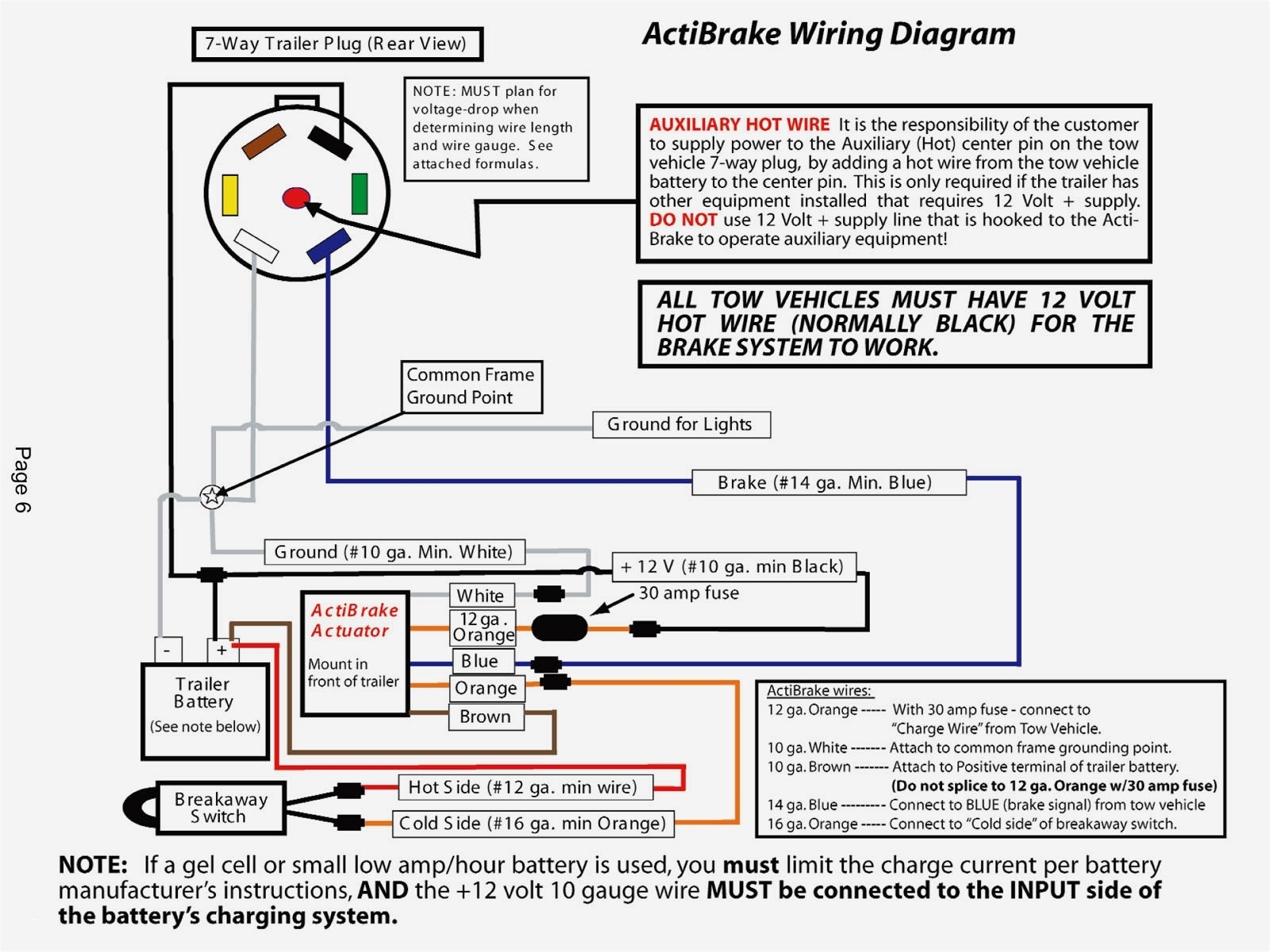

4. 7-Way Trailer Wiring Diagram: This is the most comprehensive wiring setup for trailers, accommodating all the features of the previous diagrams, as well as an additional wire for the auxiliary power or backup lights.
5. Heavy Duty Trailer Wiring Diagram: For trailers with heavier loads, a heavy-duty wiring diagram may be necessary. This diagram includes additional wires for things like trailer brakes and a battery charge line.
It’s important to choose the right wiring diagram for your specific trailer setup to ensure everything functions properly. Whether you’re a seasoned trailer owner or new to towing, having the correct wiring setup is essential for a safe and successful trip.
So, before you hitch up your trailer for your next adventure, be sure to check your wiring diagram and make any necessary adjustments. This simple step can help prevent accidents and ensure a smooth journey on the road.
