When it comes to towing a trailer, having the proper wiring is crucial for safety and functionality. A 7 way trailer wiring diagram with brakes is a must-have for anyone looking to hook up their trailer to their vehicle. This diagram outlines the various connections needed to ensure that the trailer’s brakes are properly powered and functioning.
Whether you are towing a small utility trailer or a large camper, having brakes on your trailer is essential for safe and controlled stops. The 7 way wiring diagram includes connections for the brake lights, turn signals, electric brakes, and more. By following this diagram, you can ensure that your trailer’s brakes are working properly and that you are towing safely.

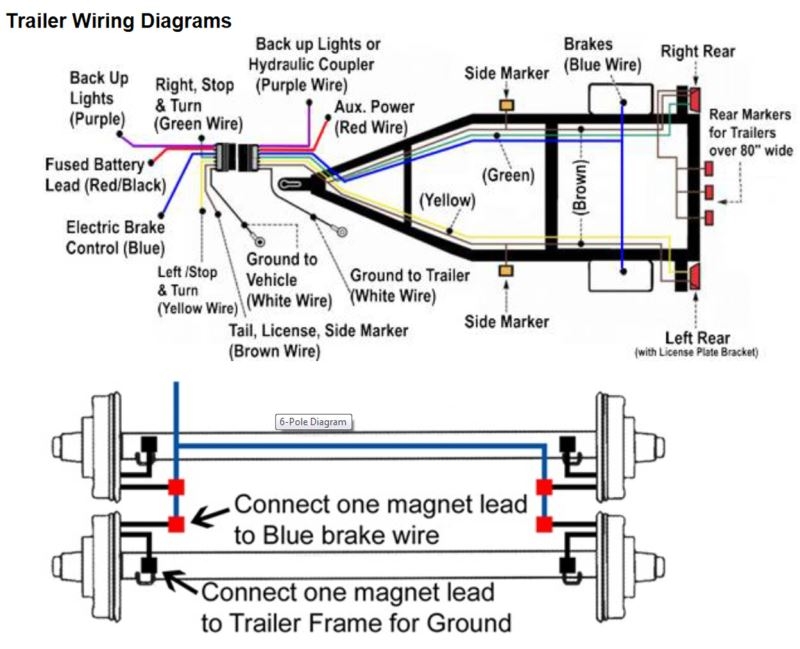

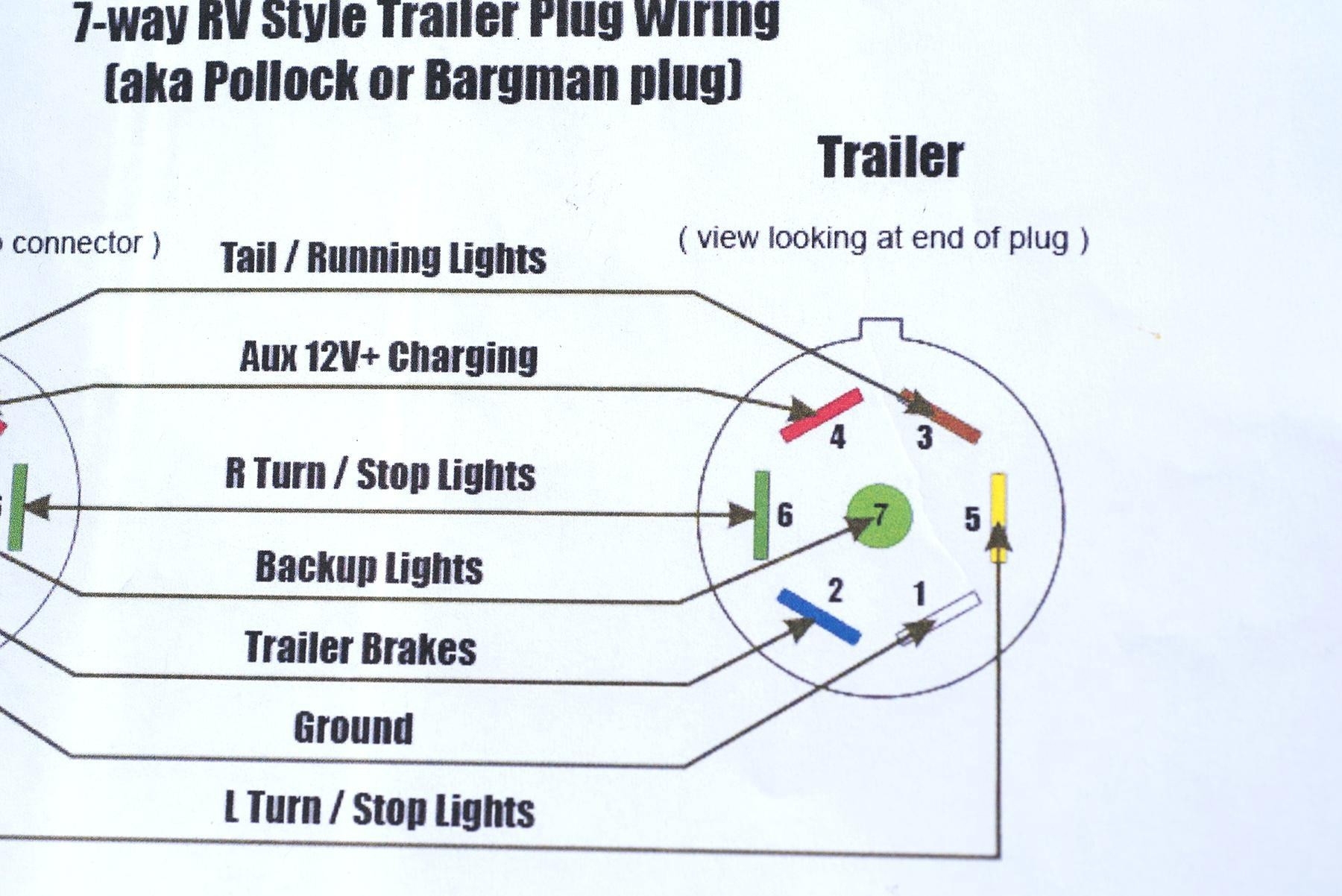

7 Way Trailer Wiring Diagram With Brakes

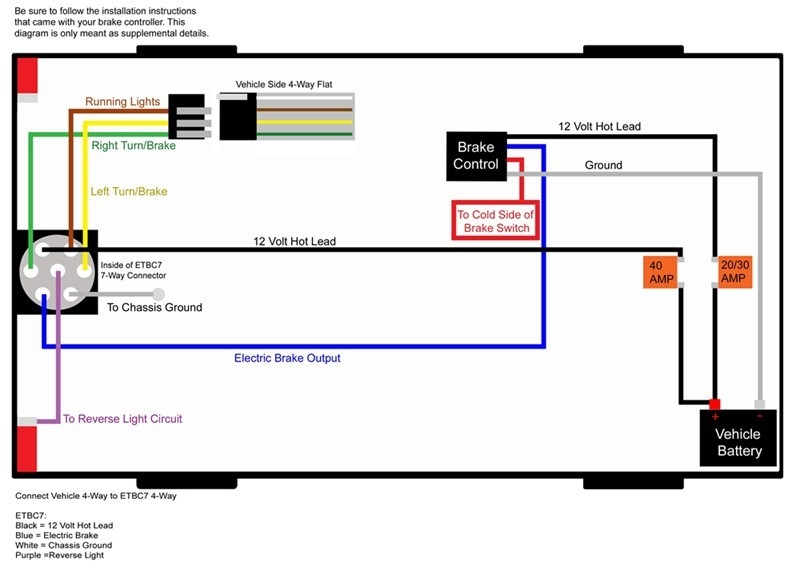

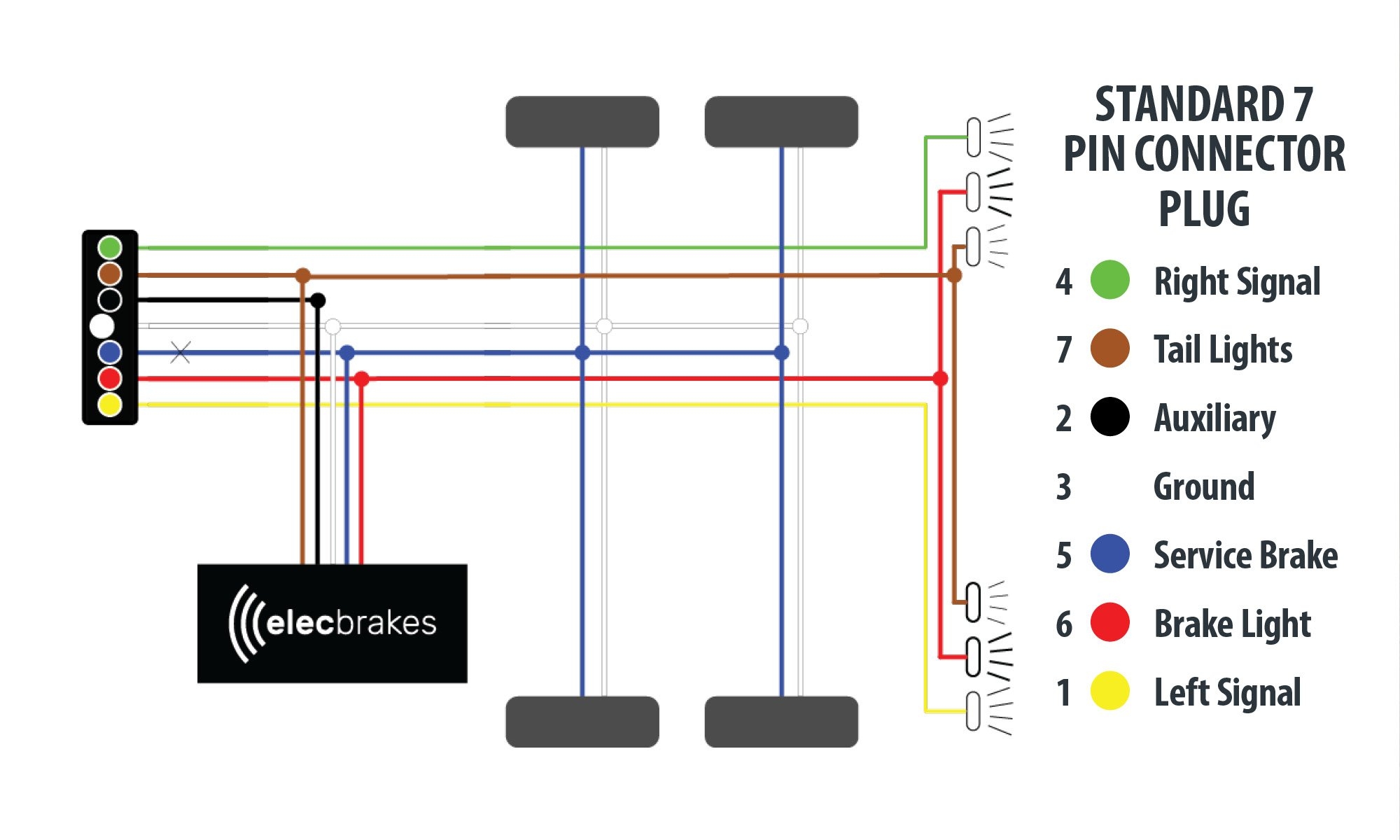

One key component of the 7 way trailer wiring diagram is the brake controller. This device is essential for sending signals from your vehicle to the trailer’s brakes, allowing you to control the braking force applied when stopping. Without a properly functioning brake controller and wiring, your trailer’s brakes may not engage when needed, leading to dangerous situations on the road.
In addition to the brake controller, the 7 way trailer wiring diagram also includes connections for the trailer’s lights and other electrical components. By following this diagram carefully and double-checking all connections, you can ensure that your trailer is fully functional and safe to tow. Regular maintenance and inspection of your trailer’s wiring are also important to prevent any issues while on the road.
Overall, a 7 way trailer wiring diagram with brakes is an essential tool for anyone looking to tow a trailer safely and effectively. By following the diagram and ensuring that all connections are secure, you can have peace of mind knowing that your trailer’s brakes are working properly. Remember to always double-check your wiring before hitting the road to prevent any accidents or malfunctions.
