When it comes to towing a trailer, having the right wiring is essential for safe and efficient operation. A 7 prong trailer wiring diagram is a helpful tool for anyone looking to understand the wiring setup for their trailer. This diagram outlines the different connections needed for lights, brakes, and other electrical components on a trailer.
Understanding how to properly wire a trailer can help prevent accidents and ensure that your trailer functions correctly while on the road. Whether you’re a seasoned trailer owner or a beginner, having a clear diagram to reference can make the wiring process much easier.

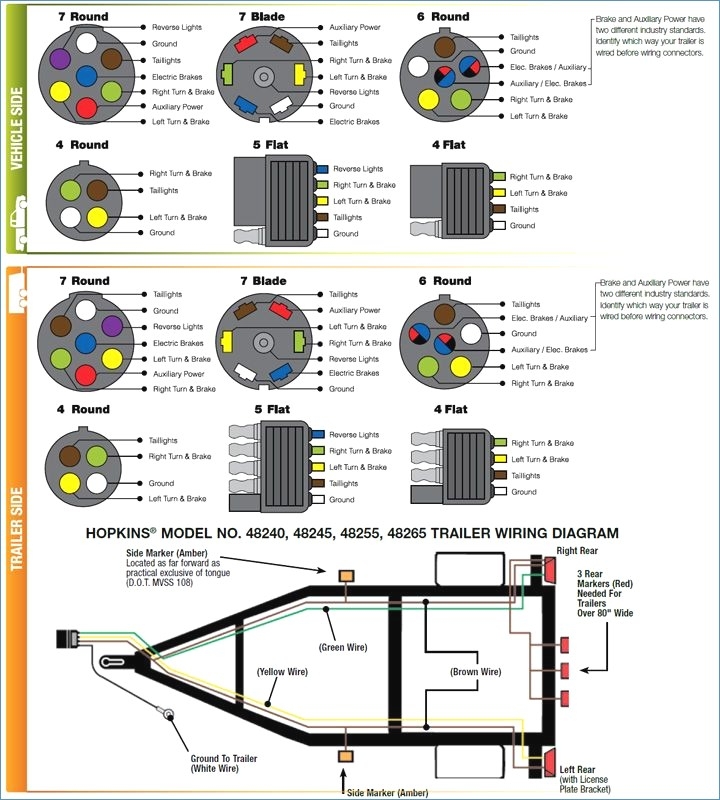

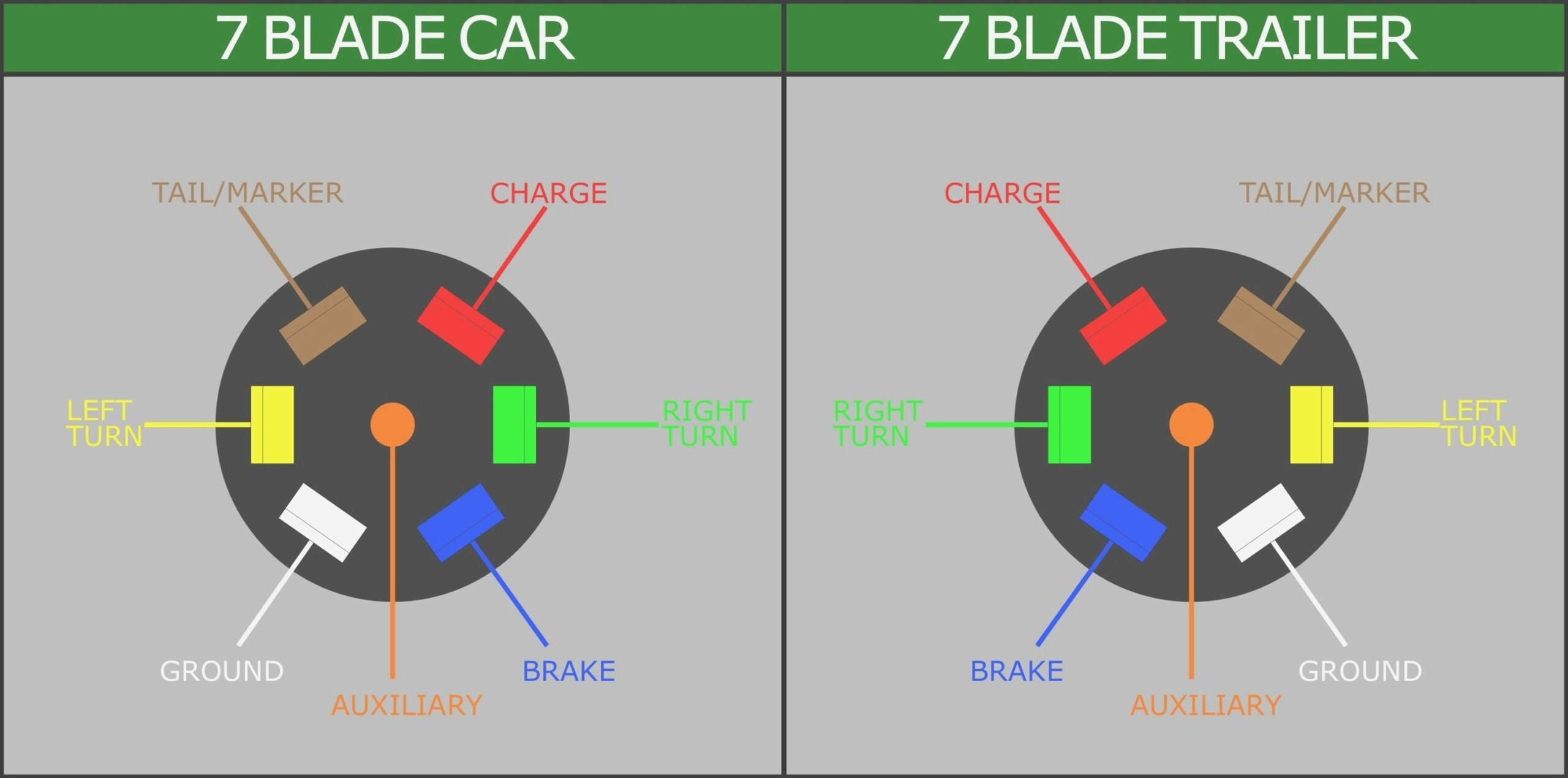

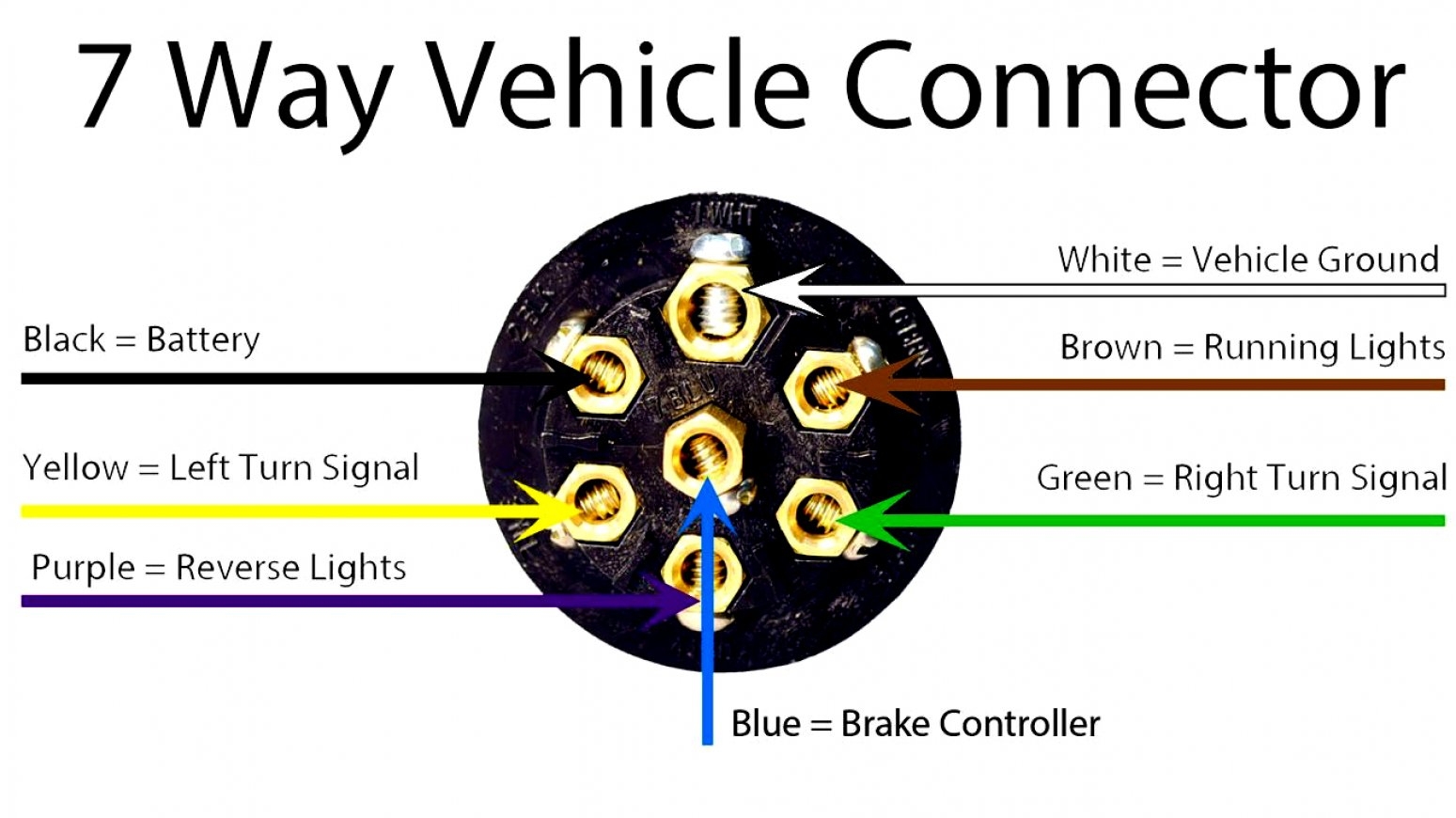

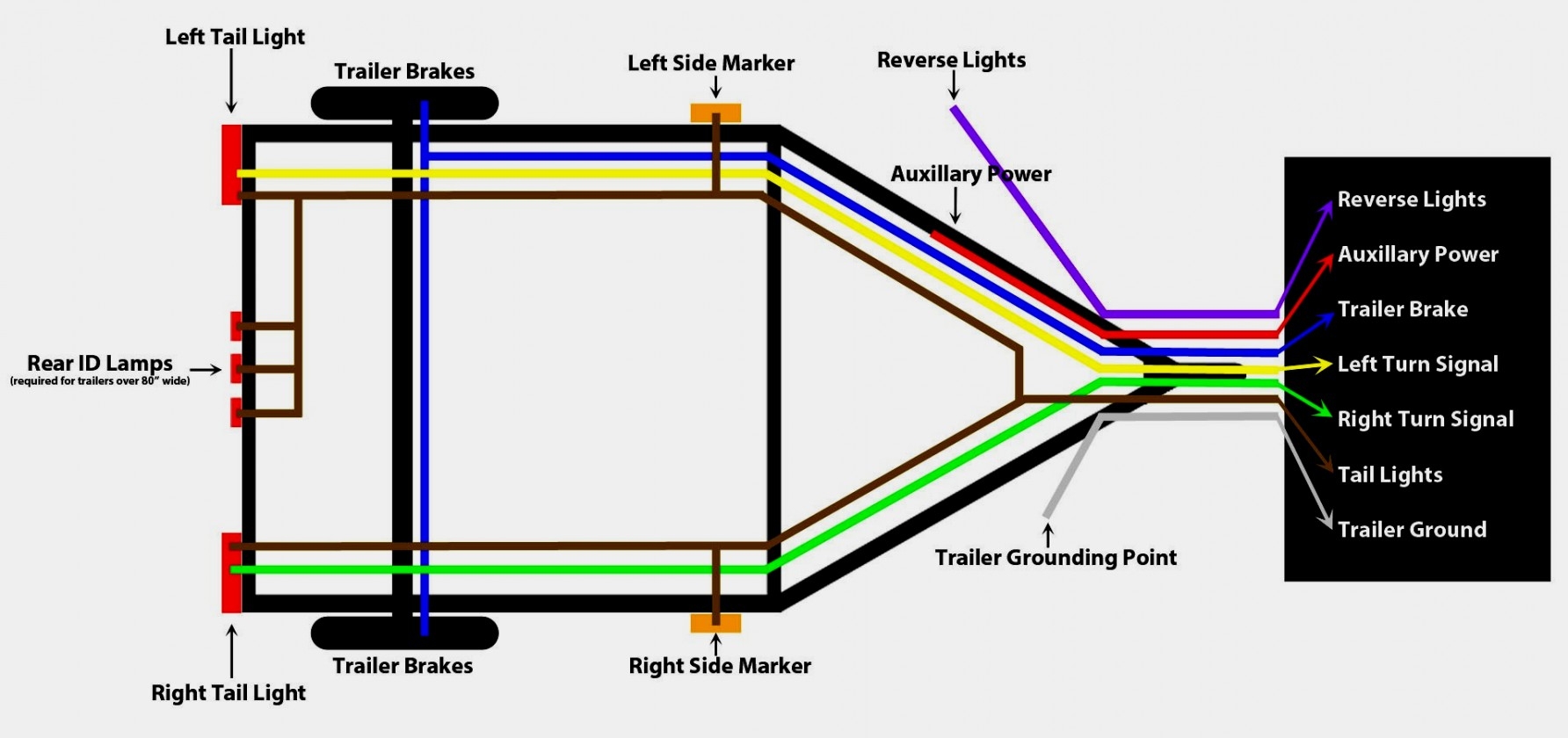

7 Prong Trailer Wiring Diagram
Components of a 7 Prong Trailer Wiring Diagram
A 7 prong trailer wiring diagram typically includes connections for the following components:
- Ground wire
- Running lights
- Left turn signal
- Right turn signal
- Brake lights
- Electric brakes
- Reverse lights
Each of these components plays a crucial role in ensuring that your trailer is visible to other drivers on the road and that your brakes and lights function properly.
Following a 7 prong trailer wiring diagram can help you troubleshoot any issues you may encounter with your trailer’s electrical system. Whether you’re dealing with a faulty connection or a broken wire, having a diagram to reference can make repairs much easier.
It’s important to note that wiring diagrams may vary depending on the make and model of your trailer, so be sure to consult the specific diagram for your trailer before making any modifications or repairs.
In conclusion, a 7 prong trailer wiring diagram is a valuable resource for anyone looking to understand the electrical setup of their trailer. By following the diagram’s guidance, you can ensure that your trailer is safe and roadworthy for all your towing needs.
