When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. One popular wiring setup for trailers is the 7 pin configuration, which includes connections for brakes and a battery. This diagram provides a clear outline of how each pin should be connected to ensure everything works smoothly.
Understanding how to wire your trailer properly can prevent accidents on the road and ensure that your trailer operates efficiently. With brakes and a battery involved, it’s crucial to follow the right wiring diagram to guarantee that everything functions as it should.

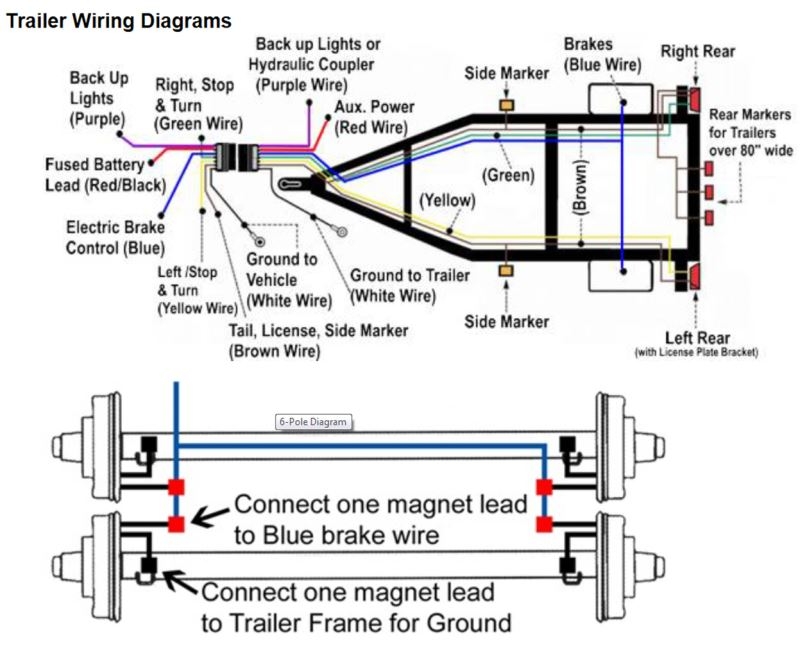

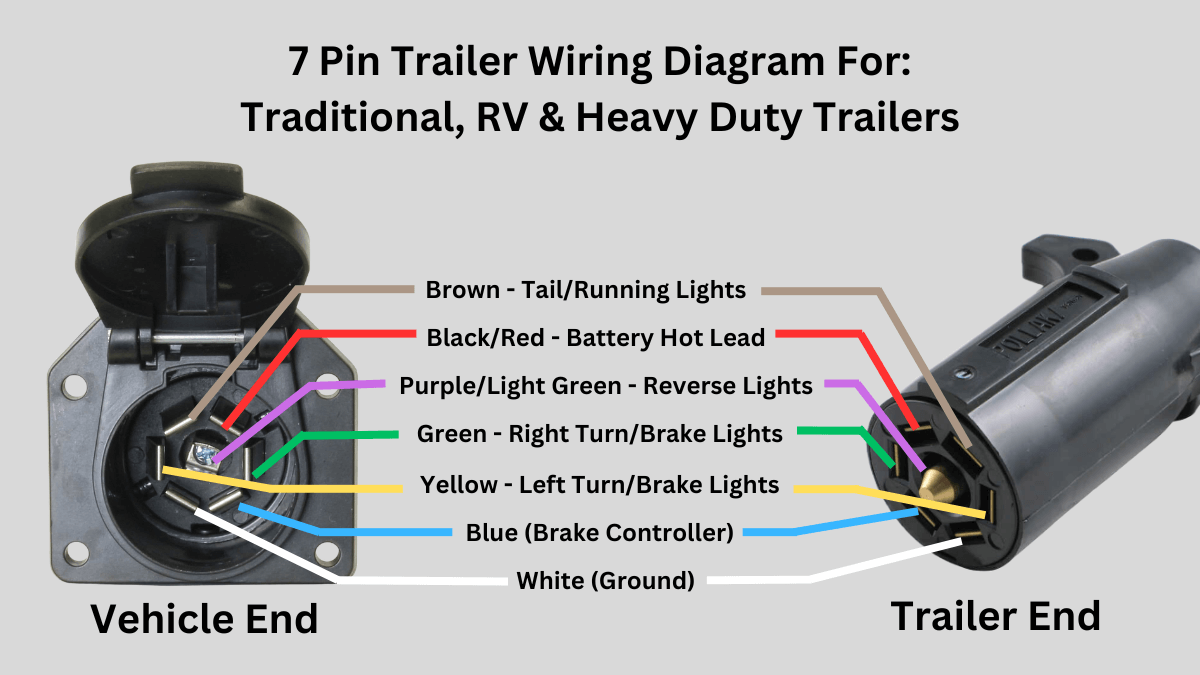

7 Pin Trailer Wiring Diagram With Brakes And Battery

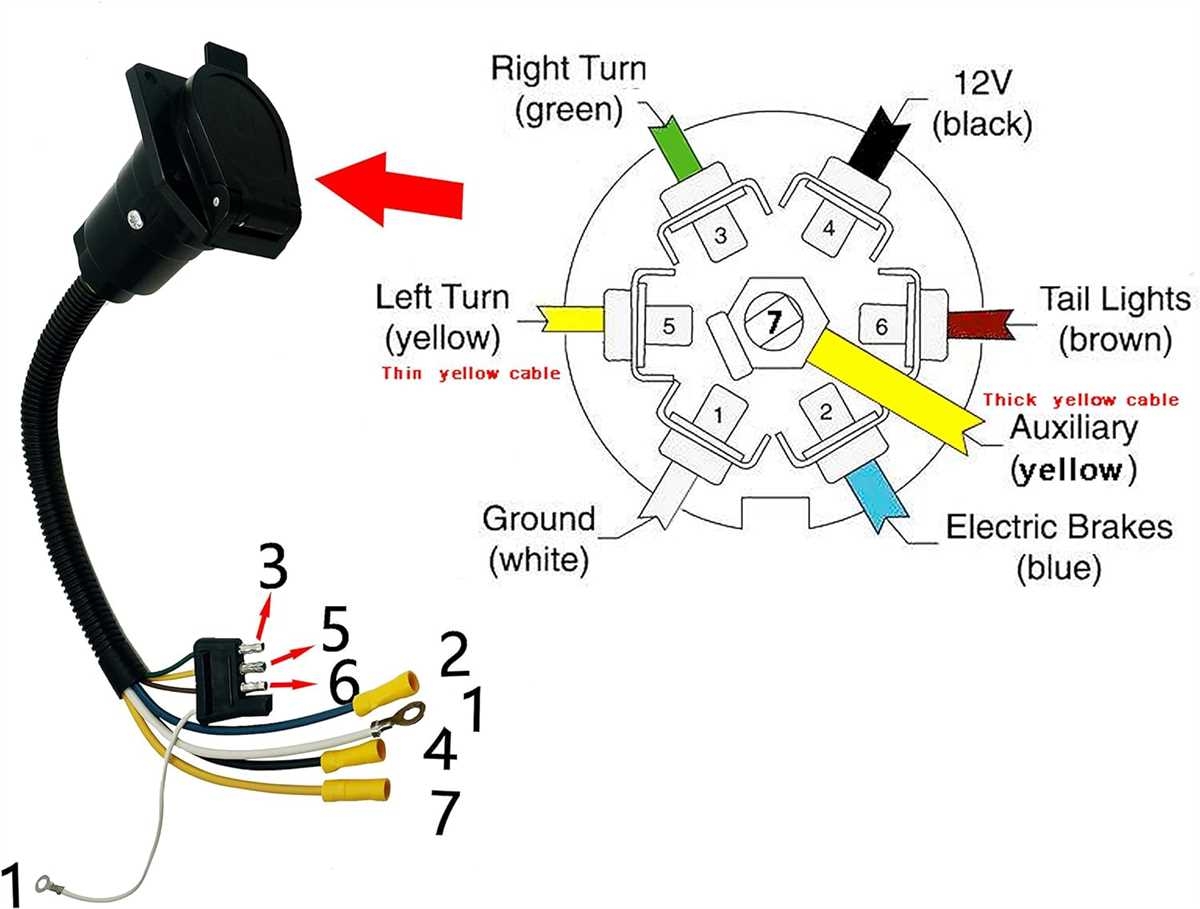

1. Ground Pin – The first pin in the diagram is the ground pin, which is crucial for providing a return path for the electrical current. This pin should be connected to the trailer frame to ensure proper grounding.
2. Brake Control Pin – The second pin is for the brake control, allowing the vehicle to send signals to the trailer’s brakes. This connection is essential for safely stopping the trailer when needed.
3. Battery Pin – The battery pin is where the trailer’s battery is connected to provide power for various functions, such as lights and accessories. This connection ensures that the battery remains charged while on the road.
4. Left Turn/Brake Pin, Right Turn/Brake Pin, and Tail Lights Pin – These three pins are for the left turn signal/brake, right turn signal/brake, and tail lights, respectively. Properly wiring these pins ensures that other drivers can see your intentions on the road.
5. Backup Lights Pin – The backup lights pin is used to connect the trailer’s backup lights to your vehicle, allowing you to see behind you when reversing. This connection is essential for safety when maneuvering your trailer.
Following the 7 pin trailer wiring diagram with brakes and a battery can greatly improve the safety and functionality of your trailer setup. By ensuring that each pin is connected correctly, you can enjoy a smooth towing experience without any hiccups along the way.
