When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. A 7 pin semi trailer wiring diagram is a helpful tool to ensure that all connections are made correctly and that the trailer lights and brakes are functioning properly.
Knowing how to wire a trailer can be intimidating for some, but with the right diagram and a little patience, anyone can successfully connect their trailer to their vehicle. With a 7 pin wiring system, each pin serves a specific function, making it easier to troubleshoot any issues that may arise.

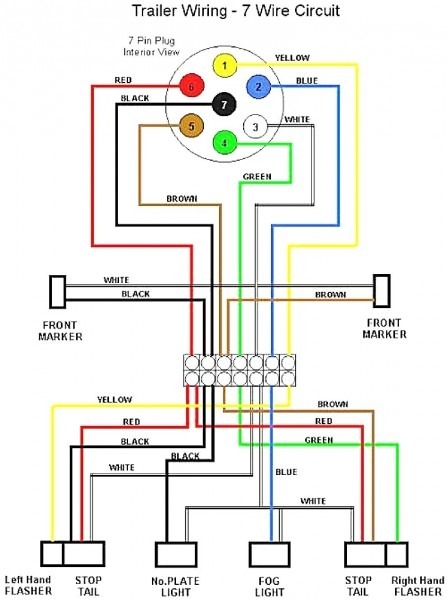

7 Pin Semi Trailer Wiring Diagram

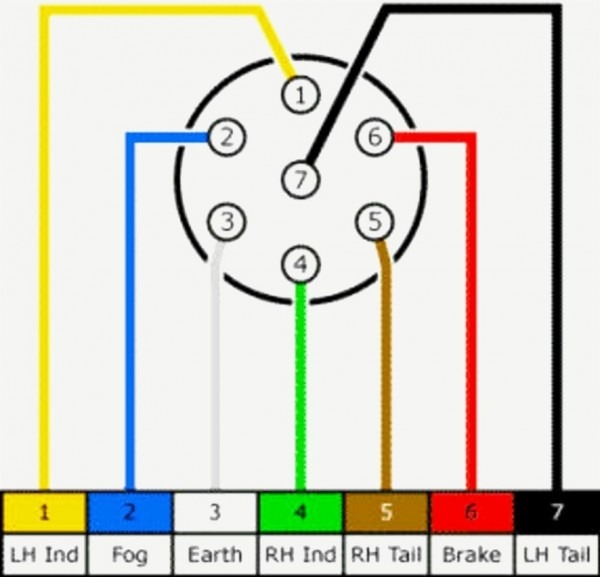

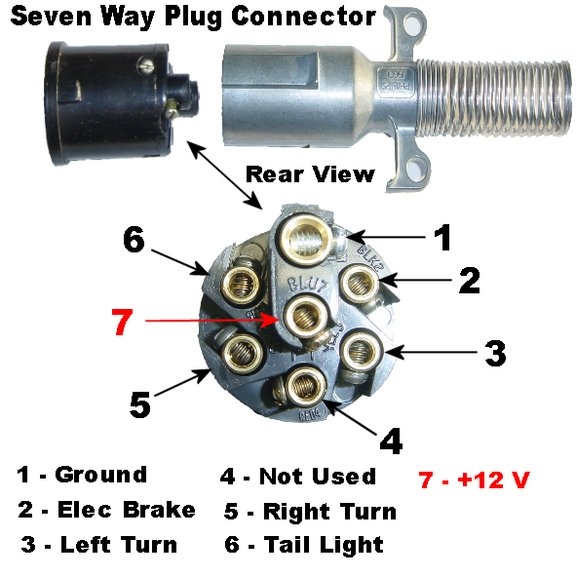

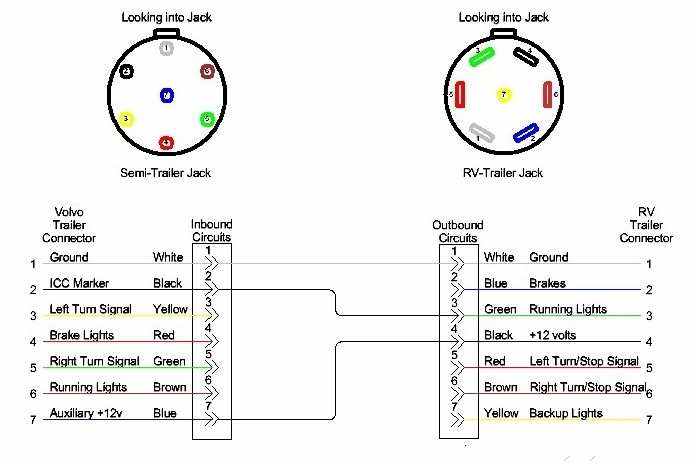

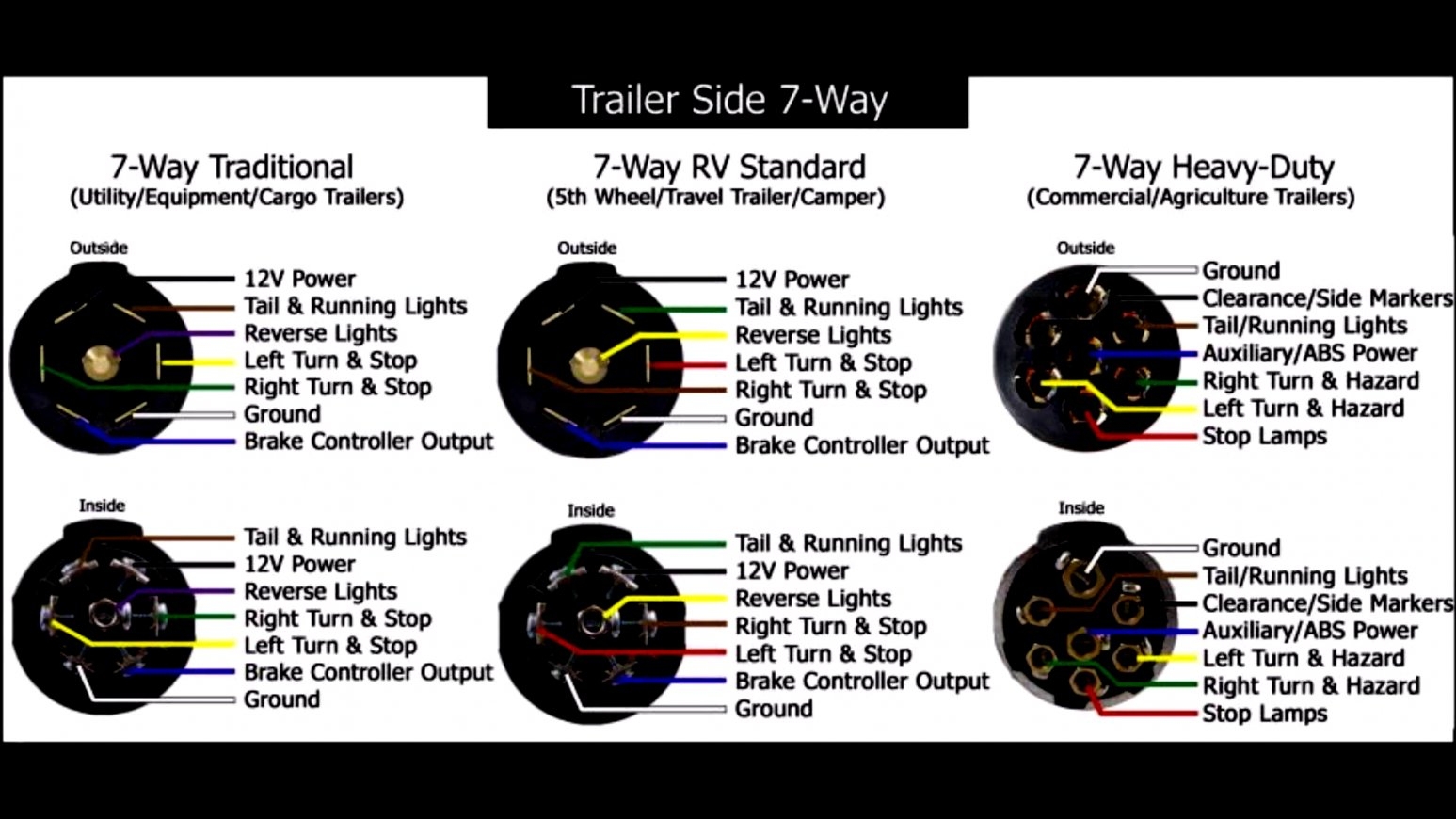

Typically, a 7 pin semi trailer wiring diagram will include connections for the ground wire, tail lights, brake lights, turn signals, electric brakes, and auxiliary power. Following the diagram step by step will ensure that each wire is connected to the correct terminal, preventing any electrical malfunctions while on the road.
One of the most important connections in a 7 pin wiring system is the ground wire. This wire ensures that the electrical current flows properly throughout the trailer, preventing any shorts or disruptions in the system. Without a solid ground connection, the trailer lights and brakes may not function correctly, posing a safety hazard for both the driver and other motorists.
Another crucial aspect of a 7 pin semi trailer wiring diagram is the connection for electric brakes. Electric brakes are essential for safely stopping a trailer, especially when hauling heavy loads. By following the diagram and connecting the brake wire to the appropriate terminal, drivers can ensure that their trailer brakes engage when needed, preventing accidents and damage to the vehicle.
Overall, a 7 pin semi trailer wiring diagram is a valuable resource for anyone looking to tow a trailer safely and efficiently. By following the diagram and double-checking all connections, drivers can ensure that their trailer lights and brakes are working properly, providing peace of mind on the road.
