When it comes to towing a trailer, having the proper wiring is crucial for safety and functionality. The 7 blade trailer connector is a common type of connector used for larger trailers, providing power for the lights and brakes. Understanding how to wire this connector can ensure that your trailer functions properly and that you can safely navigate the roads.
Whether you are towing a boat, camper, or utility trailer, having a 7 blade trailer connector wiring diagram is essential. This diagram outlines the color-coding and pin locations for each wire, making it easier to connect your trailer to your vehicle. With this information, you can troubleshoot any wiring issues and ensure that your trailer lights and brakes work properly.
7 Blade Trailer Connector Wiring Diagram

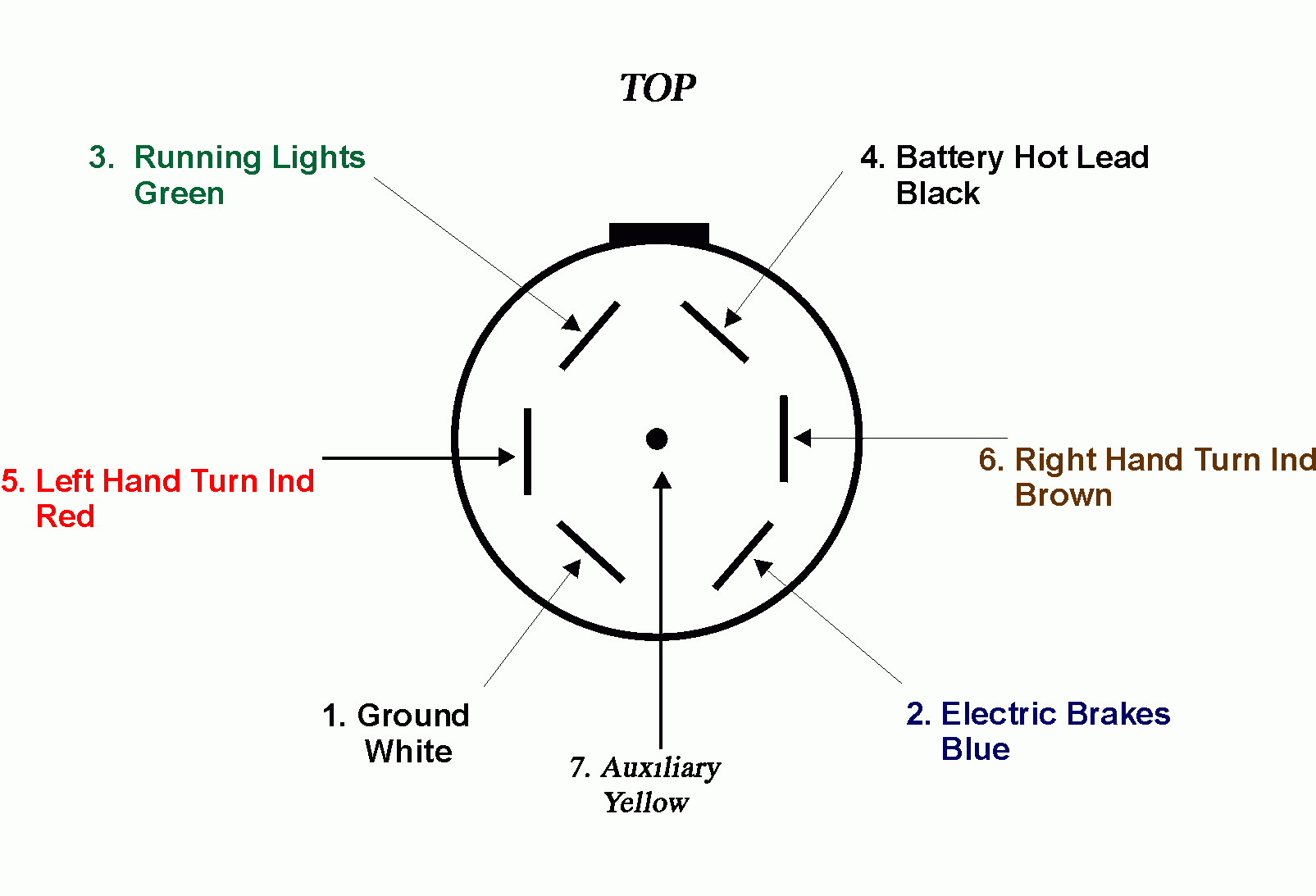

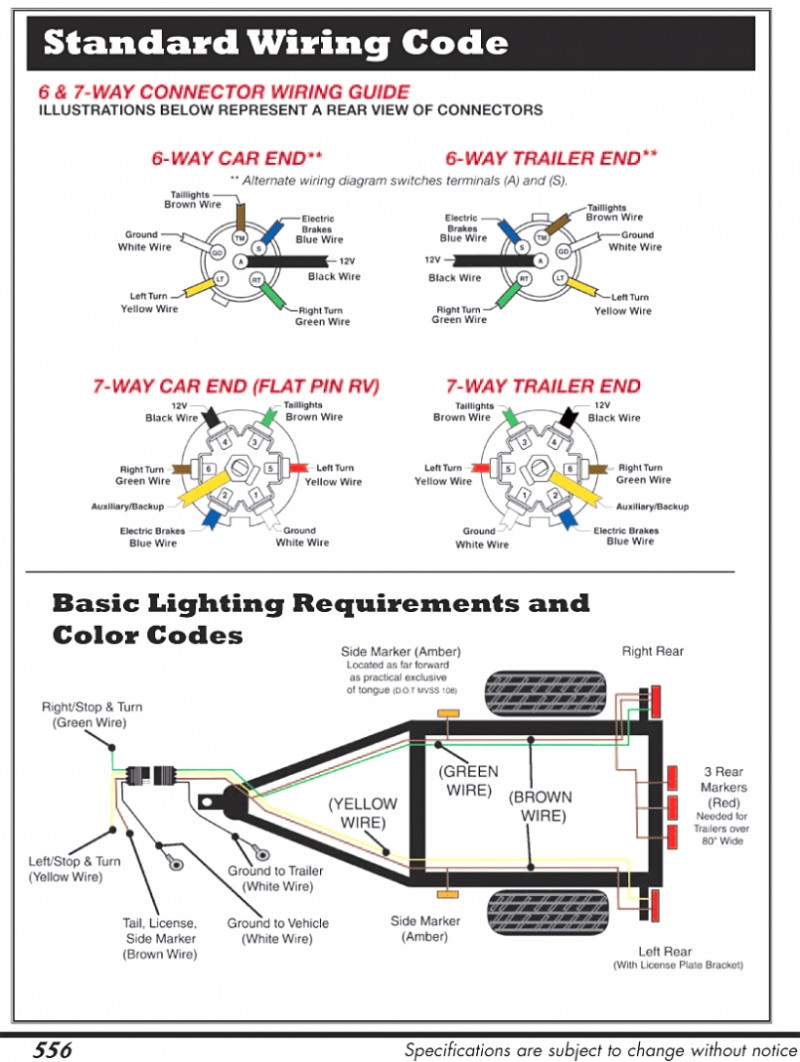

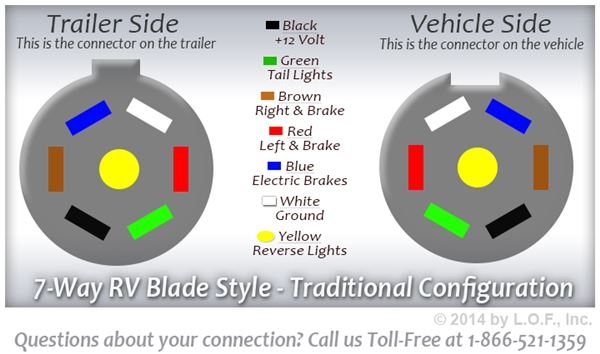

When wiring a 7 blade trailer connector, it is important to match the correct wires to the corresponding pins. The diagram typically shows the following wire colors: white (ground), brown (tail lights), yellow (left turn/brake), green (right turn/brake), blue (electric brakes), black (12V power), and red (reverse lights). By following the diagram, you can easily connect each wire to the correct pin on the connector.
It is recommended to use a voltage tester to ensure that each wire is connected properly and is receiving the correct power. This will help prevent any issues with your trailer lights or brakes while towing. Additionally, properly securing and protecting the wiring with electrical tape or conduit can prevent damage and ensure a reliable connection.
By following a 7 blade trailer connector wiring diagram and taking the time to properly connect and secure the wires, you can ensure a safe and hassle-free towing experience. Whether you are a seasoned trailer owner or new to towing, having the right wiring is essential for the safety of both you and other drivers on the road.
