When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. One of the most common types of trailer plugs is the 6-way plug, which allows for basic lighting functions on the trailer. Understanding how to wire a 6-way trailer plug is important for anyone who tows trailers regularly.
Before you begin wiring your 6-way trailer plug, it’s important to familiarize yourself with the different color codes that are typically used for each wire. This will help ensure that you connect the wires correctly and avoid any potential issues while on the road.

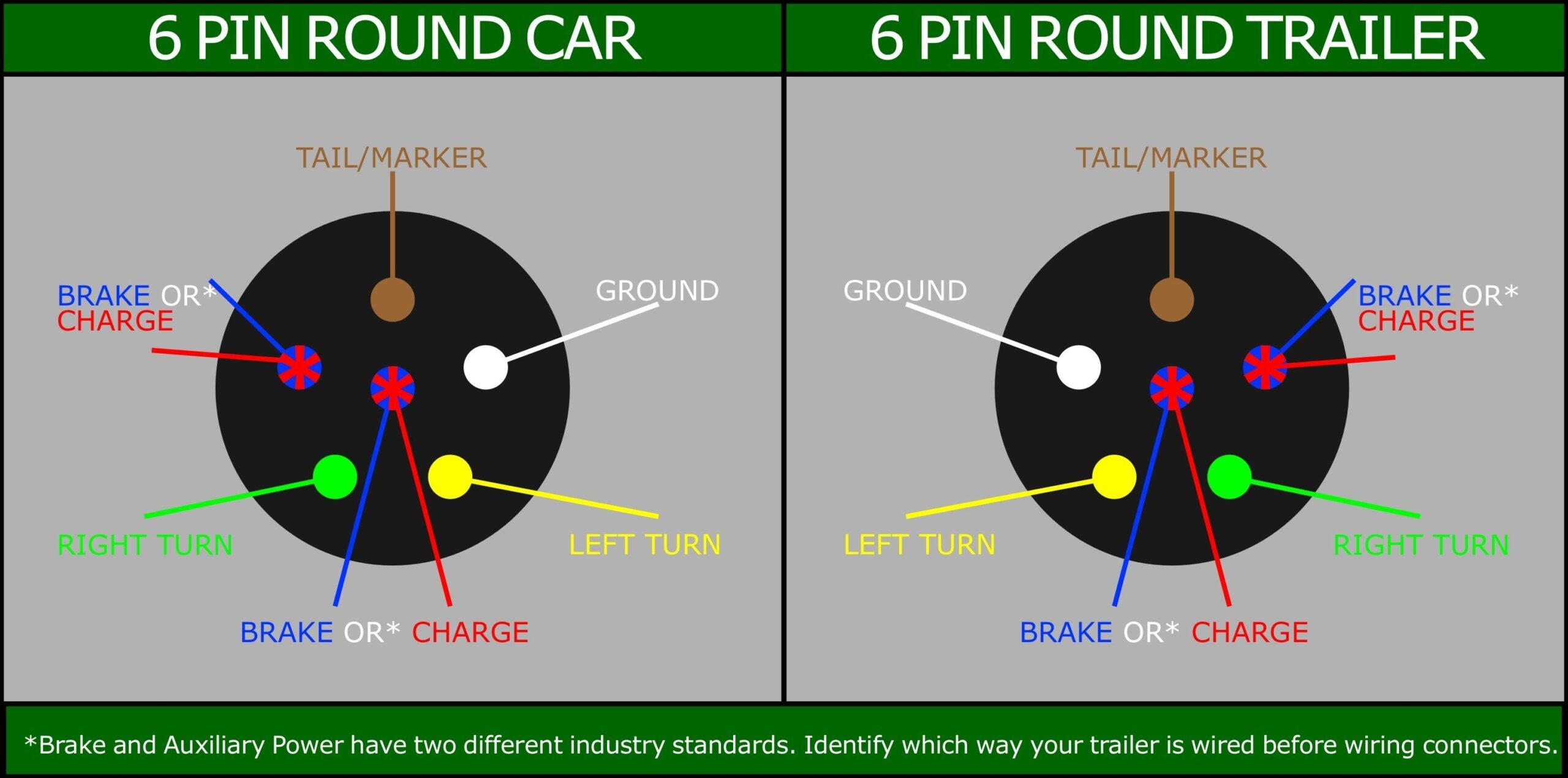

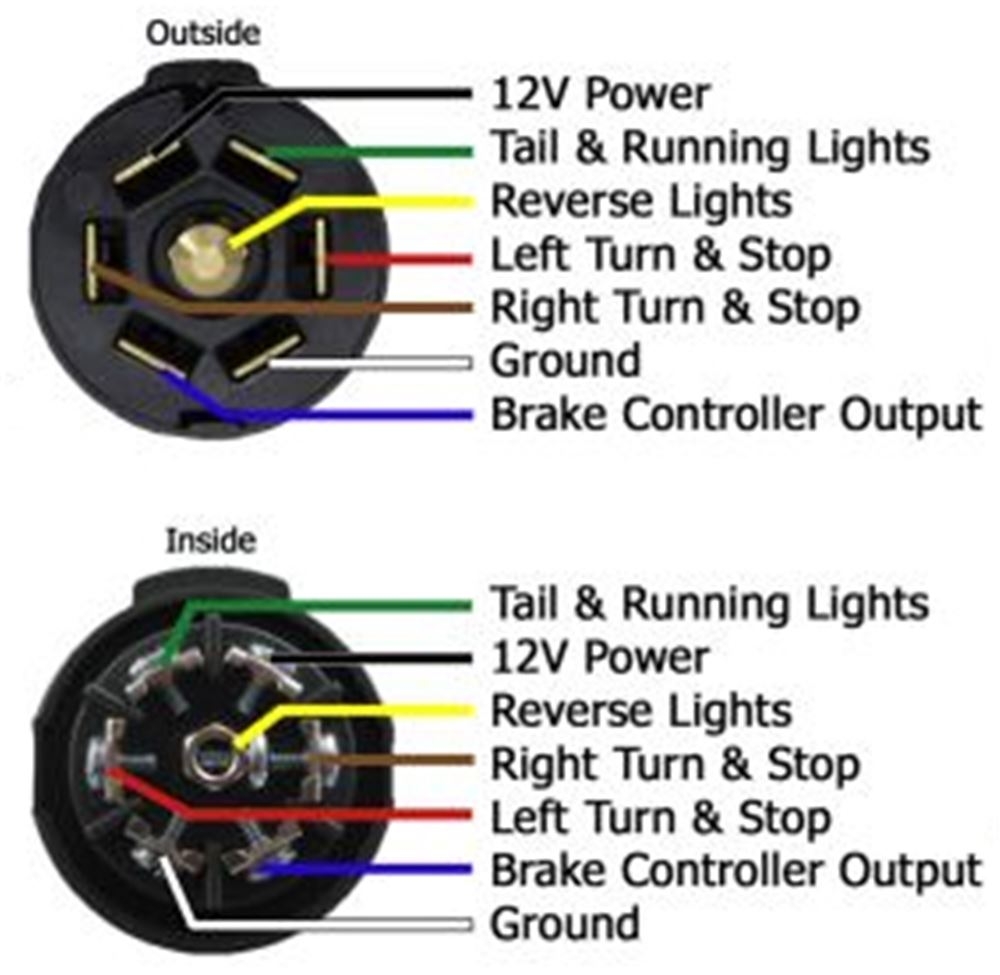

6 Way Trailer Plug Wiring Diagram
Starting with the ground wire, which is usually white, connect it to the trailer frame to provide a grounding connection. The brown wire is for the tail lights, the yellow wire is for the left turn signal and brake light, and the green wire is for the right turn signal and brake light. The blue wire is typically used for electric brakes, while the black wire is for the 12V power supply.
Once you have connected all the wires according to the color codes, it’s important to test the trailer lights to ensure that everything is working properly. You can use a circuit tester to check each function, including the tail lights, turn signals, brake lights, and electric brakes if applicable.
Properly wiring a 6-way trailer plug is essential for safe towing, so take the time to double-check all connections before hitting the road. By following the correct wiring diagram and color codes, you can ensure that your trailer lights function correctly and that you are compliant with all safety regulations.
Whether you’re a seasoned trailer owner or new to towing, understanding how to wire a 6-way trailer plug is a valuable skill. With the right tools and knowledge, you can easily connect your trailer lights and be on your way to safe and hassle-free towing adventures.
