When it comes to wiring a 5 pin CDI on your motorcycle or ATV, it’s important to have a clear understanding of the diagram. The CDI, or Capacitor Discharge Ignition, is a vital component that helps to ignite the spark plug at the right time for optimal engine performance. By following a proper wiring diagram, you can ensure that your CDI is connected correctly and functioning properly.
Understanding the wiring diagram for a 5 pin CDI is essential to avoid any potential issues with your ignition system. By following the correct wiring setup, you can ensure that your engine runs smoothly and efficiently. Whether you’re replacing a faulty CDI or installing a new one, having a clear understanding of the wiring diagram is crucial for a successful installation.
5 Pin Cdi Wiring Diagram

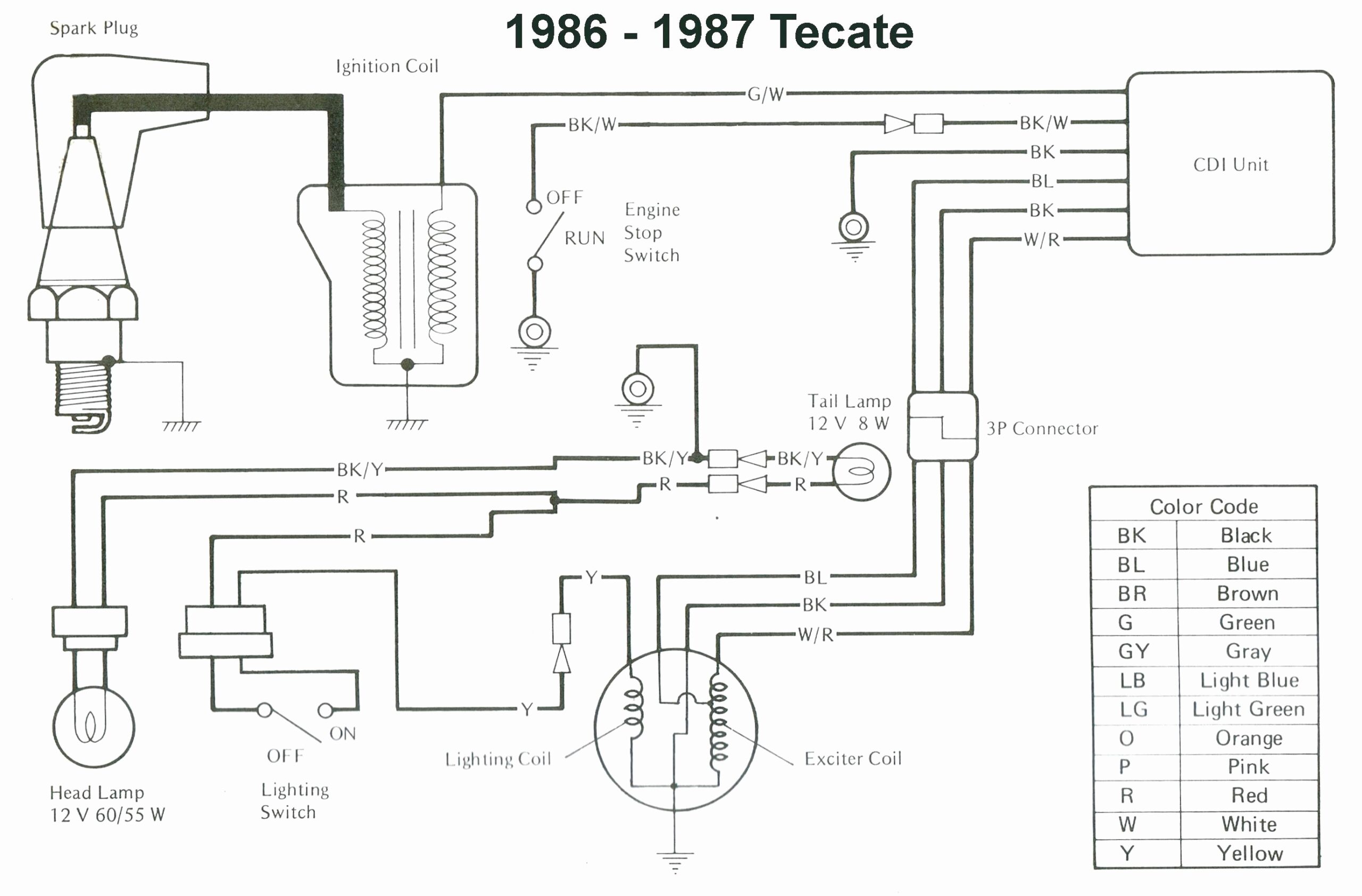

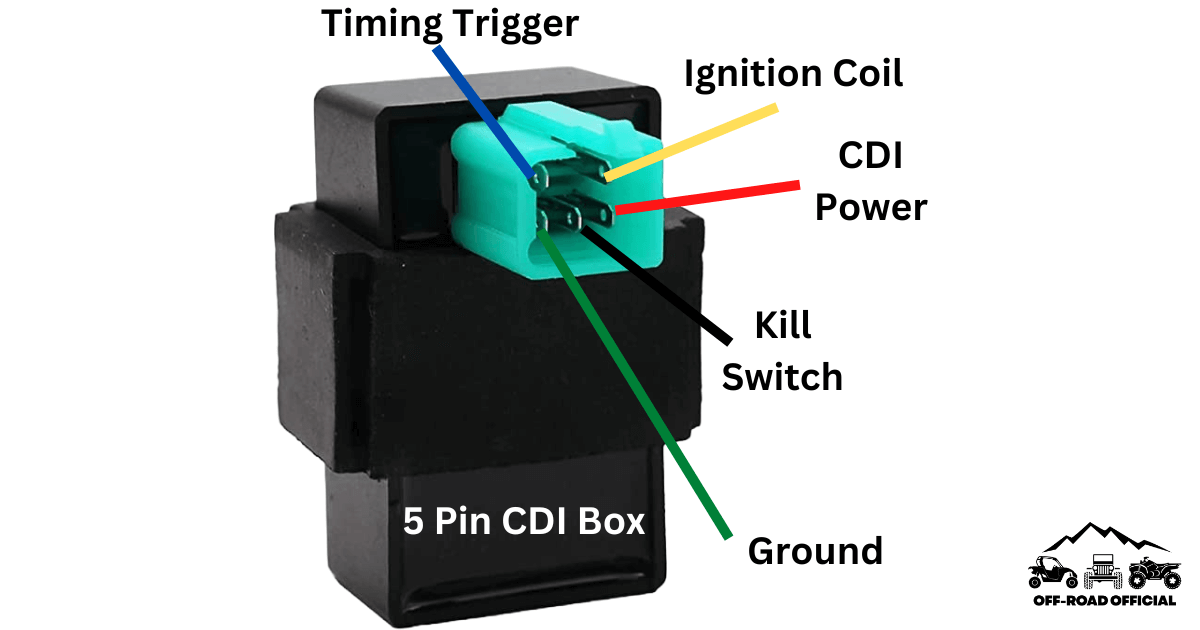

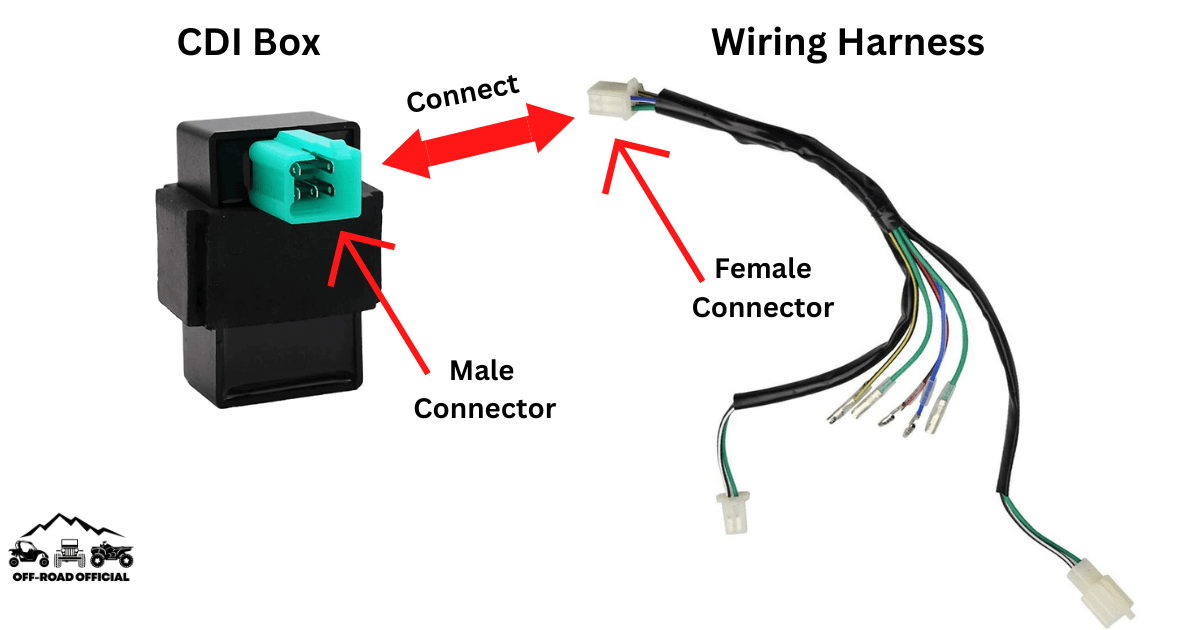

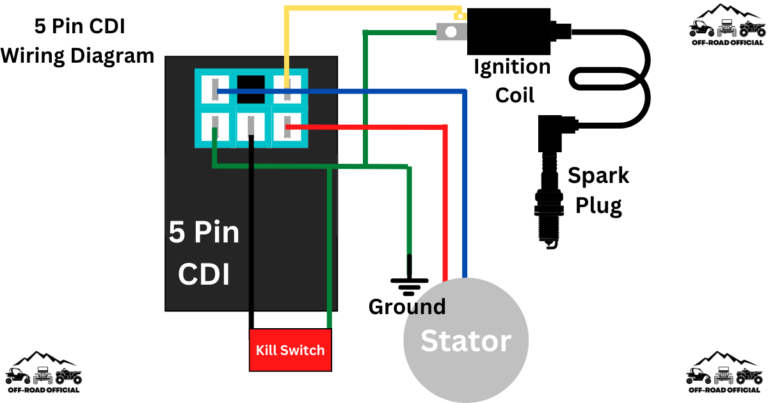

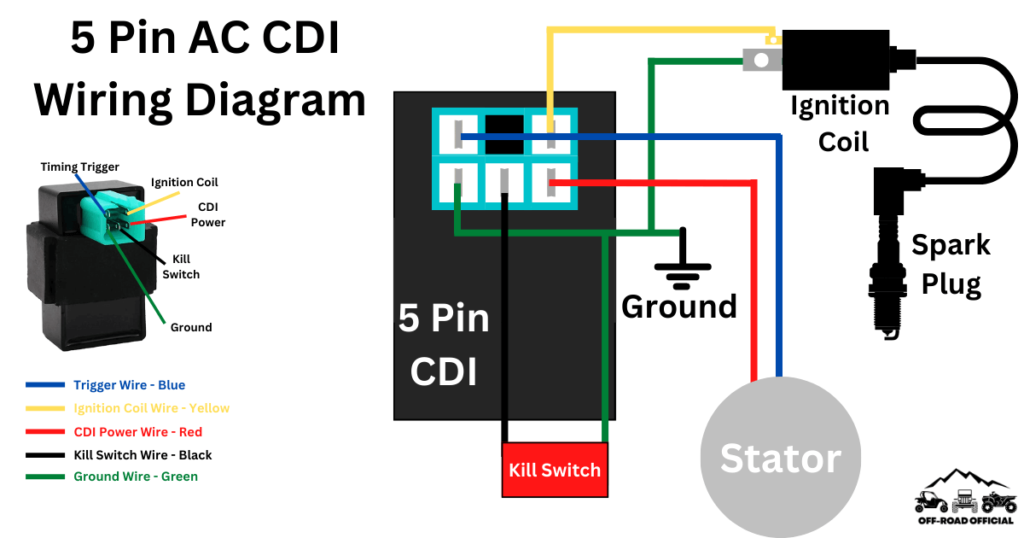

Typically, a 5 pin CDI wiring diagram will include the necessary connections for the CDI unit, ignition coil, stator, kill switch, and spark plug. Each pin on the CDI unit serves a specific function, such as power input, ground, ignition timing, and more. By following the diagram closely and double-checking your connections, you can avoid any potential mistakes that could lead to engine issues.
It’s important to note that not all 5 pin CDI units have the same wiring configuration, so it’s crucial to refer to the specific diagram for your make and model. Additionally, some CDI units may have additional pins for features such as a rev limiter or digital display. Be sure to consult the manufacturer’s instructions or a trusted mechanic for guidance on wiring your CDI properly.
Overall, understanding the wiring diagram for a 5 pin CDI is essential for proper installation and optimal engine performance. By following the correct connections and double-checking your work, you can ensure that your ignition system functions smoothly and efficiently. If you’re unsure about any aspect of the wiring process, don’t hesitate to seek professional help to avoid any potential issues down the line.
