When it comes to the wiring diagram of a 4l60e neutral safety switch, it is important to understand how this component works in your vehicle. The neutral safety switch is responsible for preventing the engine from starting when the transmission is not in the ‘park’ or ‘neutral’ position. This safety feature ensures that the vehicle does not accidentally move when starting the engine, which can be dangerous.
Proper wiring of the neutral safety switch is crucial to ensure that it functions correctly and provides the necessary safety measures. Understanding the wiring diagram will help you troubleshoot any issues that may arise with the switch and ensure that your vehicle operates safely.

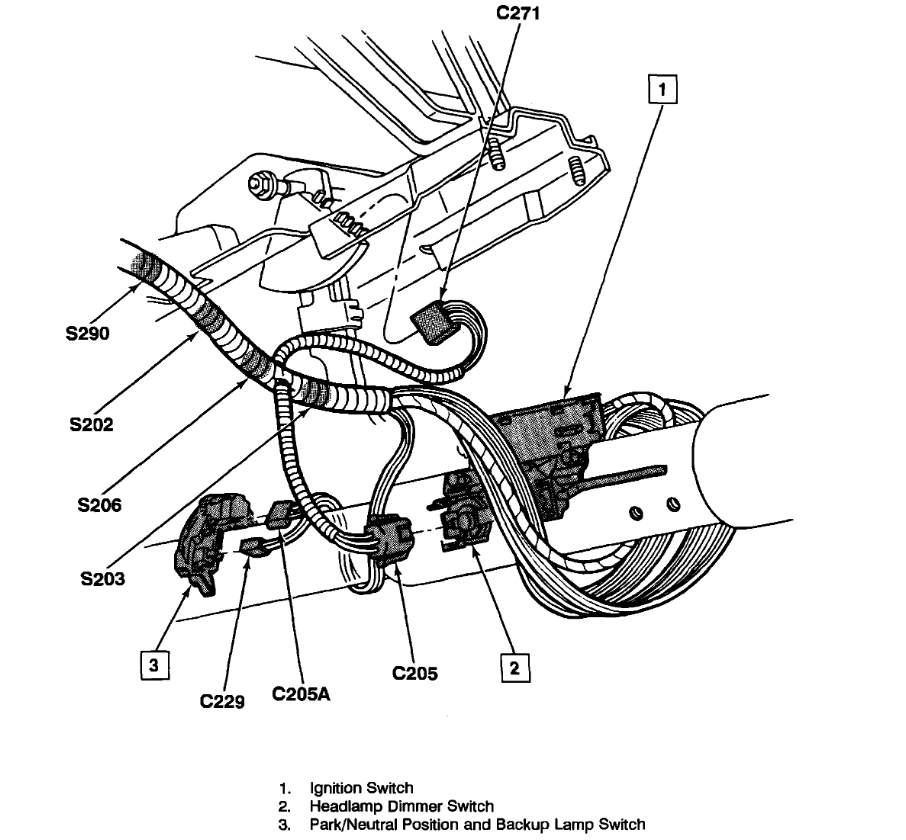

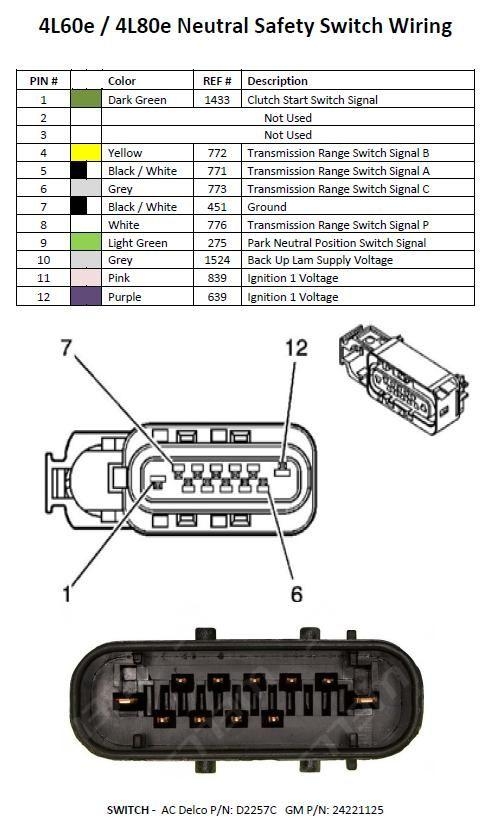

4l60e Neutral Safety Switch Wiring Diagram

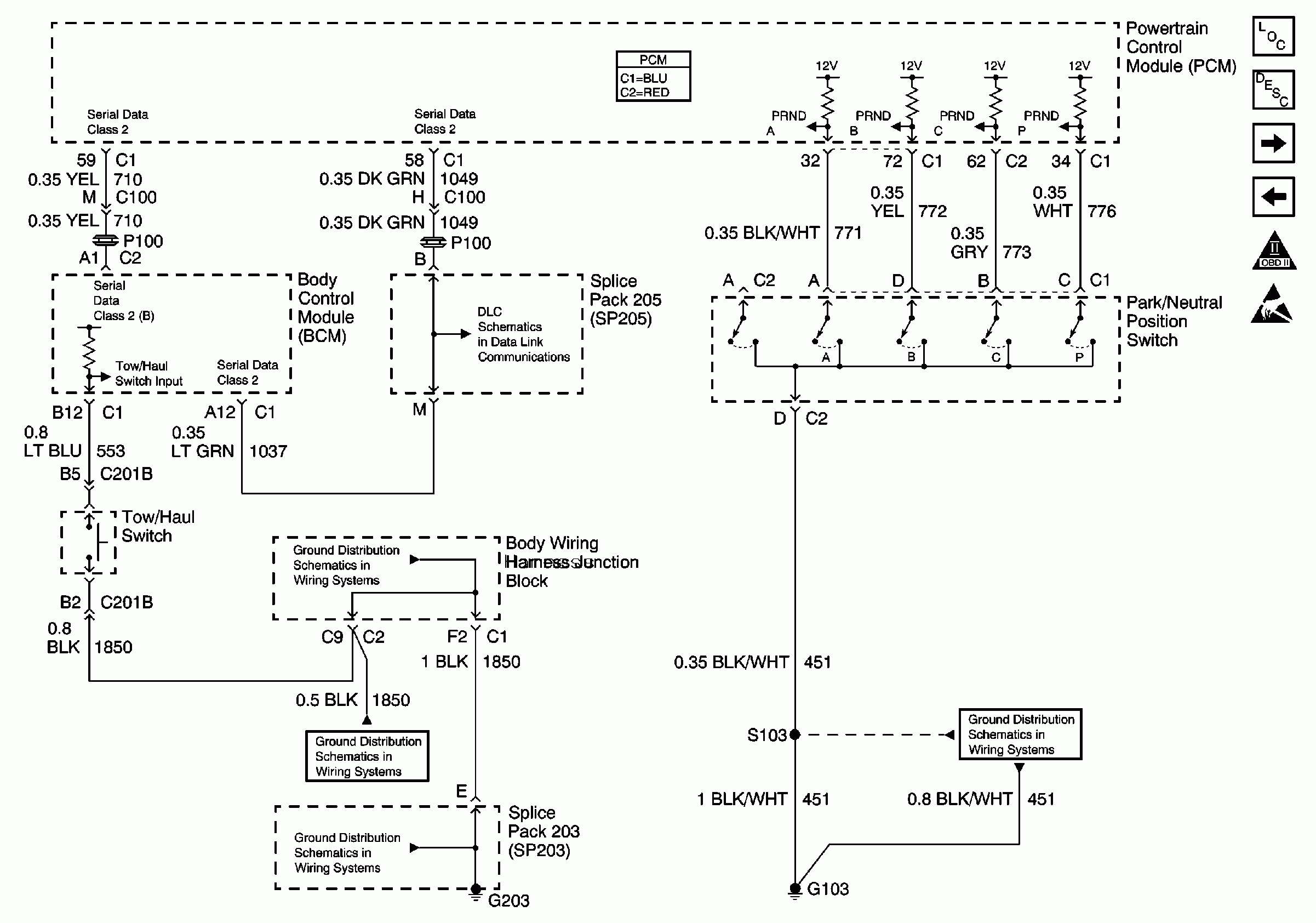

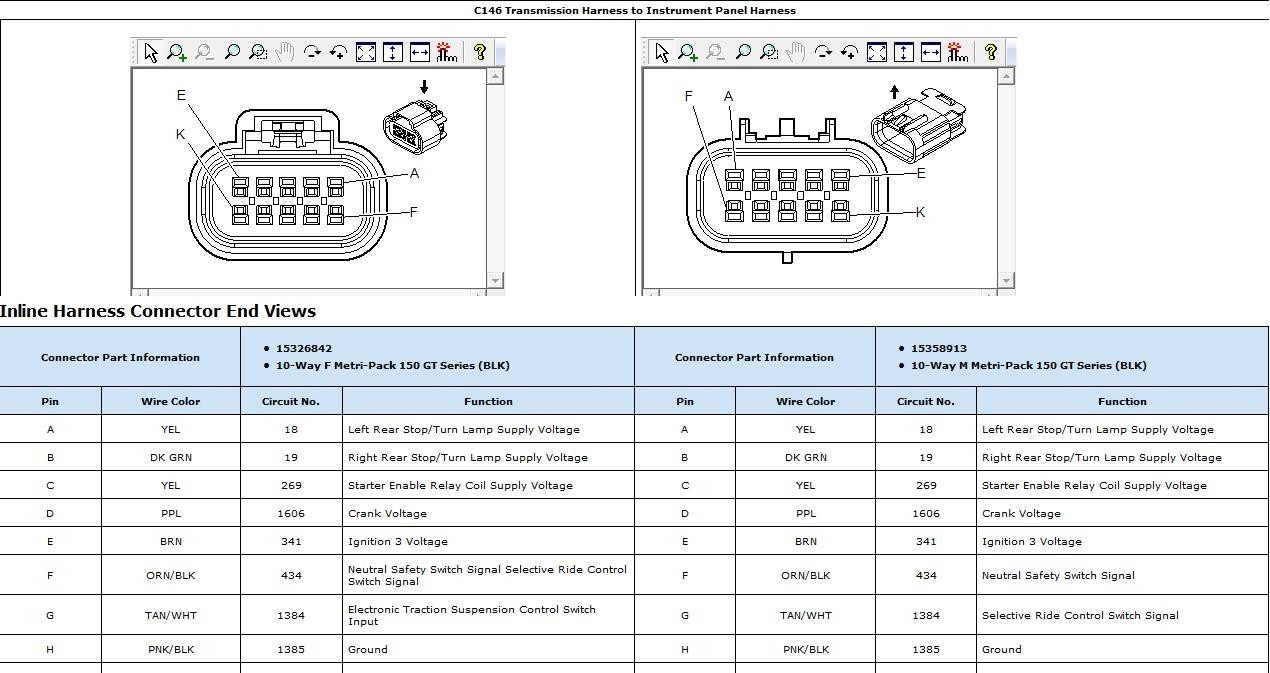

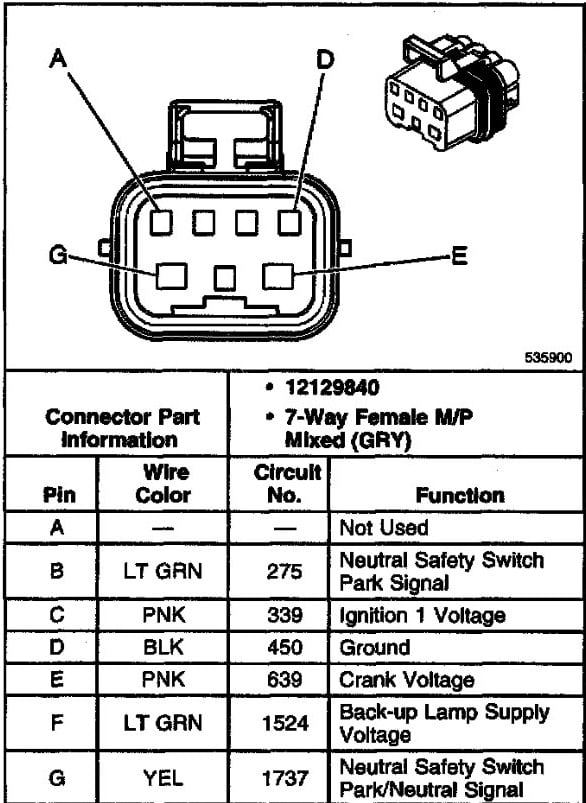

When looking at the wiring diagram for the 4l60e neutral safety switch, you will typically see connections for power, ground, and the switch itself. The switch will have wires that connect to the transmission, the ignition switch, and the starter solenoid. It is essential to follow the diagram carefully to ensure that all connections are correct and secure.
In addition to the wiring connections, the diagram may also include information on how to test the neutral safety switch to ensure that it is functioning properly. This may involve using a multimeter to check for continuity or resistance in the switch when it is in the ‘park’ or ‘neutral’ position. Testing the switch regularly can help prevent issues with starting the engine or inadvertently moving the vehicle.
Overall, understanding the wiring diagram for the 4l60e neutral safety switch is essential for maintaining the safety and functionality of your vehicle. By following the diagram and testing the switch regularly, you can ensure that your vehicle starts safely and operates as intended. If you are unsure about any aspect of the wiring or functionality of the switch, it is best to consult with a professional mechanic for assistance.
