When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. A 4 wire trailer connector is commonly used for small trailers, utility trailers, boat trailers, and more. This type of connector allows for the basic lighting functions of the trailer, including brake lights, turn signals, and running lights.
Understanding how to wire a 4 wire trailer connector is important for anyone who plans to tow a trailer. By following a wiring diagram and connecting the wires correctly, you can ensure that your trailer lights work properly and that you are following all safety regulations.

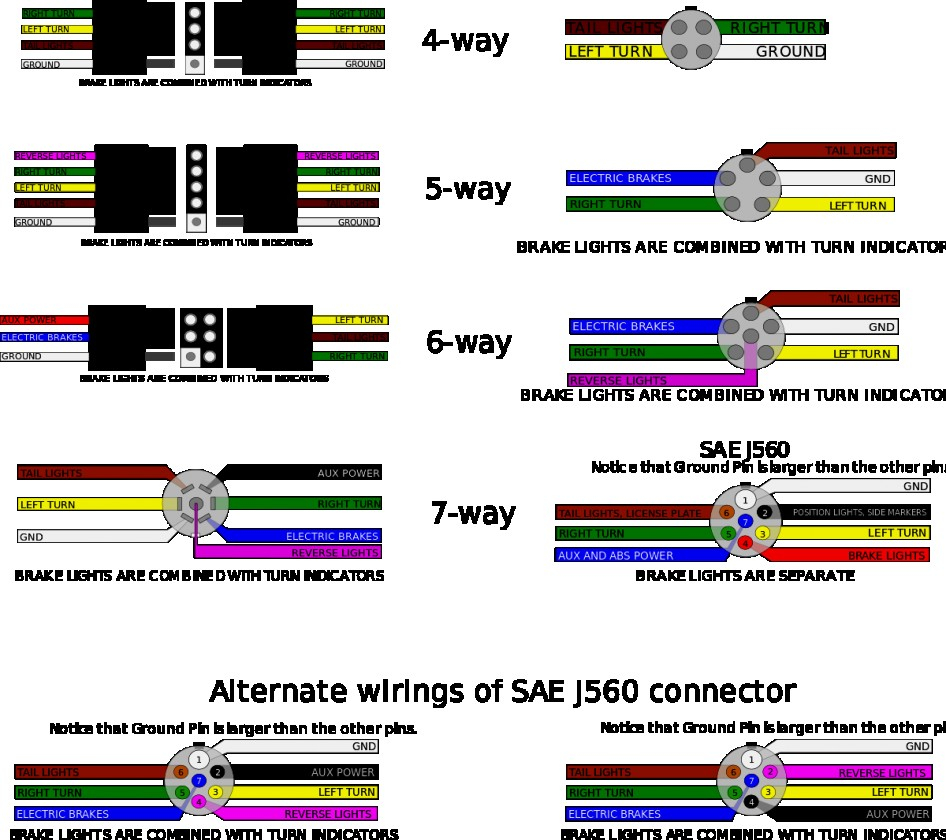

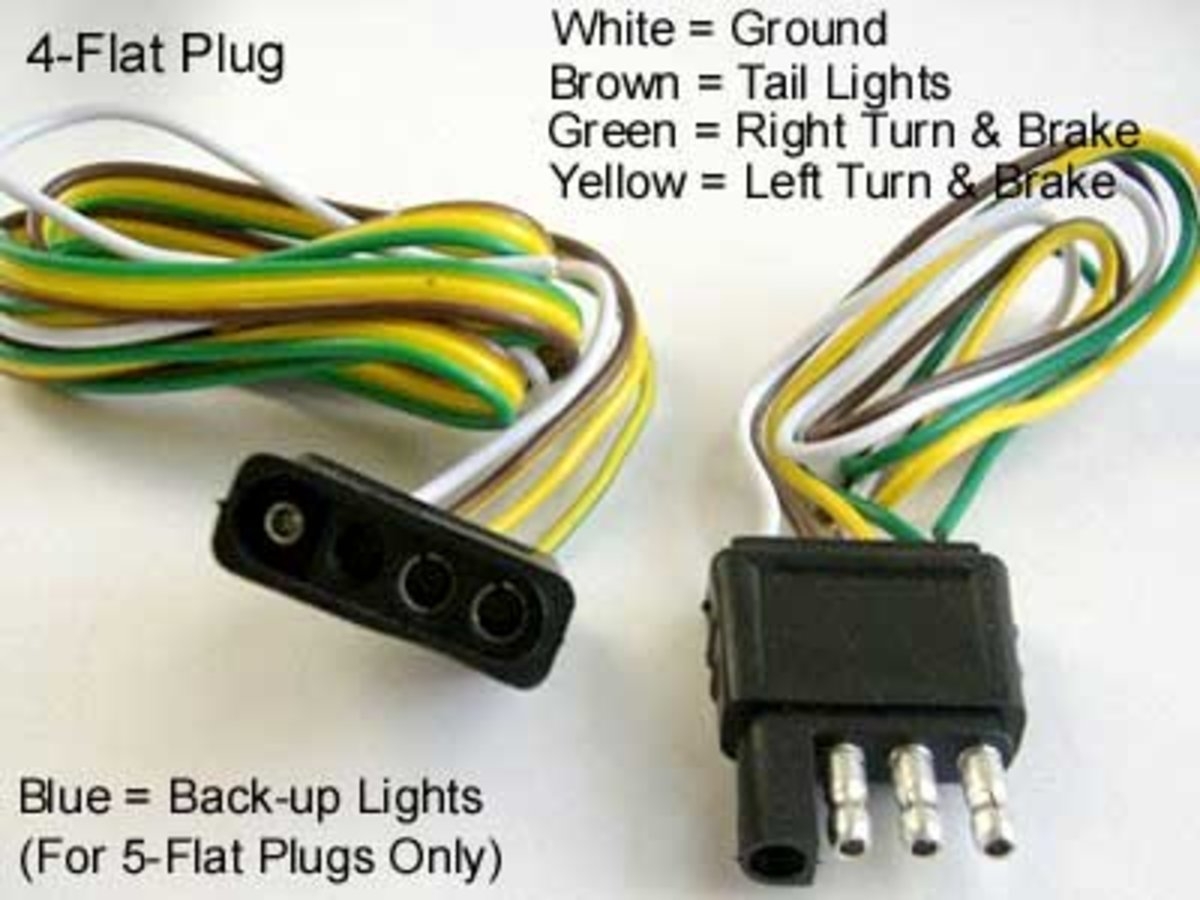

4 Wire Trailer Connector Wiring Diagram
Wiring Instructions:
1. The white wire should be connected to the ground wire on the trailer. This wire is responsible for providing a ground connection for the trailer lights.
2. The brown wire should be connected to the tail lights on the trailer. This wire controls the running lights on the trailer and should be connected to the corresponding wire on the trailer lights.
3. The yellow wire should be connected to the left turn signal/brake light on the trailer. This wire controls the left turn signal and brake light functions and should be connected to the appropriate wire on the trailer lights.
4. The green wire should be connected to the right turn signal/brake light on the trailer. This wire controls the right turn signal and brake light functions and should be connected to the corresponding wire on the trailer lights.
5. Once all of the wires are connected properly, be sure to test the trailer lights to ensure they are working correctly. If any issues arise, double-check the wiring connections and consult the wiring diagram for guidance.
By following these wiring instructions and using a wiring diagram as a guide, you can easily wire a 4 wire trailer connector for safe and reliable towing. Properly functioning trailer lights are essential for ensuring the safety of both you and other drivers on the road.
