When it comes to installing a new stove or replacing an old one, understanding the wiring is crucial. A 4 wire stove plug wiring diagram is essential for ensuring that the stove is connected correctly to the power source. This diagram provides a clear guide on how to wire the stove plug safely and efficiently.
Before starting the wiring process, it is important to ensure that the power is turned off to avoid any accidents. It is also recommended to consult a professional electrician if you are not confident in your wiring skills. Safety should always be the top priority when working with electrical components.
4 Wire Stove Plug Wiring Diagram

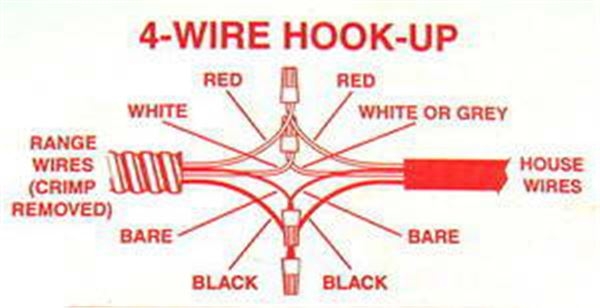

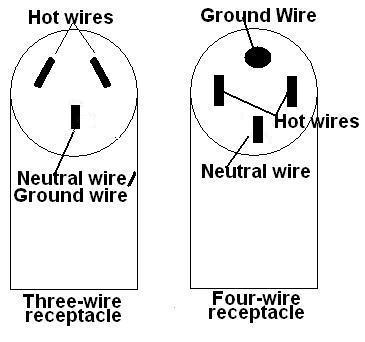

For a 4 wire stove plug wiring diagram, there are typically four wires involved – two hot wires, one neutral wire, and one ground wire. The two hot wires are usually red and black, the neutral wire is typically white, and the ground wire is usually green or bare copper. Each wire serves a specific purpose and must be connected correctly to ensure the stove functions properly.

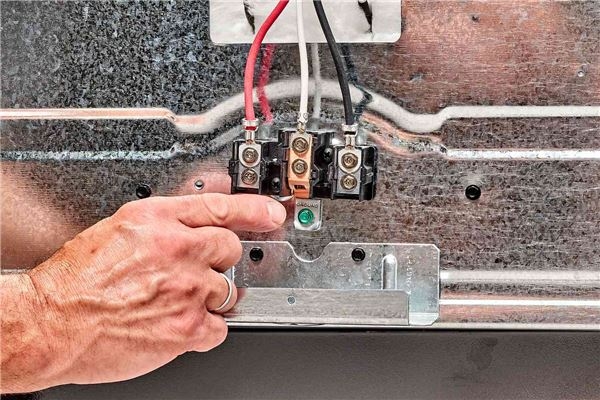

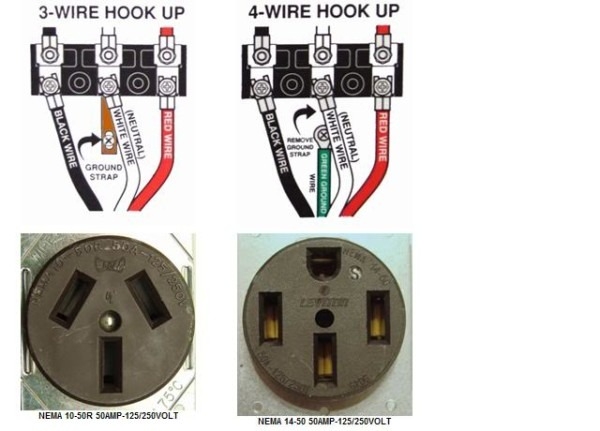

To wire the stove plug, the red and black hot wires are connected to the corresponding terminals on the plug. The white neutral wire is connected to the neutral terminal, and the green or bare copper ground wire is connected to the ground terminal. It is important to double-check the connections before turning on the power to avoid any potential hazards.
Once the wiring is complete, it is important to test the stove to ensure that it is functioning correctly. If there are any issues or if the stove is not working properly, it is best to contact a professional electrician for assistance. Safety should always be the top priority when working with electrical components.
In conclusion, a 4 wire stove plug wiring diagram is essential for safely and correctly wiring a stove to the power source. Understanding the purpose of each wire and how to connect them is crucial for ensuring the stove functions properly. It is always recommended to consult a professional electrician if you are unsure about the wiring process to avoid any potential hazards.
