When it comes to installing or replacing a ceiling fan, understanding the wiring is essential. A 4 wire ceiling fan wiring diagram can help simplify the process and ensure that your fan is installed correctly. By following the diagram, you can easily connect the wires and have your ceiling fan up and running in no time.
Before beginning the installation process, it is important to gather all necessary tools and materials. This may include a screwdriver, wire nuts, electrical tape, and of course, the ceiling fan itself. It is also important to turn off the power to the circuit before starting any work to avoid any accidents.

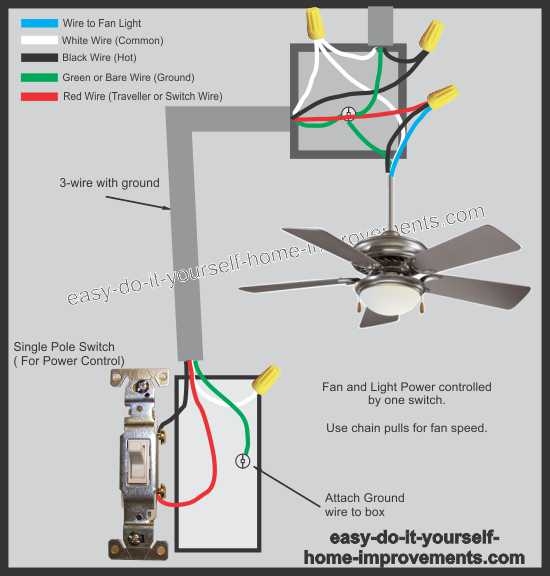

4 Wire Ceiling Fan Wiring Diagram
Next, refer to the 4 wire ceiling fan wiring diagram to identify the different wires. Typically, the wires will be labeled as follows: black for the fan motor, blue for the light kit, white for the neutral wire, and green for the ground wire. By matching these wires to their corresponding connections, you can ensure that your ceiling fan functions properly.
Once you have identified the wires, you can begin connecting them. Start by connecting the ground wire to the green wire from the ceiling fan. Next, connect the white neutral wire to the white wire from the fan. Then, connect the black wire to the fan motor and the blue wire to the light kit. Make sure to secure each connection with a wire nut and electrical tape to prevent any loose connections.
After all the wires have been connected, you can secure the ceiling fan to the ceiling bracket using the provided screws. Once the fan is securely in place, turn the power back on and test the fan to ensure that it is working properly. If everything is functioning correctly, you can enjoy the cool breeze of your new ceiling fan.
In conclusion, a 4 wire ceiling fan wiring diagram can be a helpful tool when installing or replacing a ceiling fan. By following the diagram and carefully connecting the wires, you can ensure that your ceiling fan is installed correctly and functions properly. With the right tools and materials, you can have your new ceiling fan up and running in no time.
