When it comes to towing a trailer, having proper lighting is crucial for safety on the road. The 4 way trailer light wiring diagram is a standard configuration for connecting the electrical wiring of a trailer to the towing vehicle. By understanding this diagram, you can ensure that your trailer lights are working properly and that other drivers can see your trailer on the road.
Before you begin wiring your trailer lights, it’s important to familiarize yourself with the components of the 4 way trailer light wiring diagram. This diagram consists of four wires: green, yellow, brown, and white. Each wire serves a specific function in the lighting system, such as turn signals, brake lights, and ground connection. By following this diagram, you can easily connect the wires to the corresponding terminals on your trailer and towing vehicle.
4 Way Trailer Light Wiring Diagram

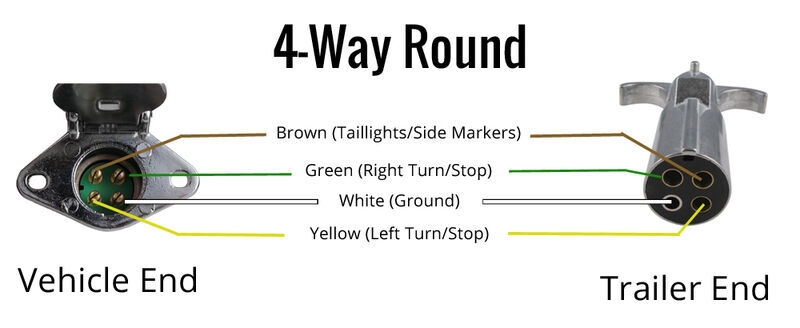

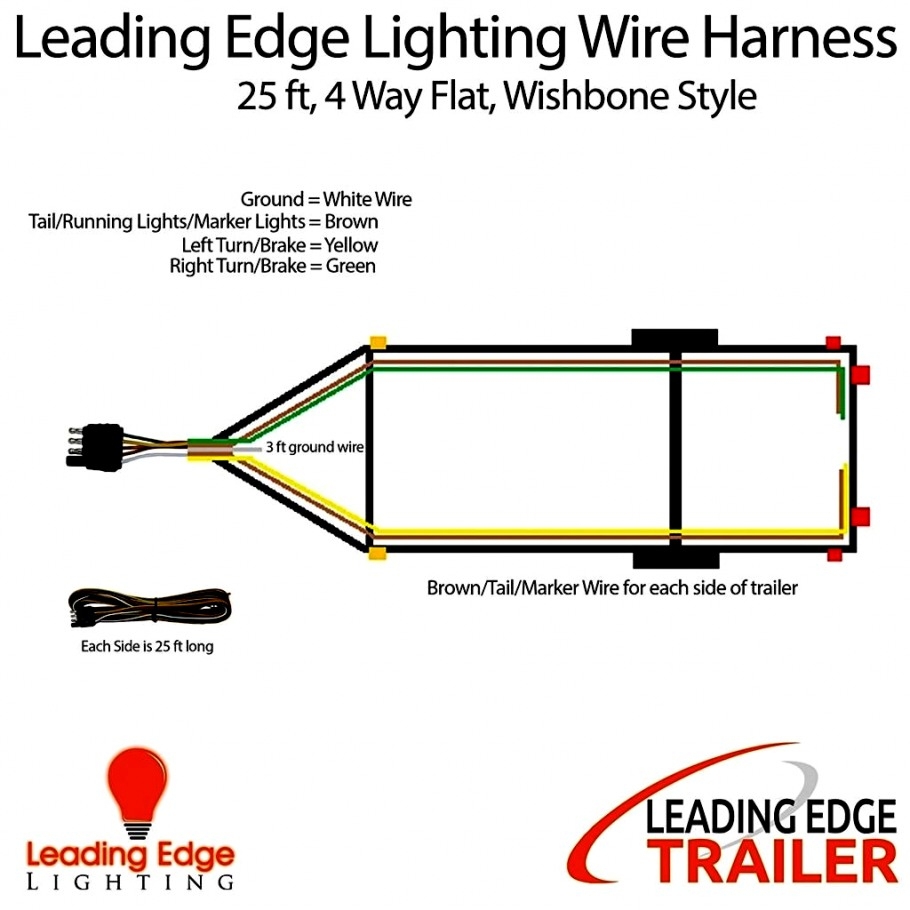

To start wiring your trailer lights, you will need to first locate the wiring harness on both your trailer and towing vehicle. The green wire is for the right turn signal and brake light, the yellow wire is for the left turn signal and brake light, the brown wire is for the tail lights, and the white wire is for the ground connection. You will need to strip the insulation off the ends of each wire and connect them to the appropriate terminals using wire connectors.
Once you have connected the wires according to the 4 way trailer light wiring diagram, it’s important to test the lights to ensure they are working properly. Have someone assist you by turning on the various lights on the trailer while you check to see if they are functioning correctly. If any of the lights are not working, check the connections and make sure they are secure.
In conclusion, understanding the 4 way trailer light wiring diagram is essential for safe towing. By following this diagram and connecting the wires properly, you can ensure that your trailer lights are working effectively and that you are visible to other drivers on the road. Remember to test the lights before hitting the road to prevent any accidents or issues while towing your trailer.
