When it comes to wiring a 4 way switch, it can be a bit confusing for those who are not familiar with electrical work. A 4 way switch is commonly used in conjunction with three-way switches to control lighting from three or more locations. Understanding the wiring diagram is crucial to ensure proper installation and functionality.
Before diving into the wiring process, it’s important to have a clear understanding of the components involved. A 4 way switch has four terminals, allowing for two separate pairs of travelers. These travelers are used to connect the switch to the other switches in the circuit, enabling the control of the light fixture from multiple locations.

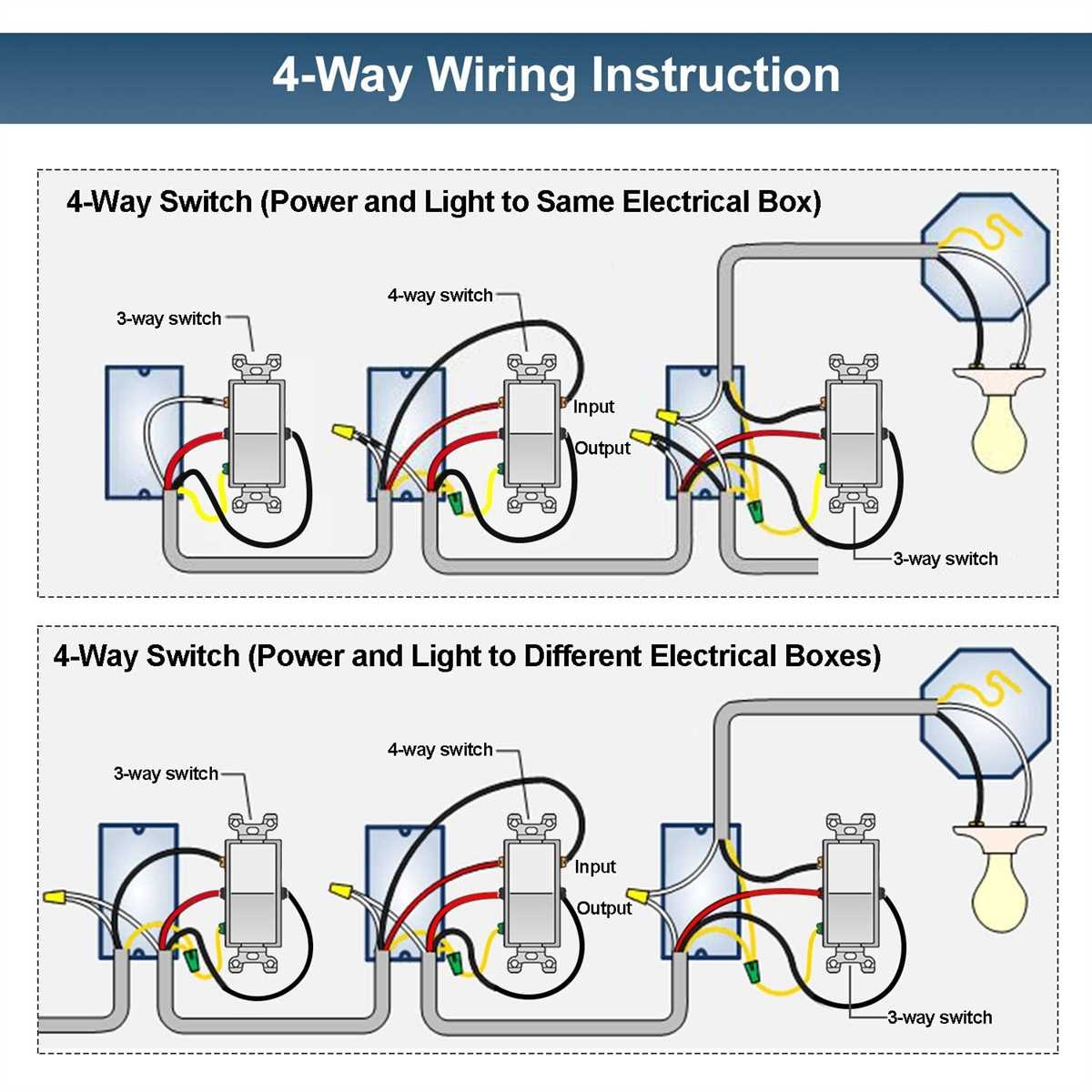

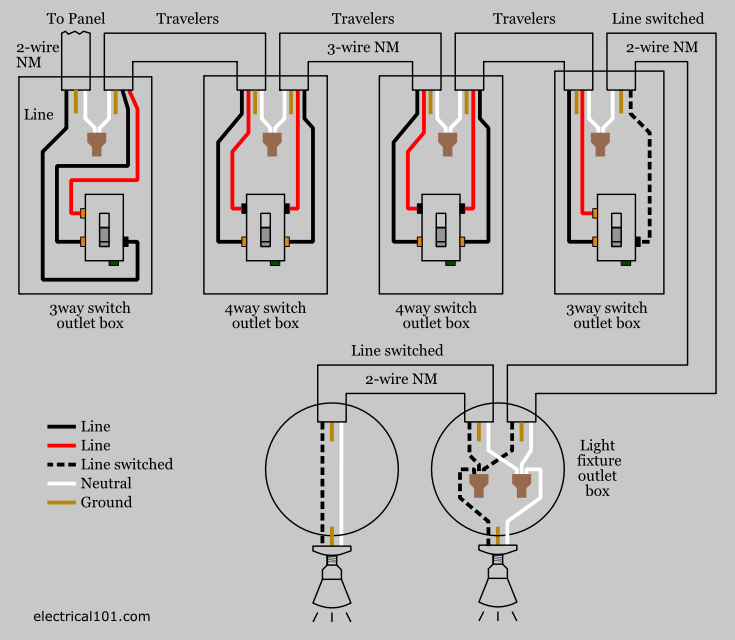

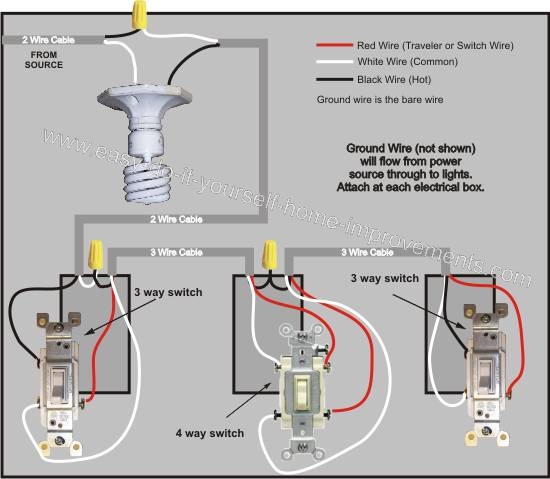

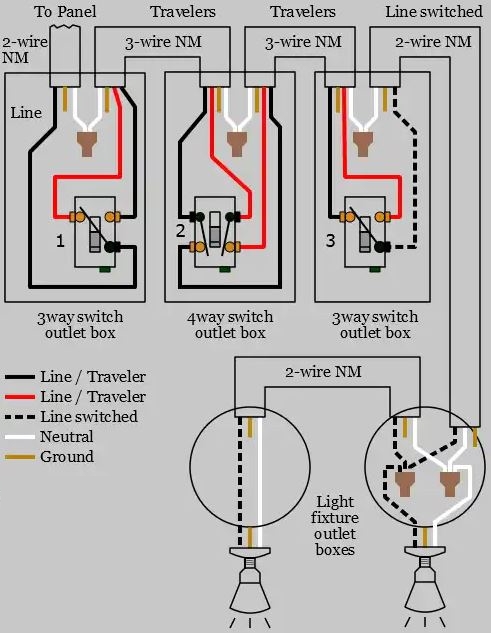

4 Way Switch Wiring Diagram
Starting with the power source, connect the hot wire to the common terminal of the first 3-way switch. The travelers from the first switch should then be connected to the common terminals of the second 3-way switch and the 4 way switch. Finally, connect the travelers from the second 3-way switch to the remaining terminals on the 4 way switch. This configuration allows for the proper switching of the light fixture from all locations.
It’s important to remember that proper labeling of wires and terminals is crucial to avoid confusion during installation. Using a voltage tester to ensure that the power is off before beginning work is also essential for safety. If in doubt, it’s always best to consult a professional electrician to ensure the job is done correctly and safely.
By following a clear wiring diagram and taking the necessary precautions, installing a 4 way switch can be a manageable task for those with a basic understanding of electrical work. With the ability to control lighting from multiple locations, a 4 way switch can add convenience and functionality to any home.
Overall, understanding the wiring diagram for a 4 way switch is essential for proper installation and functionality. With the right tools and knowledge, anyone can successfully wire a 4 way switch to control lighting from multiple locations.
