When it comes to wiring a 4-way switch in your home, it can seem like a daunting task. However, with the right information and a clear understanding of the process, you can easily tackle this project. A 4-way switch is a type of electrical switch that allows you to control a single light or set of lights from multiple locations.
Before you start the wiring process, make sure to turn off the power to the circuit at the breaker box to avoid any accidents. It’s also important to have a basic understanding of electrical wiring and tools before attempting this project. Once you have these precautions in place, you can proceed with the wiring process.

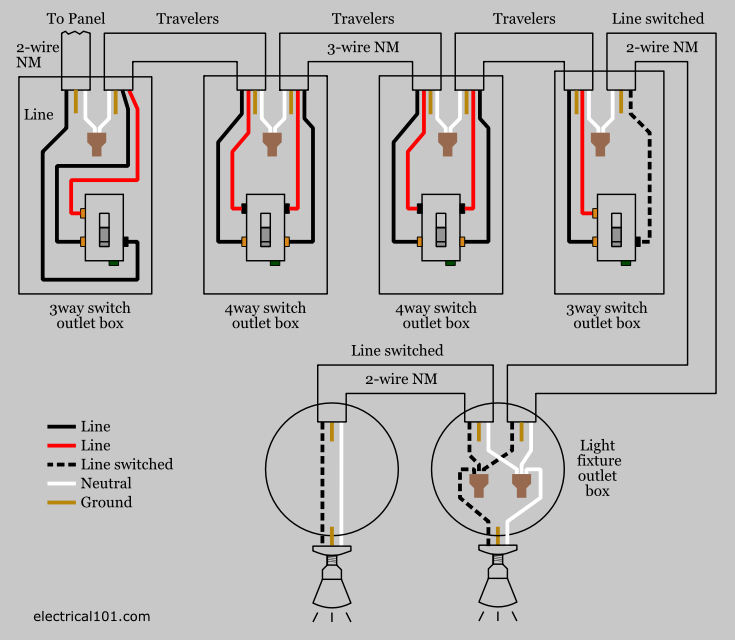

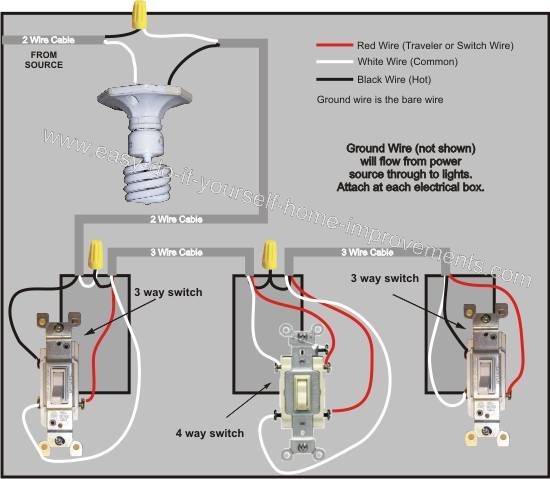

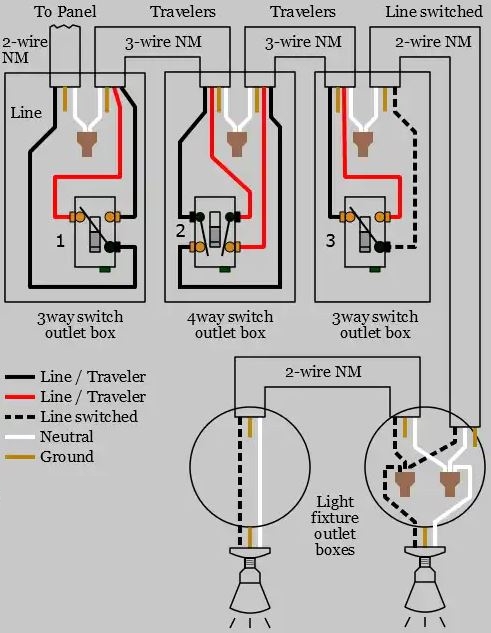

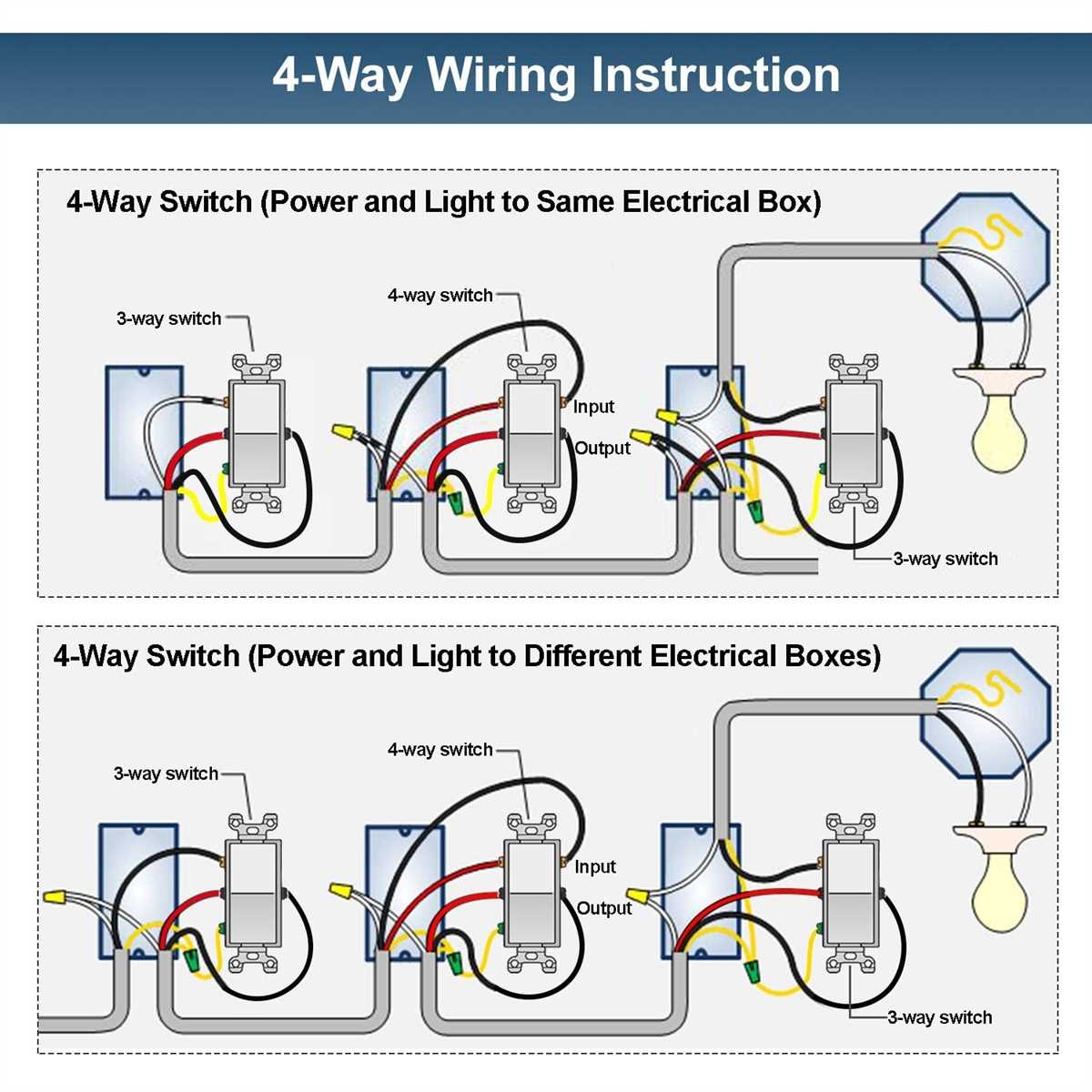

4-Way Switch Wiring Diagram
First, you will need to identify the four-way switch, which is typically located between two 3-way switches. The four-way switch has four terminals, and you will need to connect the wires accordingly. The travelers from the two 3-way switches will connect to the two brass terminals on the 4-way switch, while the black and red wires will connect to the other two terminals.
Next, you will need to connect the ground wire to the green screw on the switch and ensure all connections are secure. Once you have completed the wiring process, you can turn the power back on and test the switch to ensure it is working properly. If the light does not turn on, double-check your connections and make any necessary adjustments.
It’s important to note that when wiring a 4-way switch, the position of the switch does not matter. This means you can flip the switch up or down to control the lights from different locations. With the right tools and knowledge, you can successfully wire a 4-way switch in your home and enjoy the convenience of controlling your lights from multiple locations.
In conclusion, wiring a 4-way switch may seem challenging at first, but with the right information and precautions in place, you can easily tackle this project. By following the steps outlined in this article and double-checking your connections, you can successfully wire a 4-way switch in your home. Remember to always turn off the power before starting any electrical work and consult a professional if you are unsure about any step in the process.
