When it comes to electrical wiring, understanding how to wire a 4-way switch can be quite useful. A 4-way switch is used to control a light fixture from three or more locations, such as at the top and bottom of a staircase or at both ends of a long hallway. By properly wiring a 4-way switch, you can easily control the lighting from multiple points.
Before starting any electrical work, it is important to turn off the power at the circuit breaker and use a voltage tester to ensure the wires are not live. Always follow safety precautions when working with electricity to prevent accidents or injuries.

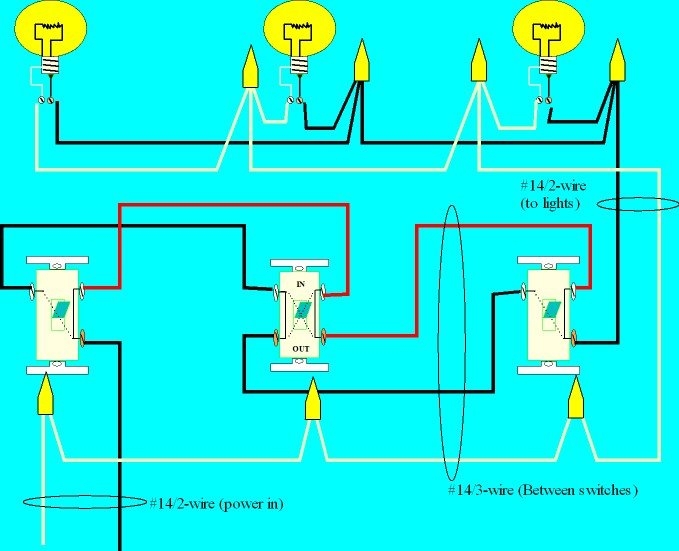

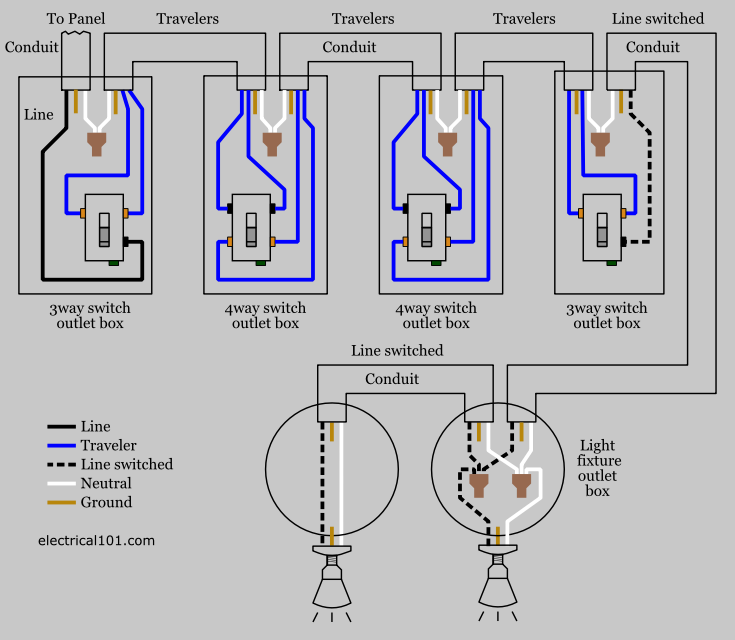

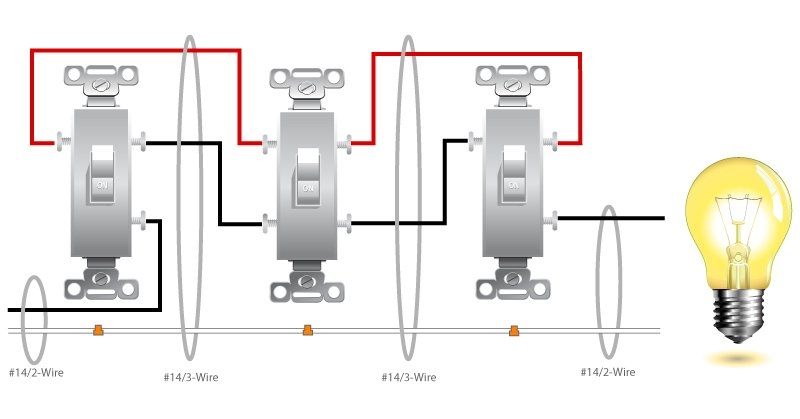

4 Way Electrical Switch Wiring Diagram
Begin by locating the two traveler wires that connect the two 3-way switches. These wires are usually red or black and are responsible for carrying the electrical current between the switches. Connect one traveler wire from the first 3-way switch to the same colored terminal on the 4-way switch. Then, connect the other traveler wire from the second 3-way switch to the remaining terminal on the 4-way switch.
Next, locate the two remaining terminals on the 4-way switch, which are typically brass or dark-colored. Connect the hot wire (usually black) from the power source to one of these terminals, and then connect the hot wire going to the light fixture to the other terminal. Make sure to use wire nuts to secure the connections and wrap them with electrical tape for added safety.
Finally, connect the neutral wires (usually white) from the power source and the light fixture together, as well as the ground wires (usually green or bare copper). Once all the connections are secure, carefully tuck the wires back into the electrical box and attach the switch plate cover. Turn the power back on at the circuit breaker and test the 4-way switch to ensure it is functioning properly.
By following this wiring diagram and carefully connecting the wires, you can successfully install a 4-way switch to control your lighting from multiple locations. Remember to always consult a professional electrician if you are unsure about any part of the installation process.
