When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. A 4 prong trailer wiring diagram is a simple yet crucial tool for ensuring that your trailer lights and brakes work properly while on the road. Whether you’re towing a boat, camper, or utility trailer, having the right wiring setup can make all the difference in your towing experience.
Understanding the wiring diagram for a 4 prong trailer can seem daunting at first, but it’s actually quite straightforward. Each prong on the trailer plug corresponds to a specific function, such as the tail lights, brake lights, and turn signals. By following the diagram, you can easily identify which wires connect to each prong and ensure that everything is properly connected.
4 Prong Trailer Wiring Diagram

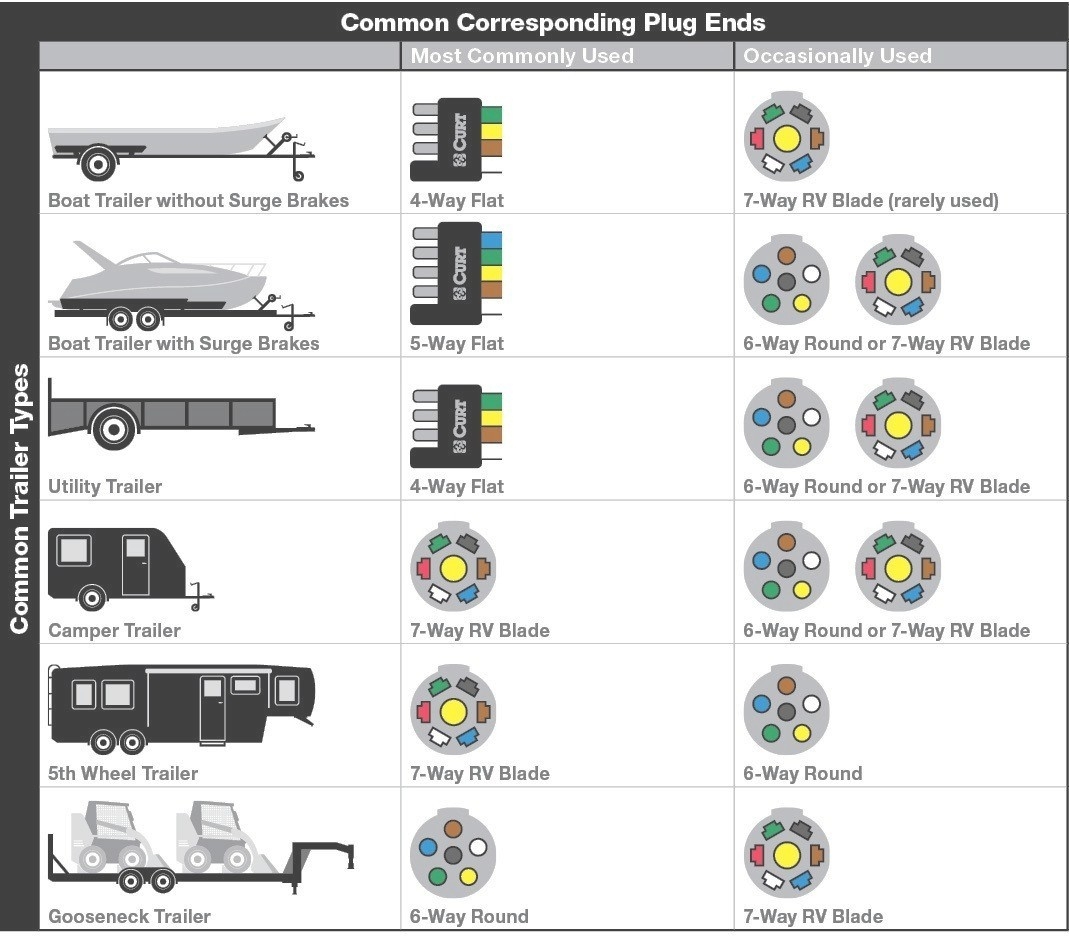

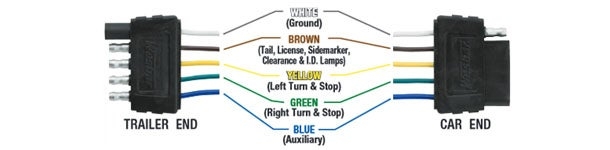

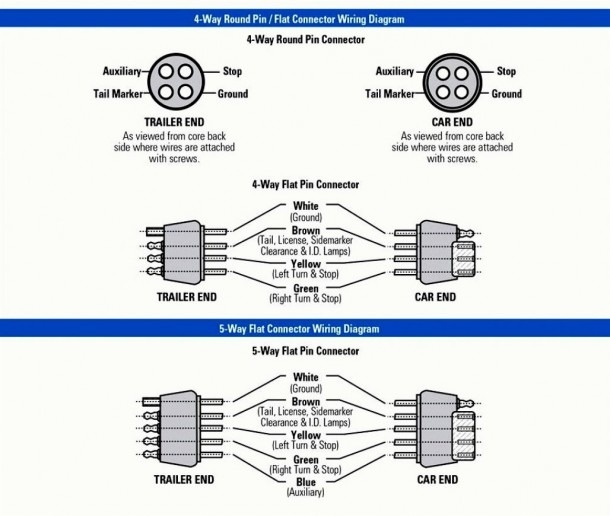

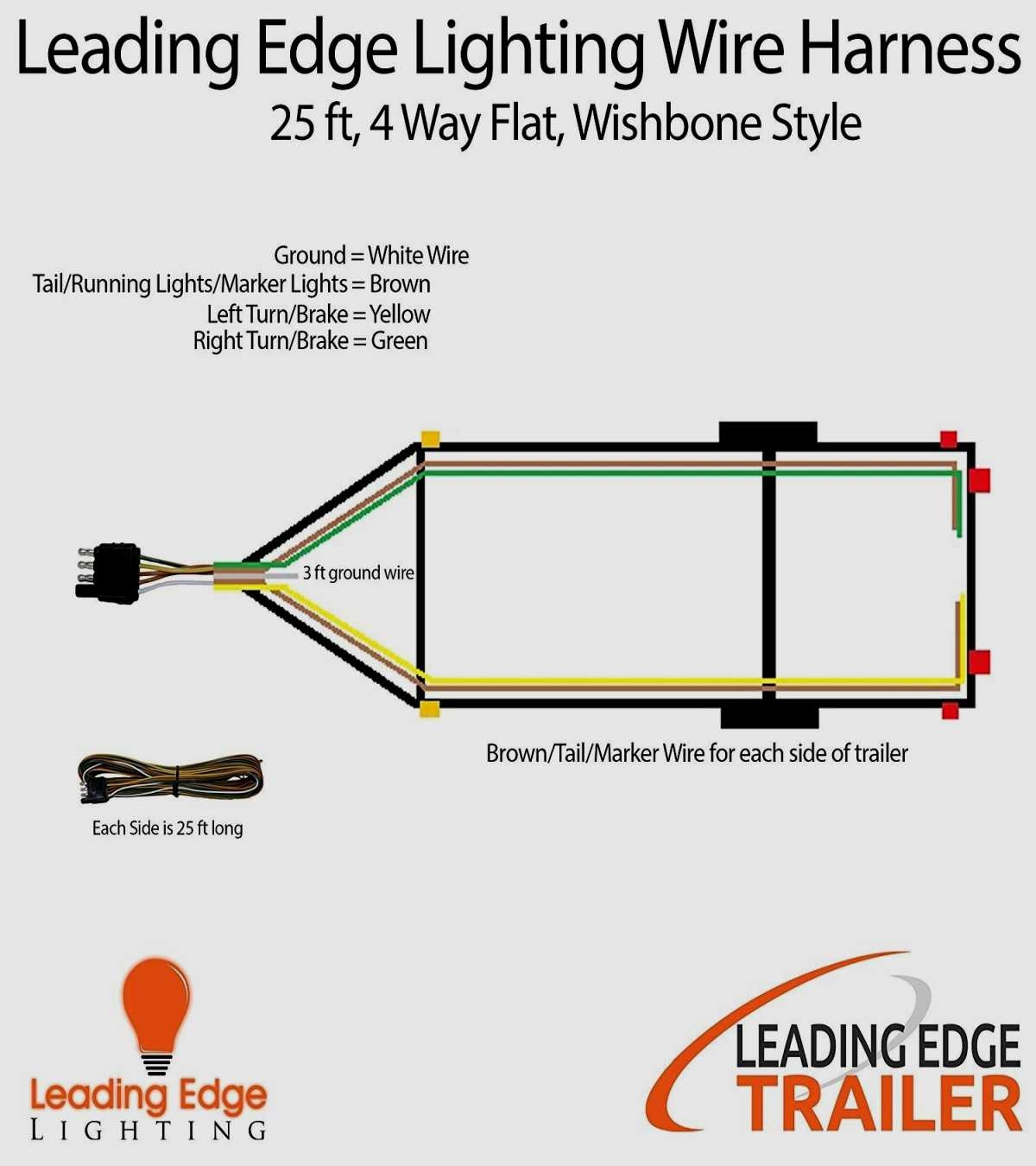

Typically, a 4 prong trailer wiring diagram will include a color-coded key to help you identify which wires go where. For example, the green wire is usually for the right turn signal and brake light, the yellow wire is for the left turn signal and brake light, the brown wire is for the tail lights, and the white wire is for the ground. By following this key, you can quickly and easily wire your trailer for safe towing.

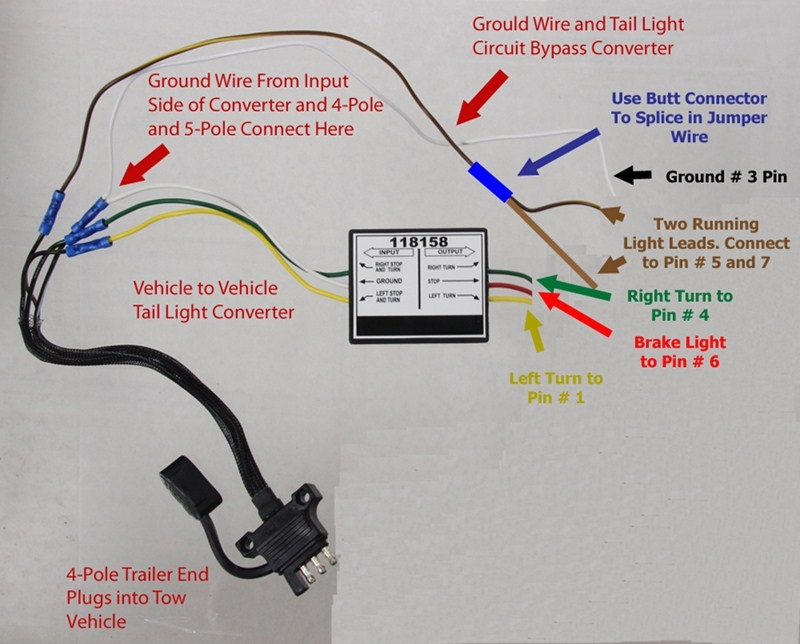

One important thing to remember when wiring your trailer is to make sure you have a secure connection for each wire. Loose or frayed wires can lead to malfunctioning lights or brakes, which can be dangerous while towing. It’s also a good idea to regularly inspect your wiring for any signs of wear and tear, and make any necessary repairs or replacements as needed.
In conclusion, a 4 prong trailer wiring diagram is a valuable tool for any trailer owner. By following the diagram and ensuring a secure connection for each wire, you can safely and effectively tow your trailer without any issues. Whether you’re a seasoned trailer owner or a newcomer to towing, having the right wiring setup is key to a successful and stress-free towing experience.
