When it comes to towing a trailer, having the right wiring setup is crucial for ensuring safety and functionality. One common type of trailer connector is the 4-pin connector, which is used for basic lighting functions on a trailer. Understanding how to properly wire a 4-pin trailer connector is essential for anyone who regularly tows trailers.
Before diving into the wiring diagram, it’s important to have a basic understanding of the functions of each pin on the connector. The four pins typically correspond to the following functions: ground, tail lights, left turn/brake lights, and right turn/brake lights. By properly connecting each wire to its corresponding pin, you can ensure that your trailer lights work correctly.

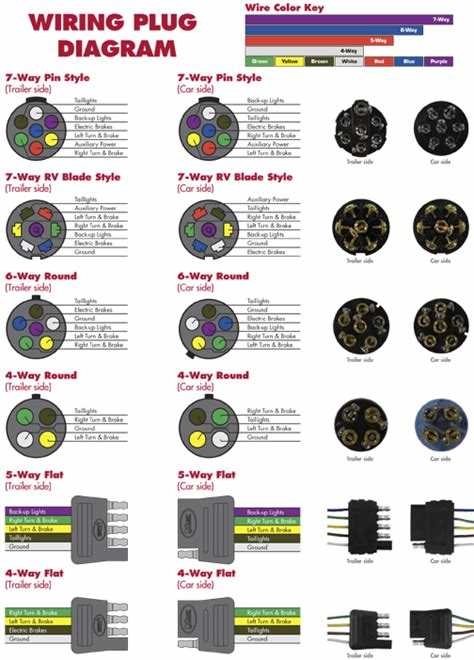

4 Pin Trailer Connector Wiring Diagram

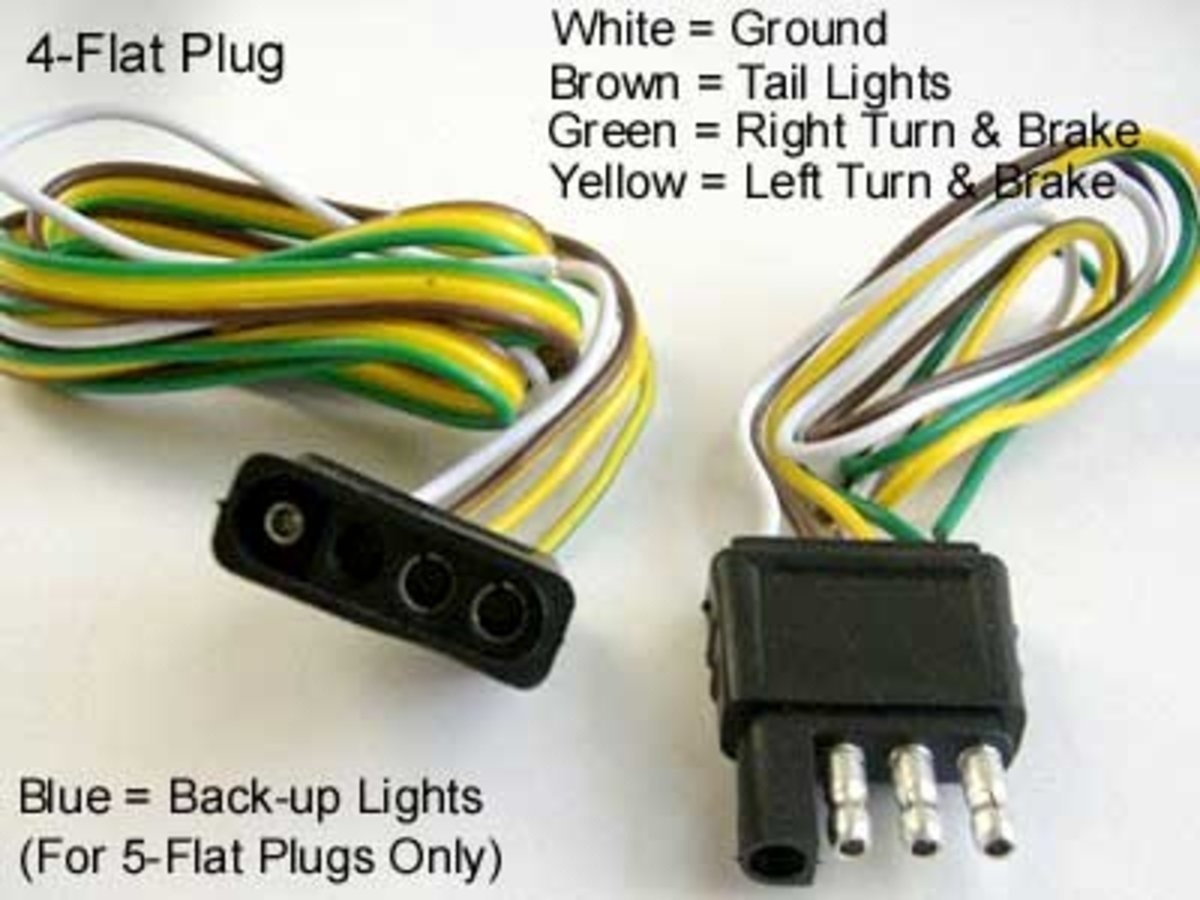

Starting with the ground wire, which is usually white, connect it to the pin designated for ground on the trailer connector. This wire provides the necessary grounding for the trailer lights to function properly. Next, connect the brown wire to the tail lights pin, the yellow wire to the left turn/brake lights pin, and the green wire to the right turn/brake lights pin.
Once all the wires are connected to their respective pins, it’s important to secure the connections with electrical tape or heat shrink tubing to prevent any moisture or debris from interfering with the wiring. Additionally, it’s a good idea to test the trailer lights before hitting the road to ensure everything is working correctly.
Overall, understanding how to wire a 4-pin trailer connector is a simple yet essential skill for anyone who tows trailers regularly. By following a basic wiring diagram and making sure all connections are secure, you can ensure that your trailer lights function properly and keep you safe on the road.
So, the next time you need to wire a 4-pin trailer connector, refer back to this guide to ensure a smooth and hassle-free installation process. With the right tools and a basic understanding of wiring principles, you’ll be able to tackle this task with confidence.
