When it comes to wiring a car audio system, understanding the diagram for a 4 ohm dual voice coil subwoofer is essential. This type of subwoofer has two separate voice coils, each with a resistance of 4 ohms. By properly wiring these voice coils, you can ensure that your subwoofer operates at its full potential and delivers the best sound quality.
Whether you are a car audio enthusiast or a novice looking to upgrade your sound system, knowing how to wire a 4 ohm dual voice coil subwoofer can make a significant difference in the performance of your audio setup. With the right wiring diagram and a few basic tools, you can easily connect your subwoofer to your amplifier for optimal sound output.
4 Ohm Dual Voice Coil Wiring Diagram

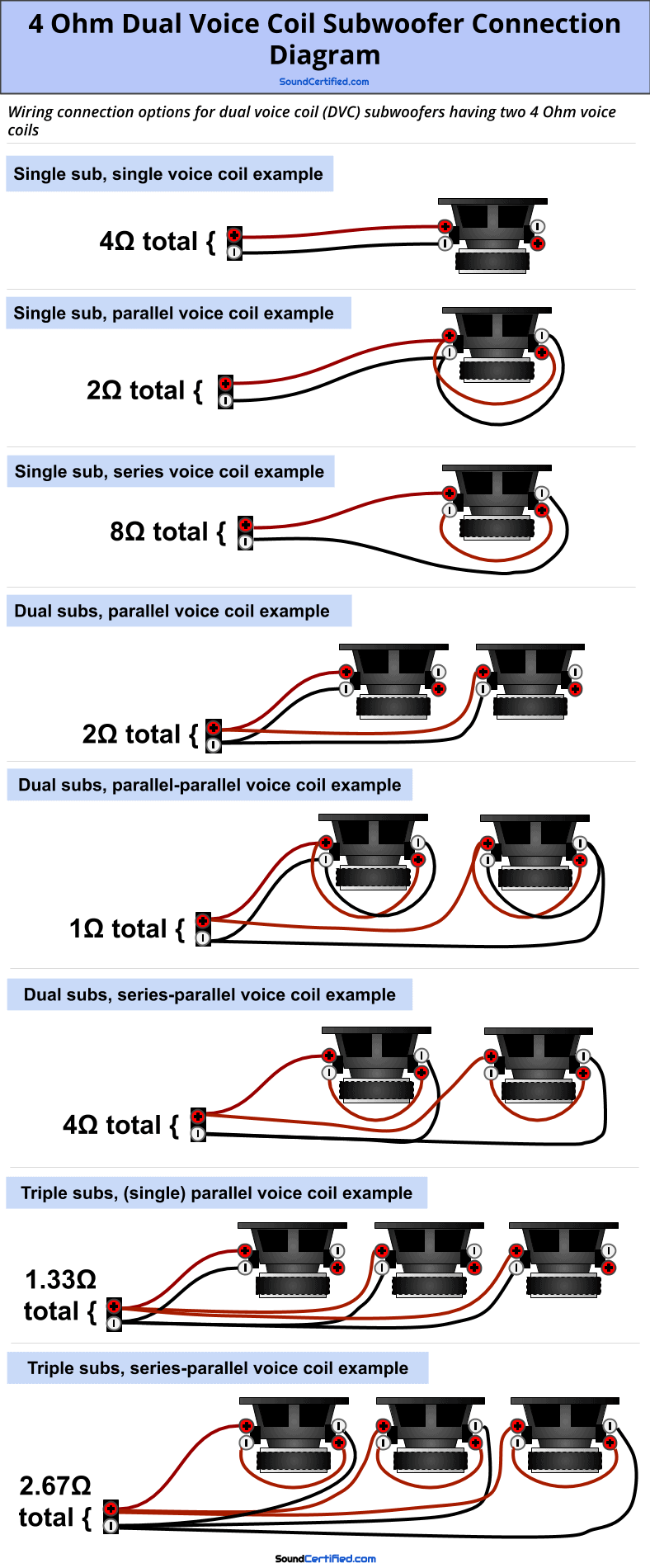

When wiring a 4 ohm dual voice coil subwoofer, there are a few key points to keep in mind. First, you will need to determine whether your amplifier is stable at a 2 ohm load. If it is, you can wire the subwoofer in parallel to achieve a 2 ohm load. If not, you can wire the subwoofer in series to achieve an 8 ohm load. Both wiring configurations have their advantages and can be used depending on your specific setup and amplifier requirements.
To wire a 4 ohm dual voice coil subwoofer in parallel, you will connect the positive terminal of one voice coil to the positive terminal of the other voice coil, and the same for the negative terminals. This will effectively halve the resistance of each voice coil, resulting in a total impedance of 2 ohms. On the other hand, wiring the subwoofer in series involves connecting the positive terminal of one voice coil to the negative terminal of the other voice coil. This will double the resistance of each voice coil, resulting in a total impedance of 8 ohms.
In conclusion, understanding the wiring diagram for a 4 ohm dual voice coil subwoofer is crucial for achieving optimal sound quality in your car audio system. By following the proper wiring techniques and using the right tools, you can ensure that your subwoofer operates efficiently and delivers the deep, powerful bass that you desire. So, take the time to familiarize yourself with the wiring diagram and make the necessary connections to enjoy the full potential of your audio setup.
