LED light bars are a popular addition to off-road vehicles, providing bright and efficient lighting for nighttime adventures. Wiring a 3-wire LED light bar may seem daunting at first, but with the right diagram and a little know-how, it can be a straightforward process.
Before you begin, make sure you have all the necessary tools and materials on hand. This includes the LED light bar, wiring harness, switch, fuse, and any necessary connectors. It’s also important to read the manufacturer’s instructions carefully to ensure proper installation.
3 Wire Led Light Bar Wiring Diagram
Here is a simple 3-wire LED light bar wiring diagram to guide you through the process:

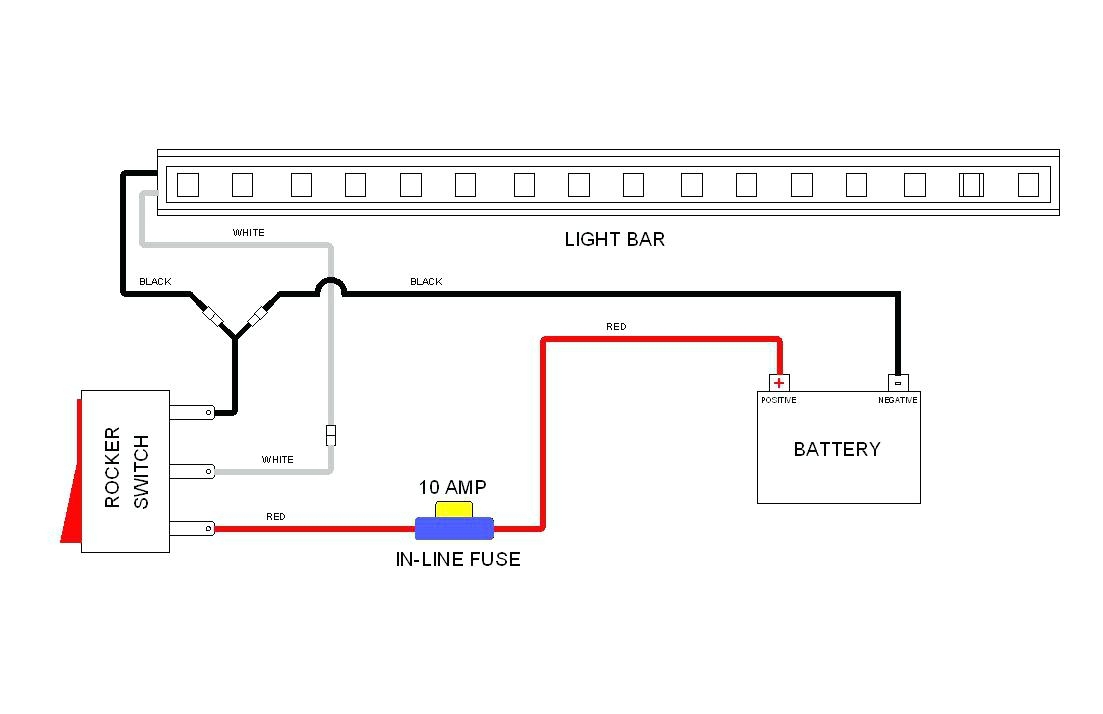

3 Wire LED Light Bar Wiring Diagram
1. Start by connecting the positive (+) wire from the light bar to the positive terminal of the battery. This will provide power to the light bar when the switch is turned on.
2. Next, connect the negative (-) wire from the light bar to the negative terminal of the battery. This completes the circuit and allows the light bar to function properly.
3. Finally, connect the third wire (usually a green or yellow wire) from the light bar to the switch. This wire controls the on/off function of the light bar and should be connected according to the manufacturer’s instructions.
4. Once all the wires are properly connected, secure any loose wires with zip ties or electrical tape to prevent them from getting tangled or damaged during use.
5. Test the light bar to ensure it is working properly before securing it to your vehicle. If everything is functioning correctly, you’re ready to hit the trails with your new LED light bar!
With this simple wiring diagram and a little patience, you can easily install a 3-wire LED light bar on your off-road vehicle. Remember to follow all safety precautions and consult a professional if you have any doubts about the installation process.
Upgrade your vehicle’s lighting with a 3-wire LED light bar and enjoy brighter, more efficient illumination on your next adventure!
