When it comes to wiring a 3 wire AC dual capacitor, it’s important to understand the proper configuration to ensure the smooth operation of your air conditioning unit. The dual capacitor plays a crucial role in starting the compressor and fan motors, so it’s essential to get the wiring right.
Before diving into the wiring diagram, it’s important to note that safety should always come first. Make sure to turn off the power to your AC unit before attempting any wiring work. If you’re not confident in your abilities, it’s best to hire a professional to handle the job.
3 Wire Ac Dual Capacitor Wiring Diagram

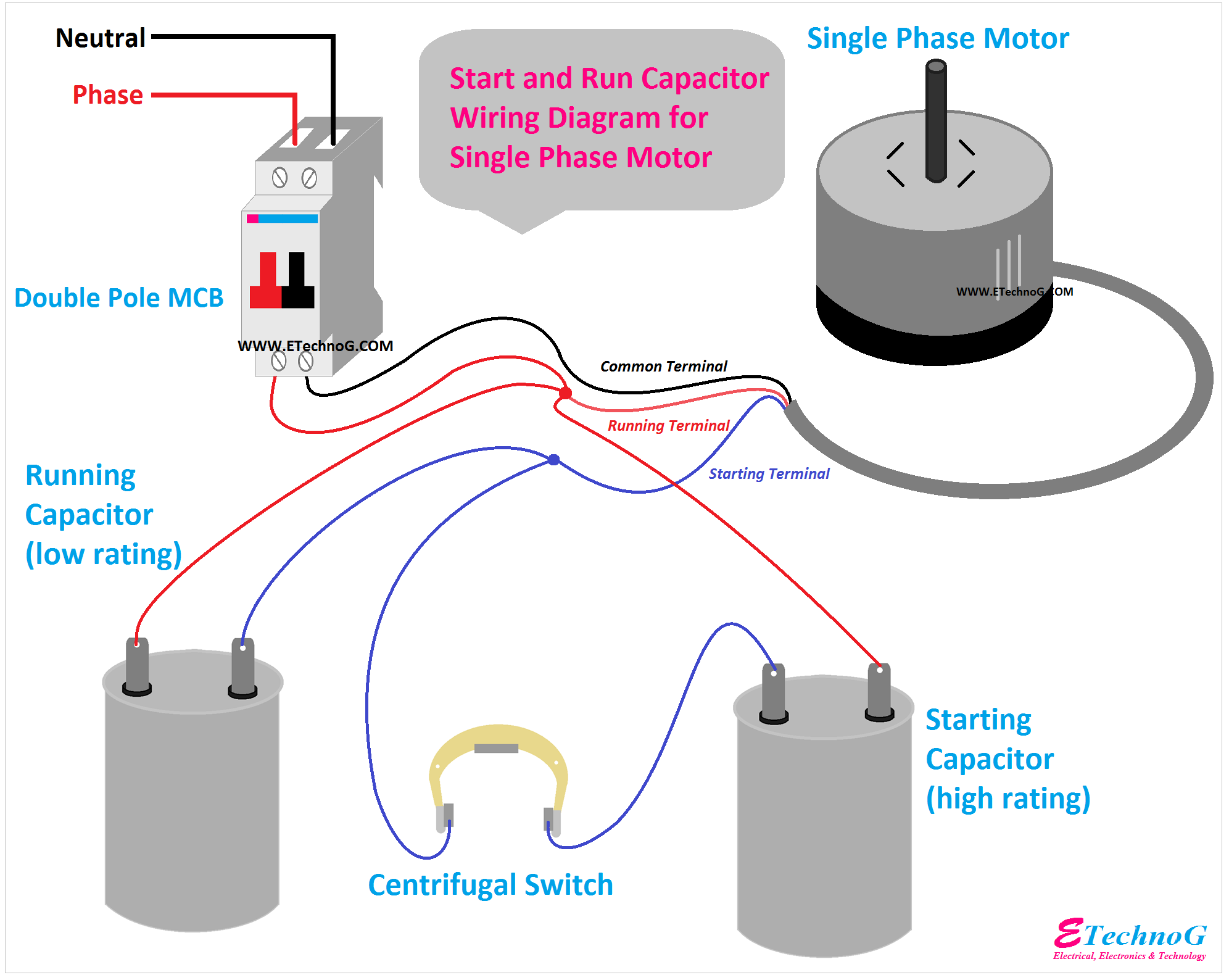

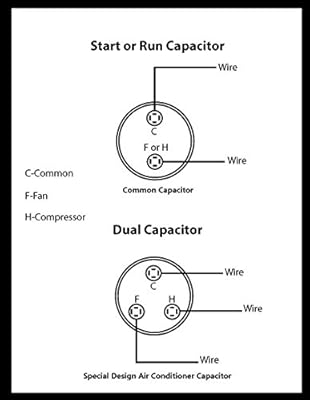

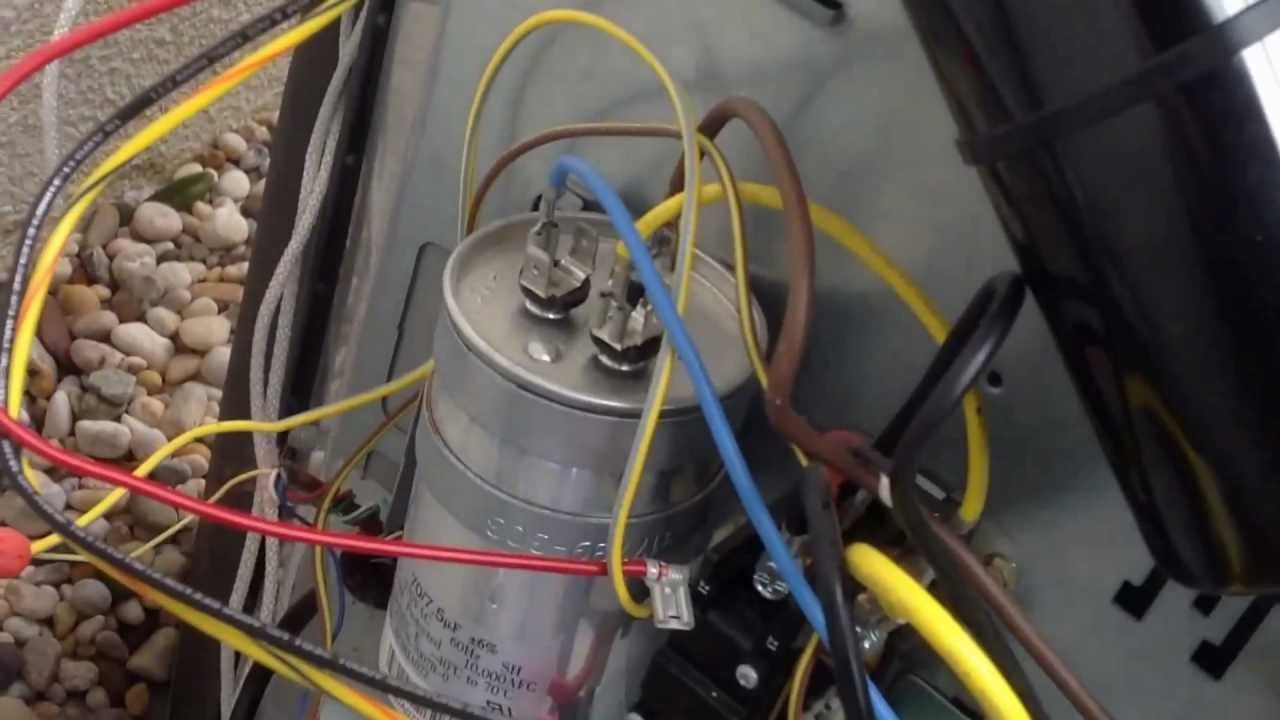

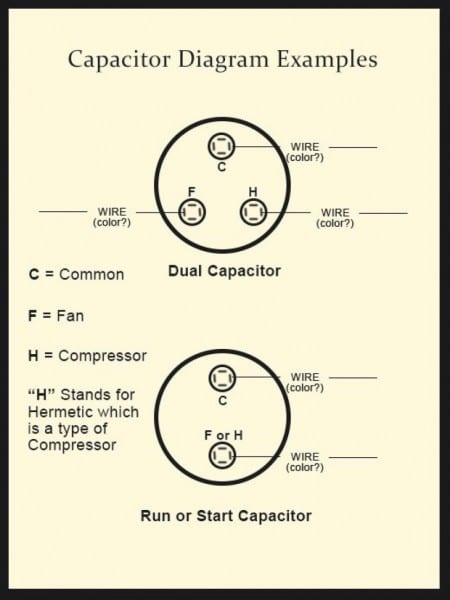

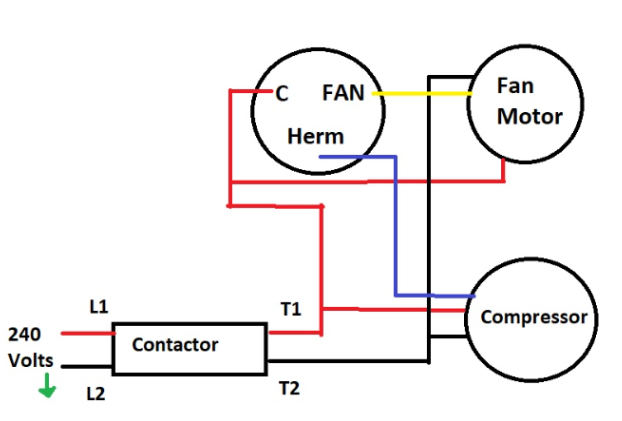

Now, let’s take a look at the wiring diagram for a 3 wire AC dual capacitor. The diagram typically consists of three terminals: Herm, Fan, and C. The Herm terminal is for the compressor, the Fan terminal is for the fan motor, and the C terminal is for common connection. Each terminal should be connected to the appropriate wire from the AC unit.
For the Herm terminal, you’ll typically connect the wire from the compressor. The Fan terminal should be connected to the wire from the fan motor. And the C terminal should be connected to the common wire that is shared by both the compressor and fan motor. It’s important to follow the wiring diagram precisely to avoid any issues.
Once you’ve connected the wires to the appropriate terminals on the dual capacitor, double-check your connections to ensure everything is secure and properly connected. After confirming the wiring, you can turn the power back on and test your AC unit to see if it’s functioning correctly. If everything is in order, your air conditioning system should be up and running smoothly.
In conclusion, understanding the wiring diagram for a 3 wire AC dual capacitor is crucial for the proper functioning of your air conditioning unit. By following the diagram and making sure your connections are secure, you can ensure that your AC system operates efficiently and effectively. If you’re unsure about any part of the wiring process, don’t hesitate to seek professional help to avoid any potential hazards.
