When it comes to wiring switches in your home, a 3-way switch setup can be a bit more complex than a standard single-pole switch. A 3-way switch allows you to control a light or fixture from two different locations, making it a convenient option for larger rooms or hallways.
Understanding the wiring diagram for a 3-way switch is essential for a successful installation. With the right knowledge and tools, you can easily wire up a 3-way switch system in your home.
3 Way Wiring Diagrams For Switches
Wiring Diagram

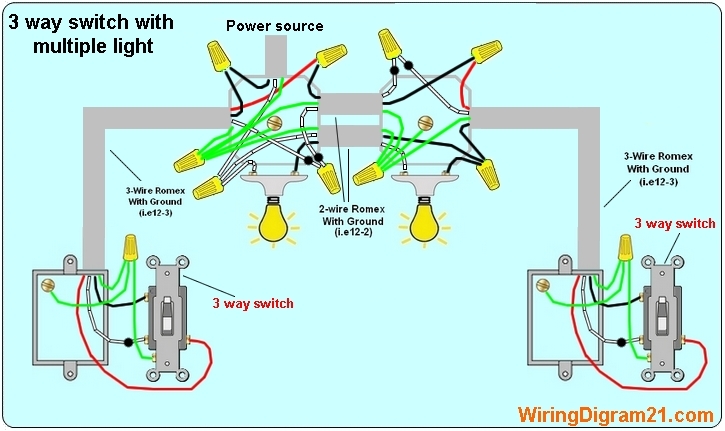

In a 3-way switch setup, there are two switches that control the same light or fixture. The diagram typically shows the power source coming into the first switch, then running to the light fixture, and finally to the second switch. The switches are connected by travelers wires that allow the circuit to be completed from either switch.
To wire a 3-way switch system, you will need to identify the common terminal on each switch, as well as the travelers terminals. The common terminal is usually a darker screw, while the travelers terminals are typically lighter in color. Connecting the wires to the correct terminals is crucial for proper functionality.
When wiring a 3-way switch, it’s important to turn off the power to the circuit before starting. Use a voltage tester to ensure that the power is off before touching any wires. Follow the wiring diagram carefully, making sure to secure all connections with wire nuts and electrical tape.
Once you have wired up the switches according to the diagram, you can test the system by turning the switches on and off from each location. If the light or fixture responds correctly, you have successfully installed a 3-way switch system in your home.
In conclusion, understanding how to wire a 3-way switch is an essential skill for any homeowner. By following a wiring diagram and taking the necessary precautions, you can easily install a 3-way switch system in your home. With the convenience of controlling a light or fixture from two different locations, a 3-way switch setup is a practical solution for any room or hallway.
