When it comes to wiring a 3 way switch, it can seem a bit confusing at first. However, understanding the diagram and how the power flows can help make the process much easier. In a 3 way switch setup, there are two switches that control one light, allowing you to turn the light on and off from multiple locations.

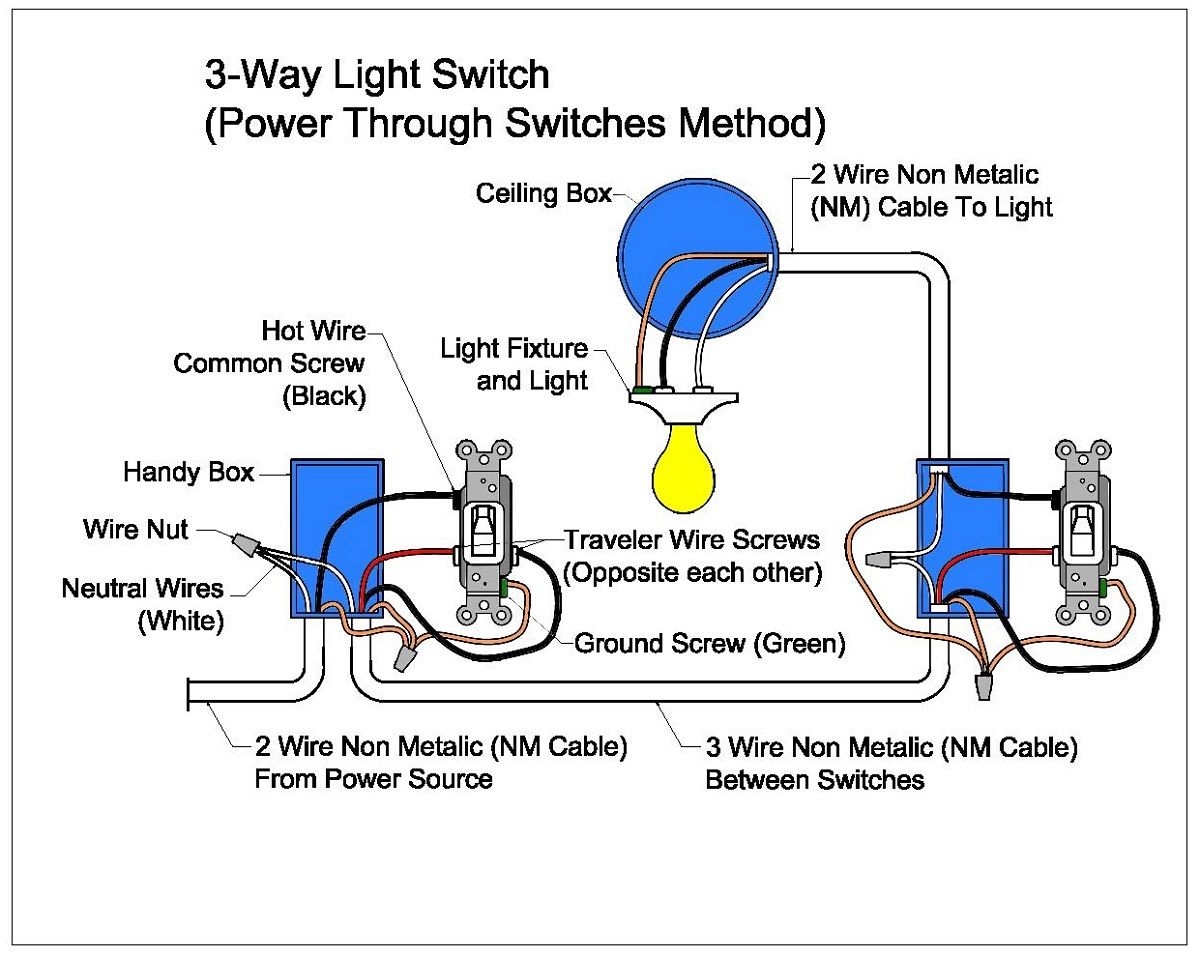

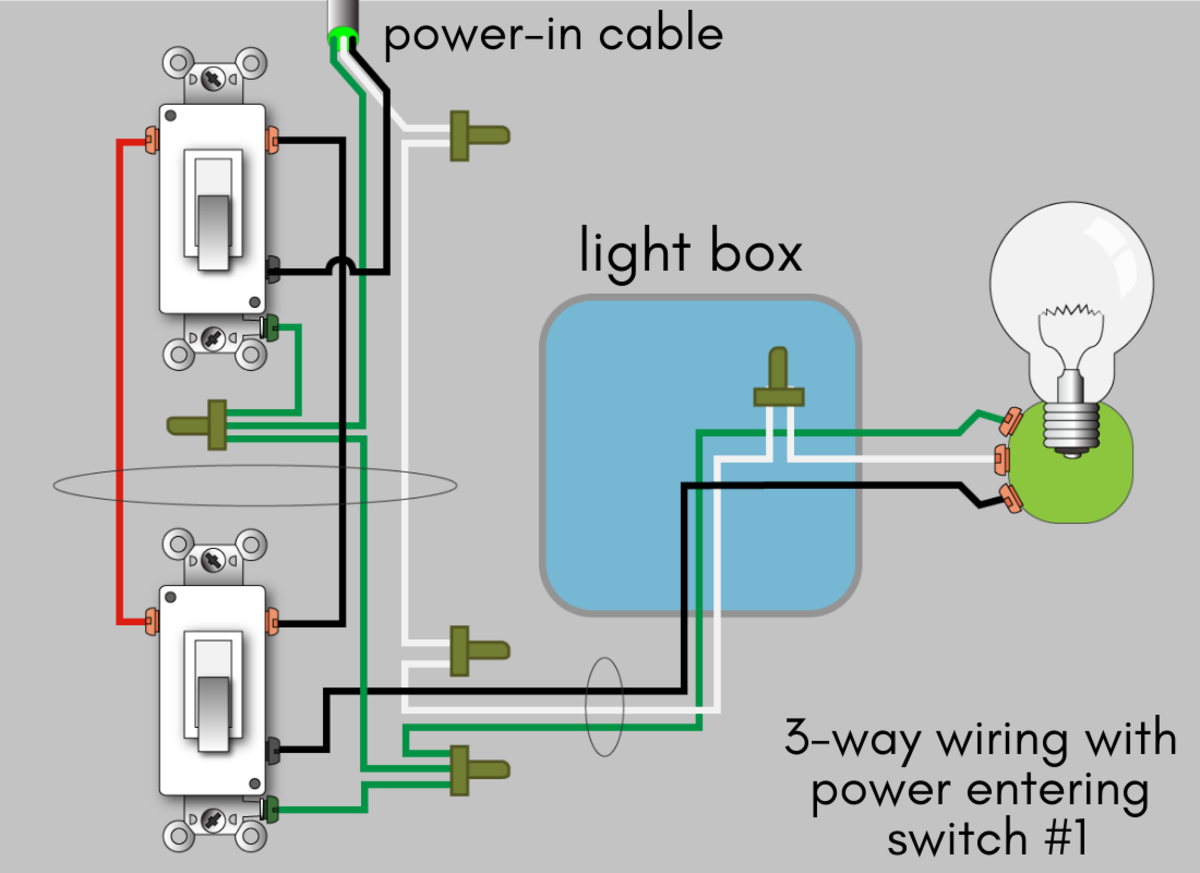

One common configuration is the power being fed to the switch first, rather than the light. This means that the power source is connected to the common terminal of the first switch, with the travelers connecting the two switches. The power then travels through the travelers to the light, allowing you to control it from either switch.
3 Way Wiring Diagram Power To Switch
It’s important to note that the common terminal of each switch is connected to the black or hot wire, while the travelers are typically red and white wires. Understanding how these wires are connected is crucial to ensuring the switches work properly and the power flows correctly.
When wiring a 3 way switch with power to the switch, it’s important to follow a diagram to ensure everything is connected properly. Start by turning off the power to the circuit, then connect the hot wire to the common terminal of the first switch. Connect the travelers to the remaining terminals, then run a 3-wire cable between the two switches, connecting the corresponding terminals.
Once everything is connected, test the switches to ensure they are working correctly. If the light does not turn on or off from both switches, double check the wiring to make sure everything is connected properly. With a clear understanding of the diagram and how the power flows, wiring a 3 way switch with power to the switch can be a straightforward process.
Overall, understanding the diagram and following the proper steps is key to successfully wiring a 3 way switch with power to the switch. By following the correct wiring configuration and testing the switches, you can ensure that the light can be controlled from multiple locations with ease.
