When it comes to wiring a 3 way switch, it can be a bit confusing for those who are not familiar with electrical work. A 3 way switch allows you to control a single light fixture from two different locations, making it a convenient option for larger rooms or hallways. Understanding the wiring diagram is essential to ensure the switch operates correctly.
Before attempting to wire a 3 way switch, it is important to turn off the power to the circuit at the breaker box to prevent any accidents. Make sure to have the necessary tools and materials on hand, such as wire strippers, electrical tape, and a voltage tester. Following the wiring diagram carefully will help you successfully install the switch.
3 Way Switch Wiring Diagrams

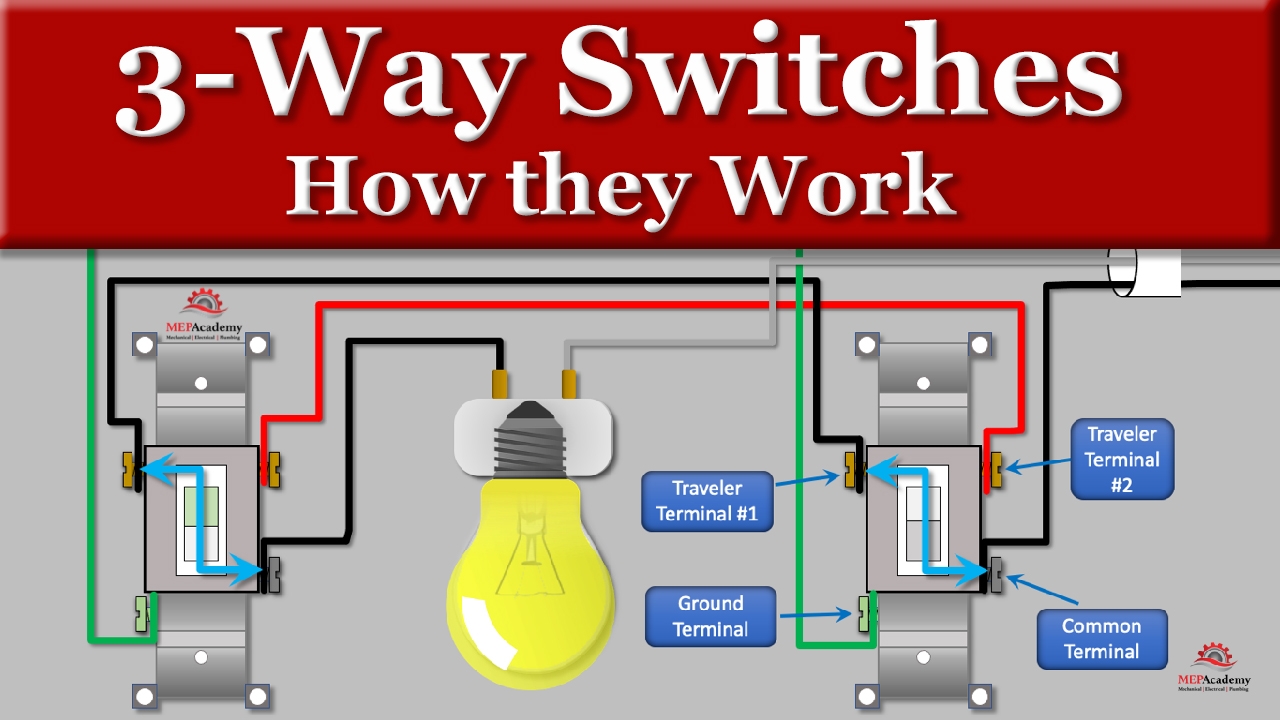

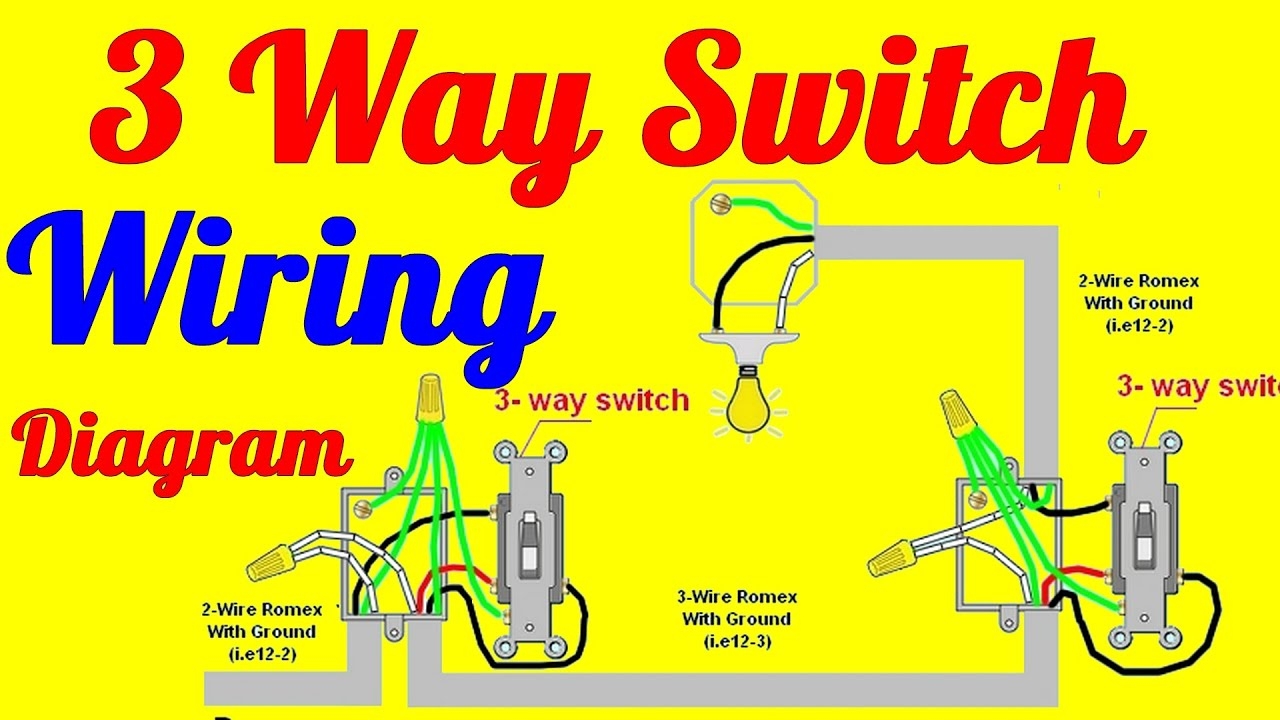

There are several ways to wire a 3 way switch, but the most common method involves using two switches and one light fixture. The power source is connected to the first switch, which is then connected to the second switch, and finally to the light fixture. This allows you to control the light from both switches.

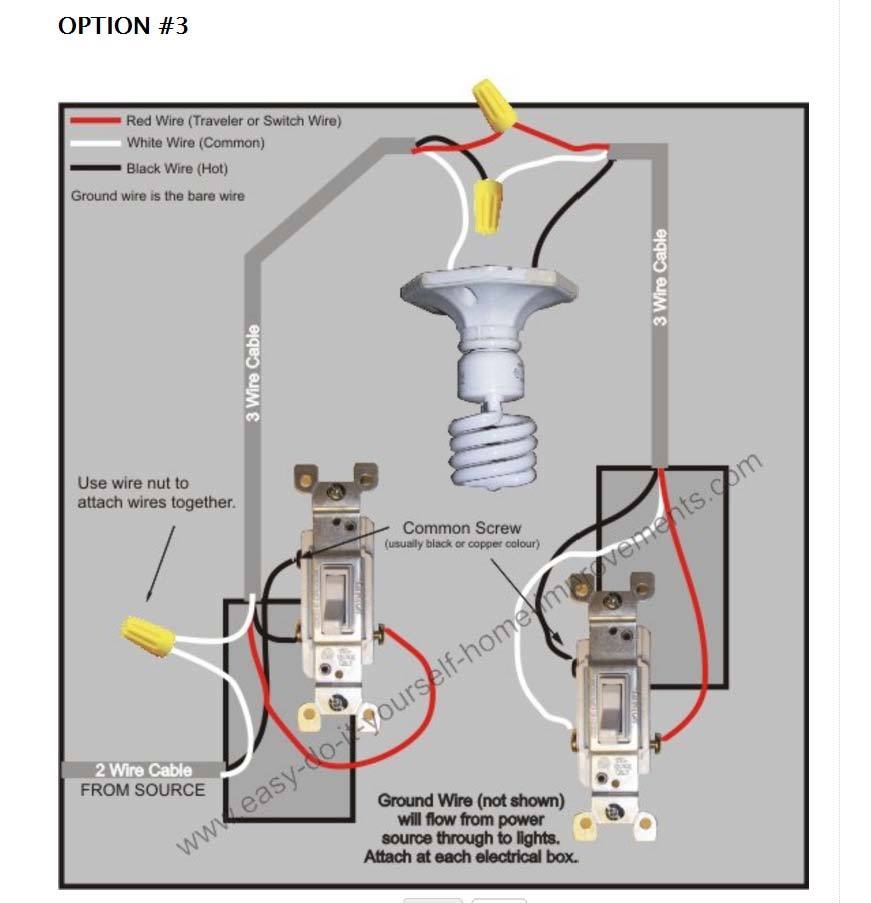

Another option is to use a three-wire cable between the two switches, with the power source at one of the switches. This method is often used when the power source is at the fixture location. The key is to ensure the travelers are connected correctly to allow for proper operation of the switch.
It is important to label the wires when wiring a 3 way switch to avoid confusion during installation. The common wire is typically black, while the travelers are usually red and white. Following the wiring diagram closely will help you determine which wires to connect to each terminal on the switch.
In conclusion, understanding the wiring diagram for a 3 way switch is crucial for a successful installation. By following the correct steps and using the right tools, you can easily wire a 3 way switch in your home. Remember to always turn off the power before starting any electrical work and consult a professional if you are unsure. With the right knowledge and precautions, you can safely install a 3 way switch and enjoy the convenience it provides.
