When it comes to wiring a 3 way switch, it can seem like a daunting task for those who are not familiar with electrical work. However, with the right instructions and a bit of patience, it is actually quite simple to do. A 3 way switch allows you to control a single light or group of lights from two different locations, making it a convenient option for many homes.
Before starting the wiring process, it is important to turn off the power to the circuit at the breaker box to avoid any accidents. It is also recommended to use a voltage tester to ensure that the power is indeed off before proceeding with the installation.

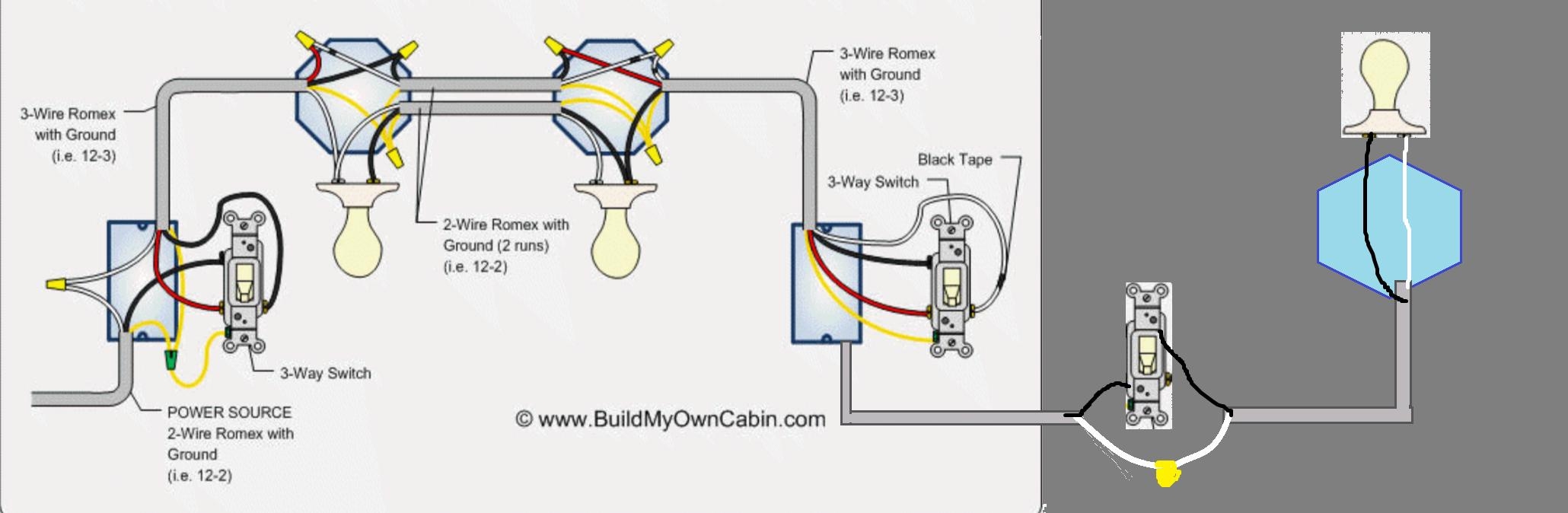

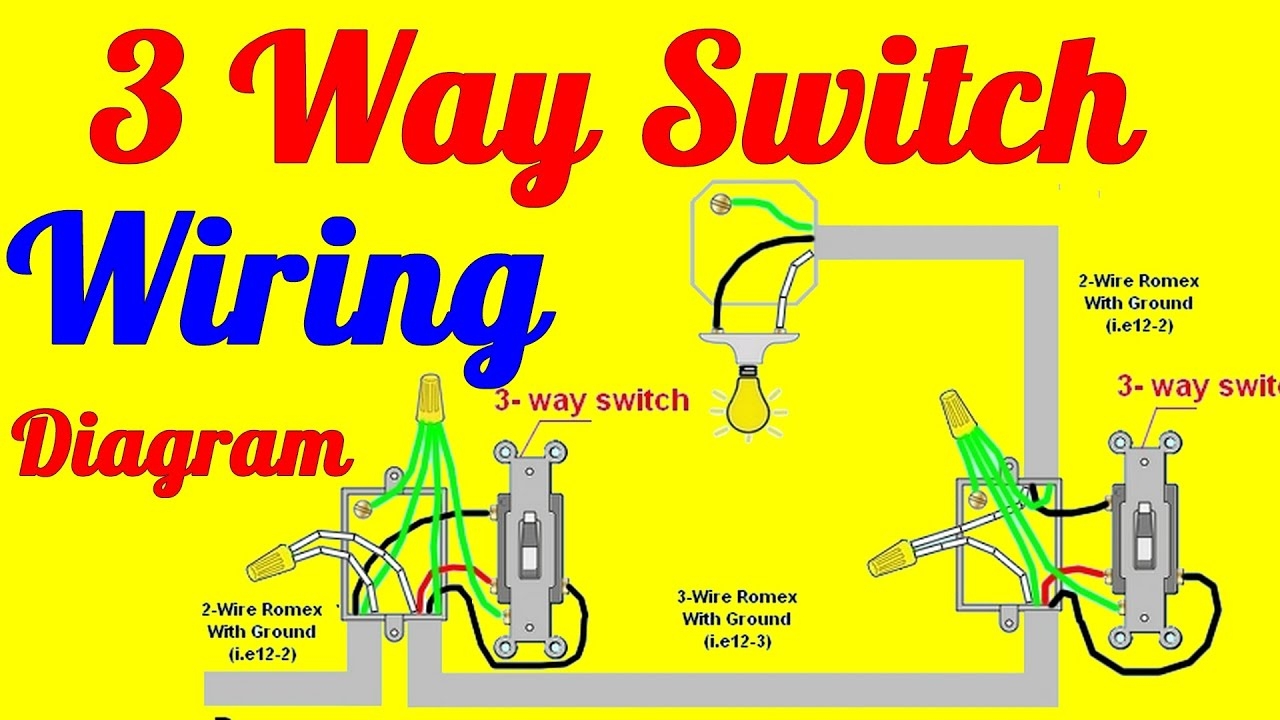

3 Way Switch Wiring Diagram
First, you will need to identify the two switches that will be used to control the light. One switch will be located at the original location of the light, while the other switch will be at a different location. The switches will have three terminals each – one common terminal and two traveler terminals.
Next, you will need to connect the wires between the switches. The common terminal of the first switch should be connected to the hot wire coming from the power source. The common terminal of the second switch should be connected to the light fixture. The traveler terminals of both switches should be connected to each other using a traveler wire.
Once all the wires are connected, you can test the switches to ensure they are working properly. If the light turns on and off from both locations, then you have successfully wired a 3 way switch.
Overall, wiring a 3 way switch can be a straightforward process as long as you follow the proper instructions and take the necessary safety precautions. With a bit of practice, you can easily master this skill and make your home more convenient and efficient. Remember to always turn off the power before working on any electrical project to ensure your safety.
