When it comes to wiring a 3 way light switch, it can be a bit confusing for those who are not familiar with electrical work. However, with the right instructions and understanding, you can easily install a 3 way light switch in your home. In this article, we will discuss the wiring diagram for a 3 way light switch to help you navigate through the process.
A 3 way light switch allows you to control a light fixture from two different locations. This is commonly used in stairways, hallways, and large rooms where you may want to turn the light on or off from multiple entry points. Understanding the wiring diagram is crucial to ensure that the switch functions properly.

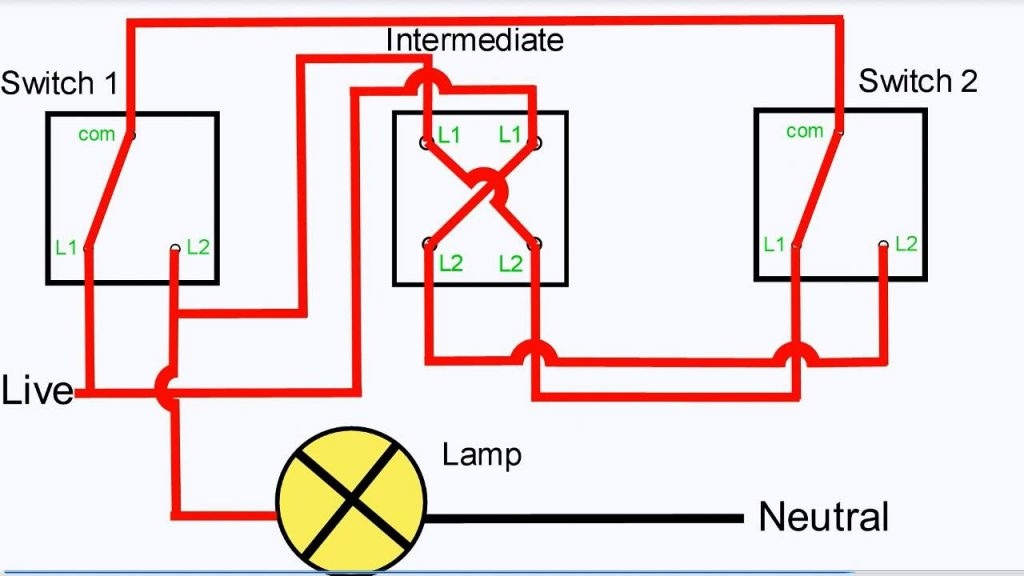

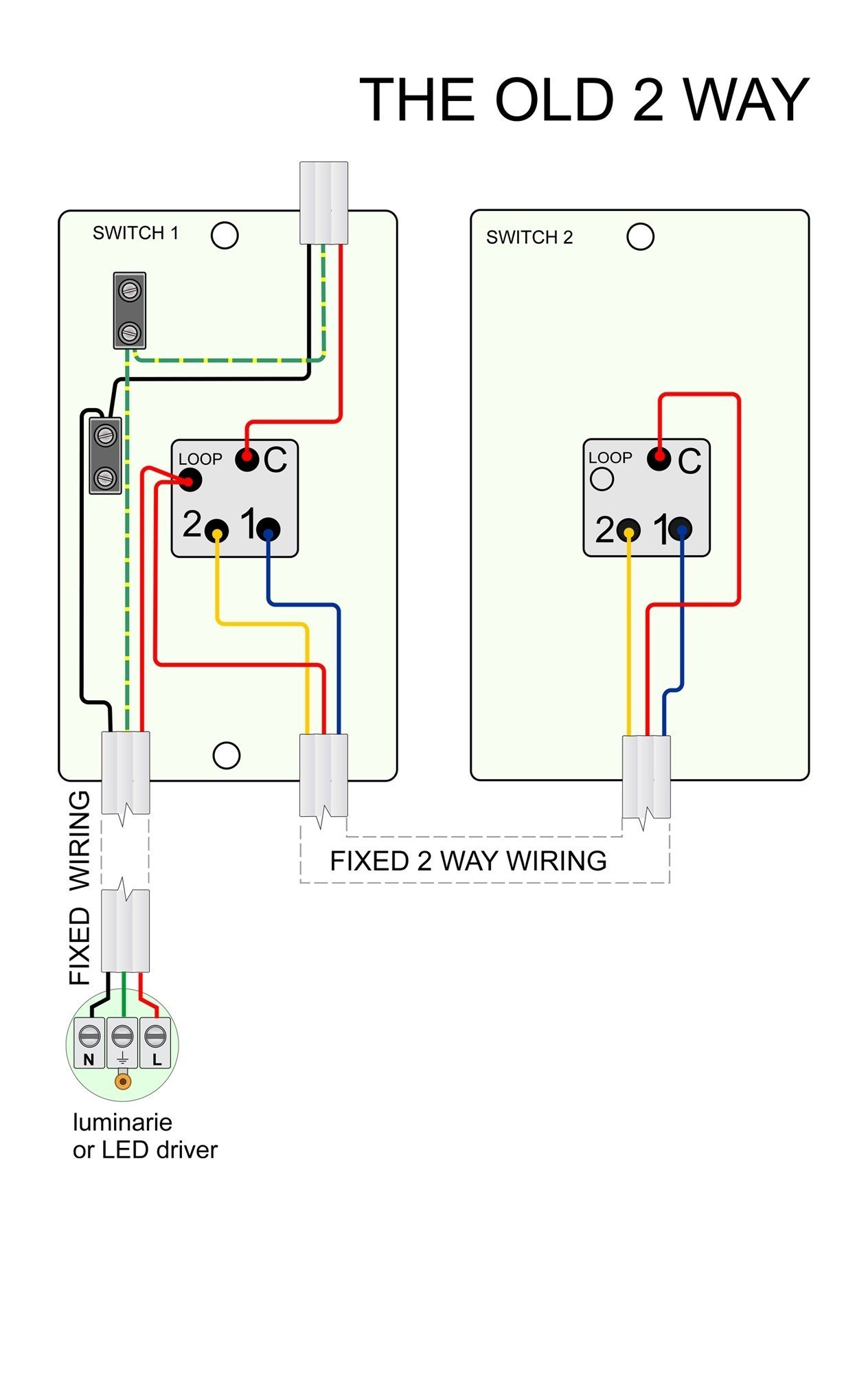

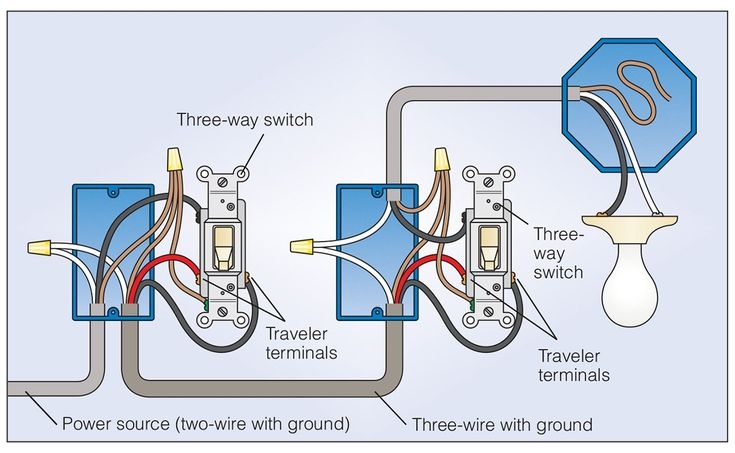

3 Way Light Switching Wiring Diagram
First, you will need to identify the common wire, traveler wires, and ground wire. The common wire is typically black and connects to the black screw on the 3 way switch. The traveler wires are usually red and white, and they connect to the brass screws on the switch. The ground wire is green and connects to the green screw on the switch.
Next, you will need to connect the wires according to the wiring diagram. The common wire will connect to the common terminal on the first switch, while the traveler wires will connect to the traveler terminals on both switches. Make sure to secure the wires with wire nuts and tighten the screws to ensure a strong connection.
After connecting the wires, you can test the 3 way light switch to see if it functions properly. Flip the switches in different combinations to turn the light on and off from both locations. If the light does not turn on or off correctly, double-check the wiring to ensure that it matches the diagram.
In conclusion, wiring a 3 way light switch may seem daunting at first, but with the right guidance, you can successfully install one in your home. By following the wiring diagram and properly connecting the wires, you can enjoy the convenience of controlling a light fixture from multiple locations.
