When it comes to wiring a 3 way light switch, it can be a bit confusing for those who are not familiar with electrical work. However, with the right instructions and a clear diagram, you can easily wire a 3 way light switch in your home.
A 3 way light switch allows you to control a light fixture from two separate locations. This is commonly used in hallways, staircases, and large rooms where multiple switches are needed to control the lighting. Understanding the wiring diagram is essential to ensure the switch functions properly.

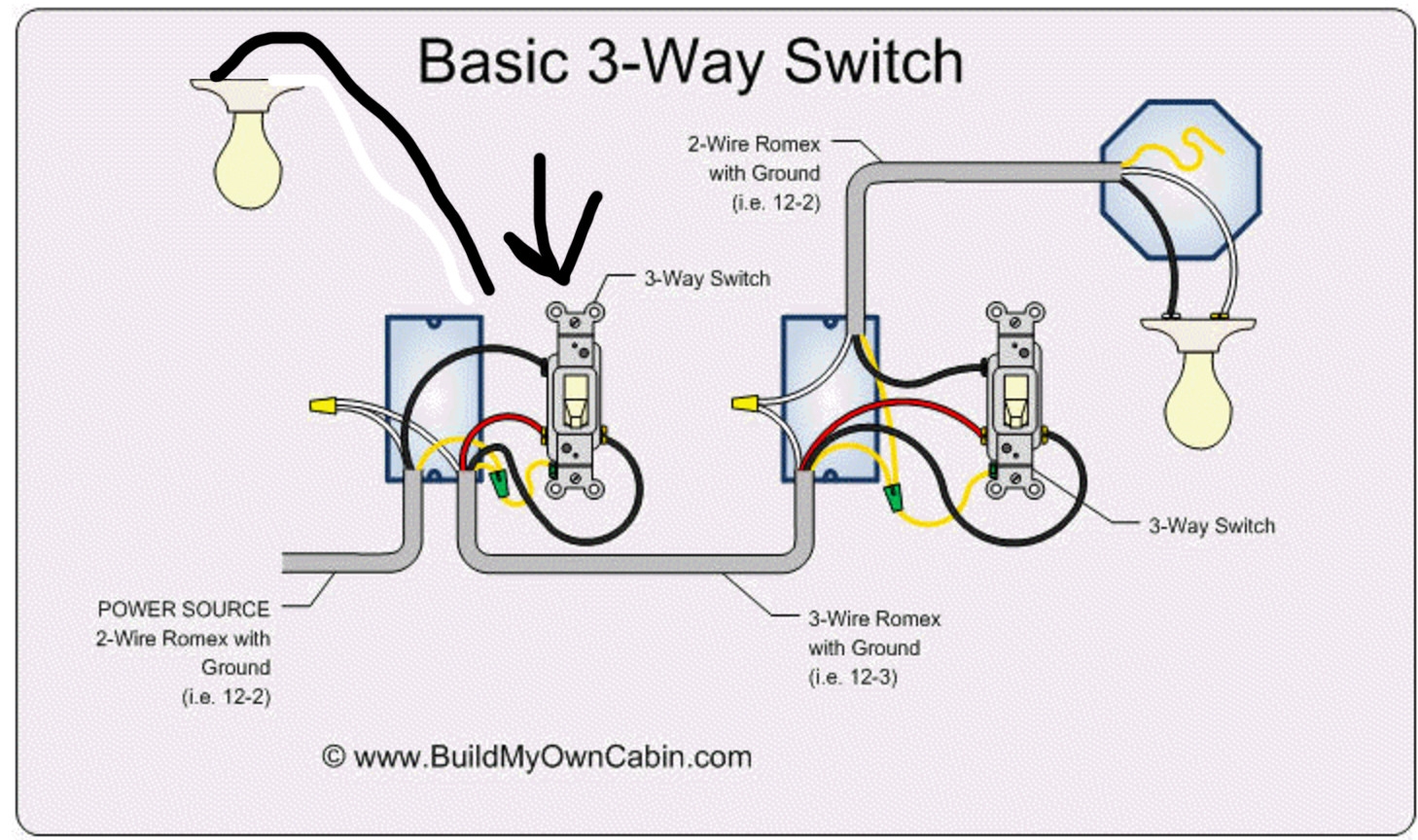

3 Way Light Switch Wiring Diagram
First, you will need to identify the common wire, which is typically black, the traveler wires, which are usually red and black, and the ground wire, which is green or bare copper. The common wire is connected to the black screw on the switch, while the traveler wires are connected to the brass screws. The ground wire is connected to the green screw on the switch.
It’s important to follow the wiring diagram carefully to avoid any mistakes that could cause the switch to malfunction or create a safety hazard. If you are unsure about any part of the process, it’s best to consult a professional electrician to ensure the job is done correctly.
Once you have completed the wiring process, test the switch to make sure it is functioning properly. Turn the power back on and flip the switch in both locations to control the light fixture. If everything is working as it should, you have successfully wired a 3 way light switch.
In conclusion, understanding the wiring diagram for a 3 way light switch is crucial for a successful installation. With the right tools and knowledge, you can easily wire a 3 way light switch in your home to control your lighting from multiple locations.
