When it comes to installing a dimmer switch in your home, a 3 way dimmer switch can offer added convenience and flexibility. This type of switch allows you to control the brightness of a light from multiple locations, making it ideal for rooms with more than one entryway or switch.
Before you begin the installation process, it’s important to have a clear understanding of how the wiring should be set up. Following a 3 way dimmer switch wiring diagram can help ensure that everything is connected correctly and functions properly.
3 Way Dimmer Switch Wiring Diagram

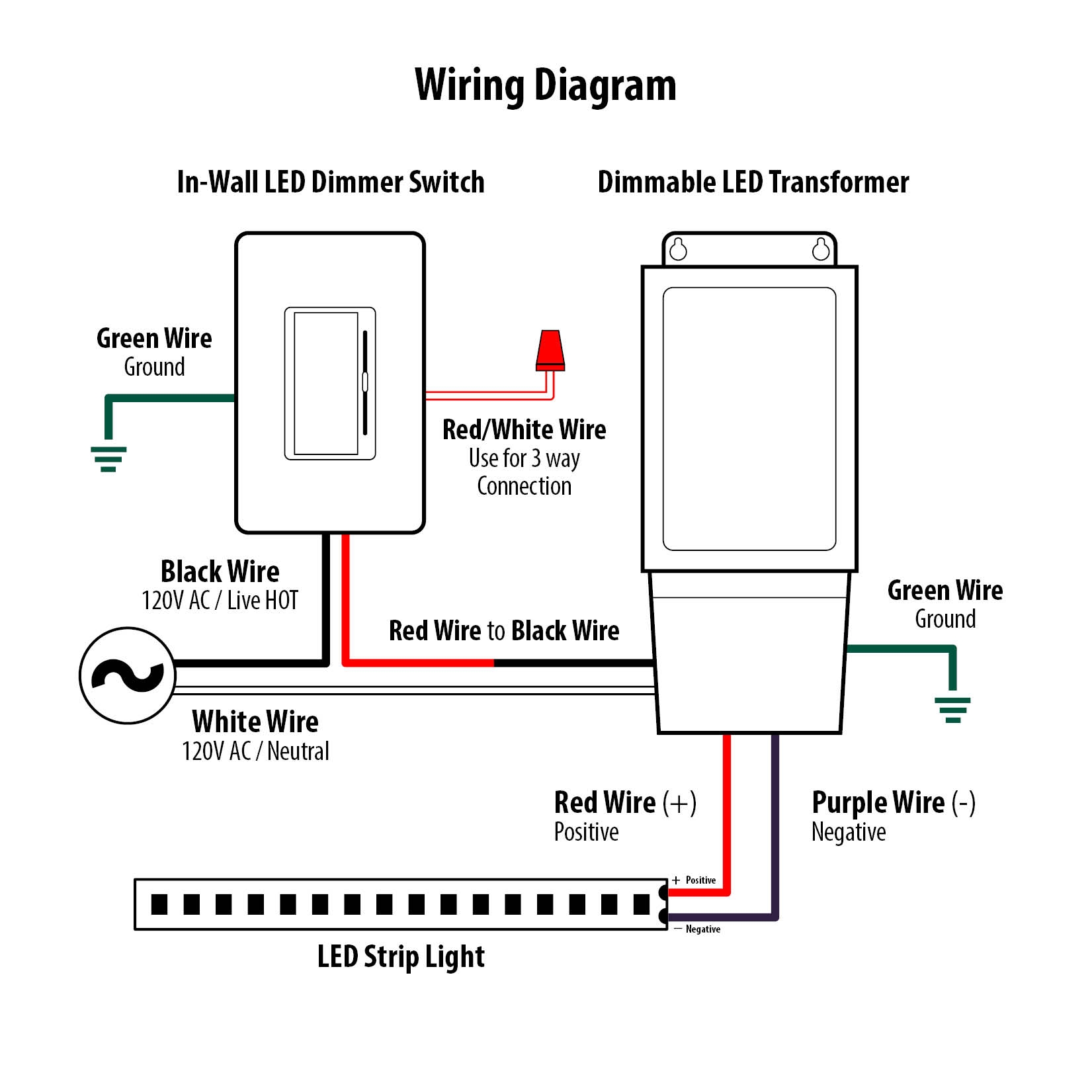

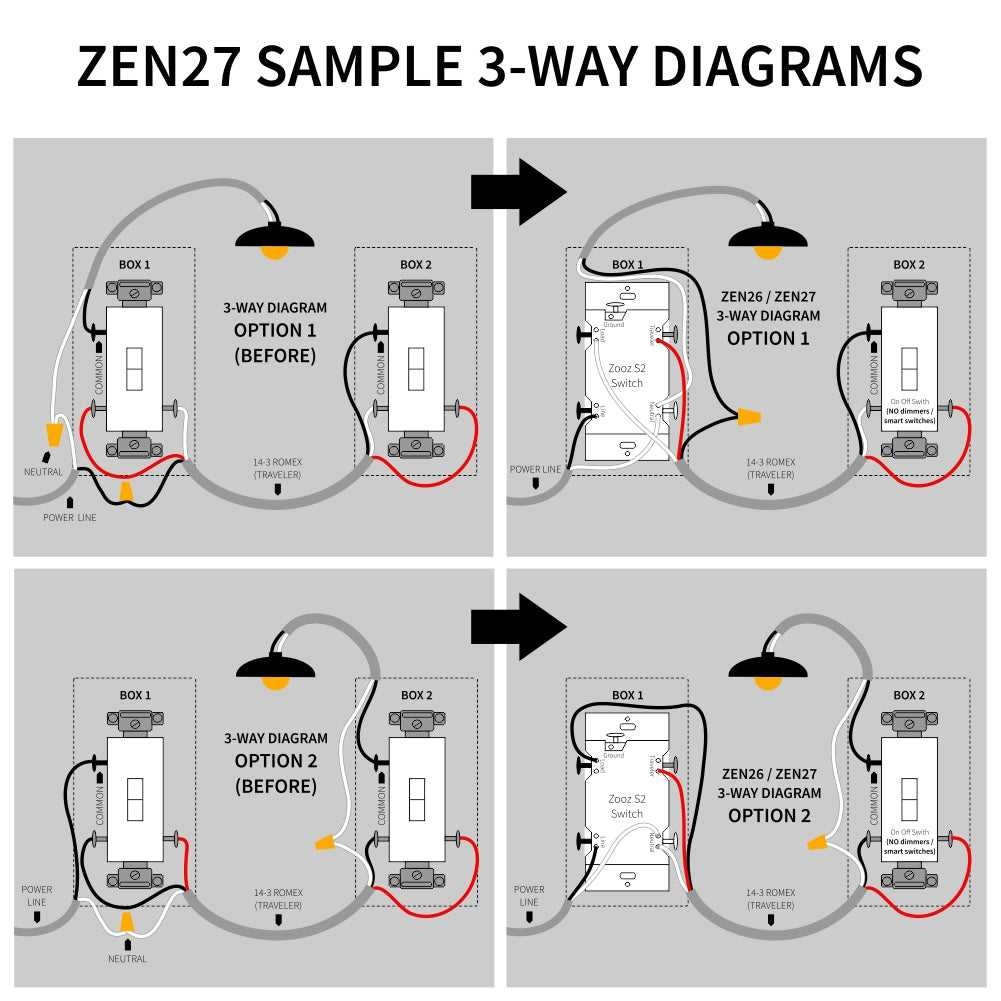

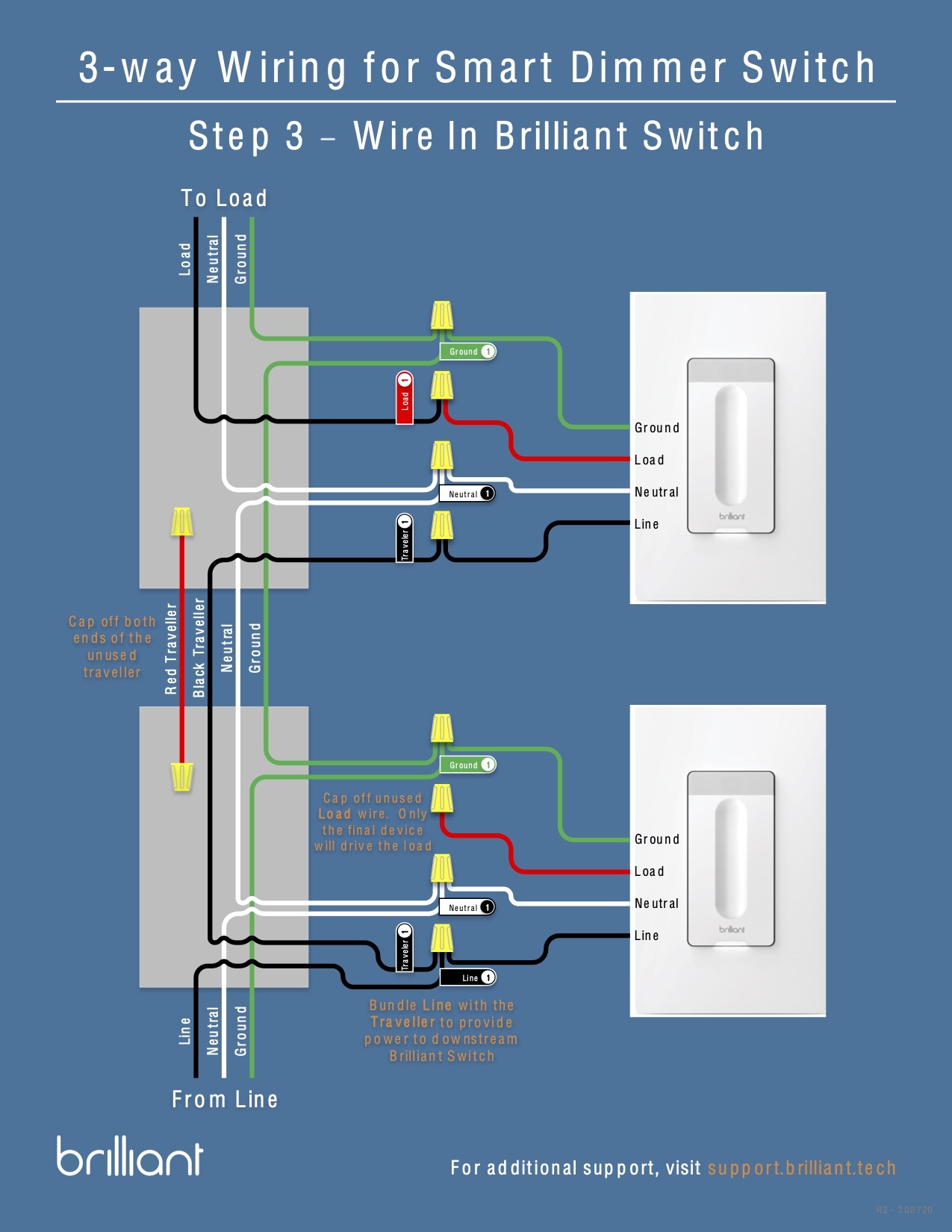

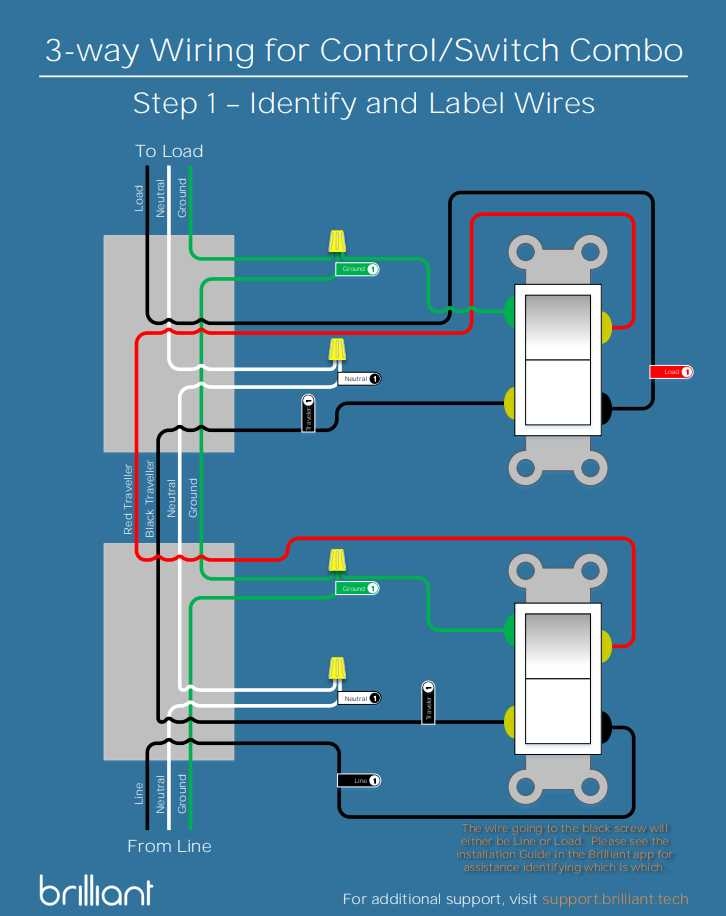

Here is a simple 3 way dimmer switch wiring diagram to guide you through the installation process:
1. Begin by turning off the power to the circuit at the breaker box to avoid any accidents. Remove the existing switches from the wall and locate the common wire, which is typically black.
2. Connect the black wire from the dimmer switch to the common wire using a wire nut. The remaining wires will be the traveler wires, which are usually red and white. Connect the red wire from the dimmer to the red traveler wire and the white wire from the dimmer to the white traveler wire.
3. Install the dimmer switch in the wall box, securing it with the screws provided. Once the switch is in place, turn the power back on and test the dimmer to ensure that it is working correctly.
4. If the dimmer is functioning properly, replace the cover plate and turn the power back off to secure the switch in place. You can now enjoy the convenience of adjusting the brightness of your lights from multiple locations.
5. It’s important to follow the manufacturer’s instructions and consult a professional if you are unsure about any part of the installation process. Safety should always be a top priority when working with electrical wiring.
Overall, a 3 way dimmer switch can be a great addition to any home, providing added convenience and control over your lighting. By following a wiring diagram and taking the necessary precautions, you can successfully install a dimmer switch in no time.
