Extension cords are a common household item used to provide power to various devices and appliances. A 3 prong extension cord is designed to provide a ground connection for added safety. Understanding how to wire a 3 prong extension cord can help you ensure proper functioning and prevent potential hazards.
Before attempting to wire a 3 prong extension cord, it is important to gather all the necessary tools and materials. You will need a 3 prong plug, wire cutters, a screwdriver, and a basic understanding of electrical wiring. Make sure to also disconnect the cord from any power source before beginning the wiring process.

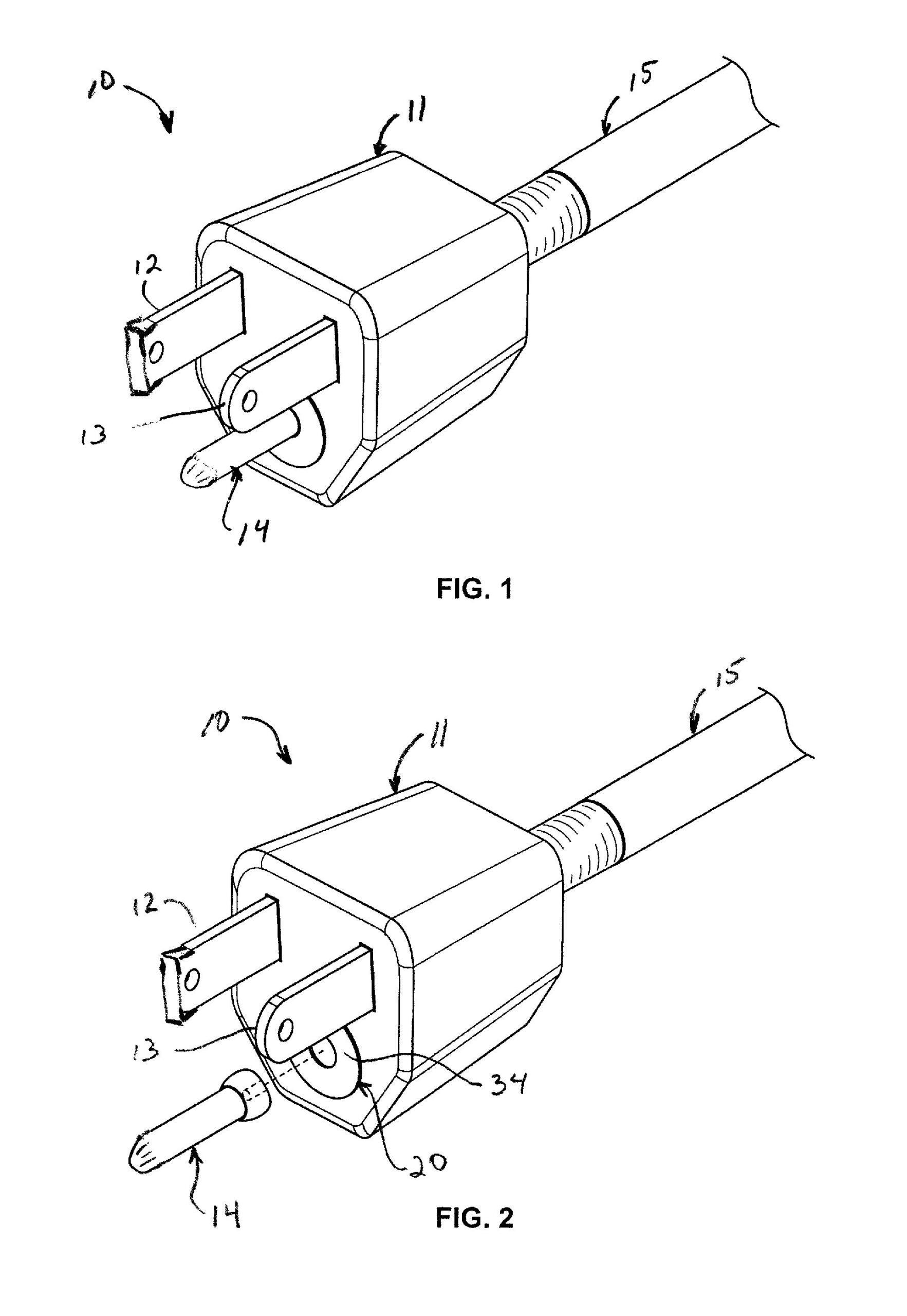

3 Prong Extension Cord Wiring Diagram

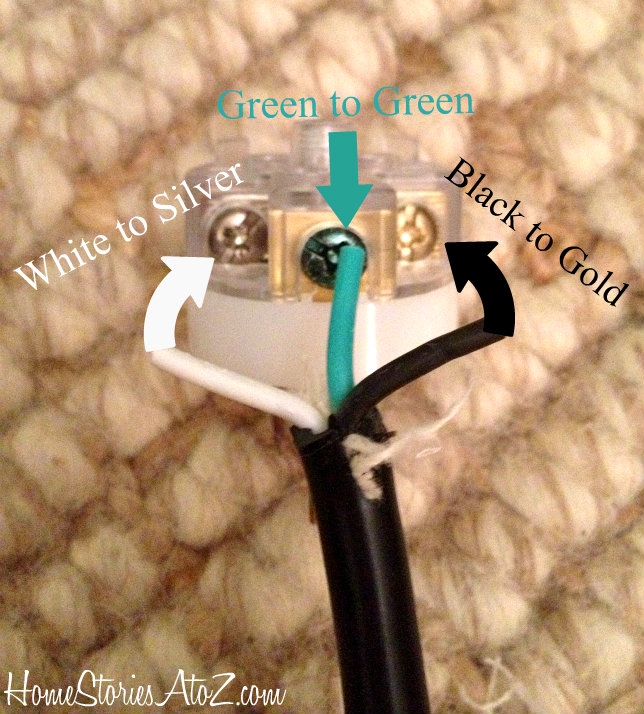

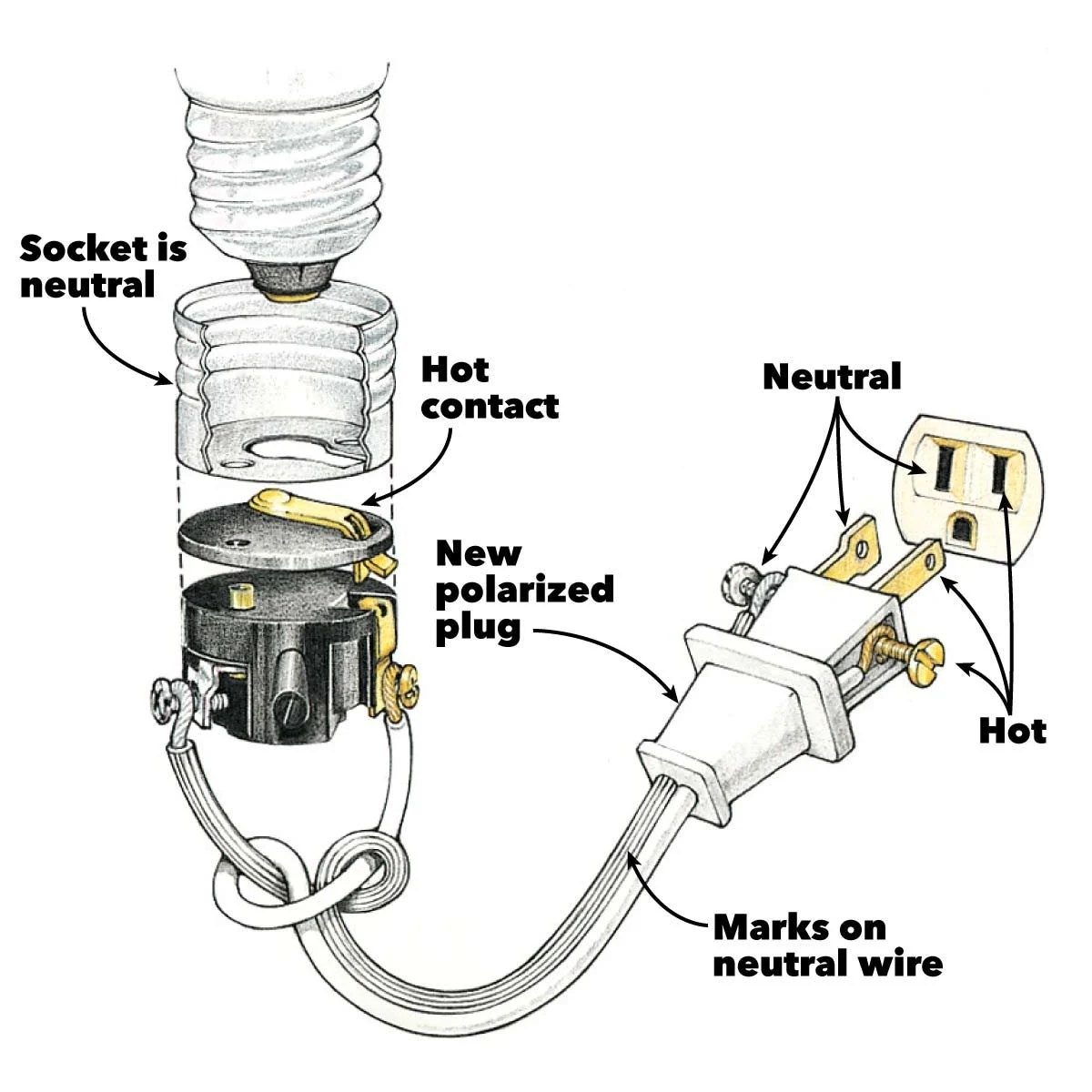

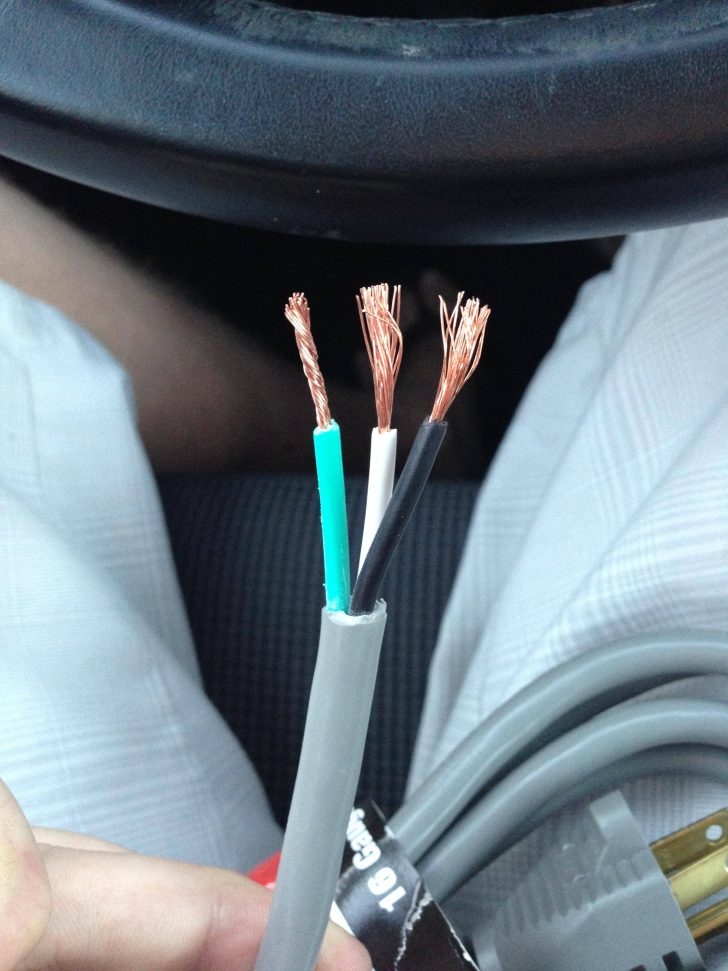

When wiring a 3 prong extension cord, the green wire is used for the ground connection. This wire should be connected to the grounding terminal of the plug. The black and white wires are used for the hot and neutral connections, respectively. The black wire should be connected to the brass terminal, while the white wire should be connected to the silver terminal.
It is important to carefully strip the insulation from the wires before connecting them to the plug. Make sure to securely tighten the screws on the plug terminals to ensure a proper connection. Once all the wires are connected, double check your work to ensure everything is properly wired before plugging in the cord.

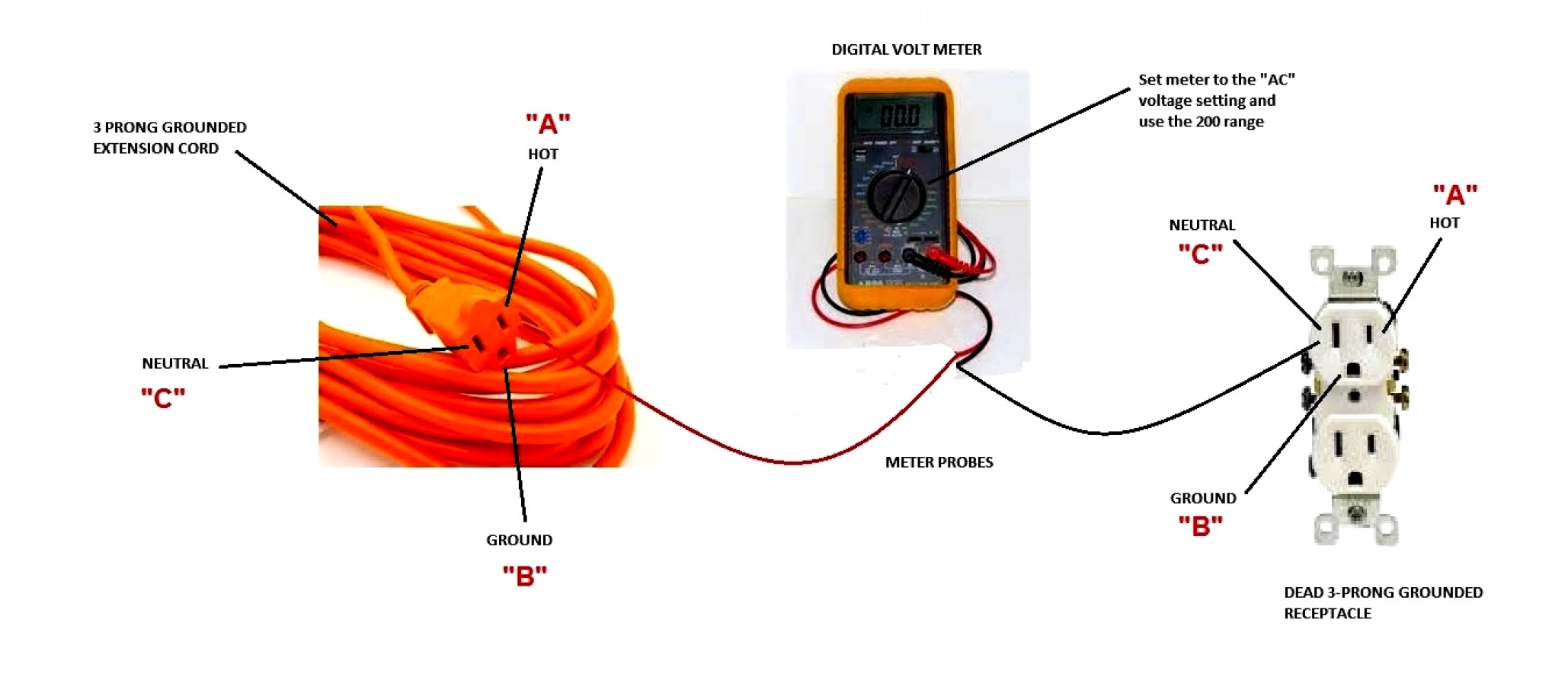

After wiring the 3 prong extension cord, you can test it by plugging it into a power source and checking that the connected device or appliance is receiving power. If everything is working properly, you can safely use the extension cord for your electrical needs. Remember to periodically inspect the cord for any signs of damage or wear and tear to prevent potential hazards.
In conclusion, knowing how to wire a 3 prong extension cord is essential for maintaining the safety and functionality of your electrical devices. By following the proper wiring diagram and taking necessary precautions, you can ensure that your extension cord is safely providing power to your appliances. Stay informed and stay safe when dealing with electrical wiring projects.
