When it comes to installing a new dryer or replacing an old one, it’s important to understand how to properly wire the dryer cord. The wiring can vary depending on the type of cord you have, but one common type is the 3 prong dryer cord. By following a wiring diagram, you can ensure that your dryer is safely and correctly connected to the power source.
Before beginning the wiring process, it’s crucial to make sure that the power to the dryer is turned off and unplugged. Safety should always be the top priority when working with electrical wiring. Once you have confirmed that the power is off, you can proceed with wiring the 3 prong dryer cord according to the diagram.

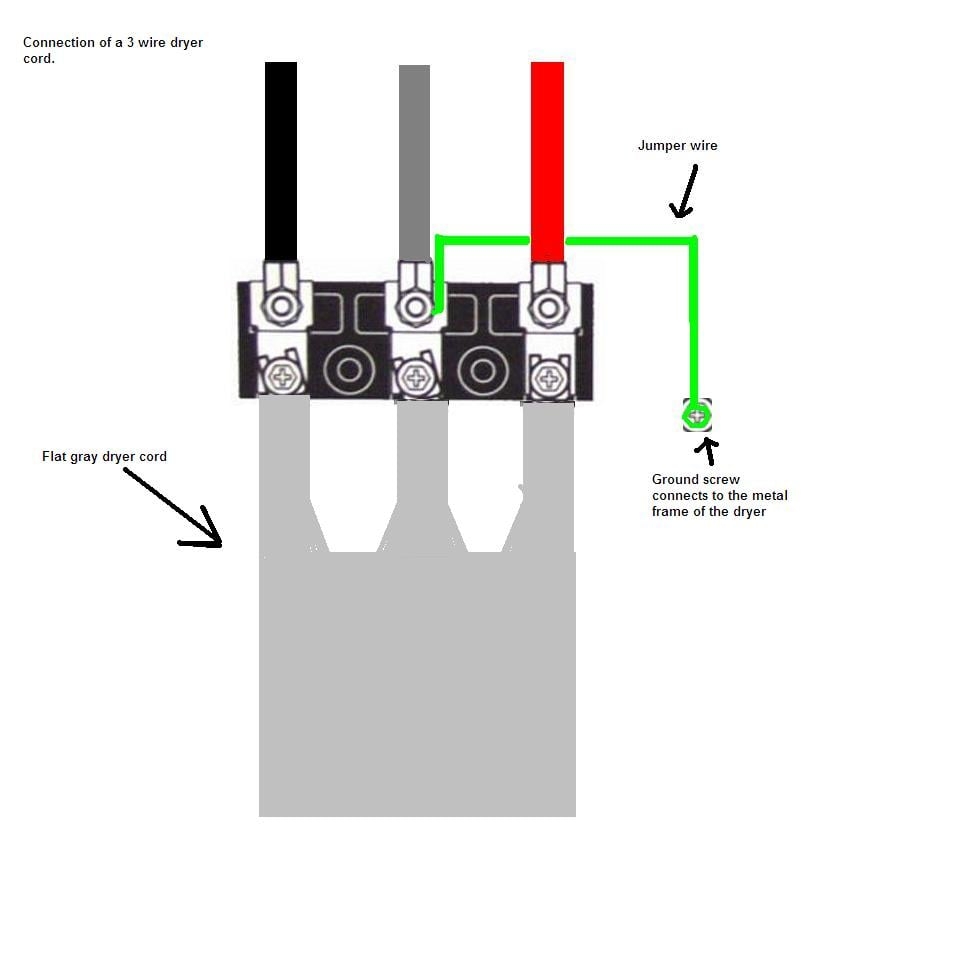

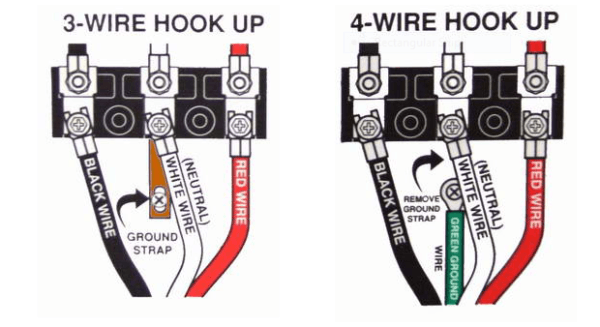

3 Prong Dryer Cord Wiring Diagram

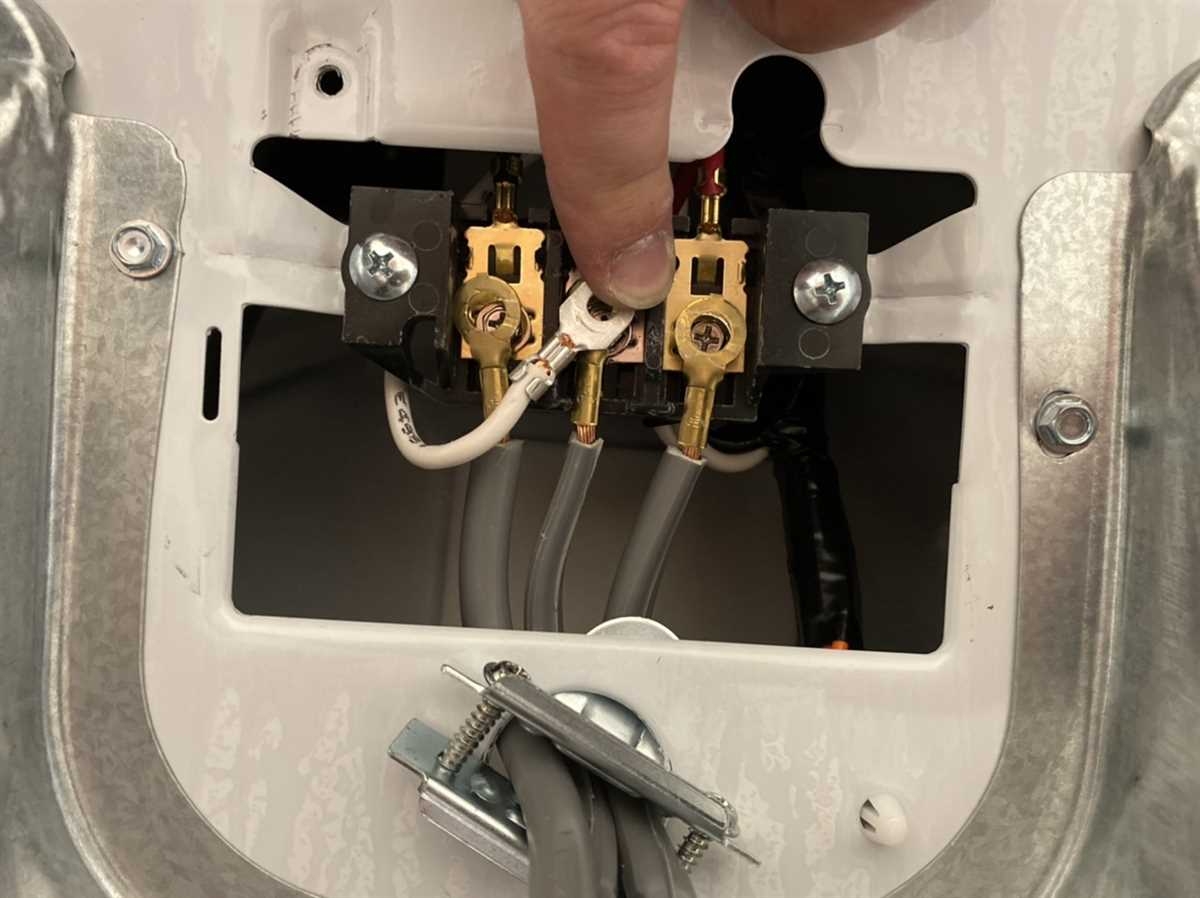

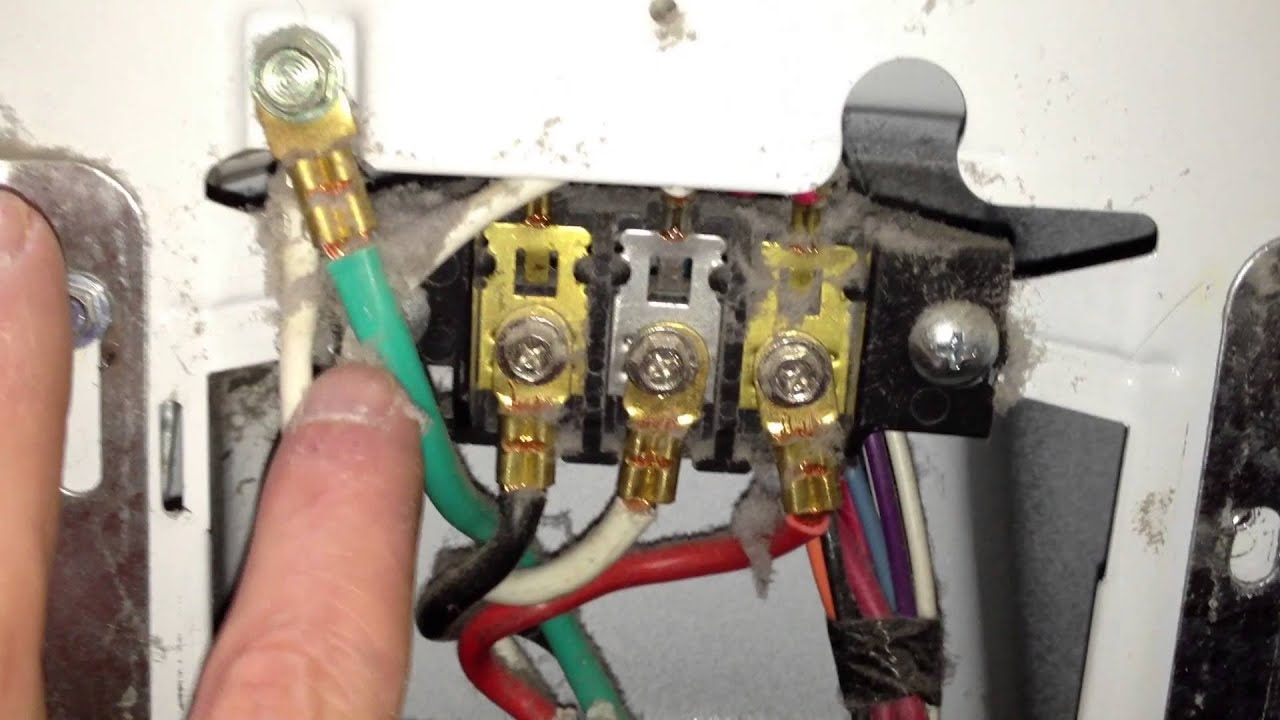

First, you will need to remove the cover plate on the back of the dryer to access the terminal block where the cord will be connected. The terminal block will have three screws labeled as “L1,” “L2,” and “Neutral.” The 3 prong dryer cord will have three wires – black, white, and green (or bare copper). The black wire will connect to the “L1” screw, the white wire to the “Neutral” screw, and the green wire to the ground screw on the dryer.
After securely attaching the wires to the terminal block, you can replace the cover plate on the back of the dryer. It’s important to double-check all connections before plugging the dryer back in and turning on the power. If everything is wired correctly, your dryer should be ready to use.
Following a wiring diagram is essential when working with electrical connections to ensure safety and proper functionality. If you are unsure about how to wire your 3 prong dryer cord, it’s always best to consult a professional electrician for assistance. By taking the time to wire your dryer correctly, you can avoid potential hazards and ensure that your appliance operates efficiently.
Overall, understanding the 3 prong dryer cord wiring diagram is crucial for a successful installation or replacement of your dryer. By following the correct wiring instructions and taking necessary safety precautions, you can confidently connect your dryer to the power source and enjoy its benefits.
