When it comes to wiring a 3 prong 30 amp plug, it’s important to follow the correct diagram to ensure proper installation. This type of plug is commonly used for appliances that require a higher voltage and amperage, such as dryers and stoves. By understanding the wiring diagram, you can safely and effectively connect your appliance to the power source.
Before starting the wiring process, it’s crucial to turn off the power to the outlet you will be working on to prevent any accidents or injuries. You will also need to gather the necessary tools and materials, including a screwdriver, wire strippers, and electrical tape.

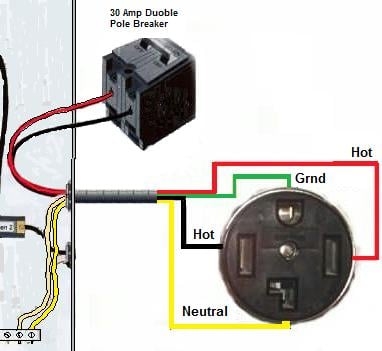

3 Prong 30 Amp Plug Wiring Diagram
Begin by removing the cover plate from the outlet and carefully disconnecting the existing wires. Next, refer to the 3 prong 30 amp plug wiring diagram to identify the correct placement for each wire. Typically, the green wire is for the ground, the white wire is neutral, and the black or red wire is hot.
Once you have identified the correct wires, use the wire strippers to remove a small portion of insulation from each wire. Then, connect the wires to the corresponding terminals on the plug, making sure to secure them tightly with the screwdriver. Finally, cover any exposed wire with electrical tape to ensure a safe connection.
After completing the wiring process, double-check your work to ensure that all connections are secure and properly aligned. Once you are confident that everything is in place, replace the cover plate on the outlet and restore power to the circuit. You can now plug in your appliance and test to ensure that it is functioning correctly.
Overall, understanding the 3 prong 30 amp plug wiring diagram is essential for safely and effectively connecting high-voltage appliances to the power source. By following the correct diagram and taking the necessary precautions, you can ensure a successful installation that will provide reliable power to your appliance.
