When it comes to wiring a 3 prong 12v switch, it’s important to follow a clear diagram to ensure everything is connected properly. This type of switch is commonly used in automotive applications, such as for turning on lights or other accessories. By understanding the wiring diagram, you can easily install the switch and have it function correctly.
One of the key components in the wiring diagram for a 3 prong 12v switch is understanding the different terminals on the switch. Typically, these switches have three terminals: power, accessory, and ground. The power terminal receives the incoming power supply, the accessory terminal connects to the device being powered, and the ground terminal connects to the vehicle’s chassis for proper grounding.
3 Prong 12v Switch Wiring Diagram

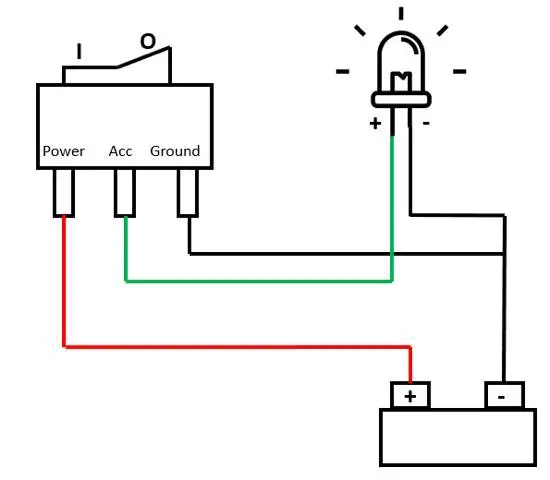

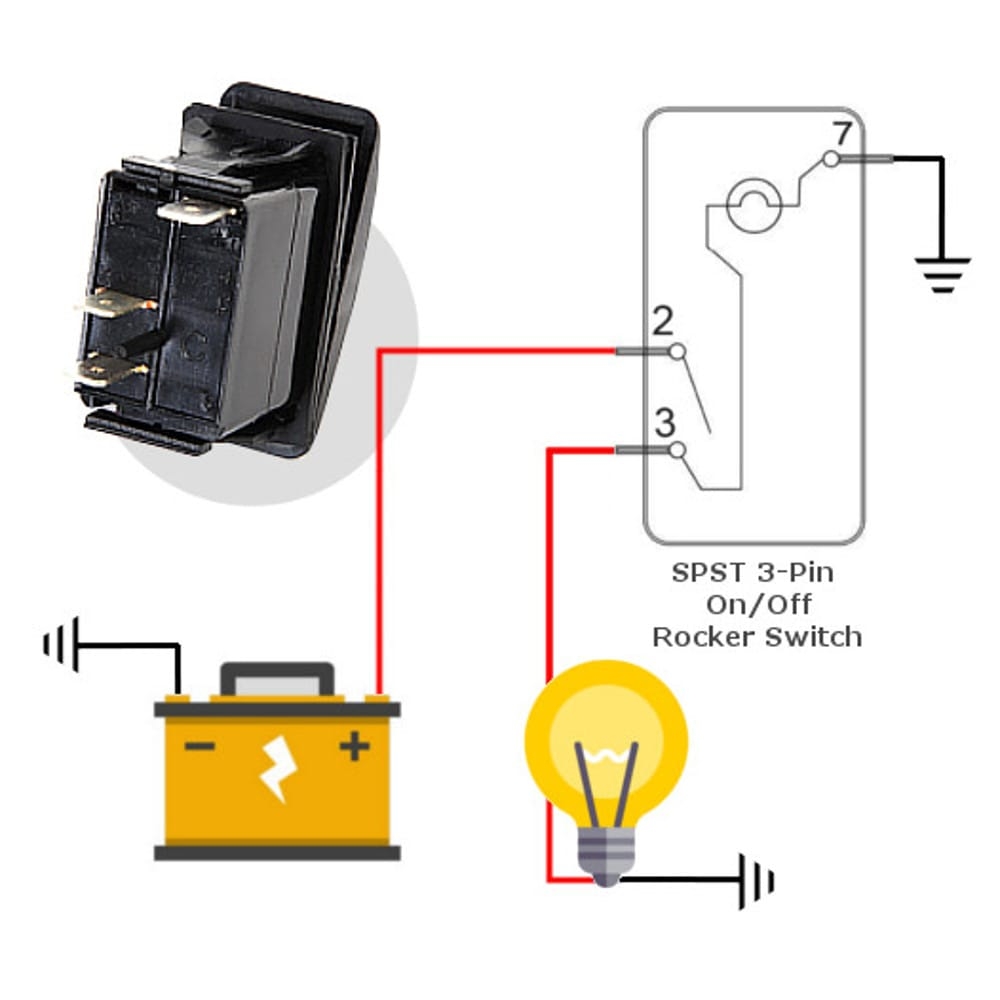

Begin by connecting the power terminal of the switch to the positive terminal of your power source. This is typically the battery or a fused power supply. Next, connect the accessory terminal of the switch to the device you want to power, such as lights or a fan. Finally, connect the ground terminal of the switch to the vehicle’s chassis to complete the circuit. It’s important to use the appropriate gauge wire for each connection to ensure proper power flow.

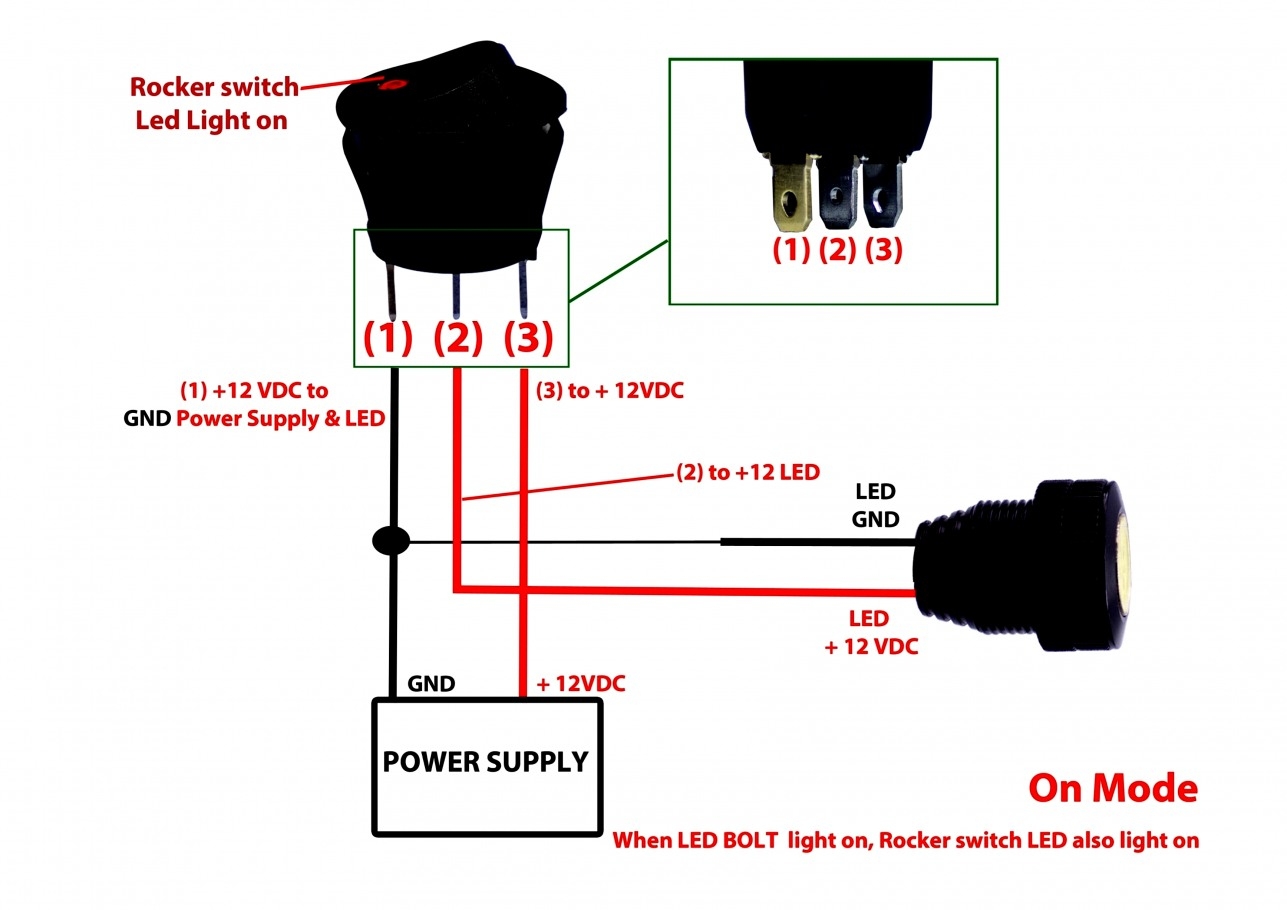

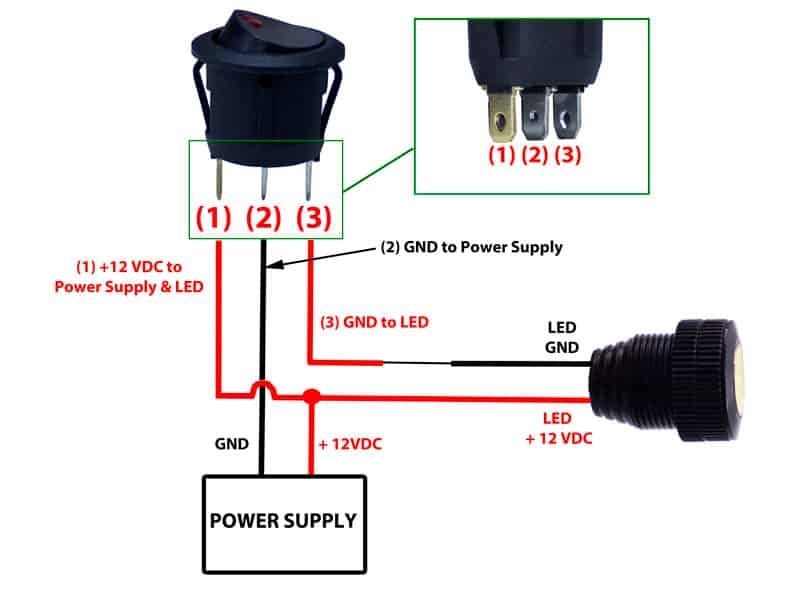

It’s also worth noting that some 3 prong 12v switches come with an indicator light. In this case, you will need to connect an additional wire from the power terminal of the switch to the indicator light, and then from the indicator light to the accessory terminal. This will allow the indicator light to illuminate when the switch is turned on, providing a visual cue that the device is powered.
Once all the connections have been made according to the wiring diagram, test the switch to ensure everything is functioning correctly. If the device does not power on, double-check your connections and make sure everything is secure. With the proper wiring and a clear understanding of the diagram, you can easily install and use a 3 prong 12v switch for your automotive needs.
In conclusion, wiring a 3 prong 12v switch is a straightforward process when following a clear diagram. By understanding the different terminals on the switch and making the proper connections, you can easily install the switch and have it function correctly. Whether you’re powering lights, fans, or other accessories, a 3 prong 12v switch is a versatile component for your automotive electrical needs.
