When it comes to wiring a well pump, it is important to ensure that everything is done correctly to avoid any potential hazards or malfunctions. A 220v 3 wire well pump wiring diagram is essential to understand the wiring process and ensure that the pump operates smoothly and efficiently.
Before starting the wiring process, it is crucial to gather all the necessary tools and materials, including wire connectors, electrical tape, and a voltage tester. It is also recommended to turn off the power supply to the well pump before beginning any wiring work to prevent any accidents.

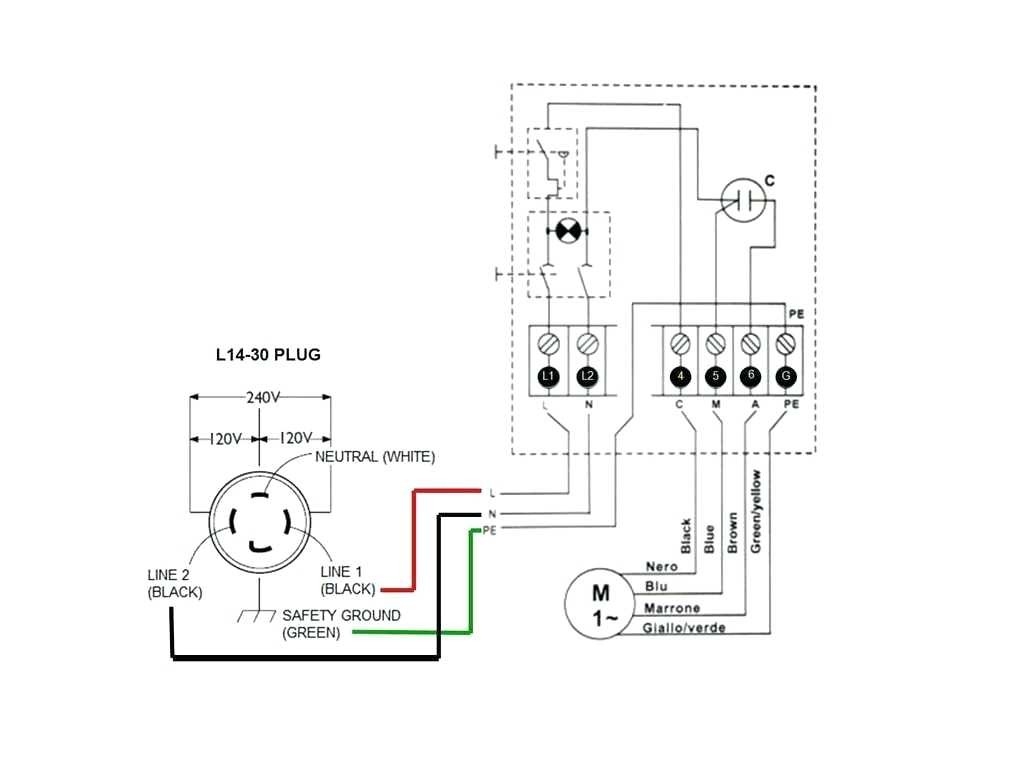

220v 3 Wire Well Pump Wiring Diagram
The first step in the wiring process is to connect the ground wire to the grounding screw on the pump motor. This wire is typically green and should be securely fastened to ensure proper grounding. Next, the two hot wires, which are usually black and red, must be connected to the corresponding terminals on the motor. It is important to double-check the connections to avoid any potential short circuits.
Once the hot wires are connected, the next step is to connect the neutral wire, which is typically white, to the neutral terminal on the motor. This wire completes the circuit and allows the pump to function properly. After all the wires are securely connected, it is essential to cover the connections with electrical tape to provide insulation and protection.
After completing the wiring process, it is crucial to test the pump to ensure that it is functioning correctly. Using a voltage tester, check the voltage at the pump terminals to verify that the connections are secure and the pump is receiving power. If everything checks out, the pump should be ready to use, providing a reliable water supply for your well.
In conclusion, wiring a 220v 3 wire well pump requires careful attention to detail and adherence to safety protocols. By following a well-designed wiring diagram and taking the necessary precautions, you can ensure that your well pump operates efficiently and effectively. Proper wiring not only ensures the pump’s longevity but also guarantees a consistent water supply for your household needs.
