When it comes to installing a 220 volt outlet in your home, it’s important to understand the wiring diagram to ensure safety and proper functionality. A 220 volt outlet is typically used for appliances that require more power, such as dryers and stoves.
Before attempting to wire a 220 volt outlet, it’s crucial to turn off the power at the circuit breaker to avoid any accidents. Make sure to follow the wiring diagram carefully and use the appropriate tools and materials for the job.

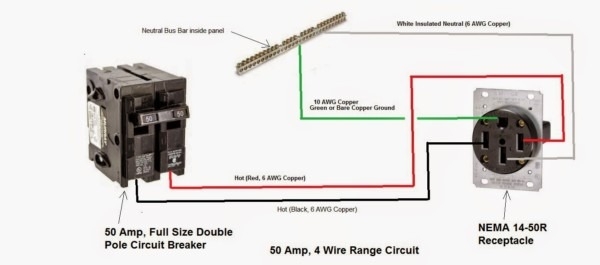

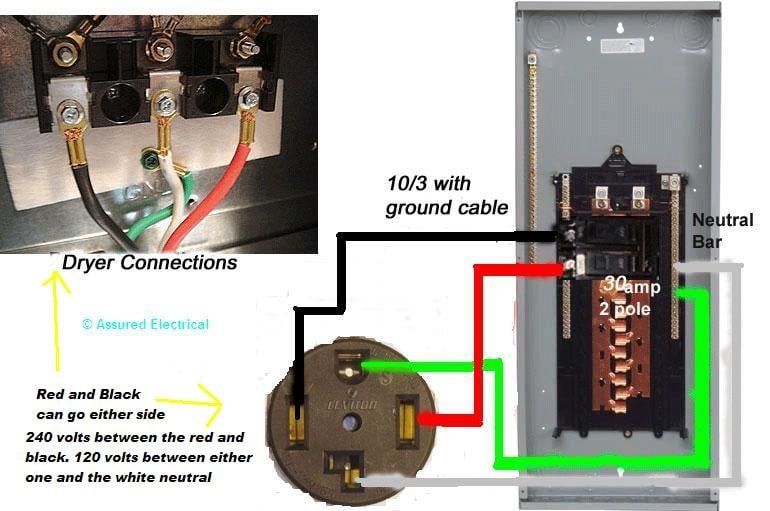

220 Volt Outlet Wiring Diagram
First, you will need to run a 4-wire cable from the circuit breaker to the location where the outlet will be installed. The cable should include two hot wires, a neutral wire, and a ground wire. The hot wires are usually black and red, the neutral wire is white, and the ground wire is green or bare.
Next, connect the hot wires to the brass terminals on the outlet, the neutral wire to the silver terminal, and the ground wire to the green terminal. Make sure to secure the wires with the appropriate screws and tighten them to ensure a strong connection.
Once the wires are connected, carefully insert the outlet into the electrical box and secure it in place with screws. Double-check all connections to make sure they are secure and then turn the power back on at the circuit breaker. Test the outlet with a voltage tester to ensure it is working properly.
It’s important to note that working with electricity can be dangerous, so if you are not comfortable with wiring or have any doubts, it’s best to hire a professional electrician to complete the job. Safety should always be the top priority when working with electrical systems in your home.
By following the proper wiring diagram and taking necessary precautions, you can safely install a 220 volt outlet in your home to power your appliances that require higher voltage. Remember to always consult a professional if you are unsure about any aspect of the installation process.
